Bromic Heating Platinum Smart-Heat™ Gas Heater

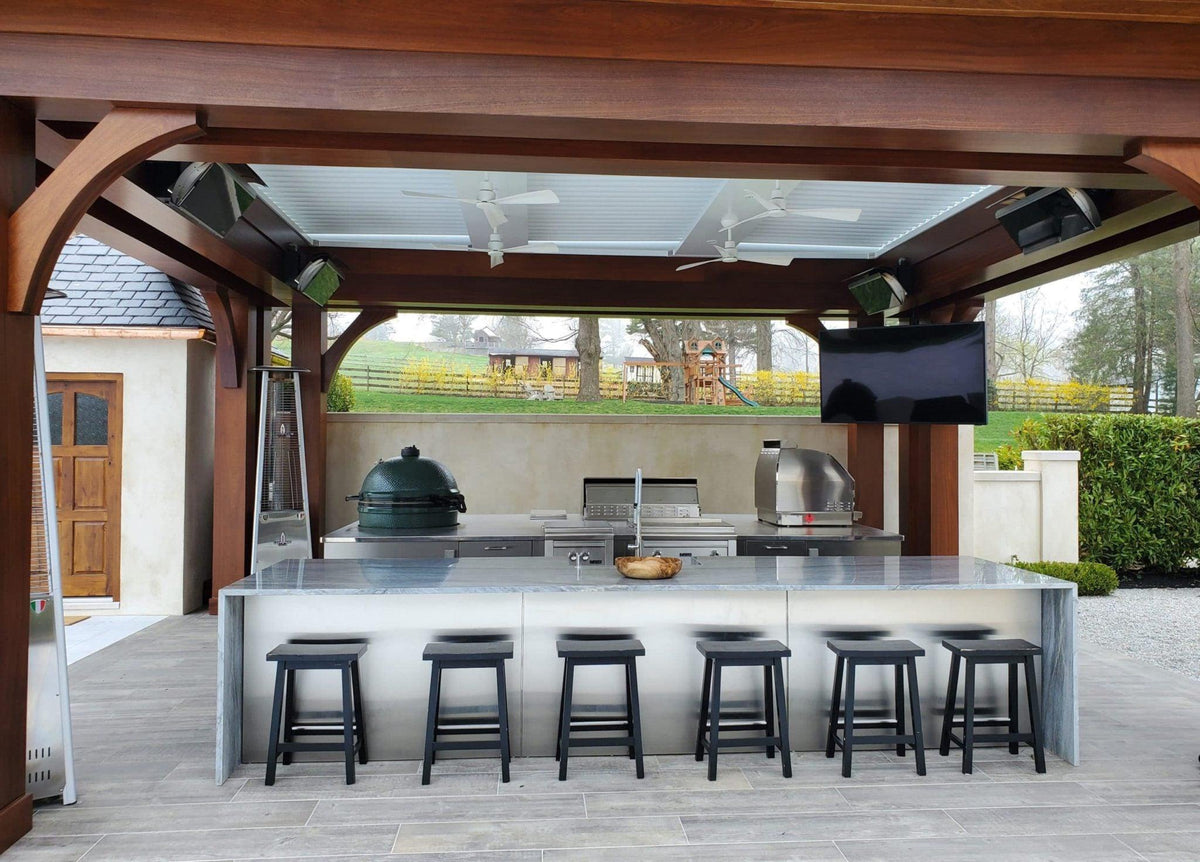

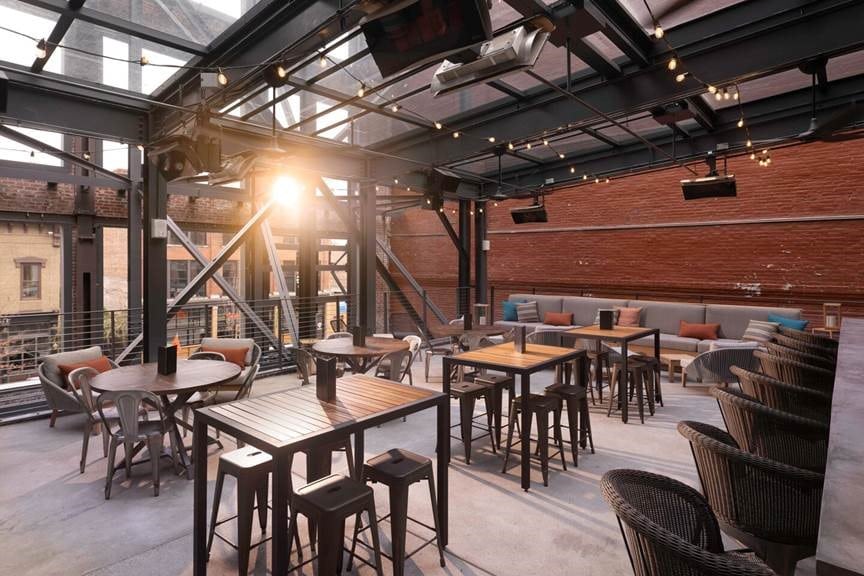

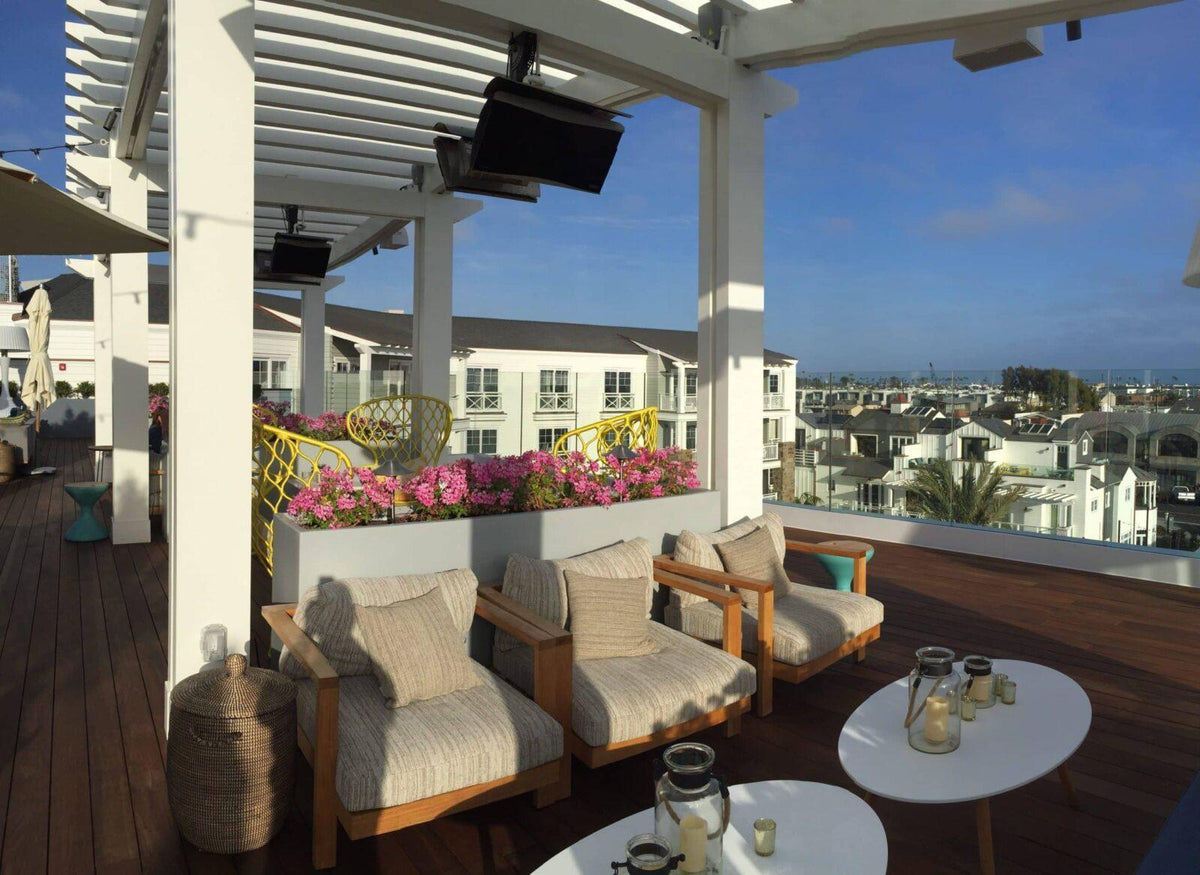

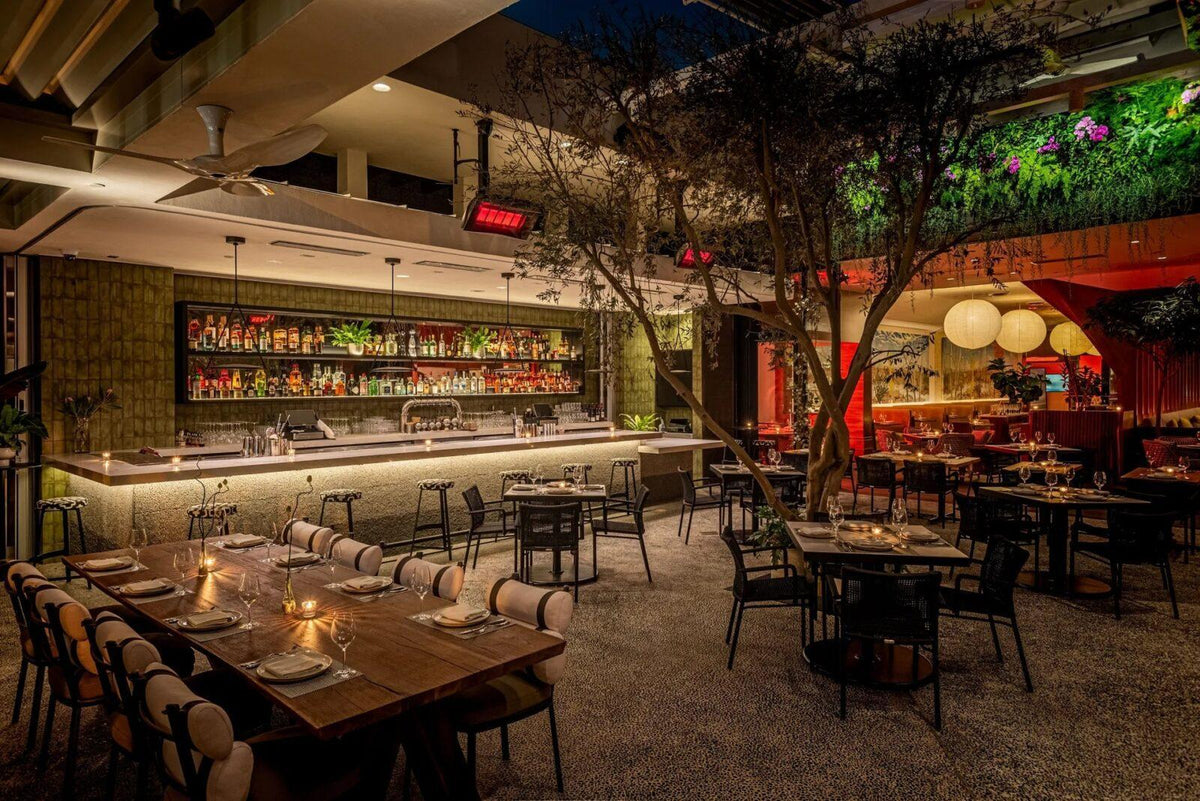

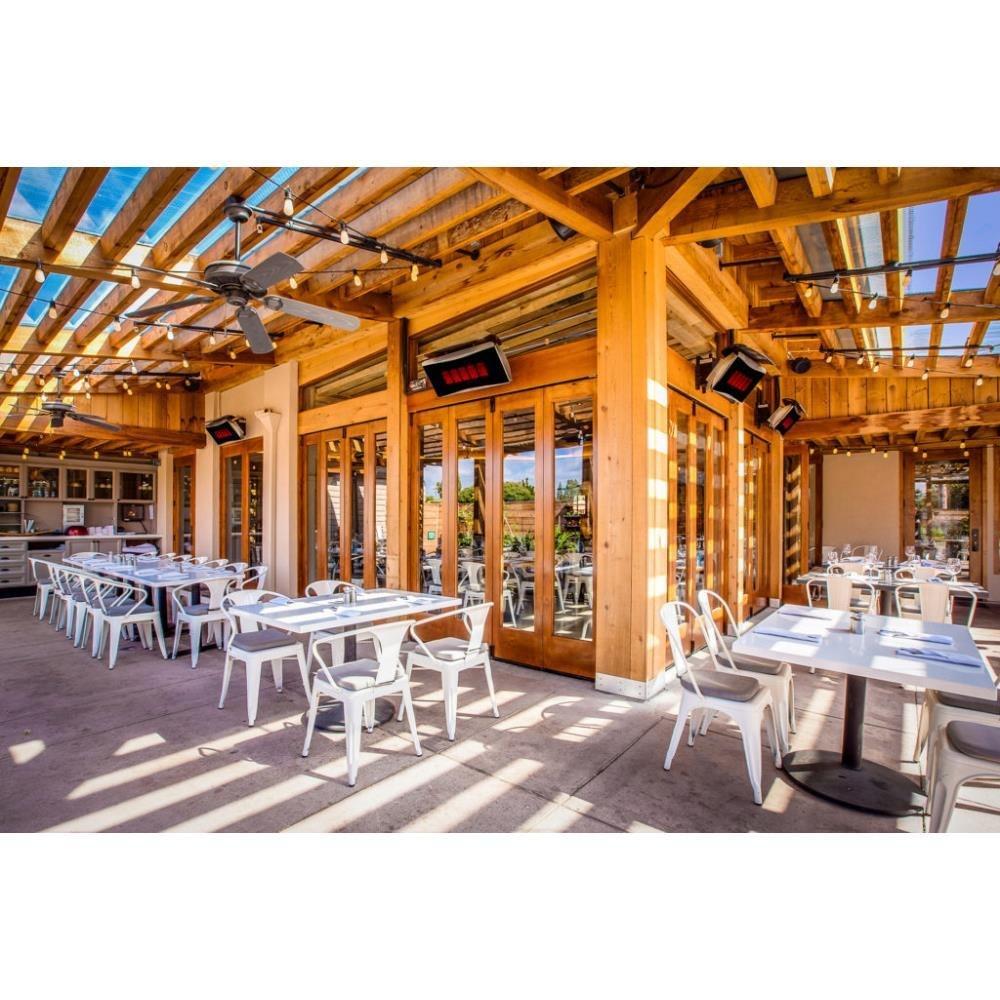

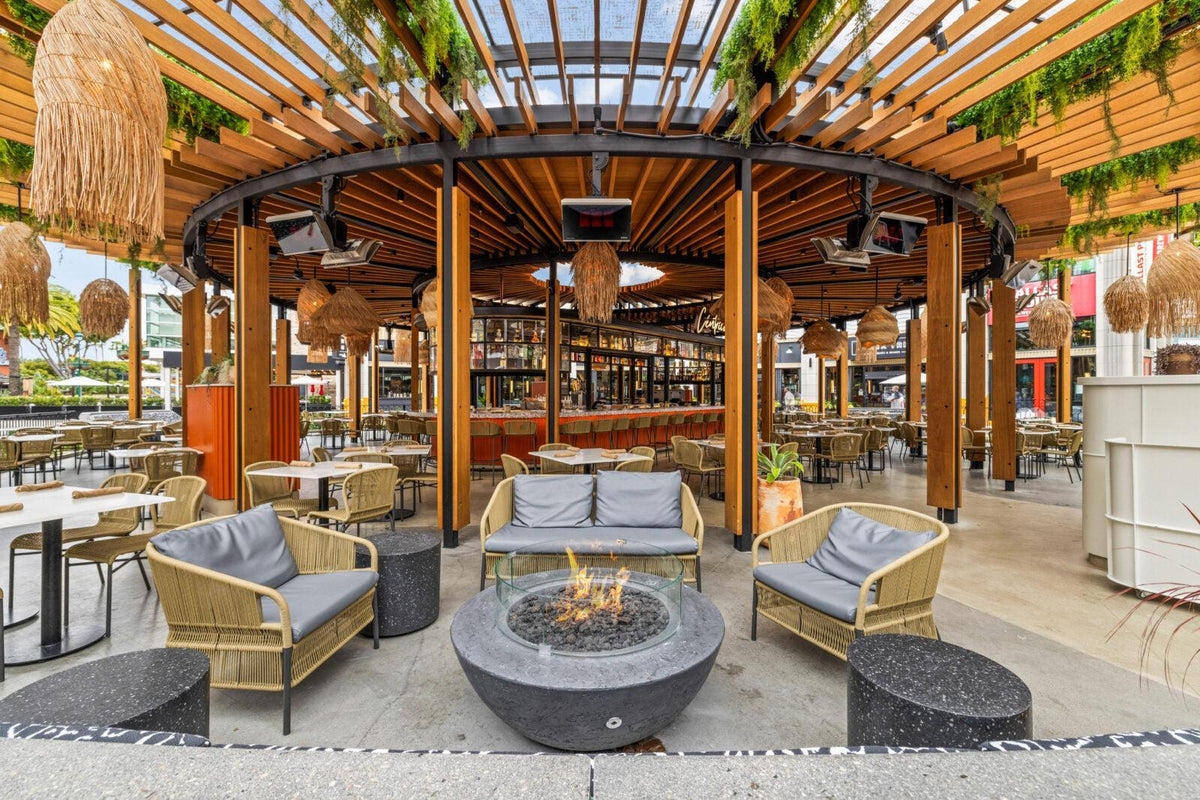

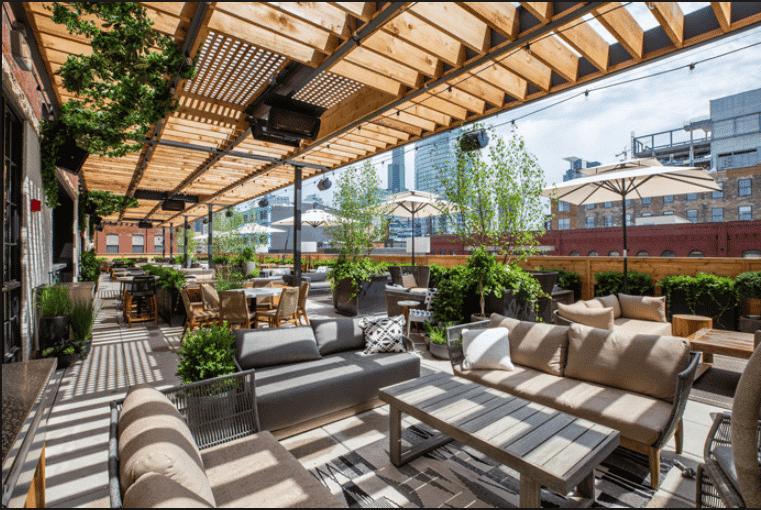

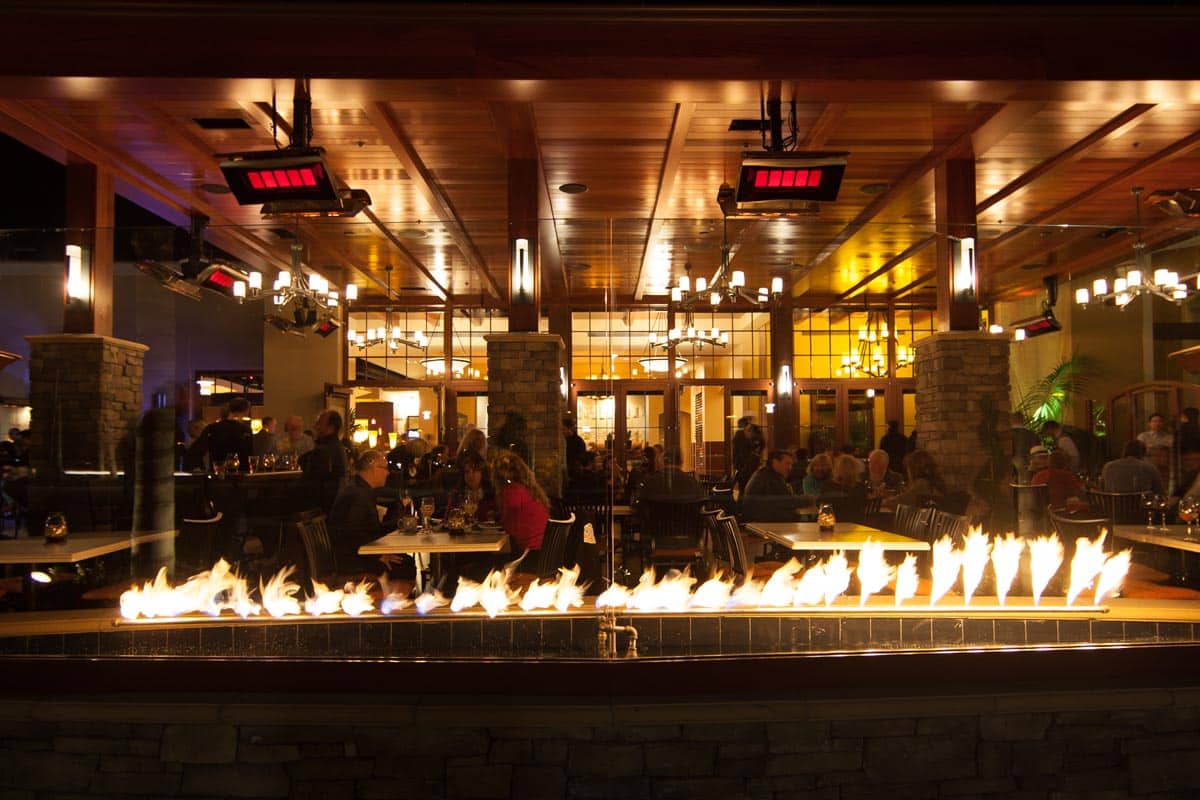

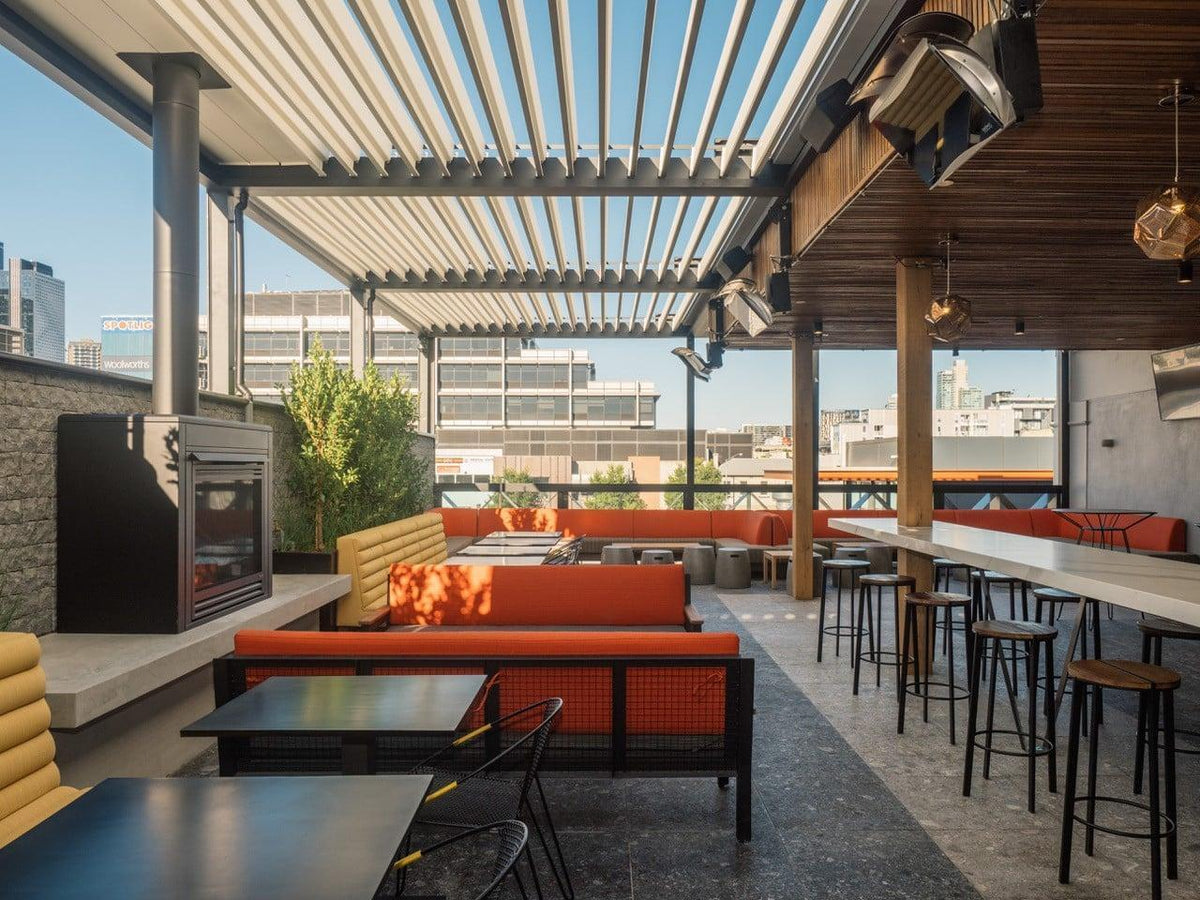

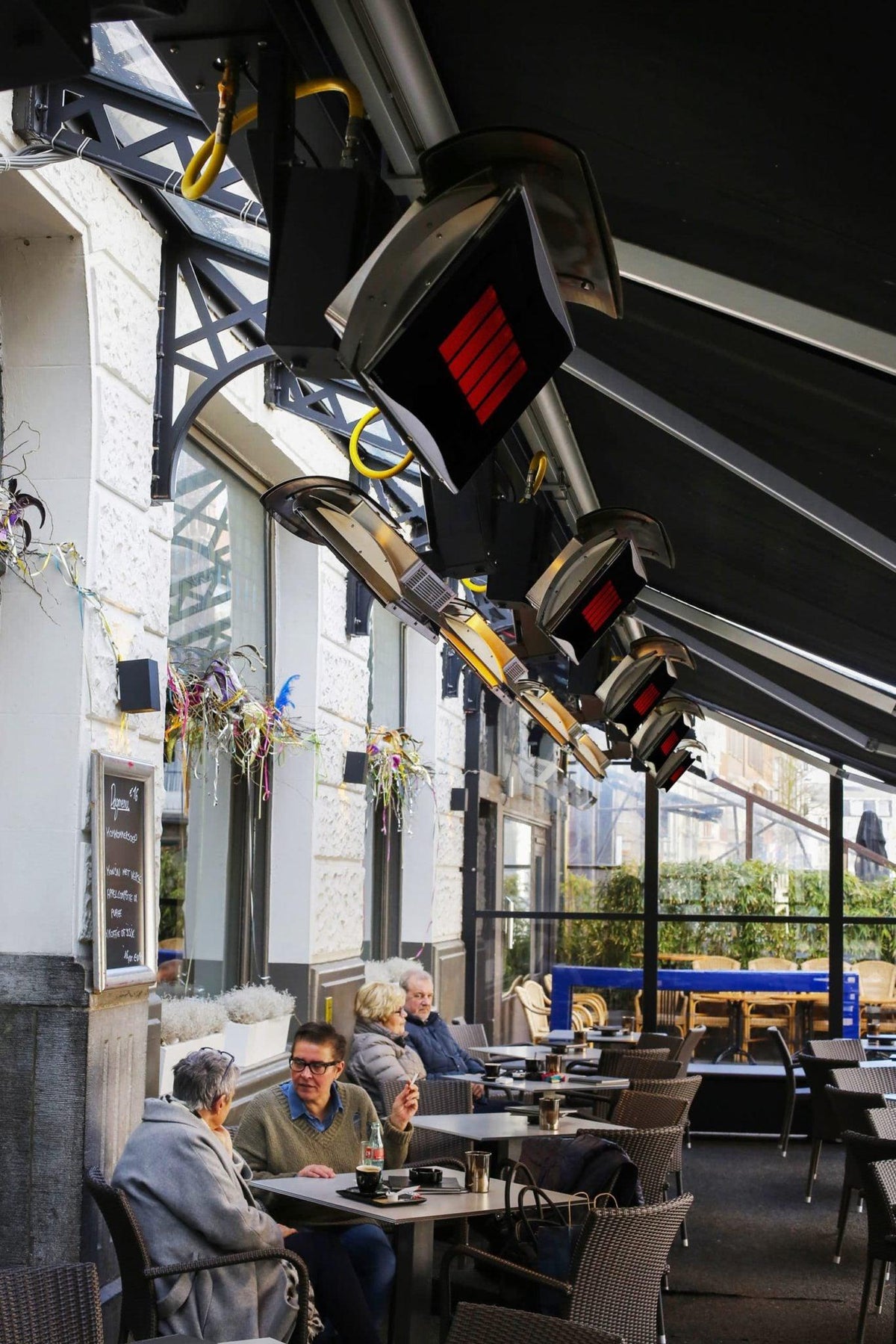

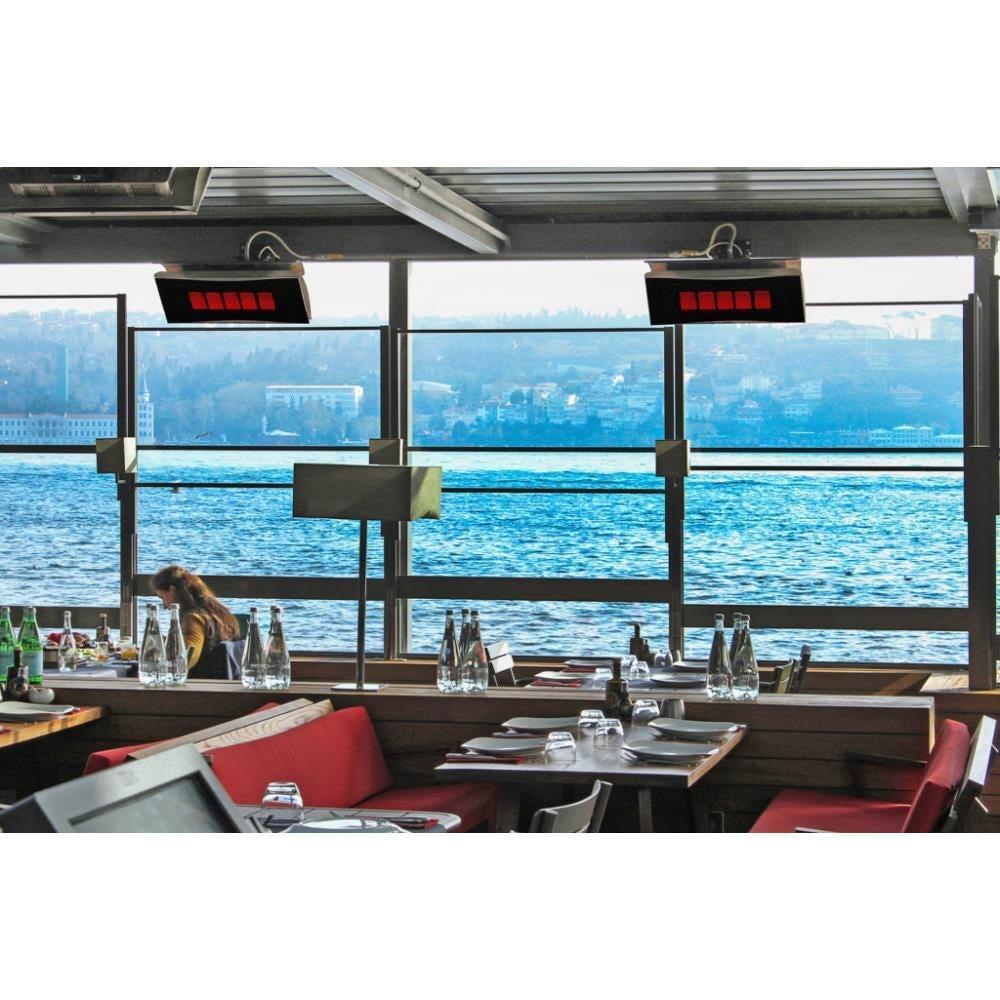

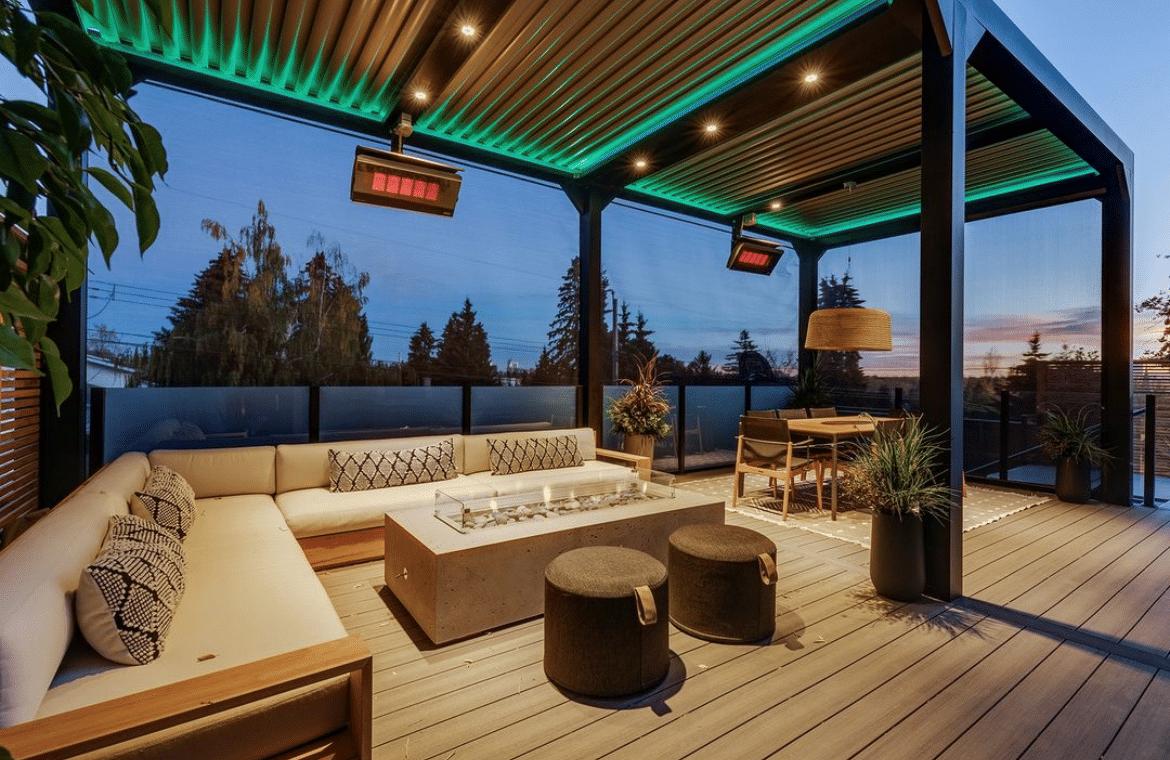

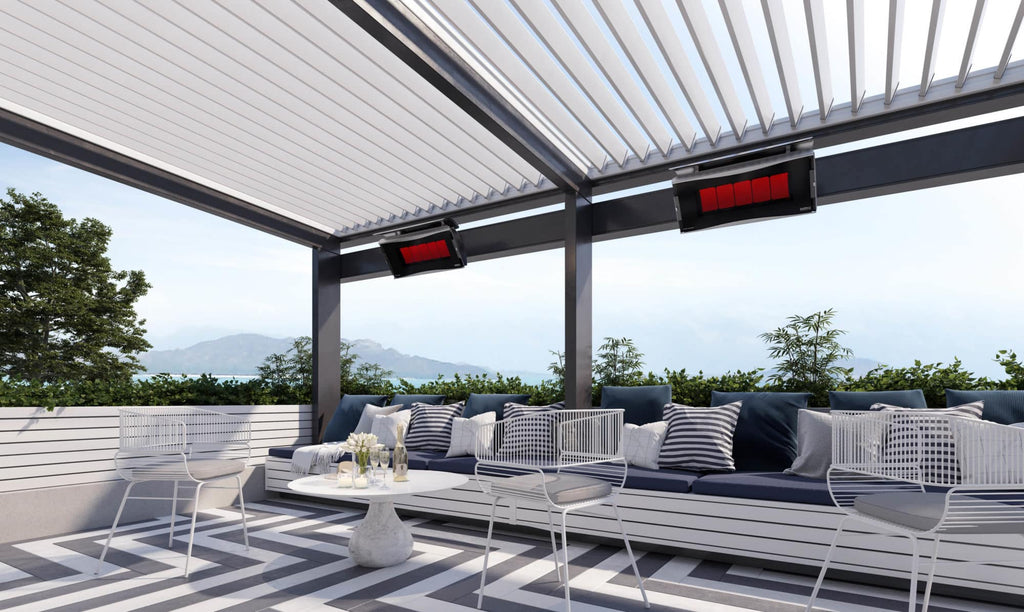

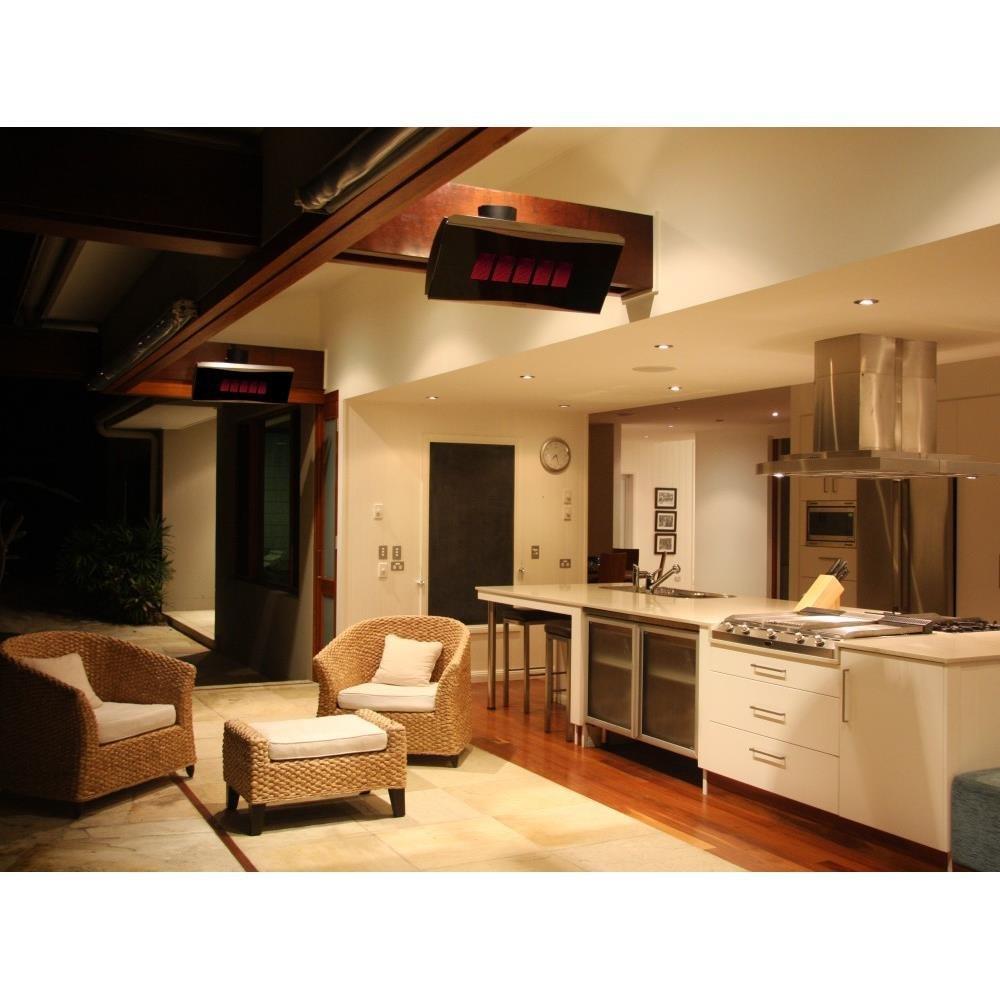

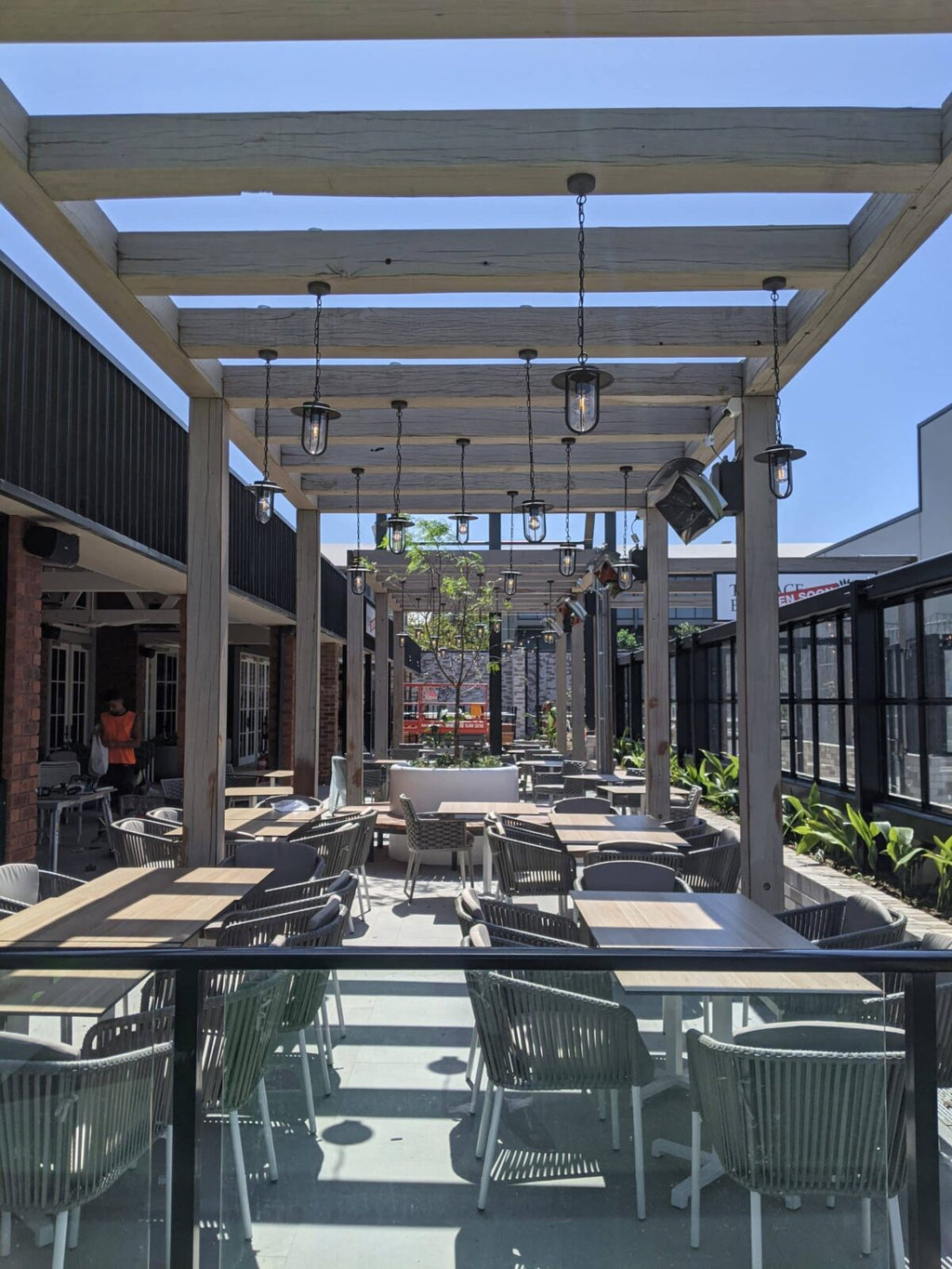

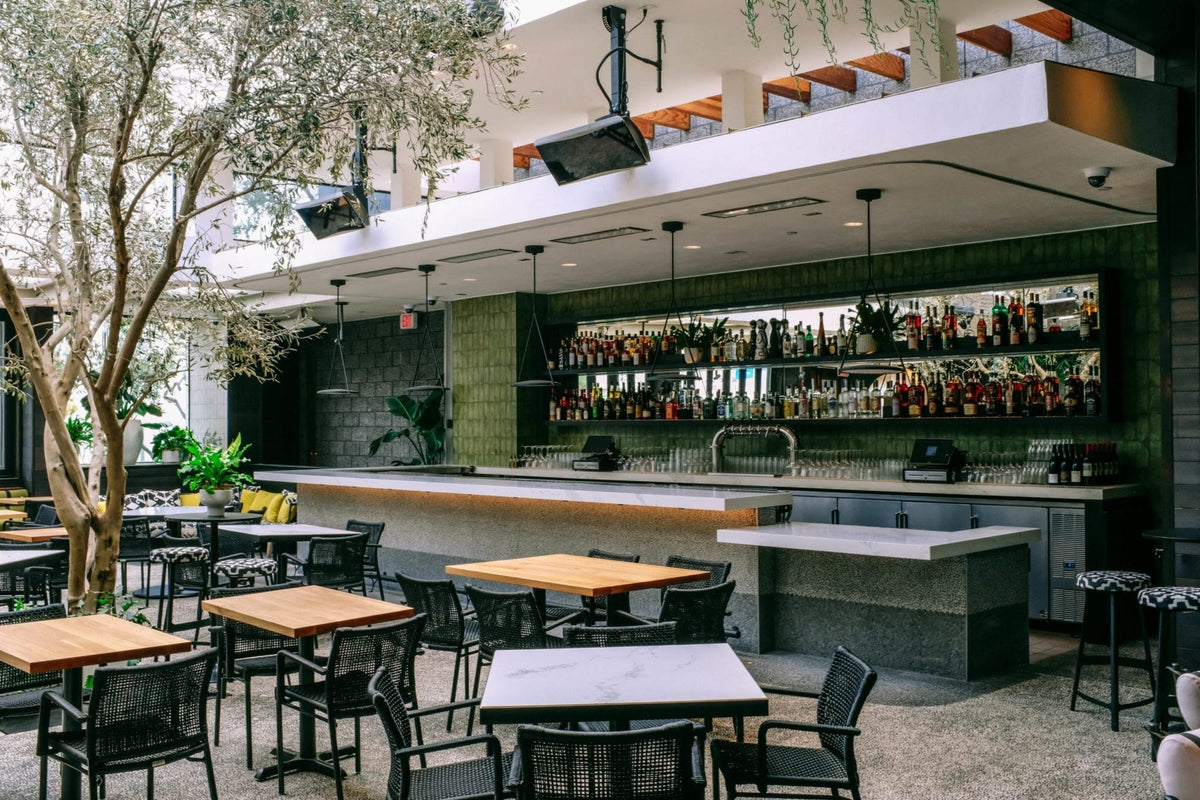

The Bromic Heating Platinum Smart-Heat™ Gas Heater, featured on Patio Pelican, is a premium, wall or ceiling-mounted radiant outdoor heater. Positioned as the flagship line in Bromic’s gas heating catalog, the Platinum series replaces traditional open-flame patio designs with a sleek, low-profile architectural look. It is heavily utilized in high-end residential patios, luxury hotel decks, and commercial al fresco dining venues where high heating capacity and modern aesthetics are required.

Design Aesthetics & Performance Engineering

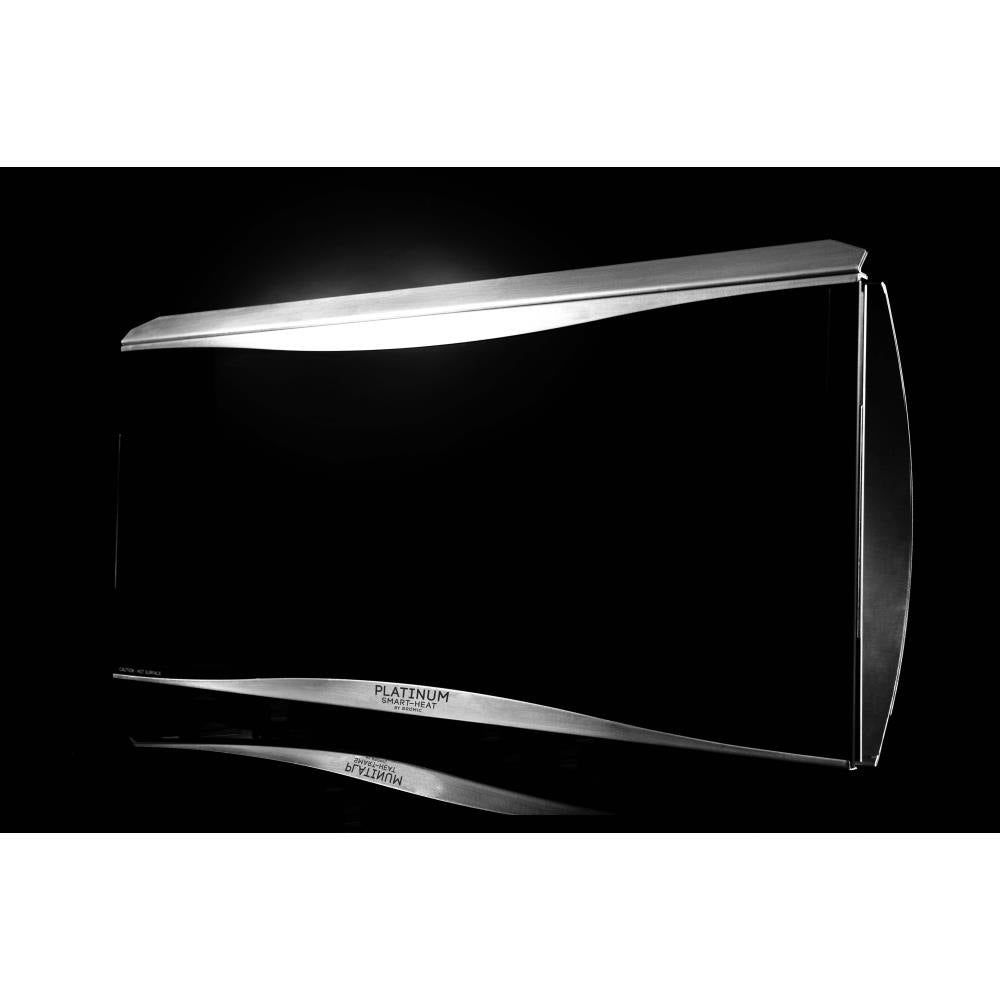

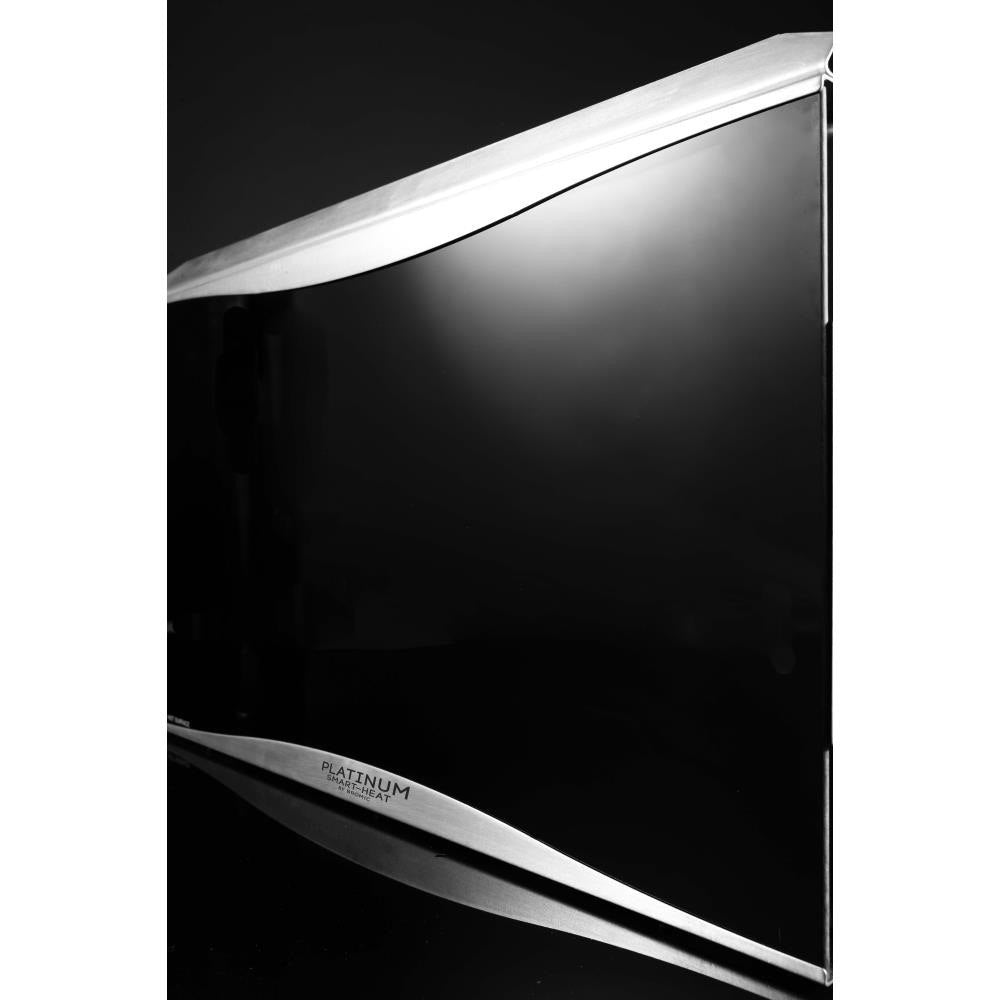

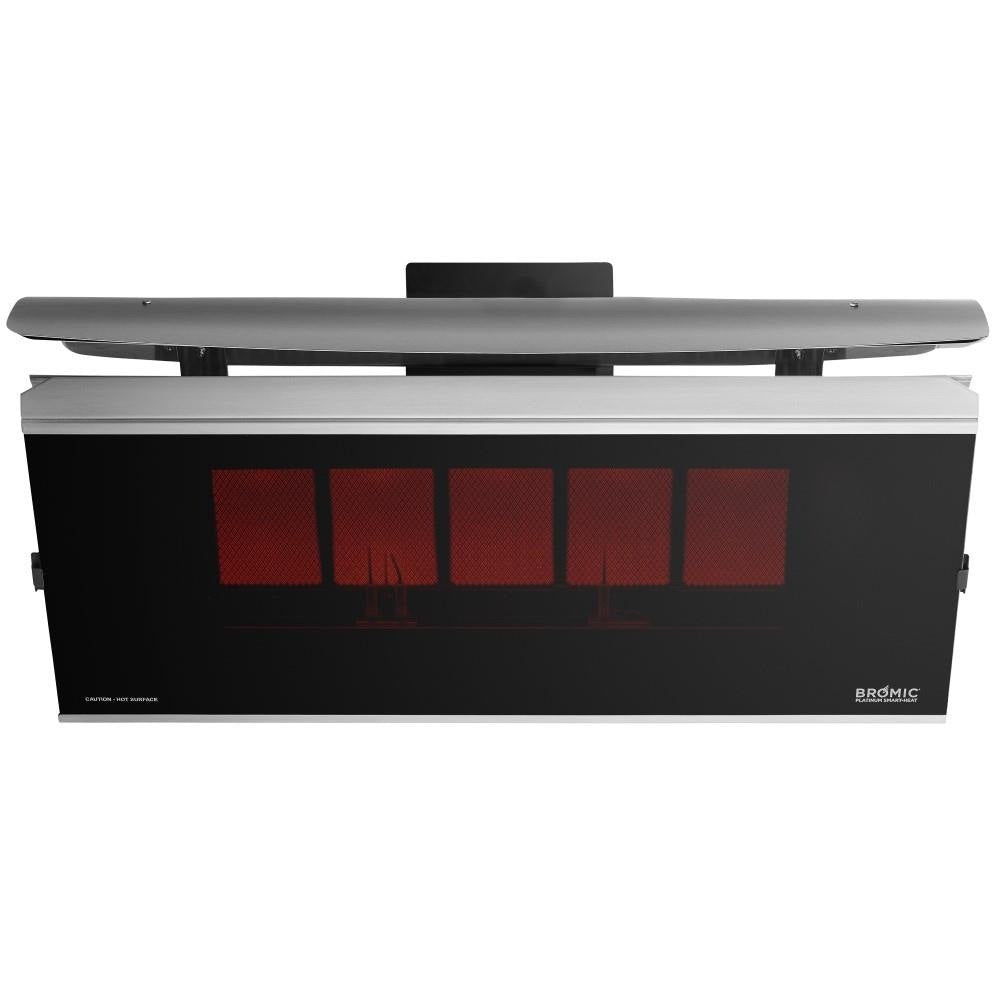

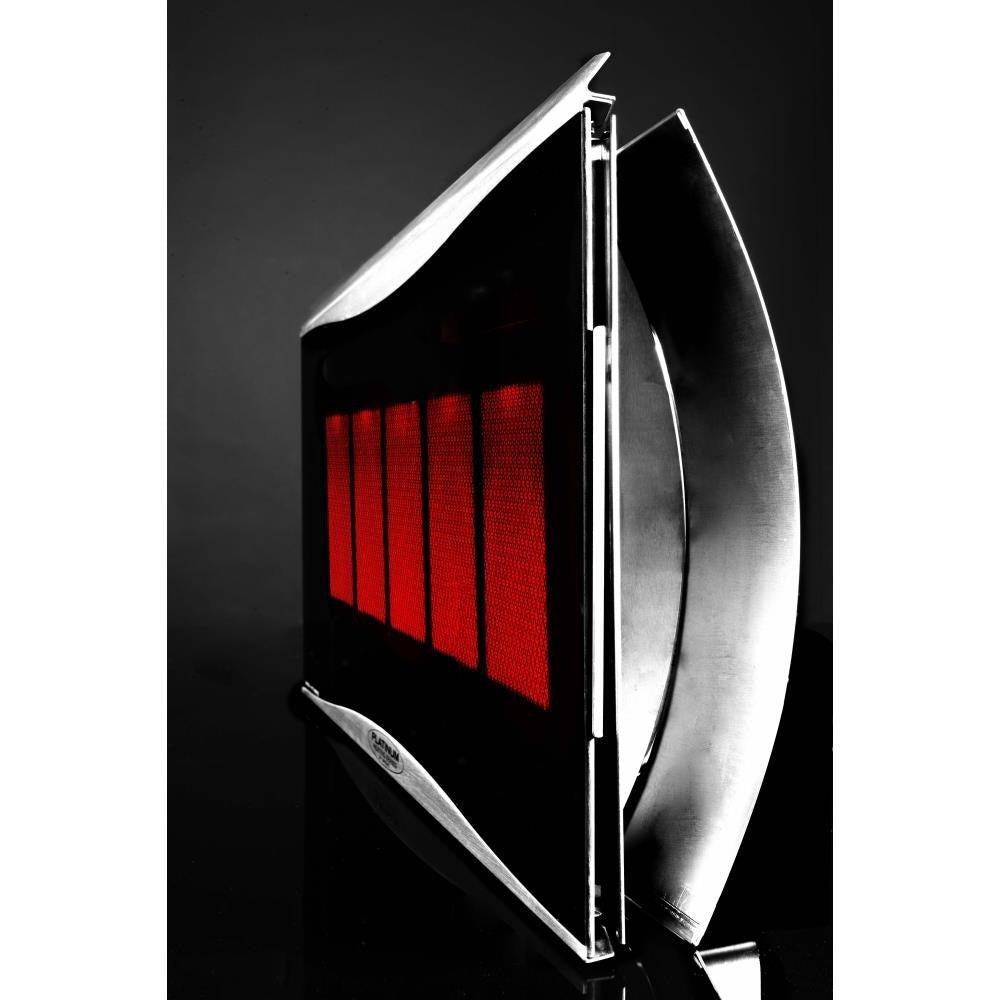

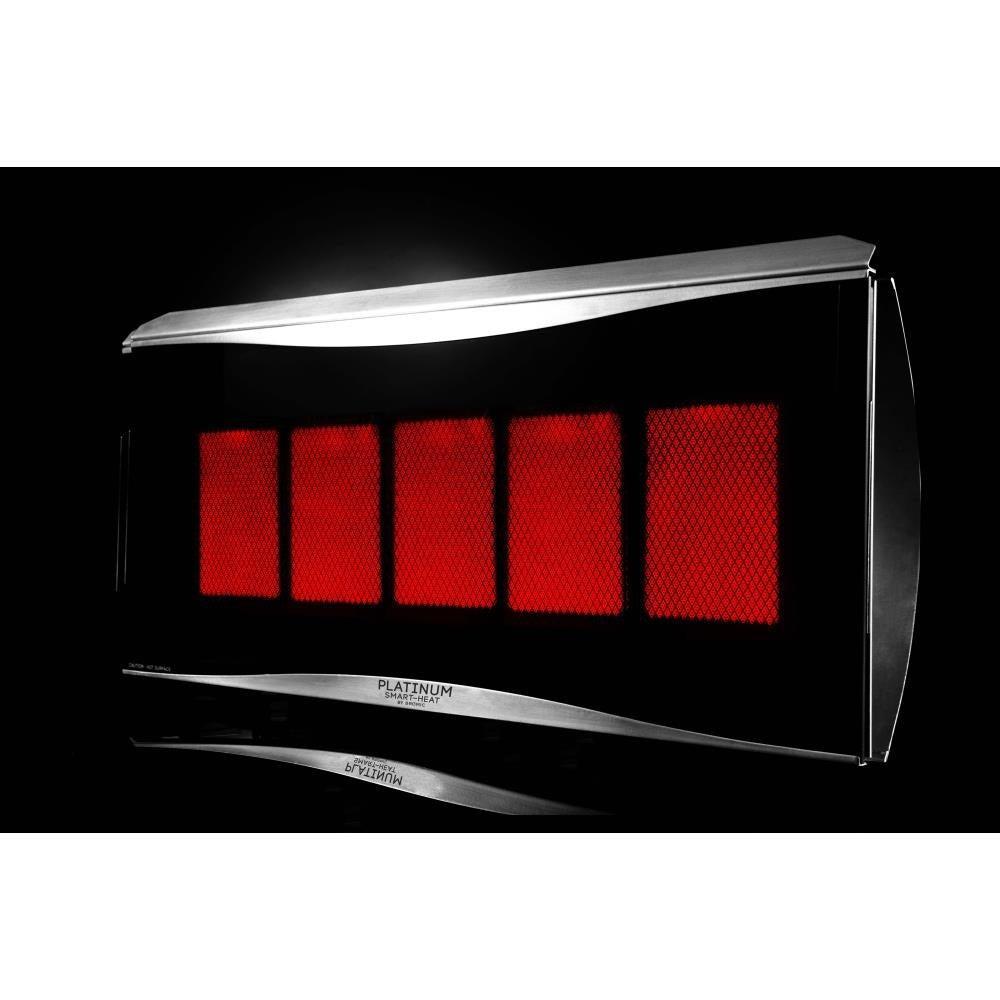

• Tinted Ceramic-Glass Fascia: Features a signature translucent, high-temperature ceramic-glass screen. This screen protects the inner components from elements, evenly distributes heat across a wide expanse, and diffuses the flame into a soft, ambient red glow while minimizing light glare.

• Advanced Ceramic Efficiency: Houses high-intensity, slow-release ceramic burners behind the glass to optimize thermal efficiency, delivering deep heat penetration with minimal fuel waste.

• Patented Direct Smart Ignition: Outfitted with an automated electronic ignition setup that eliminates the need for a standing pilot light. If breeze levels compromise the flame, the integrated ionization probe automatically triggers a re-ignition sequence.

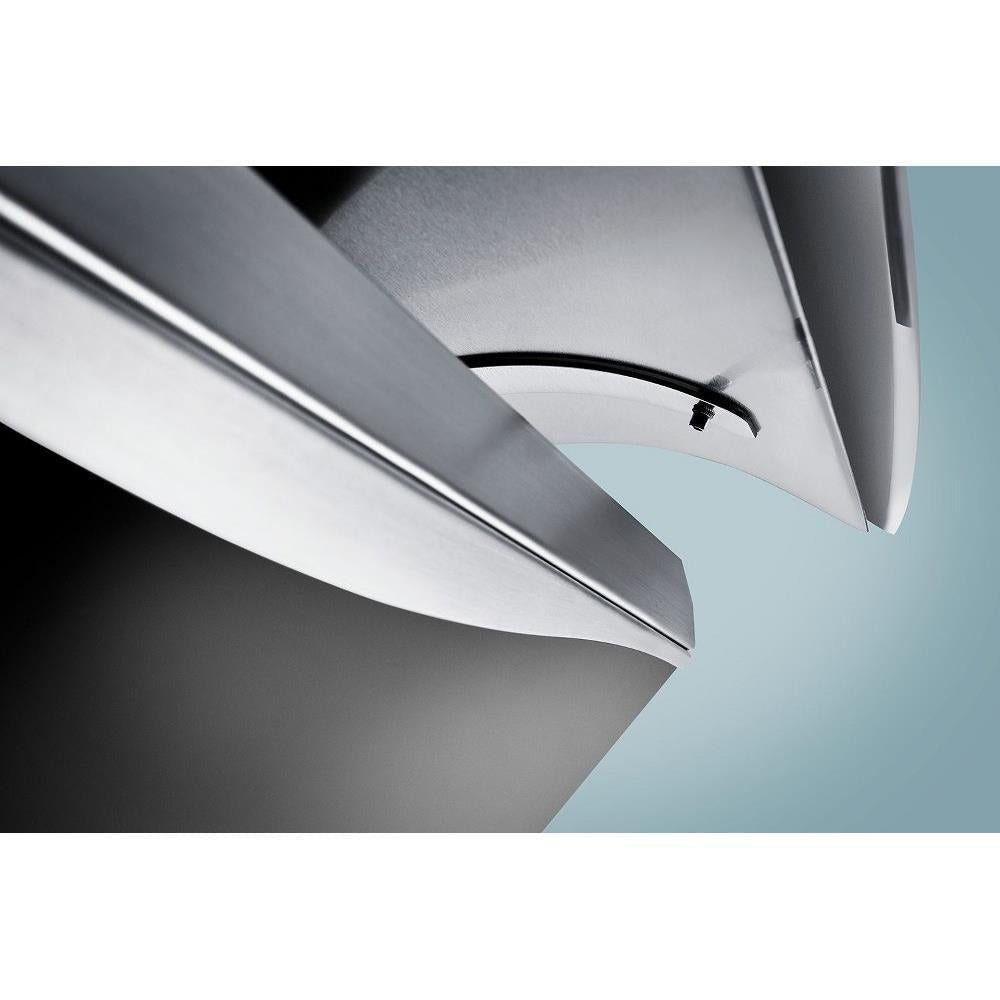

• Ultimate Wind Resistance: Thanks to the fully enclosed 304-grade stainless steel body and ceramic grid screen, the unit operates efficiently and reliably in wind speeds up to 11 mph.

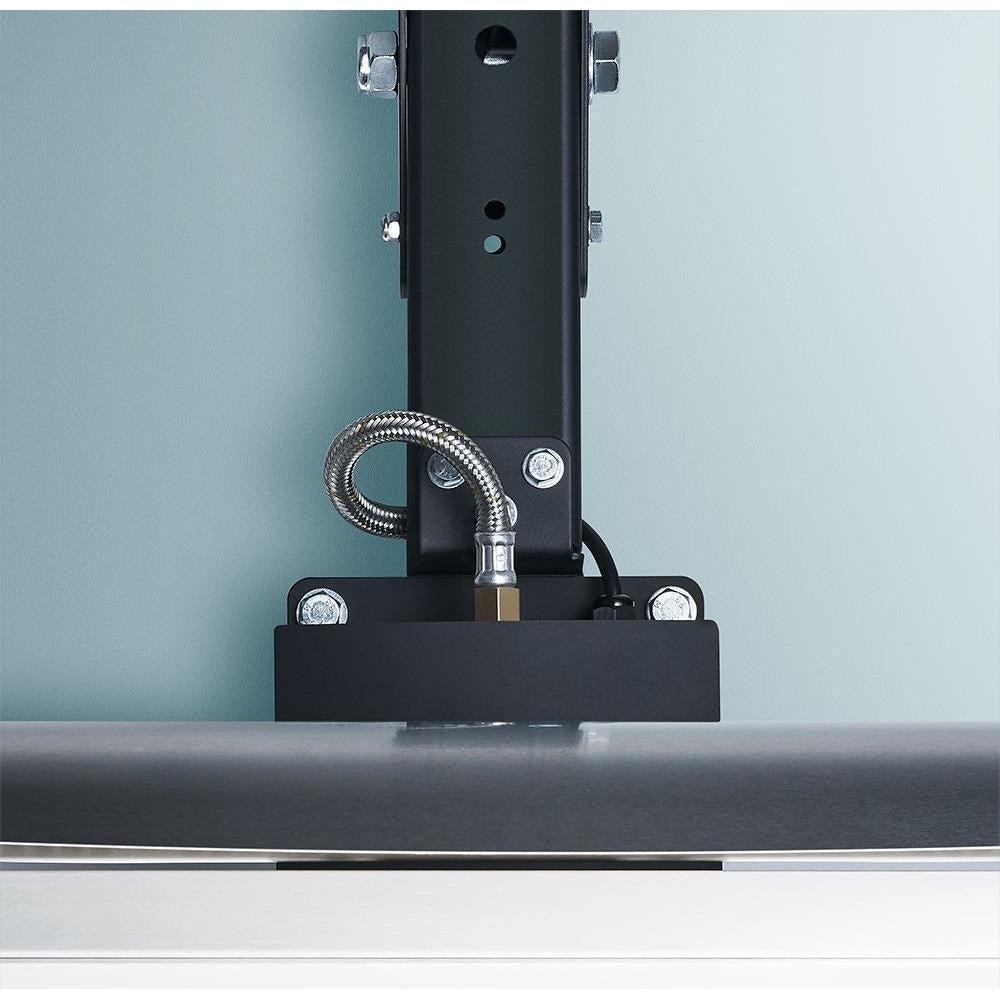

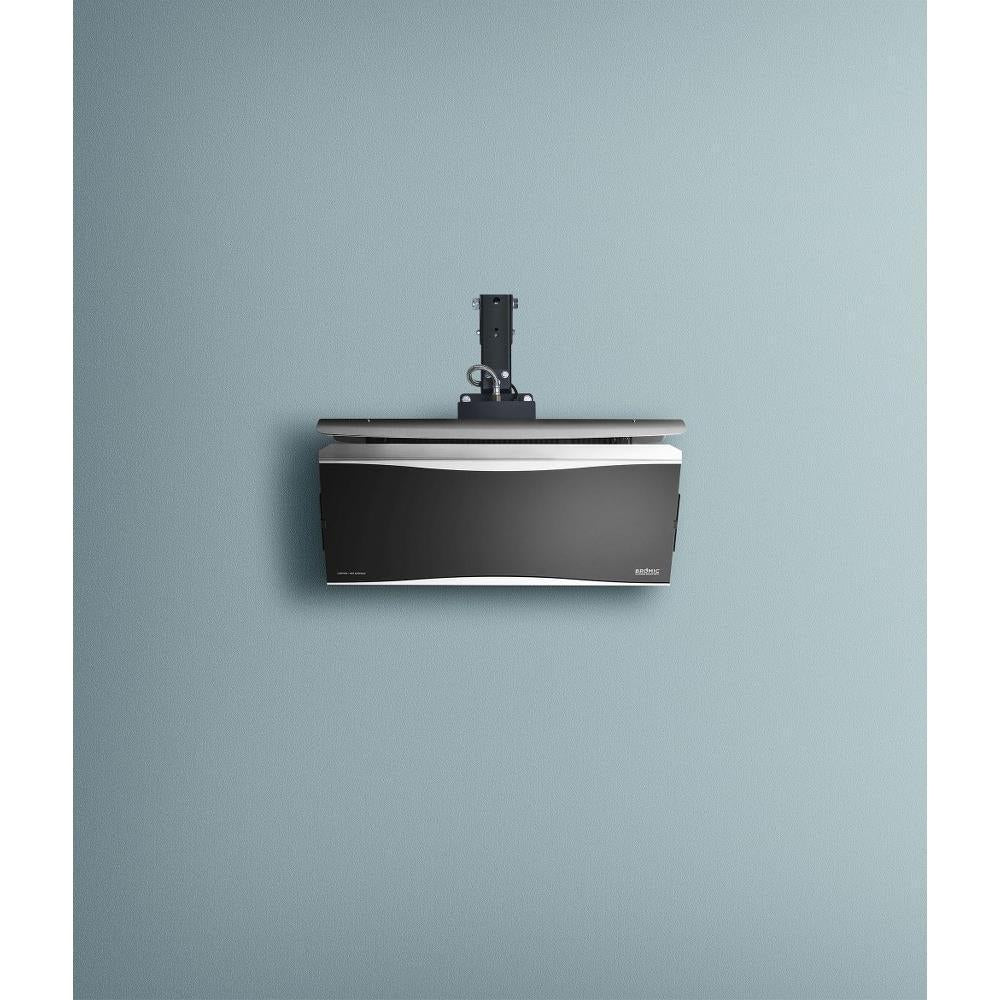

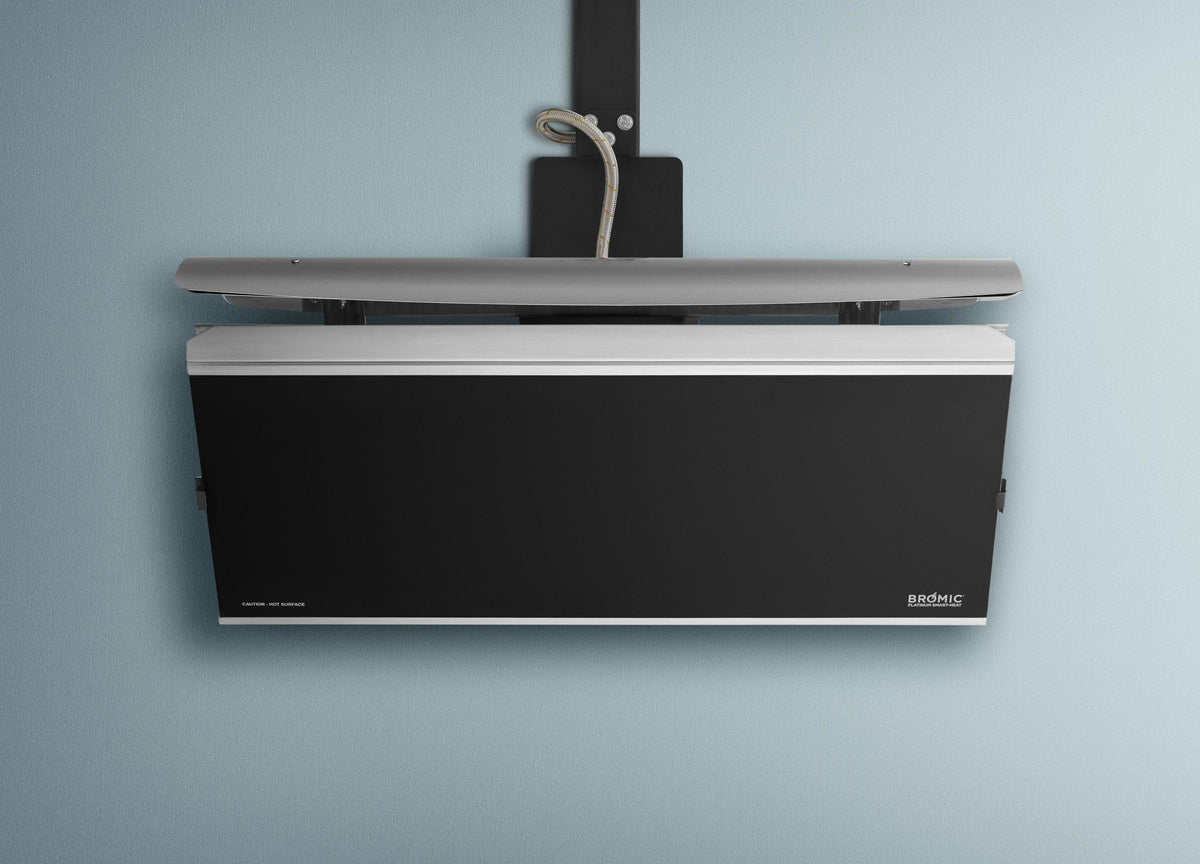

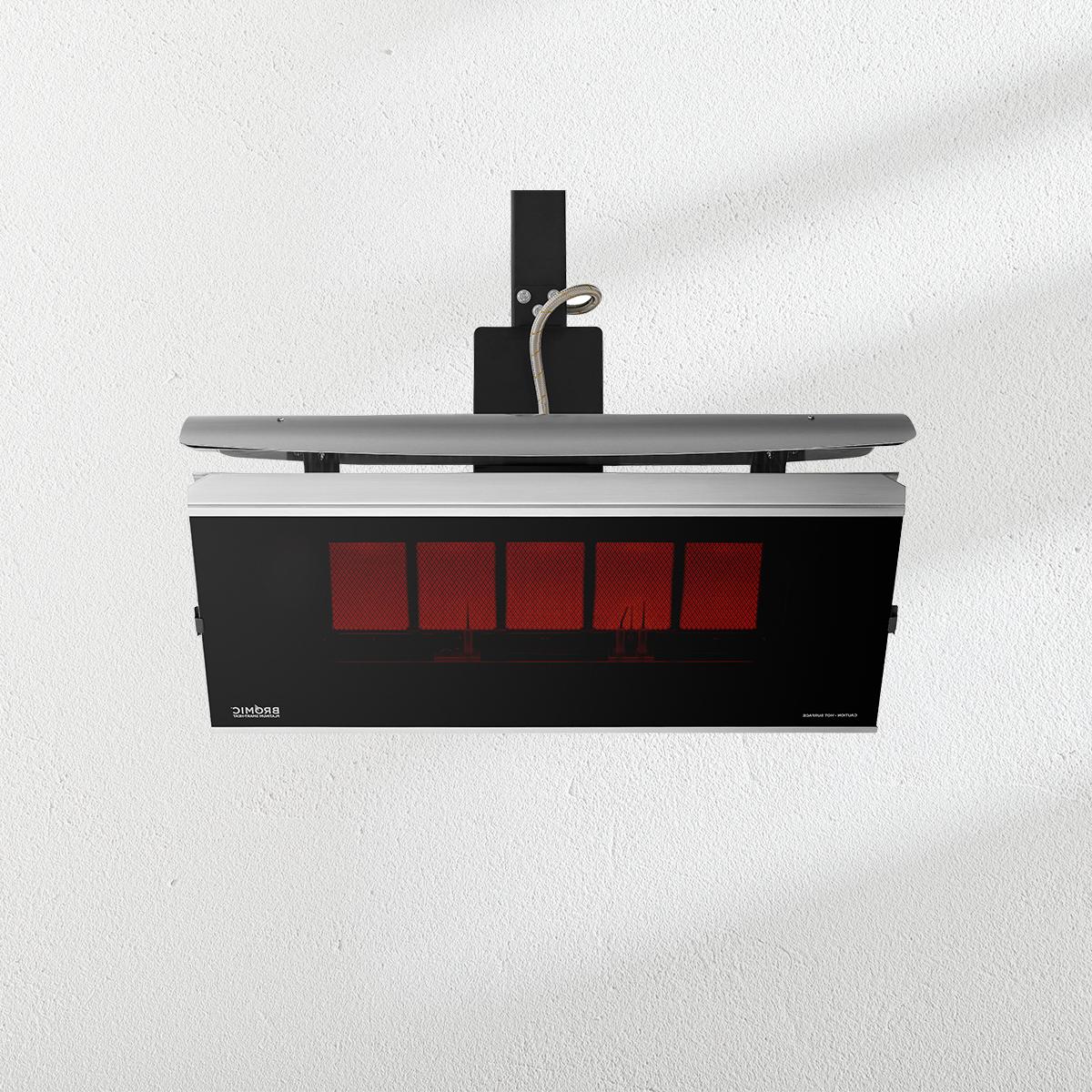

• Space-Saving Directional Brackets: Ships with a multi-angle heavy-duty pivot bracket. This design allows users to reclaim valuable floor space while maintaining direct, customizable control over the direction of the heat.

Finishes & Modular Sizing Options

The heater can be customized at checkout by selecting between two output series and two fuel line types to accommodate specific spatial layout needs:

• Model Series Sizing:

  • Platinum 300 Series (3-Burner): Delivers 23,600 BTUs of heat and warms a coverage area up to 160 sq. ft. (Weight: 33 lbs)

  • Platinum 500 Series (5-Burner): Delivers 39,800 BTUs of heat and warms a coverage area up to 215 sq. ft. (Weight: 44 lbs)

• Gas Utility Configuration:

  • Liquid Propane (LPG): For dedicated tank connections. (Model #s: BH0110002-1 for 300 / BH0110004-1 for 500)

  • Natural Gas (NG): For fixed structural utility lines. (Model #s: BH0110001-1 for 300 / BH0110003-1 for 500)

Technical Specifications & Spatial Footprint

• Heat Output Rating: 23,600 to 39,800 BTUs per hour

• Effective Coverage Footprint: 160 to 215 square feet

• Electrical Spark Requirement: 110V / 2A connection needed for the electronic smart ignition grid

• Waterproof Safety Rating: IPX4 Certified (Resistant against rain and water splashes under patio covers)

• Mandatory Clearance Parameters: Needs a minimum of 96 inches (8 feet) of clearance from the floor plane to the bottom of the heater. It must also maintain a minimum clearance of 3.6 feet from any nearby combustible materials.

• Product Dimensions (500 Series Profile): 29.76″ Wide x 14.85″ Height x 15.62″ Deep

• Compliance Certification: Intertek / ETL Approved (Safety certification code # 4009079)

Pricing, Optional Upgrades, & Store Policies

• Patio Pelican Price: Ranges from $2,298.00 to $2,580.00 USD depending on the series choice (Flexible monthly installment plans are available through Affirm directly at checkout).

• What's Included in the Box: Platinum Smart-Heat™ Gas Heater head unit, standard multi-angle wall/structure mounting bracket, assembly installation kit, and the technical user manuals.

• Available Add-On System Accessories:

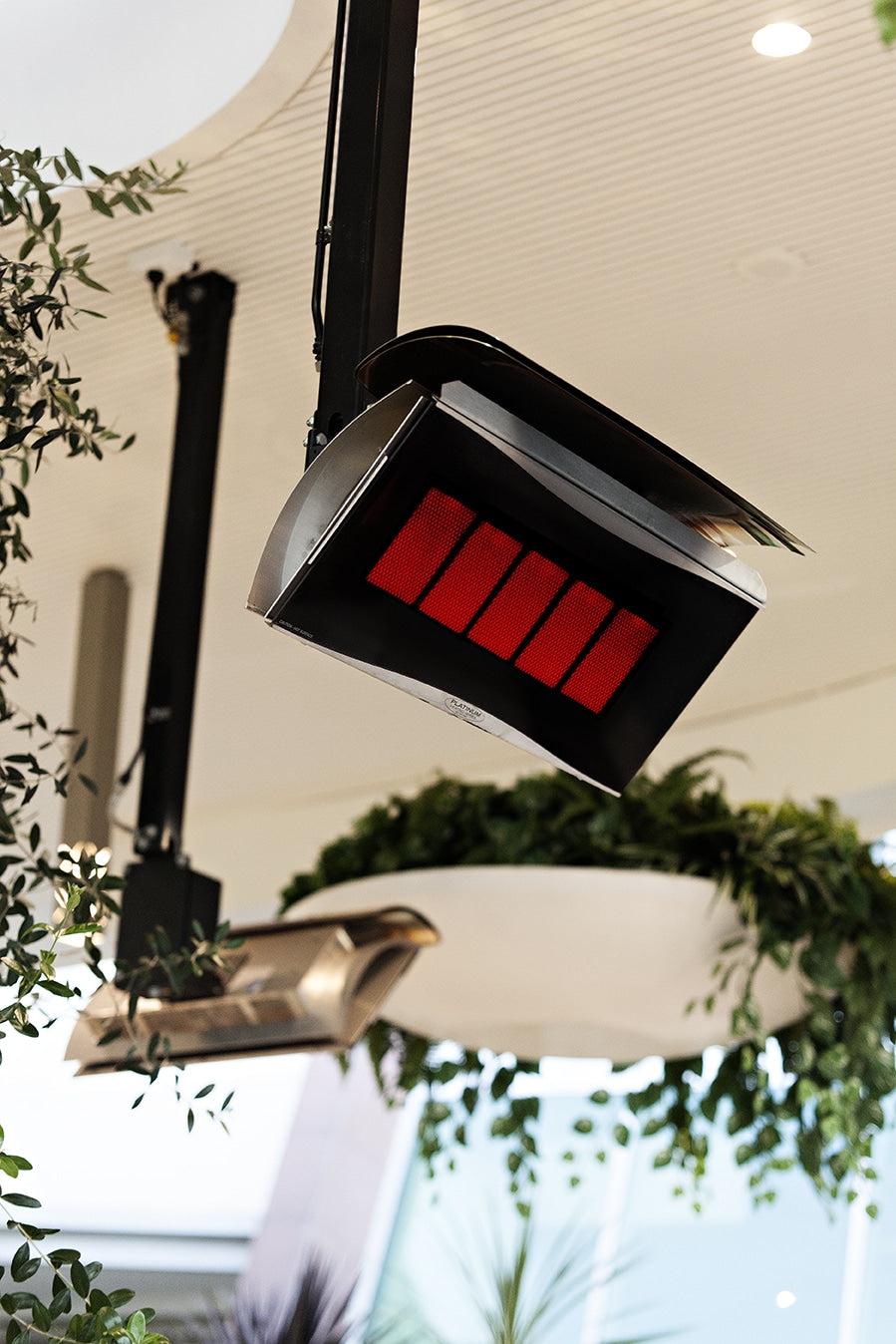

  • Ceiling Mounting Pole: Extends the mount dynamically down from high ceiling points (+$311.00).

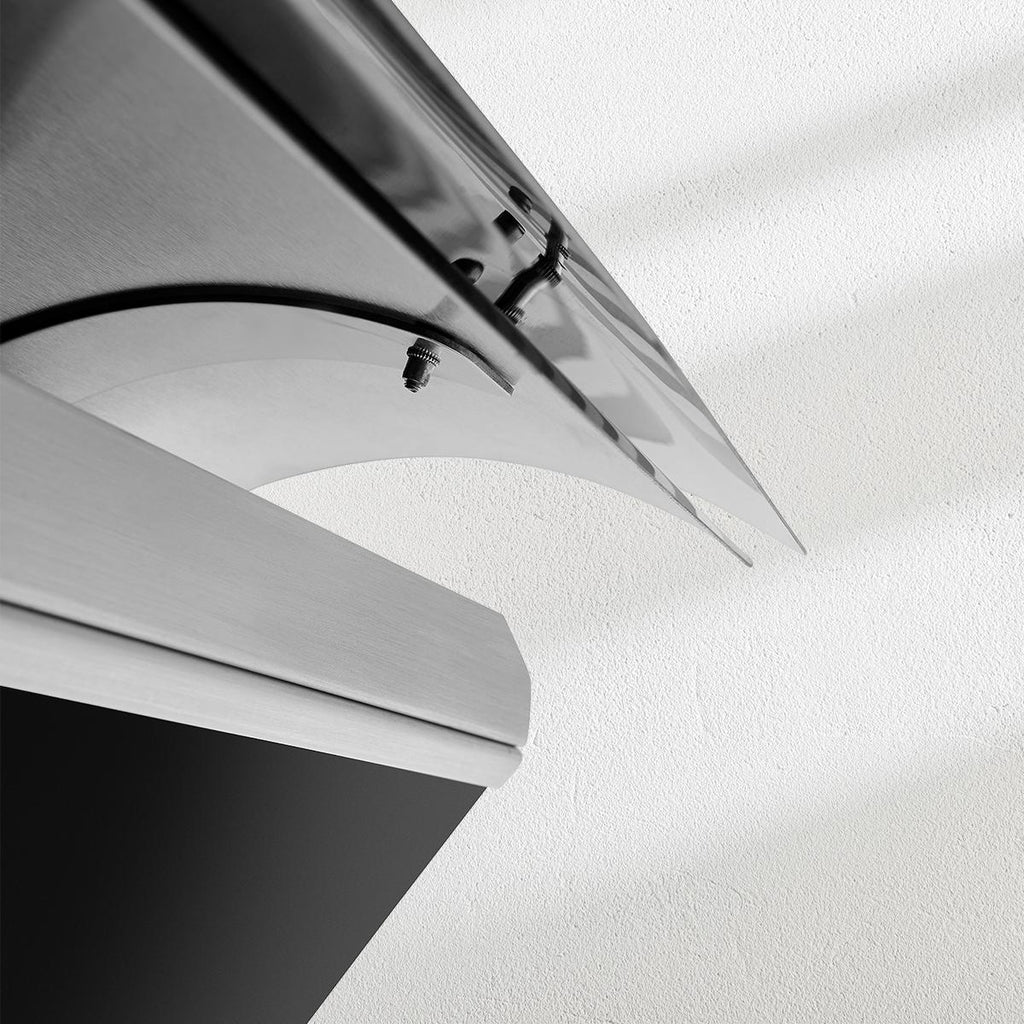

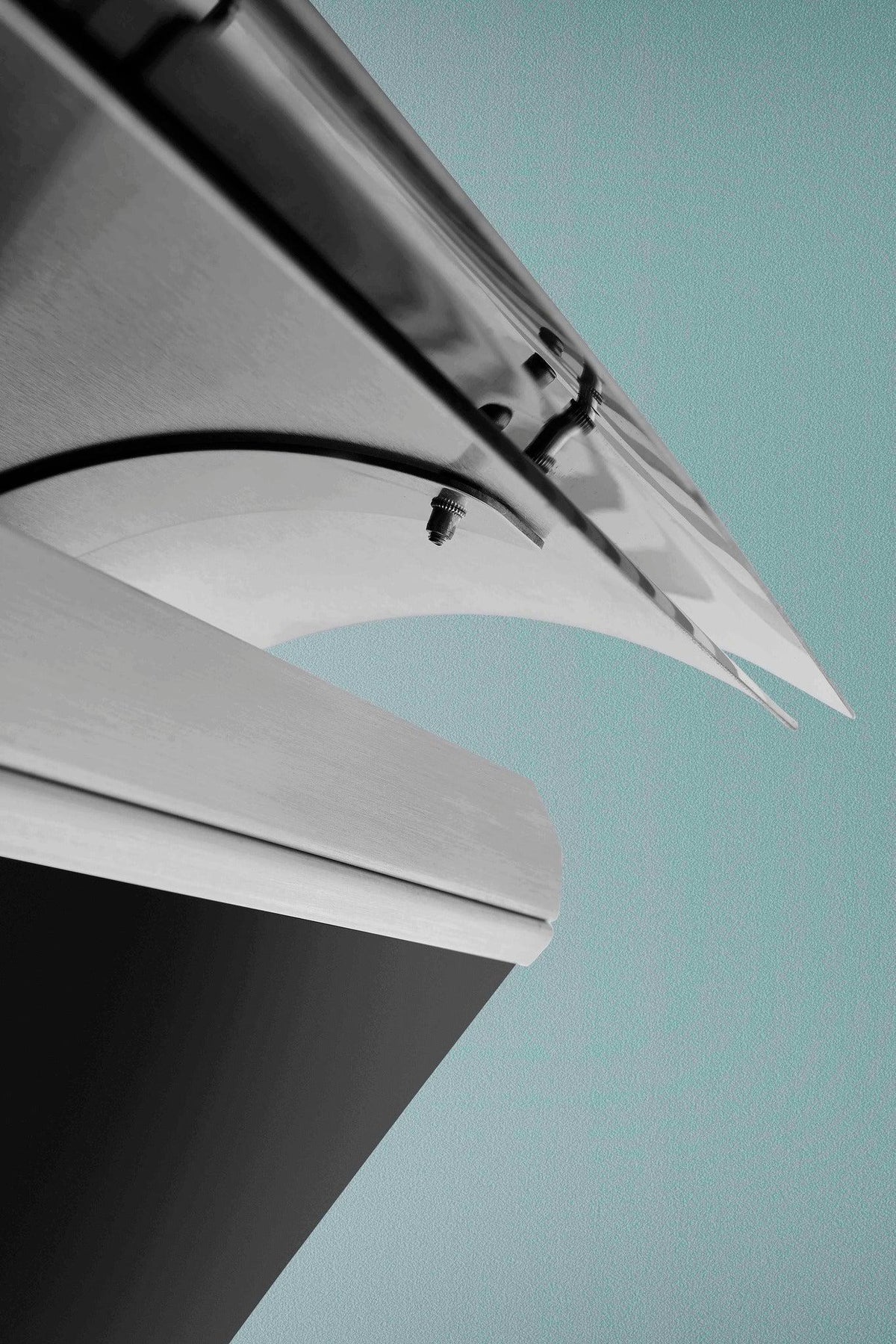

  • Gas Heat Deflector: Highly recommended for low-clearance areas to safely push rising heat away from ceilings or combustible roof structures (+$252.00 to +$292.00).

  • SmartHeat Link Home Automation: Integrates the unit with smart home automation networks via a dedicated RS232 transceiver port (+$320.00).

• Delivery Logistics:

  • Standard Delivery (Always Free): Shipped via premium freight truck and delivered straight to the residential driveway entrance or business loading curb.

  • White-Glove Inside Handling (Optional Upgrade at Checkout): Includes a pre-scheduled delivery window where professional movers bring the crated unit directly onto your property line.

• Installation Advice: Because this unit requires fixed structural anchoring, a 110V electronic connection, and specialized plumbing drop-ins for gas lines, Bromic and Patio Pelican require that it be installed by a licensed gas technician or installer.
