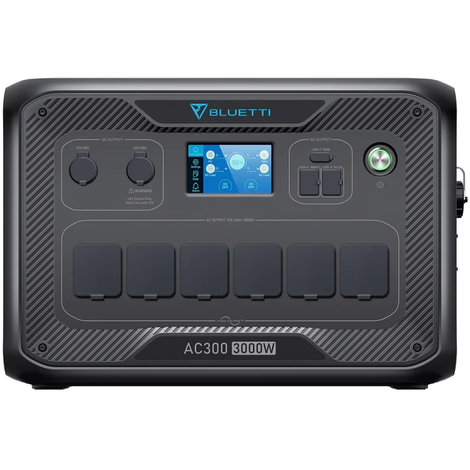

BLUETTI AC300 Modular Power Station

The BLUETTI AC300 is a modular portable power station designed for a wide range of applications, from home backup to off-grid living. It's a unique system as it does not have a built-in battery and must be paired with external BLUETTI B300 battery modules to operate. With one B300 module, the capacity is 3,072Wh, and it can be expanded up to 12,288Wh with four B300 batteries.

Key Features and Technical Specifications

Power Output:

• AC Output: 3,000W total (Pure Sine Wave)

• Surge Power: 6,000W

• AC Outlets: 6 x 230V outlets

• DC Outlets: 1 x 12V/30A (RV Outlet), 1 x 12V/10A (Car Outlet), 2 x DC5521 (12V/10A)

• USB Ports: 1 x 100W USB-C (PD3.0), 2 x 5V/3A USB-A, 2 x 18W USB-A

• Wireless Charging: 2 x 15W wireless charging pads

Charging:

• AC Charging: Up to 3,000W max

• Solar Charging: Up to 2,400W max (OCV 12-150V)

• Dual Charging: Up to 5,400W (AC + solar) with at least two B300 batteries

• Charging Options: AC wall outlet, solar panels, car, lead-acid battery, generator, or EV stations

Battery:

• Battery Type: LiFePO₄ (Lithium Iron Phosphate)

• Battery Life Cycle: 3,500+ cycles to 80% capacity

• Expandable Capacity: 3,072Wh with one B300 battery, up to 12,288Wh with four B300 batteries

General:

• Modular Design: No internal battery, works only with B300 modules

• Control: App control via Wi-Fi and Bluetooth

• UPS Functionality: 24/7 Uninterruptible Power Supply (UPS)

• Dimensions (L×W×D): 520mm × 320mm × 358mm

• Weight: 21.6 kg

• Warranty: 4 years
