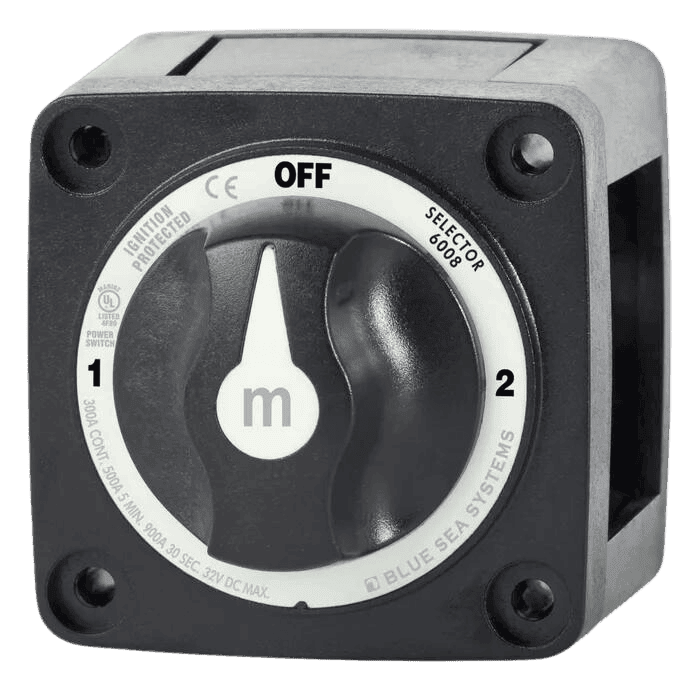

High-Current Battery Selector Switch for Marine & 4WD Dual-Battery Systems

The Blue Sea m-Series Mini 3 Position Battery Selector Switch is designed for dependable, high-current battery management where clear isolation and simple selection matter. In boats, caravans, camper trailers and 4WD touring vehicles, battery systems are often asked to support critical loads such as fridges, lighting, comms, bilge pumps, winches and inverters. This switch provides a straightforward way to choose which battery supplies your DC system, or to shut the system down completely when you’re storing the vessel or working on the electrical system.

With OFF / 1 / 2 positions, it helps you manage two battery banks with confidence: run house loads from one battery, preserve a second battery for starting, or change over to a healthier battery if one is low. The compact “mini” footprint is particularly useful when space is limited behind a helm, in a console, in a battery compartment, or in a 4WD canopy electrical panel.

Designed to Reduce Electrical Loss and Resist Corrosion

Voltage drop and corrosion are common causes of poor performance in marine and mobile power systems—especially in Australian coastal environments. This switch is built around tin-plated copper studs that support strong conductivity while improving resistance to corrosion. That means more of your available battery power reaches your loads, and connections stay serviceable for longer in harsh conditions.

The one-piece terminal stud design is engineered to minimise the chance of loosening over time. In applications subject to vibration—such as off-road touring, trailer mounting, or pounding seas—secure terminations help maintain consistent power delivery and reduce intermittent faults that can be difficult to diagnose.

Safer Isolation and Cleaner Installs

Isolation is more than convenience; it’s a practical safety measure. Switching to OFF allows you to disconnect the battery from your load circuits when the system is unattended, when you’re performing maintenance, or when you want to reduce the chance of accidental drain. It can also assist with troubleshooting by letting you isolate a battery or circuit group quickly.

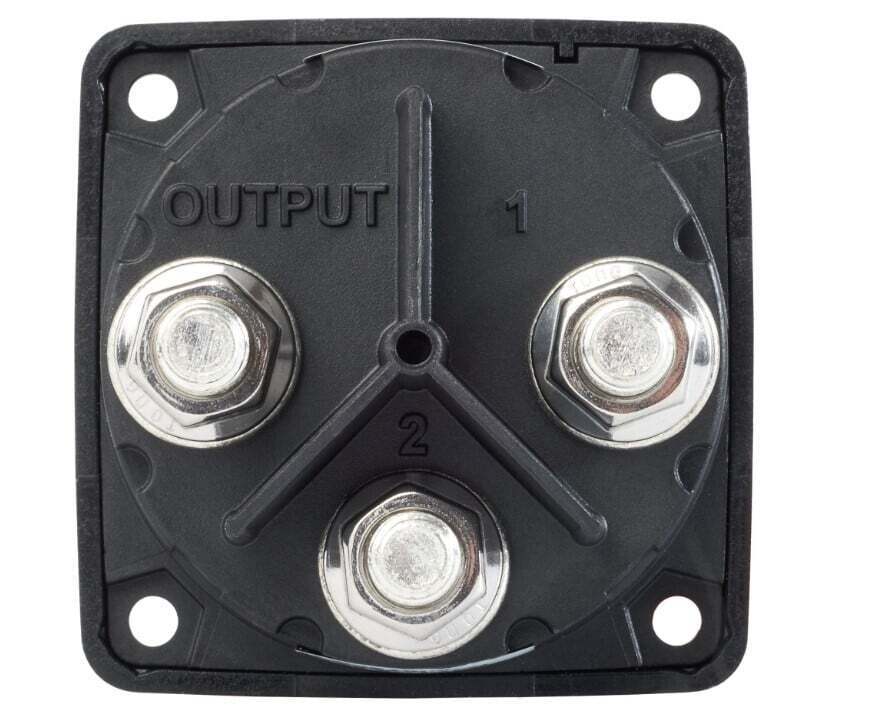

The rear of the switch is protected by an isolating cover that helps shield live contacts from accidental shorts. Its snap-off side sections are designed to improve cable routing flexibility, making it easier to run heavy battery cabling neatly in the direction that best suits your installation—helpful when you’re working in tight marine lockers, battery boxes, or compact 12V distribution areas.

Where This 3 Position Battery Switch Fits Best

This style of battery selector switch is commonly used as part of a marine battery switch setup or a dual battery system where you want direct, manual control over battery selection. It suits many typical Australian applications, including:

• Boat starting and house battery separation (OFF/1/2 selection)
• Caravan and camper trailer auxiliary power changeover
• 4WD touring canopies and drawer systems with two battery banks
• Small commercial marine, tinnies, runabouts and centre consoles needing compact switching
• Work vehicles requiring a simple battery isolation method for storage or servicing

Key Features

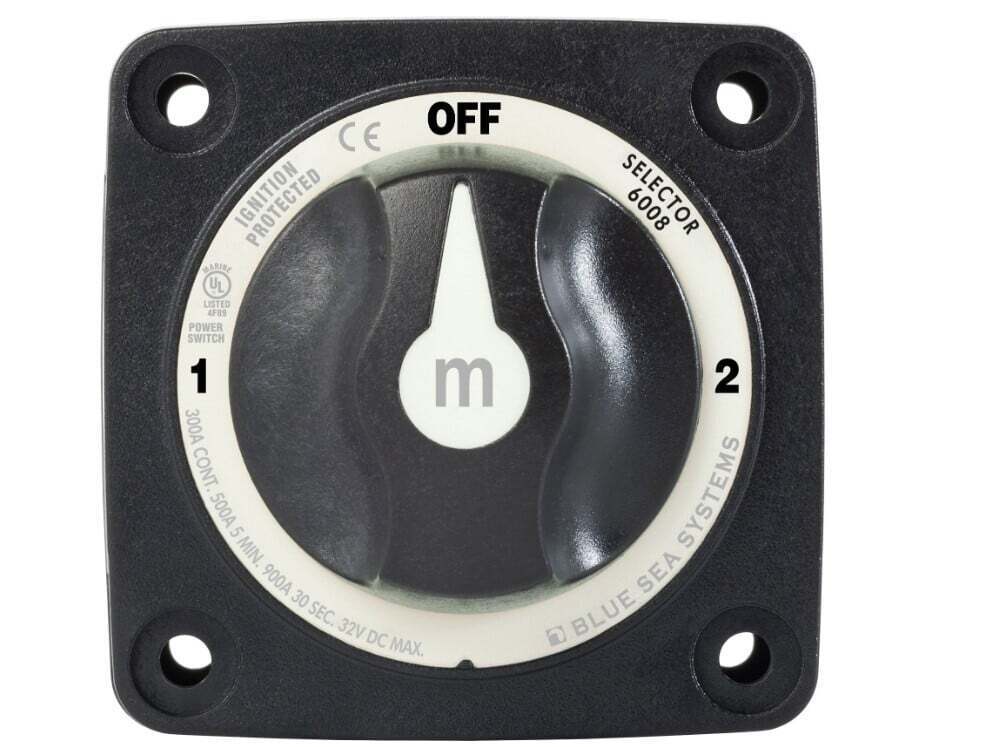

• 3 position selector for straightforward OFF/1/2 battery control
• 300A continuous rating to support high-demand DC systems
• Tin-plated copper studs for high conductivity and improved corrosion resistance
• One-piece terminal stud design to help maintain reliable connections over time
• Isolating rear cover with configurable cable access to support safer, cleaner wiring

Why Choose Blue Sea Systems for Battery Switching?

Battery switches are often installed and forgotten—until the day they’re needed to isolate a fault, preserve starting power, or shut down a system quickly. Blue Sea Systems is widely specified in marine electrical builds because its components are designed for demanding DC environments, where vibration, humidity and salt exposure are normal. Choosing a switch built for these conditions can reduce ongoing maintenance and help keep your power system predictable, especially across long trips and seasonal storage.

Installation Notes (Practical Considerations)

For best results, battery switching should be planned as part of the overall DC layout: cable sizing, termination quality, and secure mounting all affect performance. Ensure your load requirements match the switch’s current capability, use correctly crimped ring terminals, and route cables to minimise strain on studs. If you’re integrating the switch into a marine system, consider professional advice to align with common marine wiring practices and applicable safety expectations.

Reliable Manual Control for Two-Battery Power Systems

If you’re looking for a compact, high-current battery selector switch that supports clean wiring and dependable operation, the Blue Sea 300A Black Mini m-Series OFF/1/2 switch is a proven option for marine, caravan and 4WD electrical systems. It delivers practical battery isolation and selection in a format that suits space-conscious installs—ideal for Australian conditions where corrosion resistance and vibration durability are important.
