Blue Sea m-Series: Compact High-Current Battery Isolation

Reliable Power Management for Marine and RV Systems

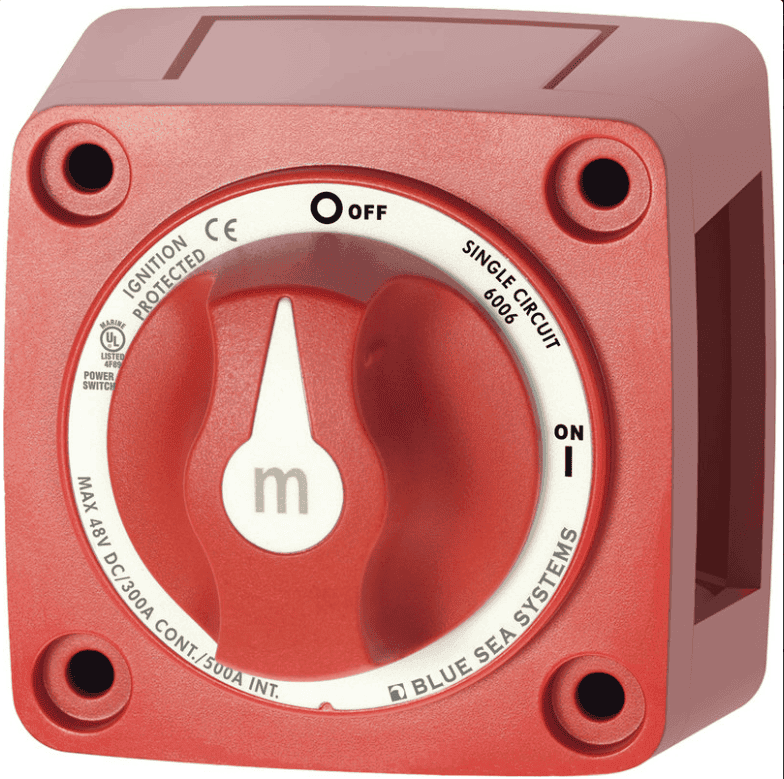

The Blue Sea Systems m-Series Battery Switch solves the common challenge of installing high-amperage isolation in tight spaces. Despite its compact footprint, this switch is engineered to handle significant power loads, making it an ideal choice for switching a single battery to a single load group in boats, caravans, and 4WD setups.

Unlike generic switches that often suffer from voltage drop or overheating under load, the m-Series features tinned copper studs for maximum conductivity and corrosion resistance. It is rated for 300A continuous current, with an impressive intermittent rating of 500A (5 minutes) and a cranking rating of 900A (30 seconds), ensuring it can handle engine starting surges without failure.

Ignition Protected for Safety

Safety is paramount in marine electrical design. This switch is ignition protected, meaning it is safe for installation on gasoline-powered boats. It prevents internal sparks from igniting fuel vapours, a critical risk reduction feature for engine rooms and fuel locker installations. The casing is also designed to IP66 standards (when properly mounted), protecting internal contacts from harsh marine environments.

Versatile Mounting and Installation

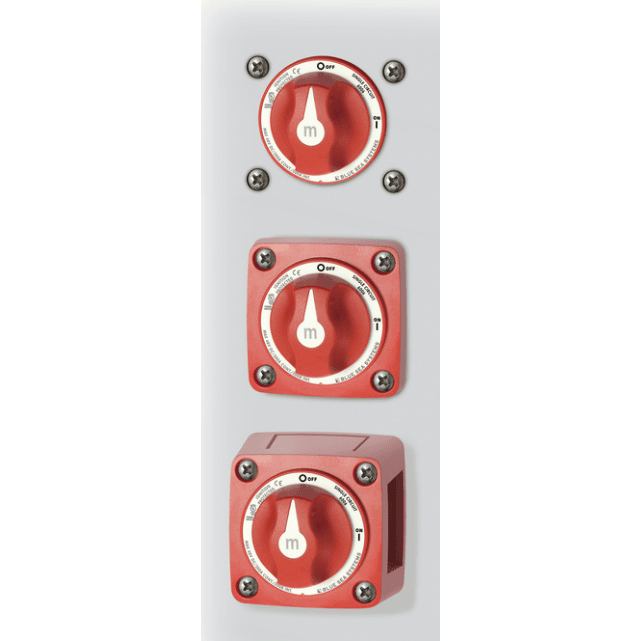

Installation flexibility is a standout feature of the m-Series. The case design allows for three mounting options: surface, front panel, or rear panel mounting, accommodating various console and bulkhead thicknesses. The isolating cover includes snap-on sections to protect rear contacts, ensuring compliance with ABYC requirements.

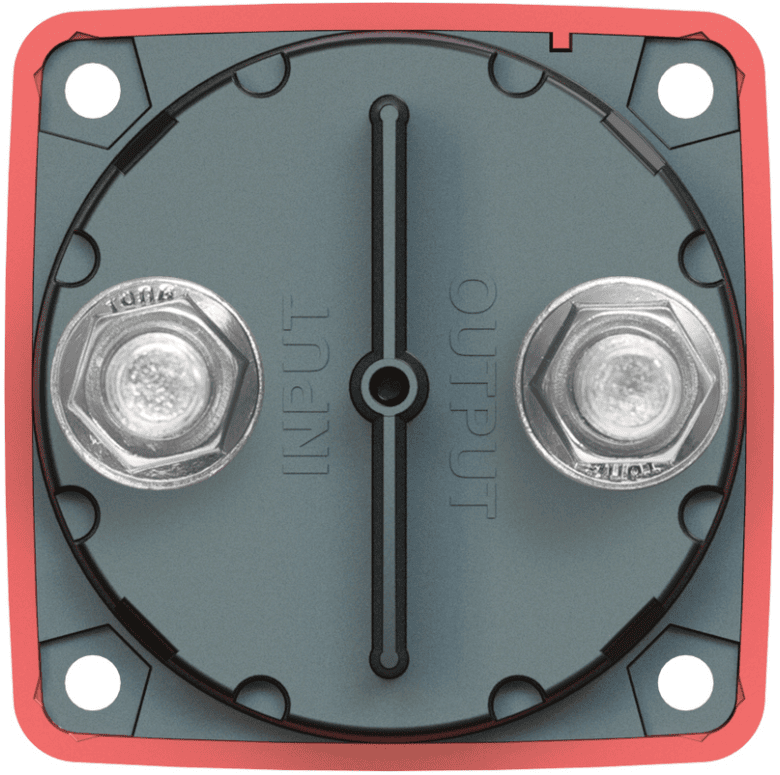

The switch features 3/8"-16 (Approx. M10) terminal studs which accept ring terminals comfortably. To accommodate heavy cabling, the design provides ample clearance for cables up to 4/0 AWG (Approx. 120mm²).

Future-Proof Voltage Handling

While commonly used in 12V battery systems, this switch is rated for a maximum of 48V DC. This makes it fully compatible with modern 24V and 48V lithium battery banks often found in advanced off-grid energy systems and electric propulsion setups.

Key Features

• High Current Capacity: 300A continuous and 900A cranking rating in a compact "mini" size.
• Ignition Protected: Safe for installation aboard petrol-powered vessels.
• Wide Voltage Range: Suitable for 12V, 24V, and up to 48V DC systems.
• Conductive Design: 3/8"-16 (Approx. M10) tinned copper studs for maximum conductivity and corrosion resistance.
• Flexible Mounting: Surface, rear, or front panel mounting options with snap-out isolation covers.
• Tactile Operation: Robust knob with positive click-stop positions for clear ON/OFF status.

Secure Your Electrical System

Ensure your vessel or vehicle is equipped with a master switch that meets professional safety standards. Install the Blue Sea m-Series Switch today for reliable circuit isolation and peace of mind on the water or the road.
