Description

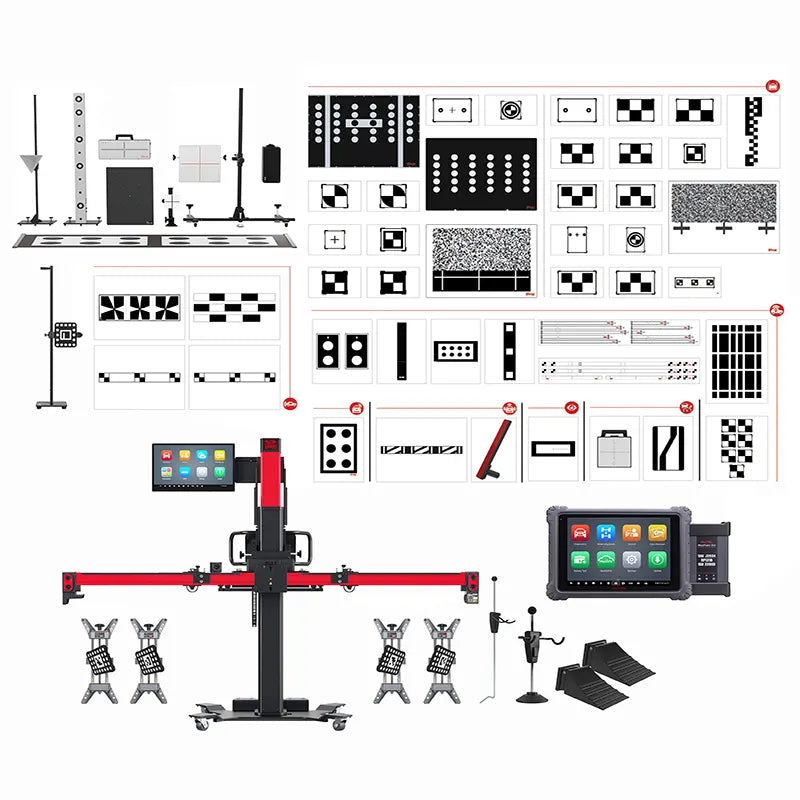

The Autel MaxiSYS IA900AST is the All Systems + Tablet configuration of Autel's IA900 platform: a single robotic frame that performs both four-wheel alignment and ADAS calibration, paired with the All Systems calibration components and the MaxiSYS MSUltra ADAS tablet preloaded with Alignment and ADAS software. One frame, one workflow, one place in the shop — replacing a dedicated alignment rack and a separate ADAS calibration setup.

The included IA900WA frame carries six high-resolution positioning and tracking cameras that automatically monitor vehicle height on the shop lift, holding alignment reading accuracy to 0.02 degrees. Robotic frame movement places targets at the correct position without manual measuring. Alignment coverage spans U.S., Asian and European vehicles, with illustrated alignment instructions, live readings, required tools and adjustment locations displayed on a single screen.

The All Systems calibration package supplies targets, patterns and calibration components for cameras, radar, LIDAR, and Night Vision systems — the sensor categories behind modern ADAS features like lane-departure warning, around-view monitoring, blind-spot detection, adaptive cruise control and rear collision warning. The package ships with everything the frame needs to calibrate those systems out of the box.

See it in action

Features

Frame and hardware

• Six high-resolution positioning and tracking cameras in the frame, monitoring vehicle height on the shop lift automatically
• Self-calibrating cameras — accurate every time, no manual recalibration ritual
• Robotic frame movement for efficient placement and reading accuracy to 0.02 degrees
• New folding crossbar locking mechanism
• Crossbar controls pitch, roll, yaw and center
• Built-in cable management and consolidated power supply

Dual-display operation

• 24″ touchscreen mounted to the frame for live readings, illustrated instructions and adjustment locations on a single screen
• 12.7-inch MaxiSYS MSUltra ADAS wireless tablet preloaded with Alignment and ADAS Calibration software
• Casts between the 24″ frame screen and the MSUltra tablet so the technician can drive from either display

IA900 Wheel Alignment software

• Vehicle inspection of tires, brakes, suspension, steering and more
• Service recommendations with attached photos, videos and notes
• Live alignment reading display
• All alignment results, rear only, front only, chassis symmetry and tire diameter views
• Illustrated alignment guide with live readings, required tools and adjustment locations on a single screen

IA900 ADAS Calibration software

• Frame placement with target position validation
• Step-by-step illustrated full-color instructions through each ADAS calibration procedure
• ADAS calibration target height set with the push of a button

Compatibility

Alignment coverage spans U.S., Asian and European vehicles. ADAS calibration capability covers vehicles equipped with camera, radar, LIDAR and Night Vision systems — the sensor categories that drive modern ADAS features (lane-departure warning, around-view monitoring, blind-spot detection, adaptive cruise control, rear collision warning).

Confirm year-range coverage and specific make/model support for your shop's vehicle mix with MGS sales before ordering — vehicle and ADAS database coverage continues to expand through Autel software updates.

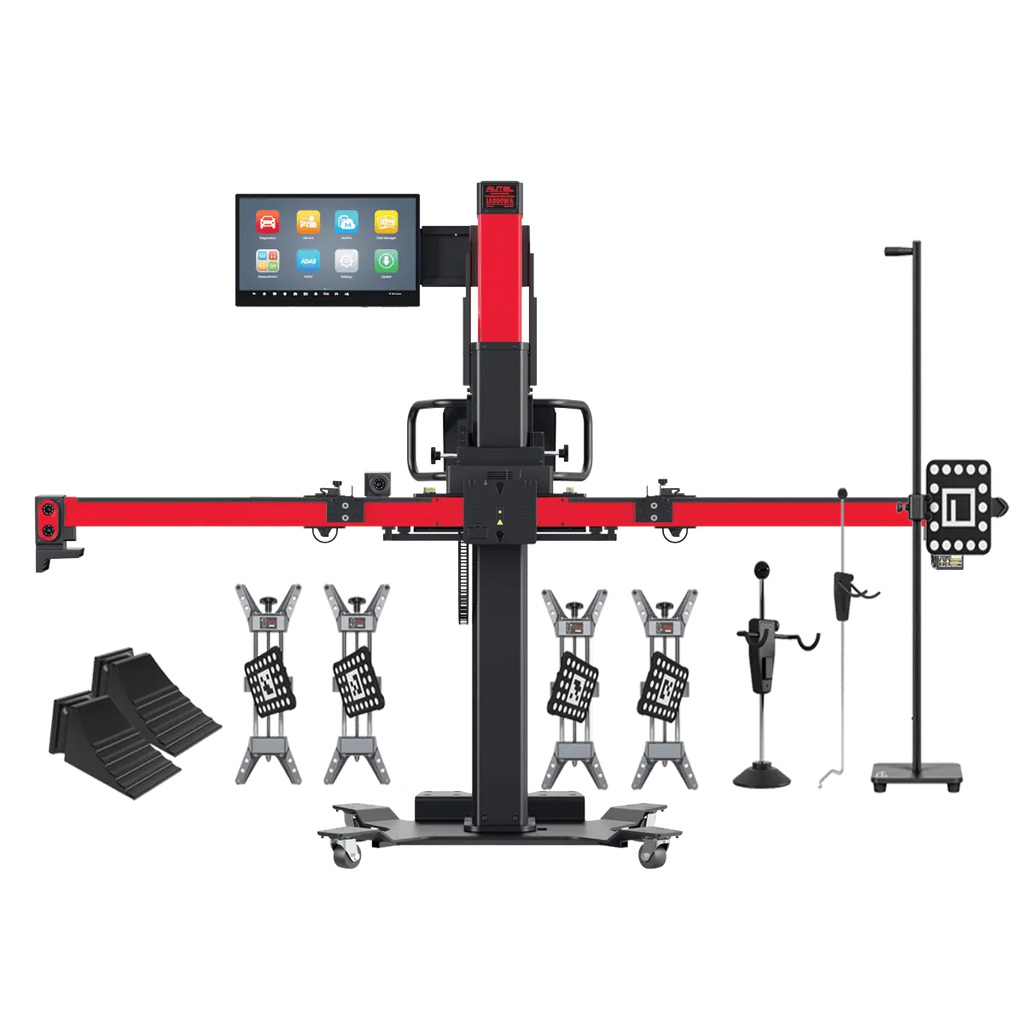

What's Included

Frame and tablet

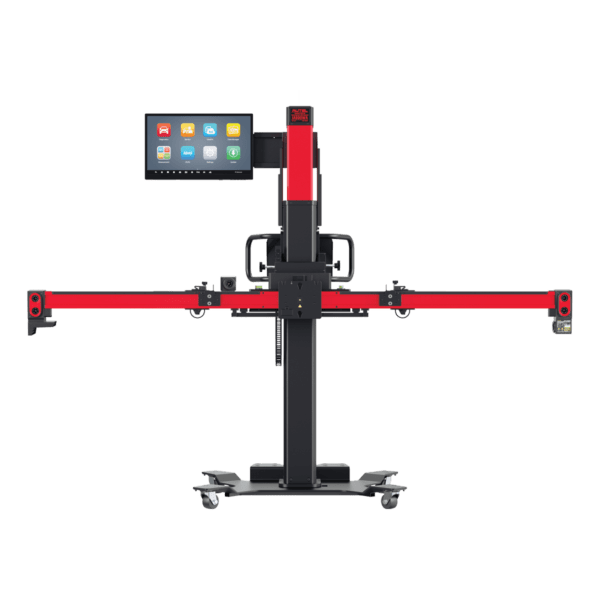

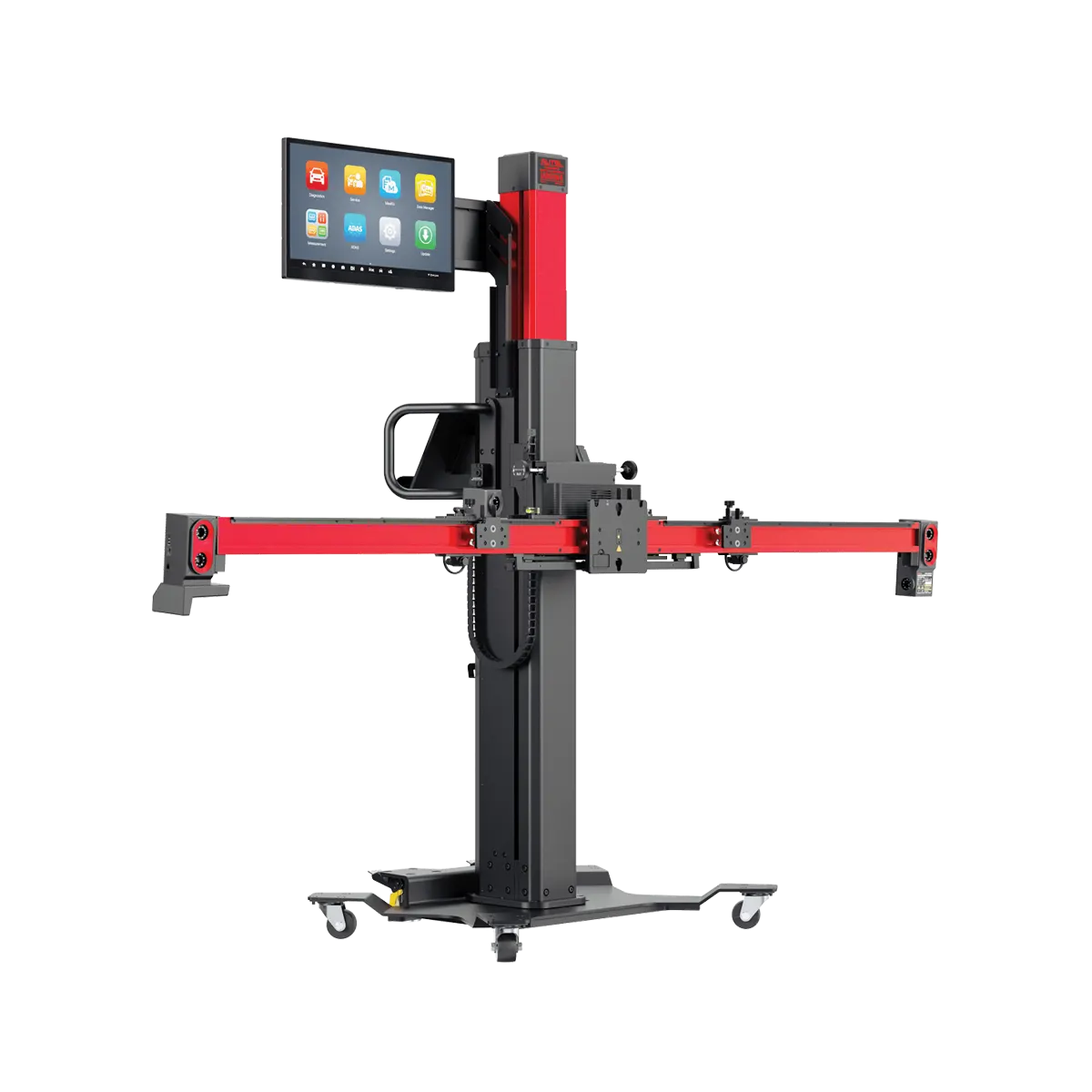

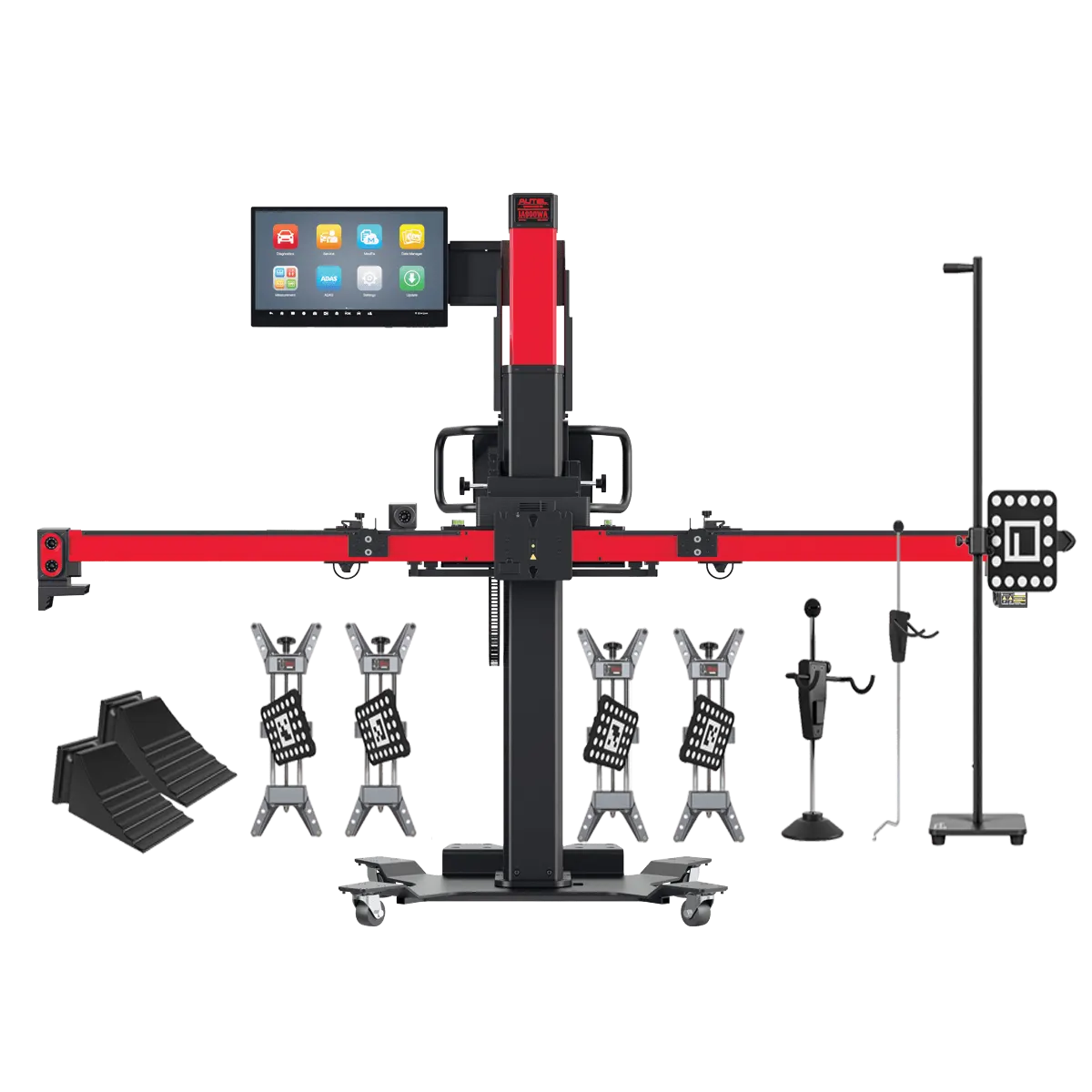

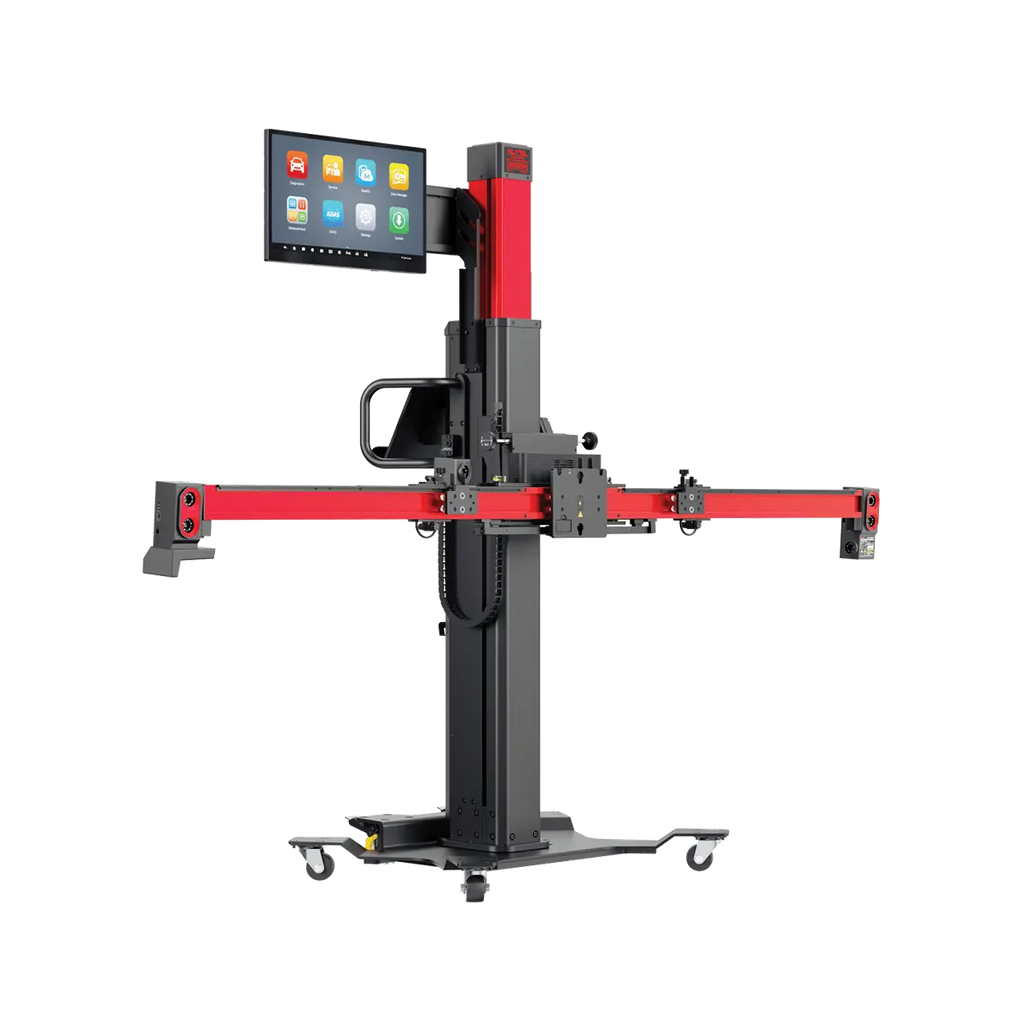

• IA900WA Wheel Alignment and ADAS Calibration frame with 24″ touchscreen display
• 12.7-inch MaxiSYS MSUltra ADAS wireless tablet preloaded with Alignment and ADAS Calibration software

Standard accessories

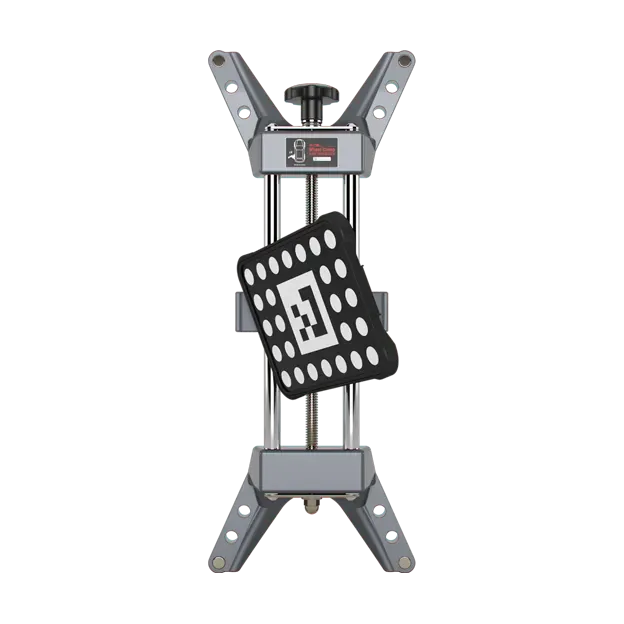

• Wheel Clamp × 4

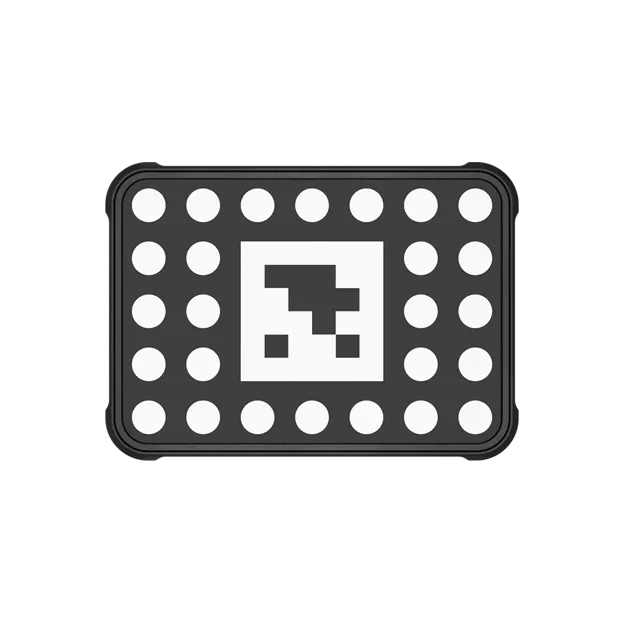

• Wheel Target × 4

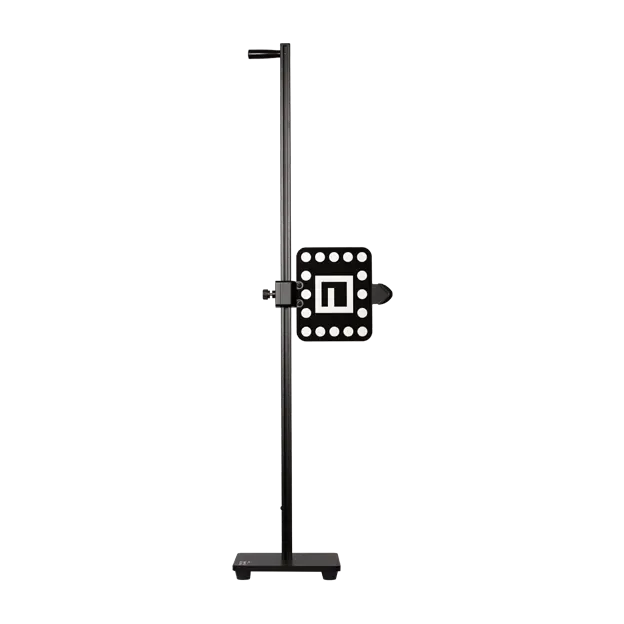

• Distance Target × 1

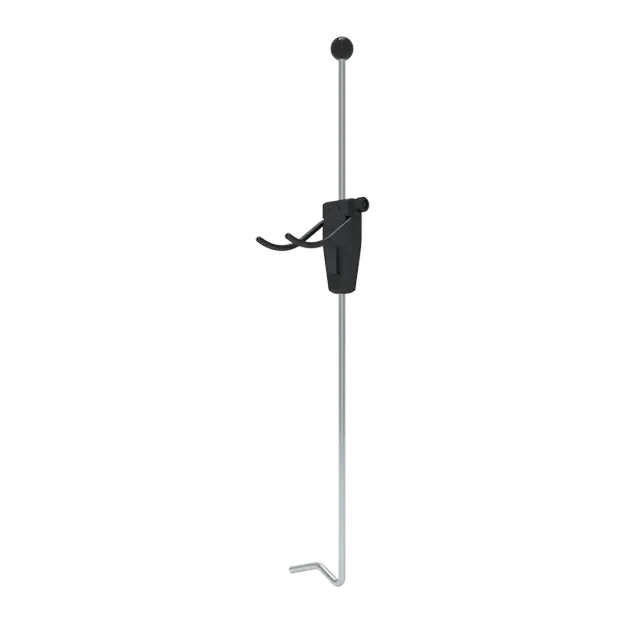

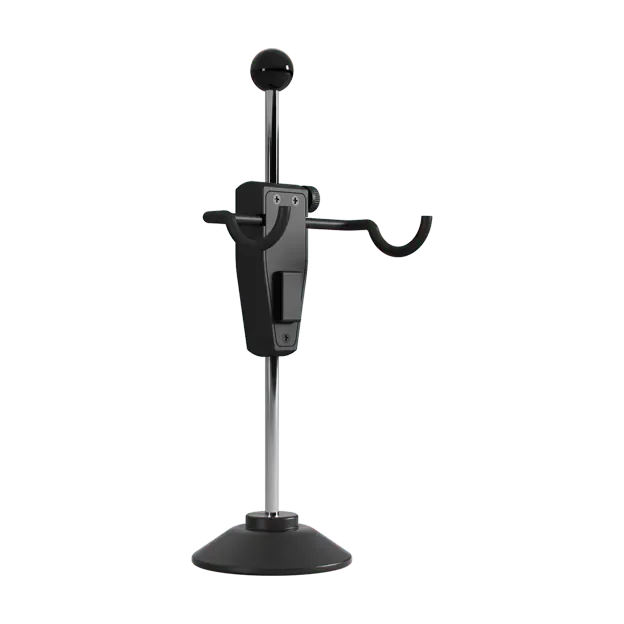

• Steering Wheel Lock × 1
• Brake Lock × 1

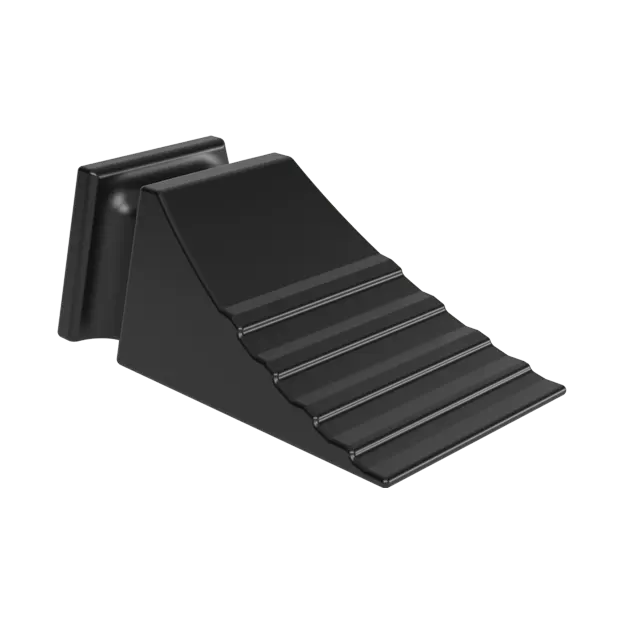

• Wheel Chock × 2

All Systems calibration components

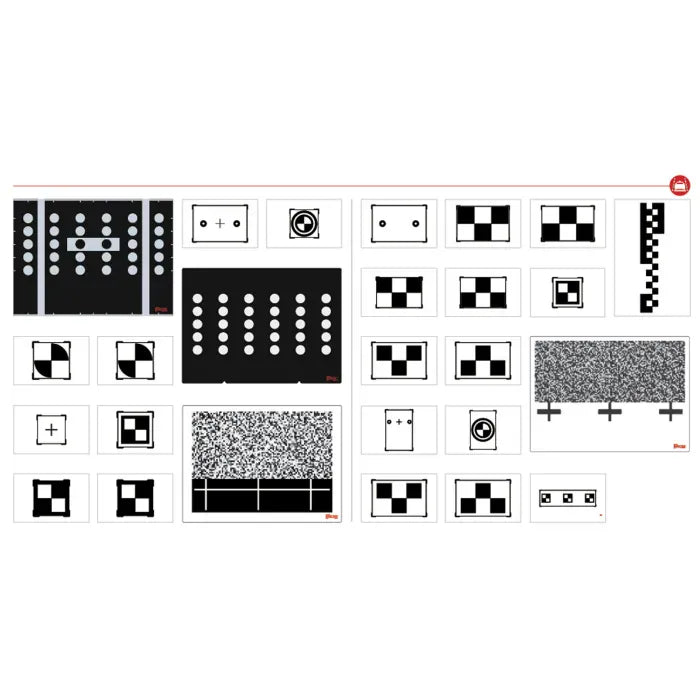

Targets, patterns and calibration components for cameras, radar, LIDAR and Night Vision systems — the full All Systems coverage package, ready to calibrate ADAS features out of the box.

Specifications

Warranty

Autel warrants the IA900AST against defects in materials and workmanship for one (1) year from the original purchase date, subject to the conditions in the included warranty terms.

Under warranty, Autel will repair or, at its option, replace the tool at no charge with proof of purchase (sales receipt). The warranty does not cover damage from improper use, accident, flood, lightning, or repair by anyone other than the manufacturer service center. Autel is not liable for incidental or consequential damages arising from use, misuse, or mounting.

In place of proof of purchase, the tool or tablet is warranted one year from tool/tablet registration. Out-of-warranty repairs are quoted to the customer before work begins.

FAQ

What does the IA900AST package actually replace in a shop?

A dedicated alignment rack plus a separate ADAS calibration setup — the IA900WA frame handles both jobs from a single robotic frame and a single software workflow.

How is IA900AST different from the other IA900 variants?

IA900AST is the All Systems + Tablet configuration: it ships with the IA900WA frame, the full All Systems calibration package (cameras, radar, LIDAR, Night Vision), and the MSUltra ADAS wireless tablet preloaded with Alignment and ADAS Calibration software. Lower-tier IA900 SKUs ship with subsets — the configurations chart above shows the differences.

How accurate are the alignment readings?

Reading accuracy is 0.02 degrees, delivered by six high-resolution positioning and tracking cameras with self-calibrating optics. The cameras track vehicle height on the shop lift automatically — no manual re-leveling between vehicles.

What's the working height range?

The frame operates from a 6″ minimum to a 7′ maximum target height, with a folding crossbar that compensates for uneven shop floors in all directions.

How does it ship?

Three pallets, total combined weight approximately 1,470 lbs. The largest pallet is 86″ × 52″ × 42″ at 655 lbs. Ships via freight — contact MGS to schedule delivery and confirm site readiness.

Documents

• MaxiSYS Intelligent ADAS IA900WA User Manual (PDF)
• MaxiSYS IA900WA — Alignments Without Limits Brochure (PDF)
• MaxiSYS IA900WA All Systems Brochure (PDF)
• MaxiSYS IA900WA Brochure (PDF)
• ADASWAUPGRADE Expansion Package (PDF)
• MSULTRAADAS Expansion Package (PDF)
• MaxiSYS IA900WA Brochure — French (PDF)
• Autel ADAS Comparison Chart (PDF)
