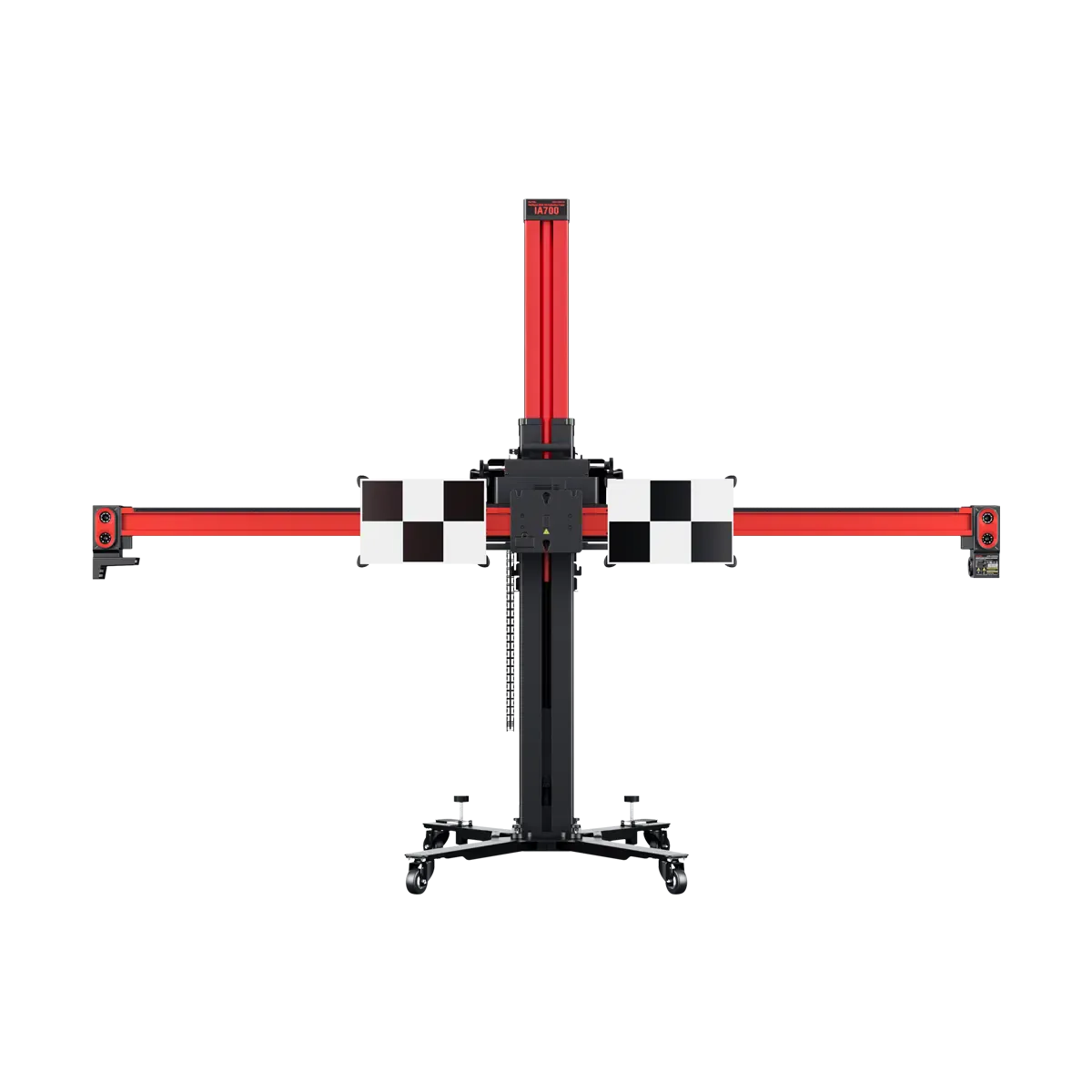

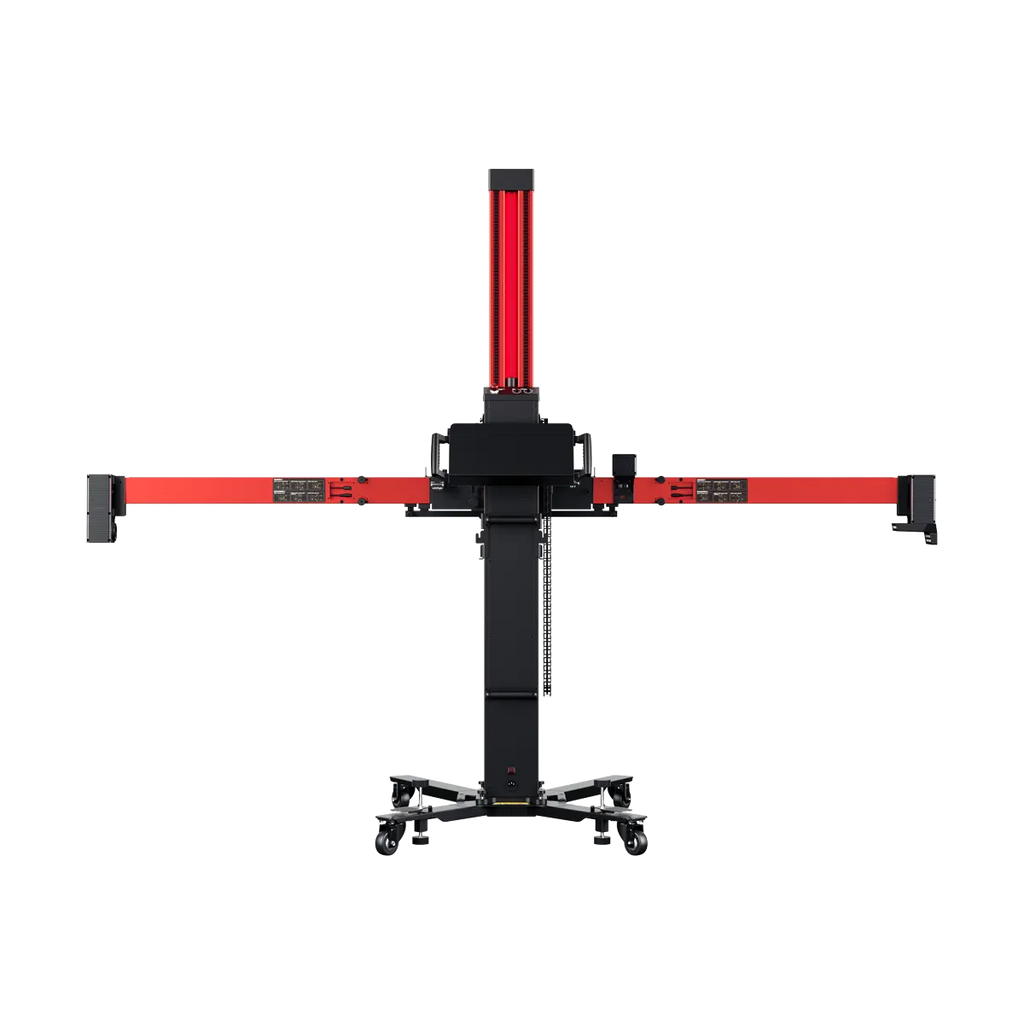

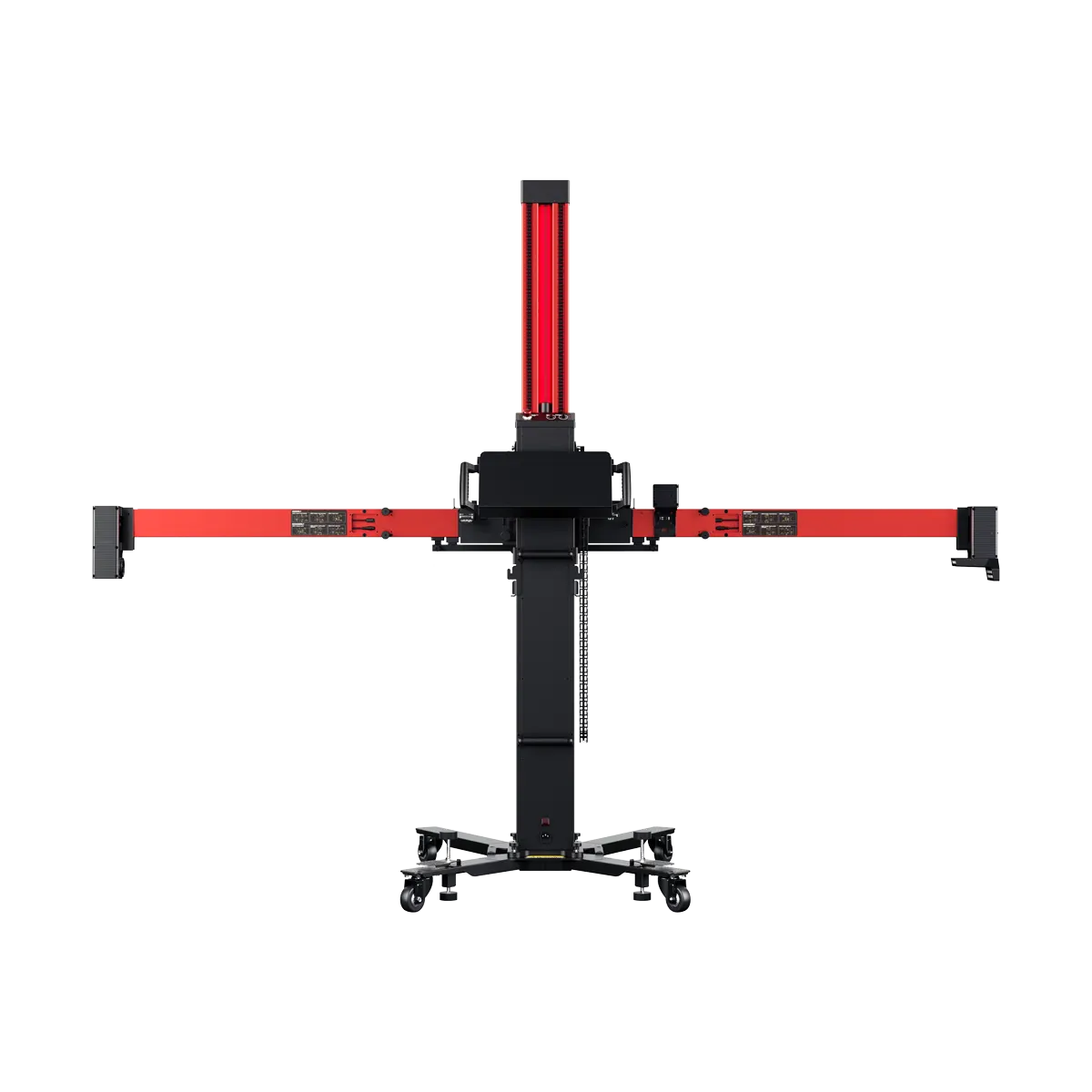

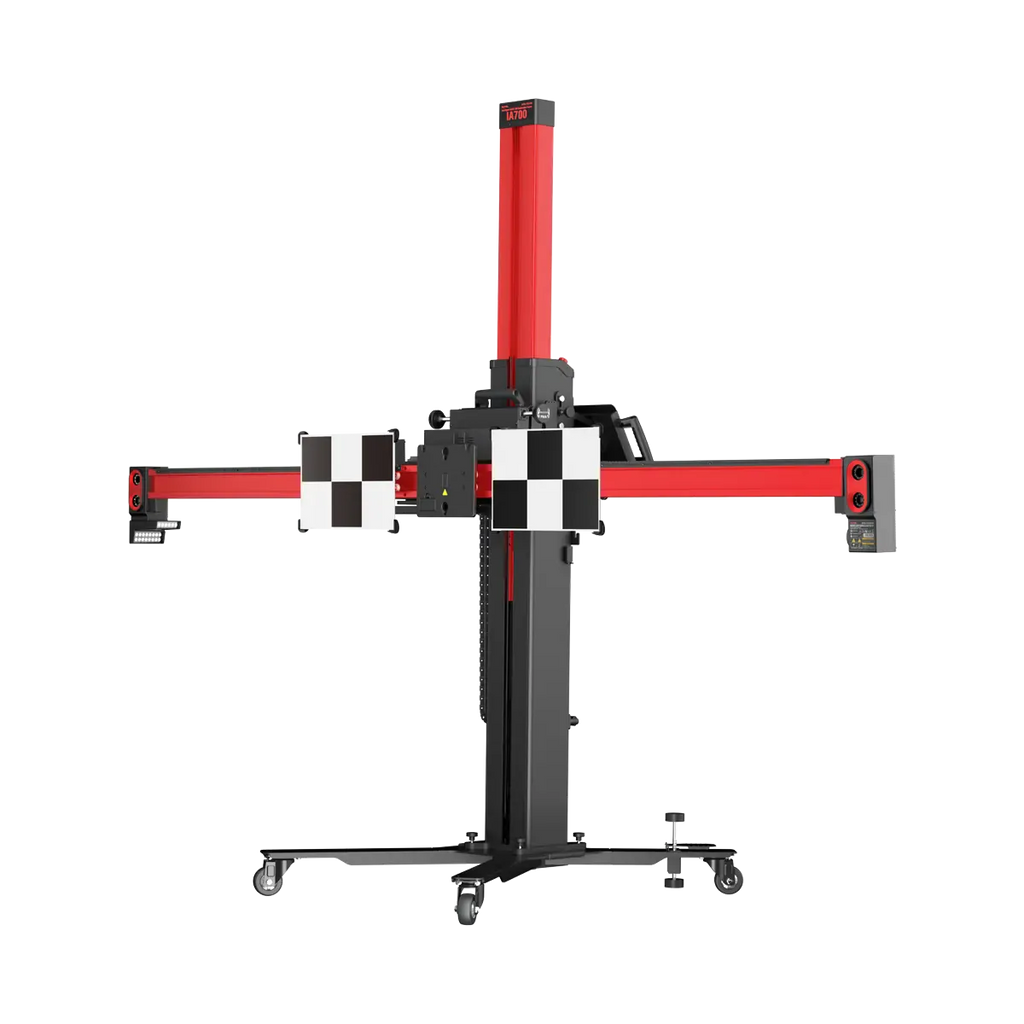

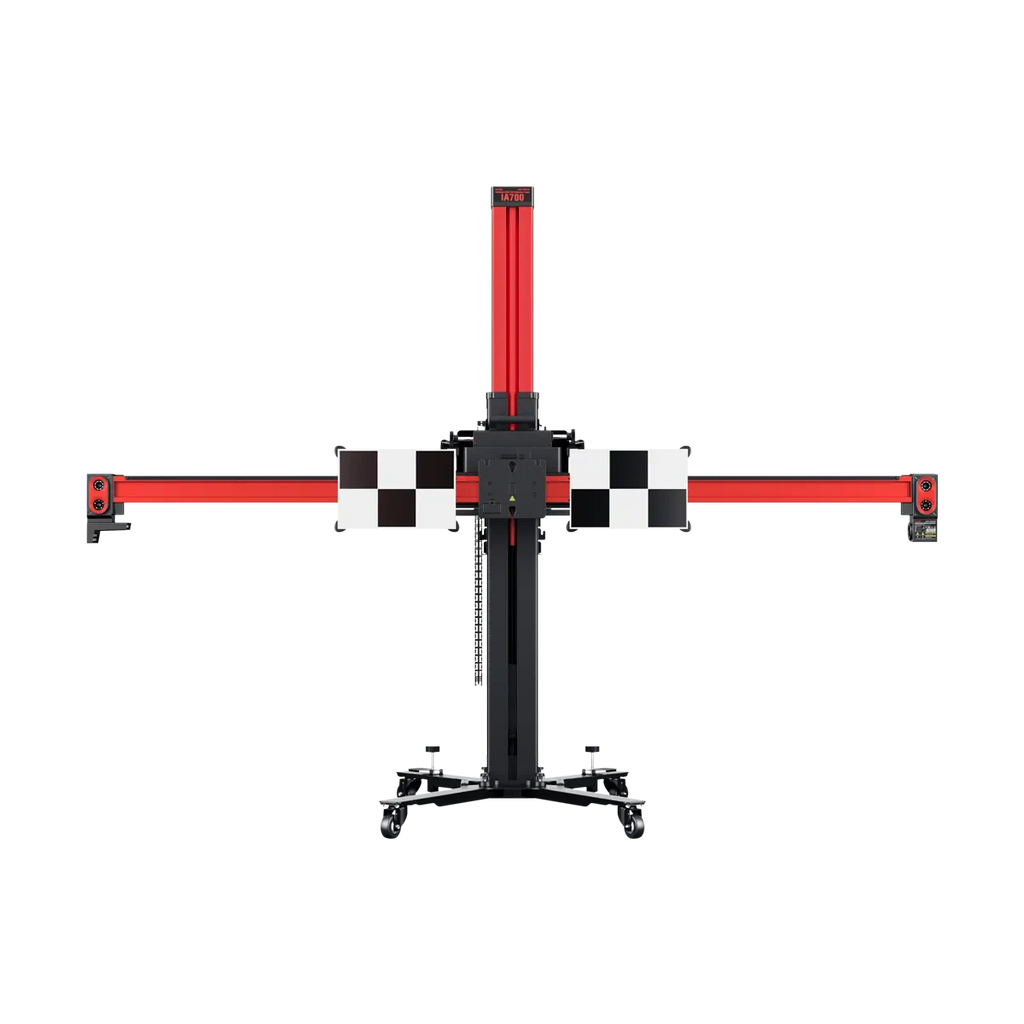

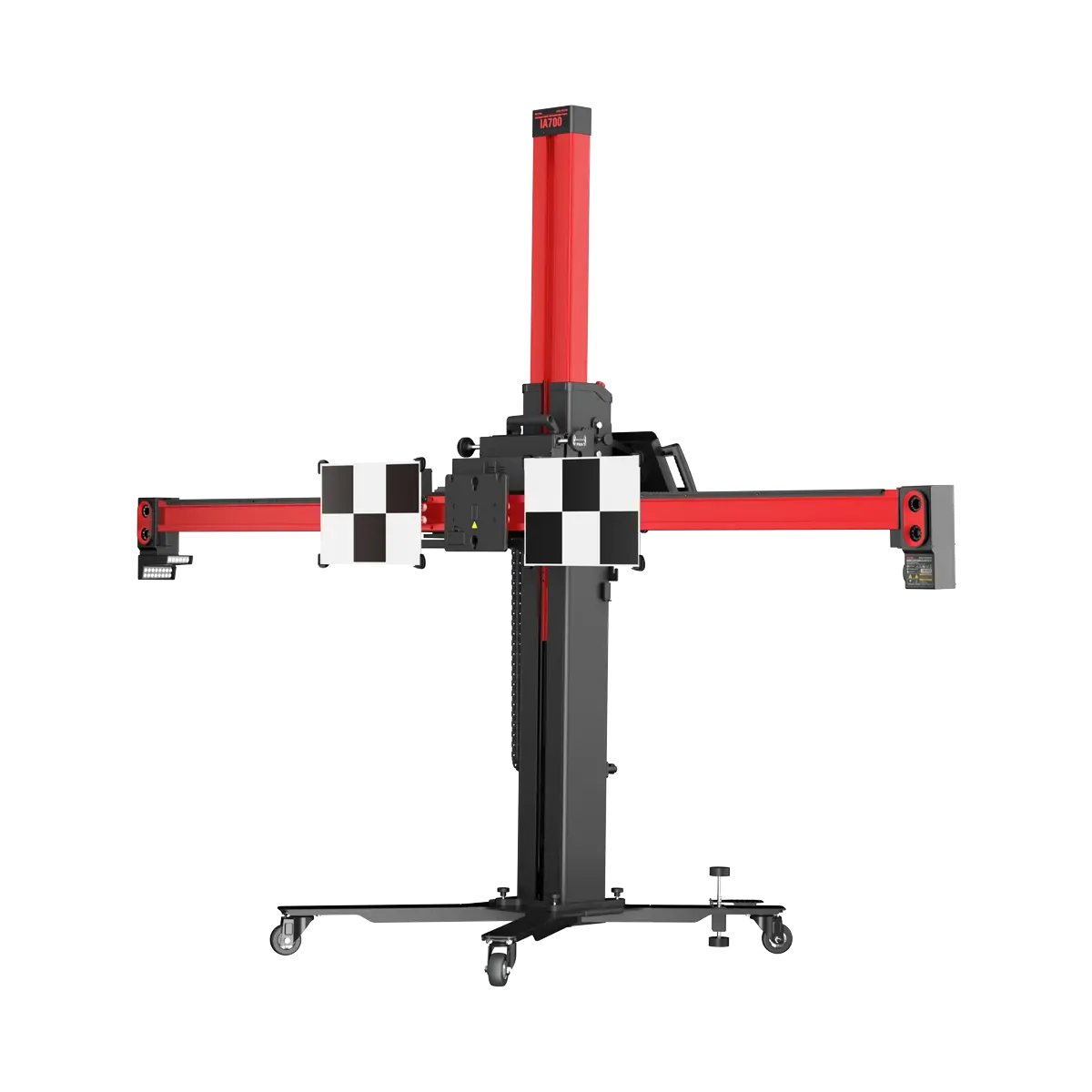

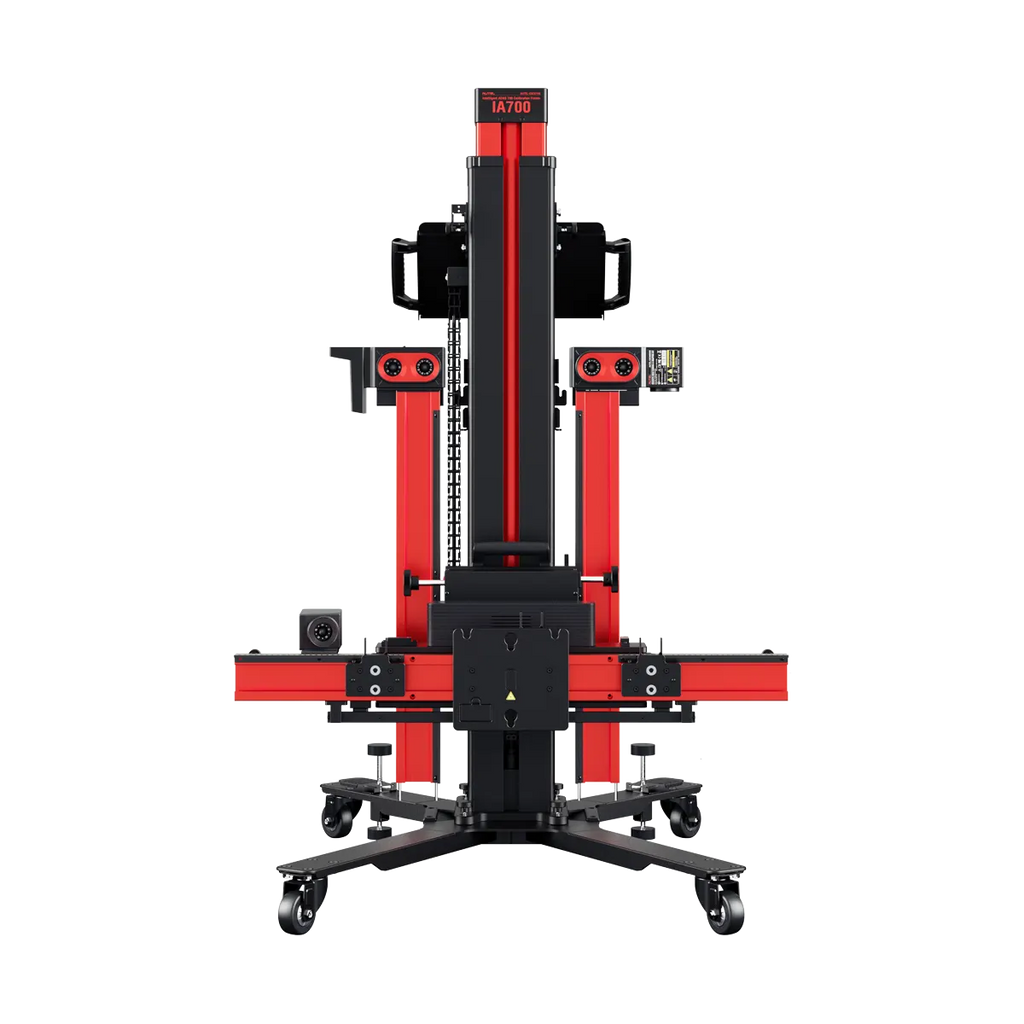

The Autel IA700AST is a modular ADAS calibration package built around the IA700 frame, a robotic crossbar with six high-resolution positioning and tracking cameras that handle target placement optically and prompt the operator when the shop floor is out of level. The bundle ships ready to run an alignment pre-check and a full static and dynamic ADAS calibration on the same vehicle without swapping equipment.
Static and dynamic calibration coverage extends to most U.S., Asian, and European ADAS-equipped vehicles. The included calibration targets and patterns address camera, radar, lidar, and night vision systems, and the package's Lane Departure Warning kit covers Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo. Radar-based front- and rear-collision warning systems, around-view monitoring systems, and lidar and night vision systems are all calibratable from the same frame.
Included MaxiSYS MS909 S2 tablet with MaxiFlash VCI2 module.
Diagnostics and calibration are driven by the included MaxiSYS MS909 S2 tablet, an advanced diagnostic tablet with a wireless VCI and J2534 pass-thru programming for current vehicle protocols. An ADAS calibration software upgrade card unlocks the static and dynamic ADAS coverage referenced above.
Features
Robotic crossbar with six high-resolution positioning and tracking cameras for fast, optical target placement
Unlevel floor compensation prompted automatically during setup
Static and dynamic calibration in a single frame
Calibration targets and patterns for camera, radar, lidar, and night vision systems
Lane Departure Warning calibration targets and patterns for 13 brands, including Mercedes-Benz, Toyota, Volkswagen, and Audi
Radar-based front- and rear-collision warning, around-view monitoring, lidar, and night vision calibration support
MaxiSYS MS909 S2 diagnostic tablet with wireless VCI and J2534 pass-thru programming included
Frame disassembles for transport or space-saving storage

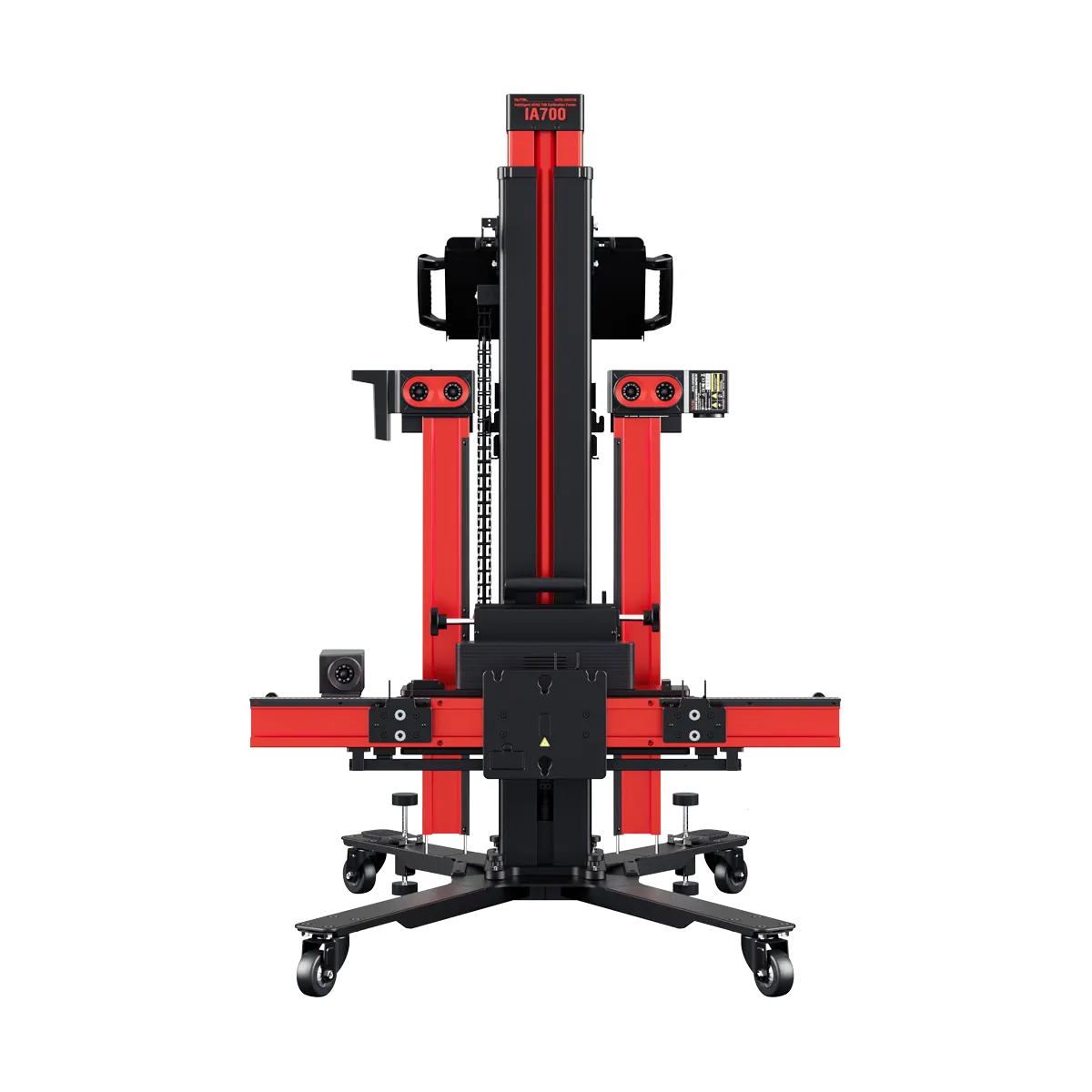

The IA700 frame breaks down into mast, crossbar arms, carrier, and base for transport or storage.
Compatibility
Static and dynamic ADAS calibration coverage on most U.S., Asian, and European ADAS-equipped vehicles. Calibration extends to camera-based systems, radar-based front- and rear-collision warning systems, around-view monitoring systems, lidar systems, and night vision systems on equipped vehicles.
Lane Departure Warning calibration targets and patterns are included for camera-equipped vehicles from the following brands:
Mercedes-Benz
Nissan
Infiniti
Hyundai
Kia
Toyota
Lexus
Mazda
Mitsubishi
Subaru
Volkswagen
Audi
Alfa Romeo

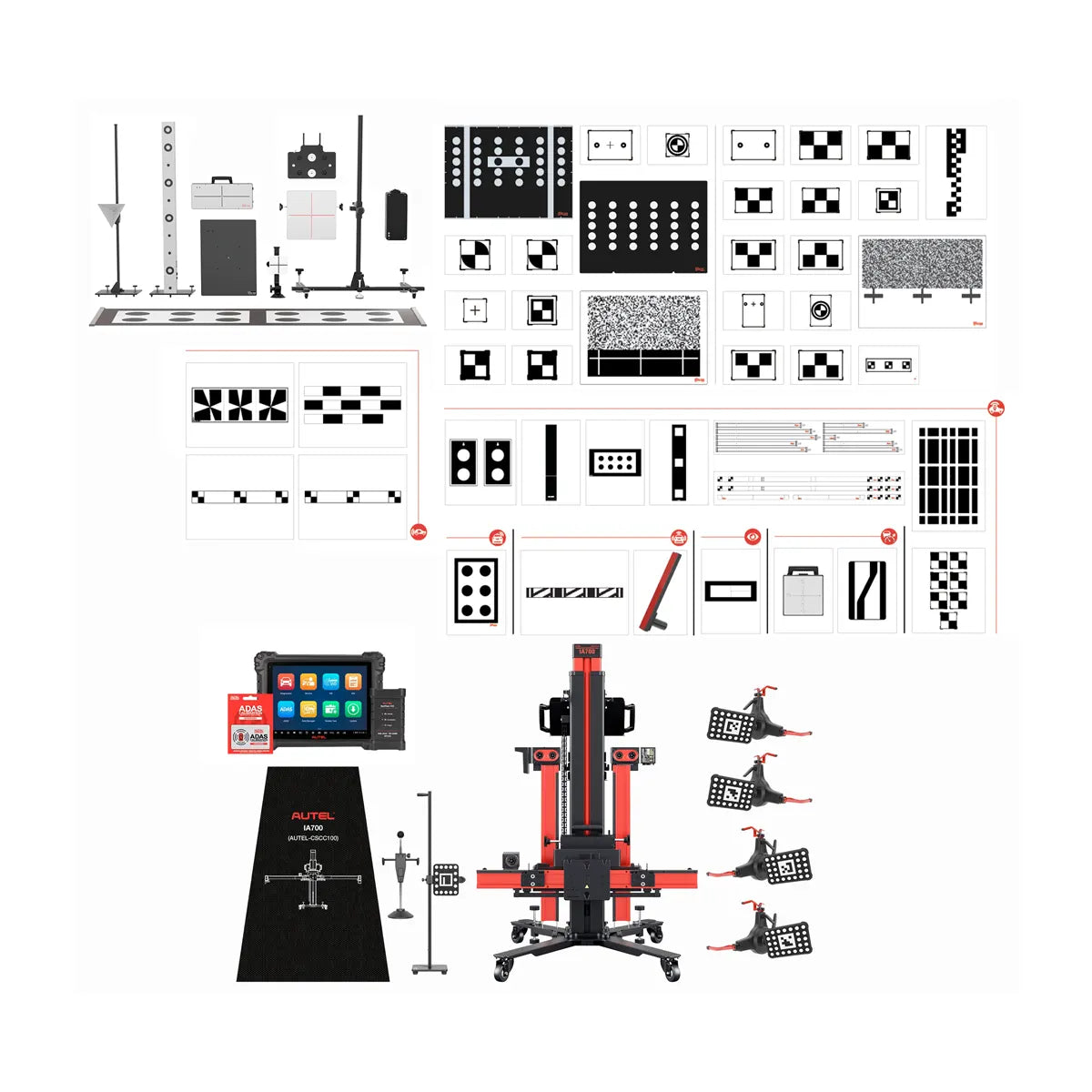

What's Included
IA700 ADAS calibration frame with robotic crossbar and six positioning and tracking cameras
MaxiSYS MS909 S2 diagnostic tablet
Wireless VCI with J2534 pass-thru programming
ADAS calibration software upgrade card
Calibration targets and patterns for camera, radar, lidar, and night vision systems
Lane Departure Warning calibration targets and patterns for the 13 brands listed under Compatibility
Target case
Four tire clamps with camera targets
Steering wheel lock
Brake chocks
Power supply
Alignment aid
Frame cover
Specifications
Autel IA700AST Specifications
Model
IA700AST (Package)
Frame
IA700 with robotic crossbar
Positioning cameras
Six high-resolution positioning and tracking cameras
Calibration modes
Static and dynamic
ADAS systems calibrated
Camera, radar, lidar, night vision, around-view, front- and rear-collision warning
Lane Departure Warning coverage
13 brands (see Compatibility)
Vehicle coverage
Most U.S., Asian, and European ADAS-equipped vehicles
Diagnostic tablet
MaxiSYS MS909 S2
Pass-thru programming
J2534 (via included wireless VCI)
Software
ADAS calibration software upgrade card
Floor handling
Optical unlevel-floor compensation prompts
Frame transport
Disassembles for transport or space-saving storage
Warranty
1-year Limited Warranty
Warranty
One-year Limited Warranty on the MaxiSYS IA700AST package.
FAQ
Does the IA700AST package include the diagnostic tablet?
Yes. The package ships with the MaxiSYS MS909 S2 diagnostic tablet, a wireless VCI with J2534 pass-thru programming, and the ADAS calibration software upgrade card. No separate tablet purchase is required to run calibrations out of the box.
What ADAS systems can the IA700AST calibrate?
The included targets, patterns, and calibration components cover camera-based ADAS, radar-based front- and rear-collision warning, around-view monitoring, lidar, and night vision systems on equipped vehicles. Static and dynamic calibration are both supported.
How does the frame handle uneven shop floors?
The robotic crossbar's six high-resolution positioning and tracking cameras detect when the floor is out of level and prompt the operator for unlevel floor compensation during setup. The optical positioning system places targets without manual measurement.
Does the frame break down for transport or storage?
Yes. The IA700 frame disassembles for transport or space-saving storage between jobs. The package also includes a frame cover and a target case.
