Description

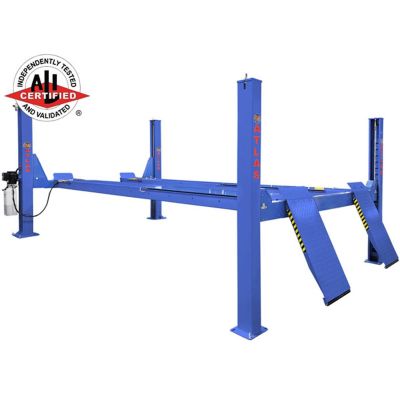

The Atlas® Platinum PVL140F-EXT is a heavy-duty, ALI Certified four-post alignment lift designed for professional shops handling everything from standard vehicles to commercial trucks. This extended-length, open-front design provides unmatched access to the underside of vehicles, making alignments and undercarriage work more efficient. Built with commercial-grade steel, it features a premium ALLY Hydraulic power unit and integrated slip plates and turntables for precise wheel alignments. The PVL140F-EXT sets the standard for high-capacity alignment lifts, combining durability, functionality, and easy operation with enhanced safety features.
| Product Features |
|---|
| ALI Certified Lift |
| 14,000 lb. Lifting Capacity |
| Open-Front Design for Easier Undercar Access |

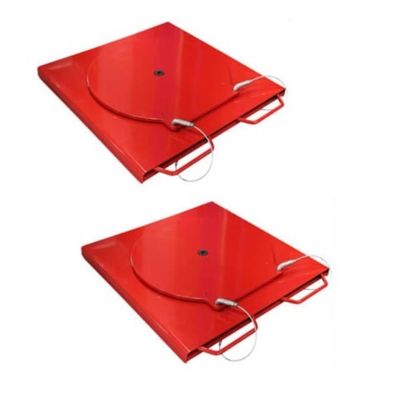

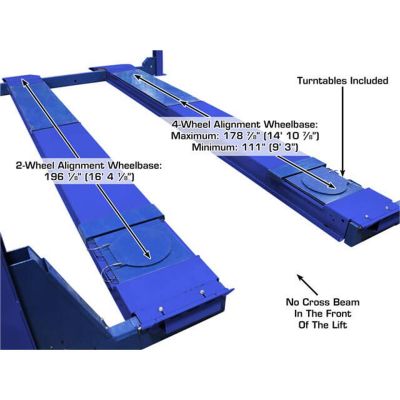

| Built-In Slip Plates & Heavy Duty Turntables |
| Extra Long Runways |
| Adjustable Lock Ladder System |
| Double Lock Safety System |

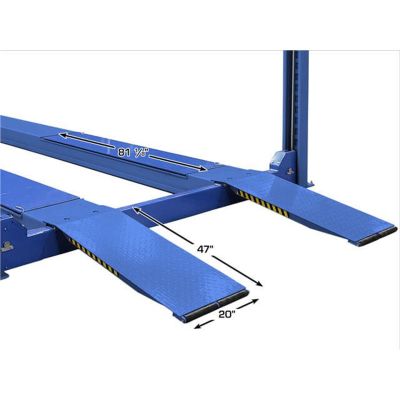

| Steel Approach Ramps Included |

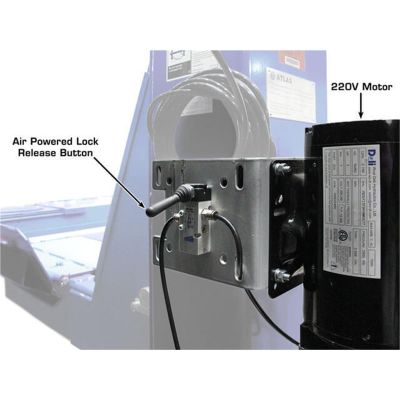

| Air Operated Single Point Lock Release |
| Powder Coat Finish for Long-Term Durability |
| Premium ALLY Hydraulic AL3000 Power Unit |
| 220V Single Phase Electric Motor (30A Breaker Required) |
| 5-Year Structural / 2-Year Hydraulic / 2-Year Power Unit Warranty |
 |  |
| Product Specifications | |
|---|---|
| Capacity | 14,000 lb. |
| Lifting Height | 73 1/4" (6' 1 1/4") |
| Overall Width (No Motor) | 140 1/8" (11' 8 1/8") |
| Overall Width (With Motor) | 148 3/4" (12' 4 3/4") |
| Overall Length (With Ramp) | 272 1/8" (22' 8 1/8") |
| Length Between Columns | 207" (17' 3") |
| Runway Length | 223 1/2" (18' 7 1/2") |
| Runway Width | 20" |
| Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |
| Clearance Between Columns | 116 3/8" (9' 8 3/8") |
| Clearance Under Runways | 66 1/4" (5' 6 1/4") |
| Height of Columns | 92 1/2" Rear / 109 1/4" Front |
| Drive Thru Clearance | 94 1/2" (7' 10 1/2") |
| Max Wheel Base | 203" (16' 11") |
| Air Requirement | 85-115 PSI (External Air Supply Required) |
| Electrical Requirement | 220V Single Phase (30A Breaker Recommended) |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |

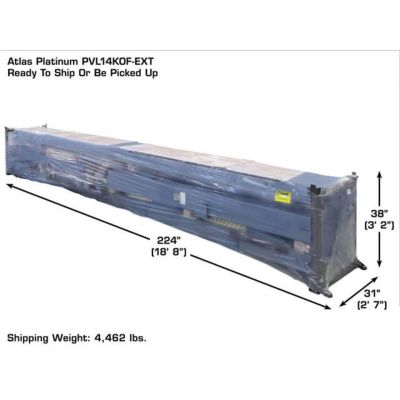

| Shipping Weight | 4,462 lbs. |

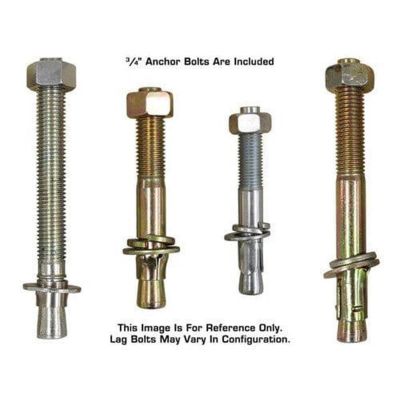

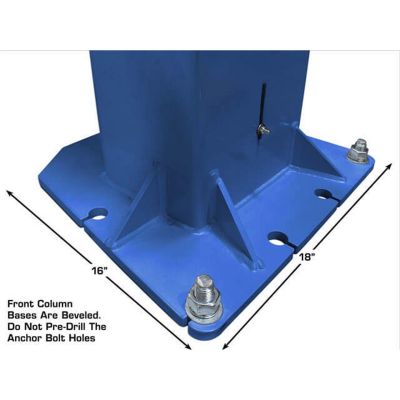

| Concrete Requirement | Minimum 6" @ 3,000 PSI |
