The Atlas Garage PRO9000 combo pairs the highest-capacity lift in the Atlas Garage PRO series with two RJ-45A rolling bridge jacks — turning a portable storage and service four-post into a rolling wheel-and-brake station. The lift is rated 9,000 lbs; each RJ-45A jack is rated 4,500 lbs. Together they handle everything from a Smart Car to a diesel dually.
The PRO9000 runs on standard 110V power (30-amp breaker required), is free-standing — no anchoring required — and rolls on an included caster kit so it can move when the floor plan changes. The runways are extra-long to fit longer-wheelbase vehicles, and extra-wide so full-size duallys can drive on without their tires riding the runway edges. Extra column height makes it possible to park anything from a Smart Car to a dually both below and on the runways.
Extra-long 17-foot runways (18'11½" with approach ramps).

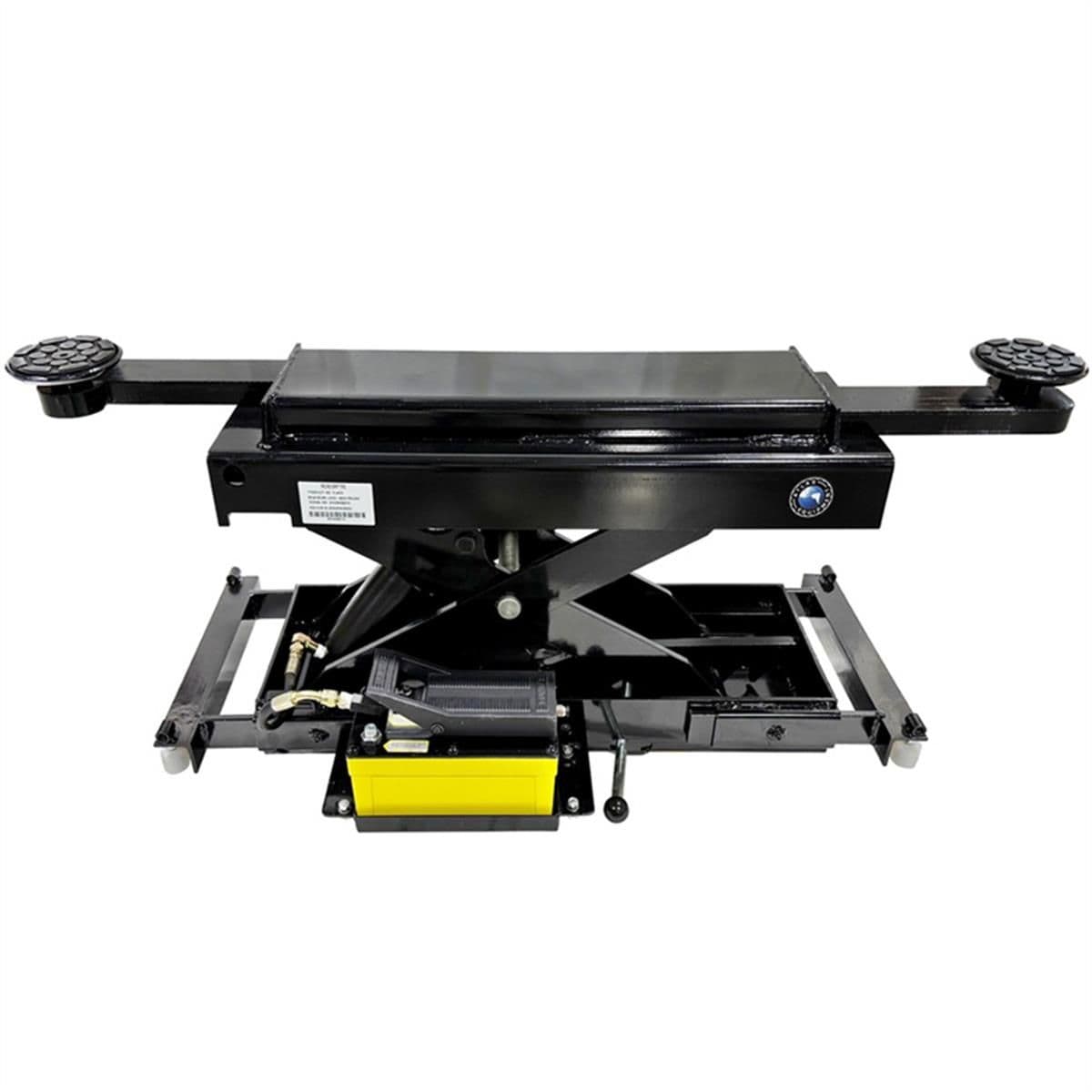

The two RJ-45A bridge jacks ride on the runways and span the gap between them. Air/hydraulic operation lets a tech raise a vehicle's wheels off the runway for tire and brake service on the same lift the car is already parked on. Adjustable support arms fit lifts with 35" to 54½" between runways, so the jacks aren't tied to the PRO9000 — they work across most four-post platforms in that runway range.
Features
Atlas Garage PRO9000 four-post lift
9,000-lb lifting capacity
Free-standing, portable design — no anchoring required
Lock ladder, single-point lock release, and metal-braided hydraulic hose.Nylon rollers for smooth movement; steel wheel for durability.
RJ-45A rolling bridge jacks (×2 included)
4,500-lb lifting capacity per jack
Air/hydraulic operation (external air supply not included)
Two locking heights: 7⅜" and 10½"
Max lifting height with adapters: 18½" (may vary by lift)
Min height above runway: 3¾" (may vary by lift)
Arm adjustment: 39½" to 64¾"
Fits lifts with 35" to 54½" between runways
Height adapters and rubber lift pads included
Max lifting height with adapters: 18½". Two locking positions.Includes a 4-piece truck adapter set with on-board holder.Adapter kit: 4¾" rubber pad, two 1⅜" lift pads, two 1¼" adapters, two 5" adapters.
What's Included
(1) Atlas Garage PRO9000 four-post lift with 110V power unit
(2) RJ-45A rolling bridge jacks with adapter kits
Caster kit with polyurethane wheels (lift)
Steel approach ramps
Steel jack tray
4 plastic drip trays
2 rubber wheel chocks
Included caster kit. Do not move the lift with a vehicle on the runway.Diamond-plate steel approach ramps (31" × 31½" × 19⅞").Four plastic drip trays sit between the runways (39" × 24" each).Rubber wheel chocks (6" × 5½" × 3¼"), two included.
95¾" (7'11¾"), ±2" depending on thread adjustment and floor pitch
Top of runway
85" (7'1")
Clearance under runways
80½" (6'8½")
Overall length with approach ramps
227½" (18'11½")
Overall length without ramps
204" (17')
Length between columns
184½" (15'4½")
Overall width with motor
131½" (10'11½")
Overall width without motor
123½" (10'3½")
Width between columns
110½" (9'2½")
Drive-through width
79" (6'7")
Runway width (inner)
19⅞"
Distance between runways (center-to-center)
35½"
Runway thickness
4¾"
Runway gauge
5 gauge (.2" / 1/5" / 5mm) steel
Column footprint
11½" × 11½" base plate; 7½" × 4½" column
Approach ramp
31" × 31½" × 19⅞"
Drip tray
39" × 24", four included
Wheel chock
6" × 5½" × 3¼", two included
Shipping crate
202¼" × 28¼" × 21½"
Shipping weight
2,300 lbs
Warranty
2-year structural / 1-year hydraulic, parts only
Atlas RJ-45A Rolling Bridge Jack Specifications (×2 included)
Lifting capacity (each)
4,500 lbs
Operation
Air/hydraulic (external air supply not included)
Max lifting height with adapters
18½"
Min height above runway
3¾"
Locking heights
7⅜" and 10½"
Arm adjustment range
39½" to 64¾"
Compatible runway spacing
35" to 54½" between runways
Shipping crate (each)
39½" × 23½" × 12½"
Shipping weight (each)
380 lbs
Heights may vary by lift.
Footprint & Dimensions

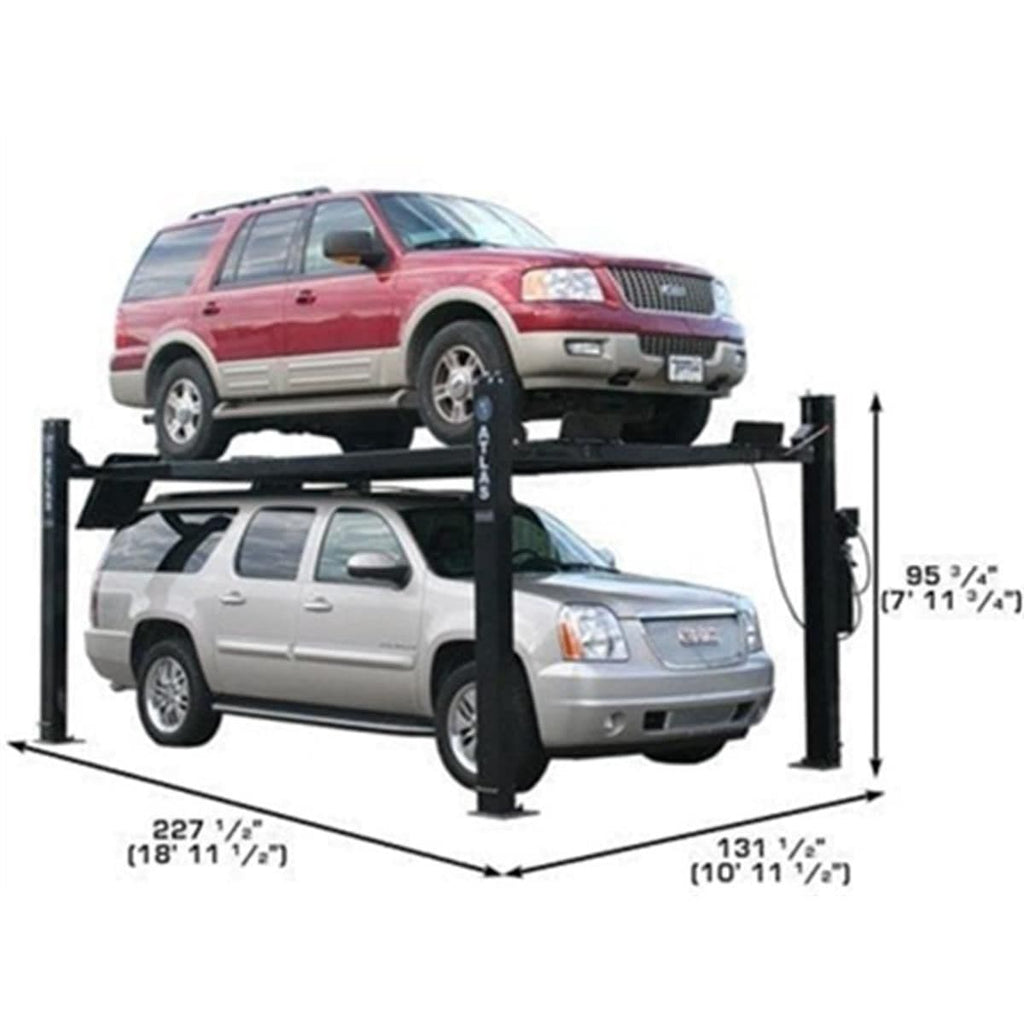

Top view: 110½" between columns, 97¼" drive-through, 19⅞" inner runway width.Side profile with a Silverado dually loaded: 95¾" tall, 227½" long.80½" of clearance under the runways with the 110V power unit on the column.Single-point lock release handle and 110V power unit, viewed from the front.80¼" below runway, 85" to top of runway.Steel jack tray sits between the runways: 39" × 4½".Column base plate: 11½" × 11½".RJ-45A arm width extension: 30" to 60½".
Logistics & Delivery
This combo ships freight in three crates: one for the lift and one for each RJ-45A bridge jack.
