Atlas Garage PRO8000EXT-L 8,000 lb 4-Post Lift with Pro-Floor 8-Panel Combo
£2,753.00
Sale price
£2,753.00
Regular price
Shipping calculated at checkout.
ATEXH-PRO8EXTL-FP8-COMBO
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description
The Atlas Garage PRO8000EXT-L is the extra-tall, extra-long version of the Atlas 4-post storage and service lift, bundled with the 8-piece Atlas Pro-Floor panel set. Compared to the standard Garage PRO8000, the EXT-L runs 20 inches longer, 3 inches wider, and 14 inches taller at the columns, with the extra lifting height of the PRO8000EXT carried over. The longer runways accommodate most extended-cab and long-bed pickup trucks, with one exception: dually rear axles are too wide to clear the column lock assemblies. For dually-width vehicles, the Atlas Garage PRO9000 is the right lift.
The 8,000 lb capacity free-standing 4-post platform is designed for homeowners and restoration shops — applications where the lift cycles a few times per day for storage, detailing, or extended service. It is not engineered for the duty cycle of a commercial repair bay raising and lowering vehicles all day. If a higher-cycle commercial 4-post is the better fit, contact MGS at 307-381-1810 for an alternative.
The Pro-Floor 8-panel set closes the gap between the runways once the lift is raised, turning the platform into a continuous work and storage surface above the parked vehicle. Six middle panels and two end pieces, each rated 400 lb per section, dimensioned 37 1/4" wide × 19 1/2" deep × 4" tall.
Features
4-Post Lift (Garage PRO8000EXT-L)
- 8,000 lb lifting capacity
- Free-standing, portable design
- Extra-tall columns and extra-long runways
- Diamond-plated runways

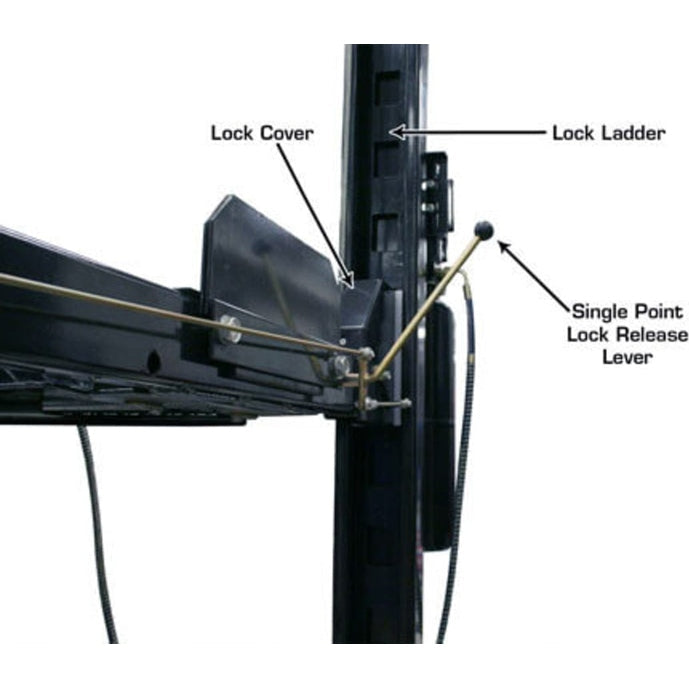

- Single-point lock release

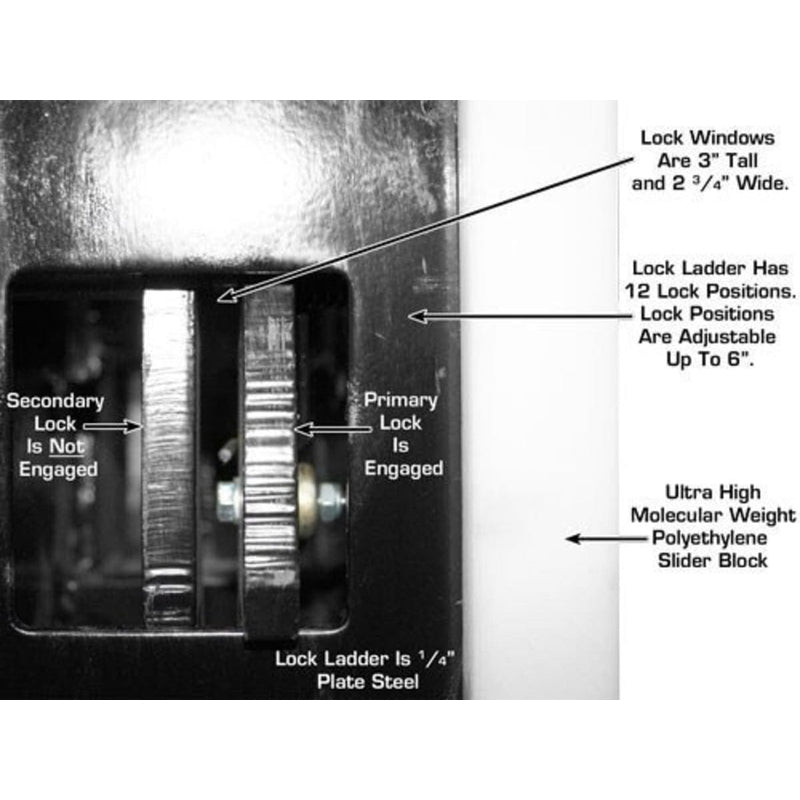

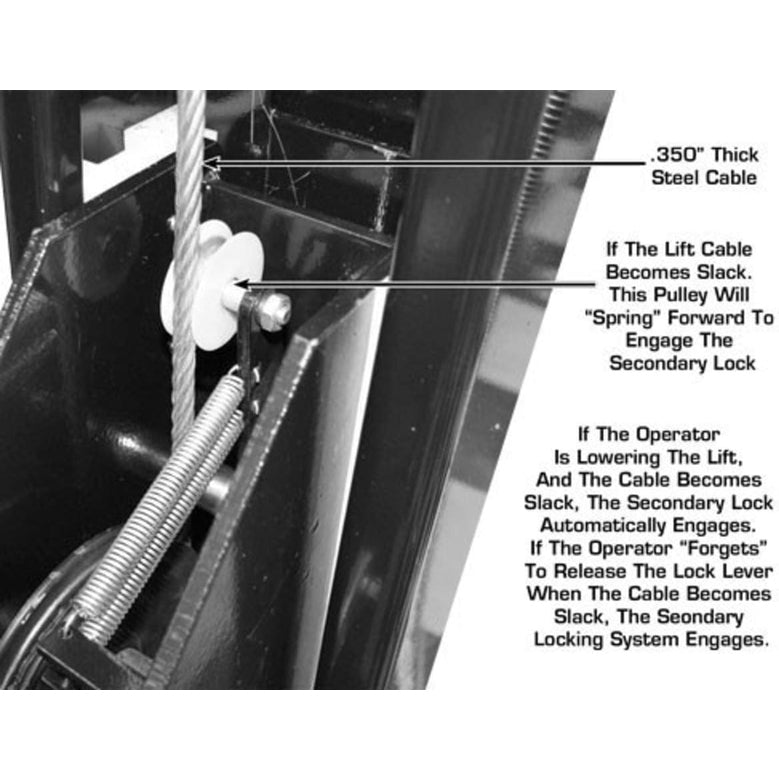

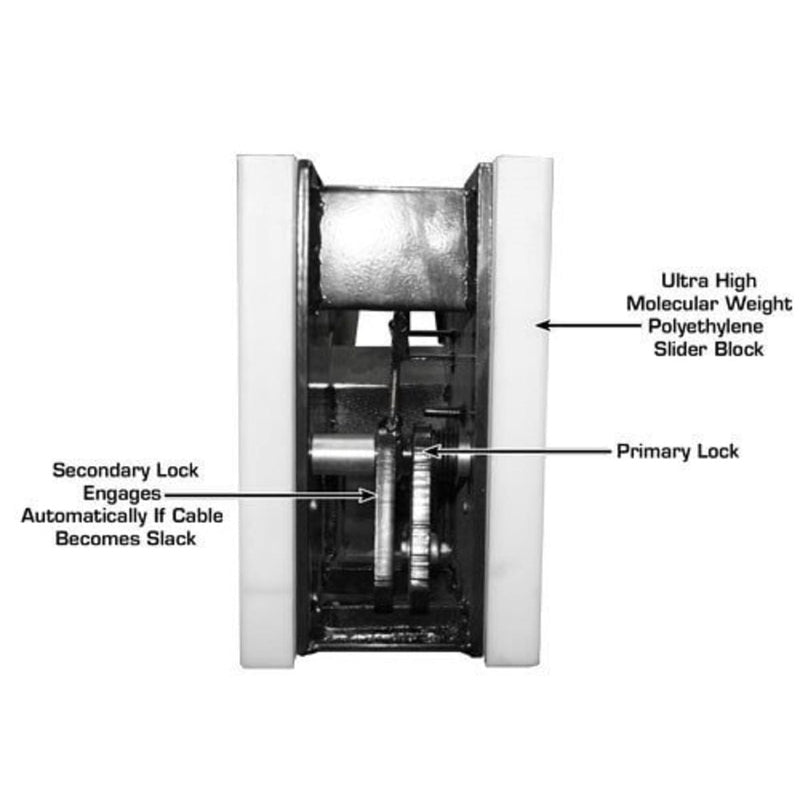

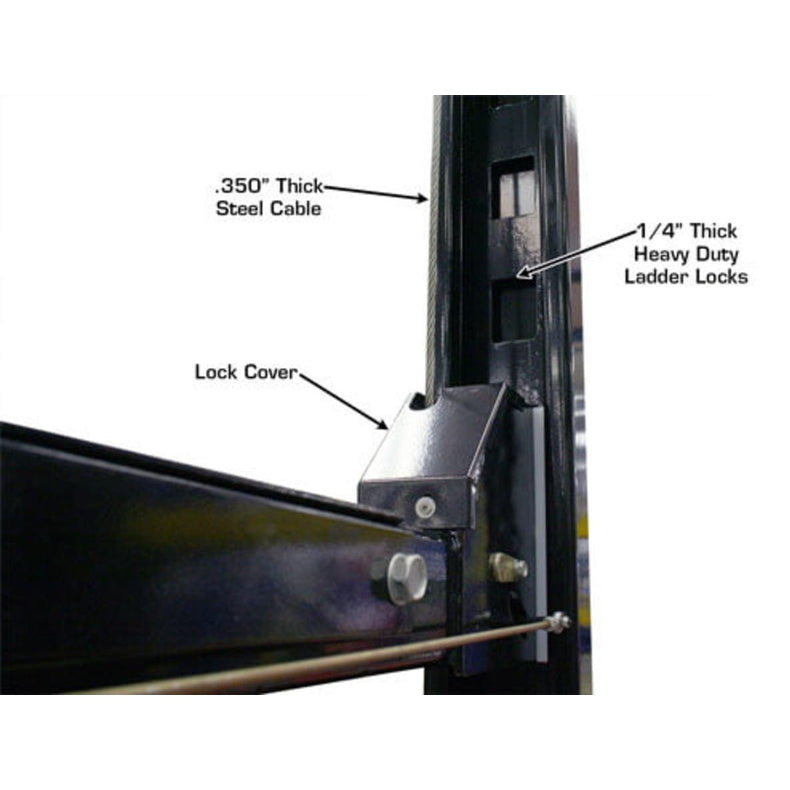

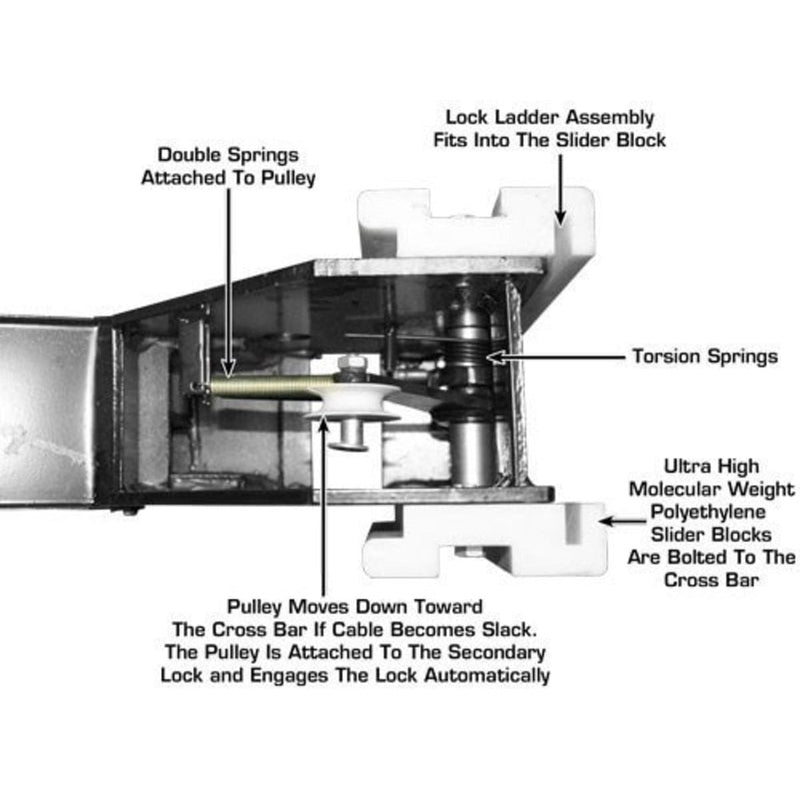

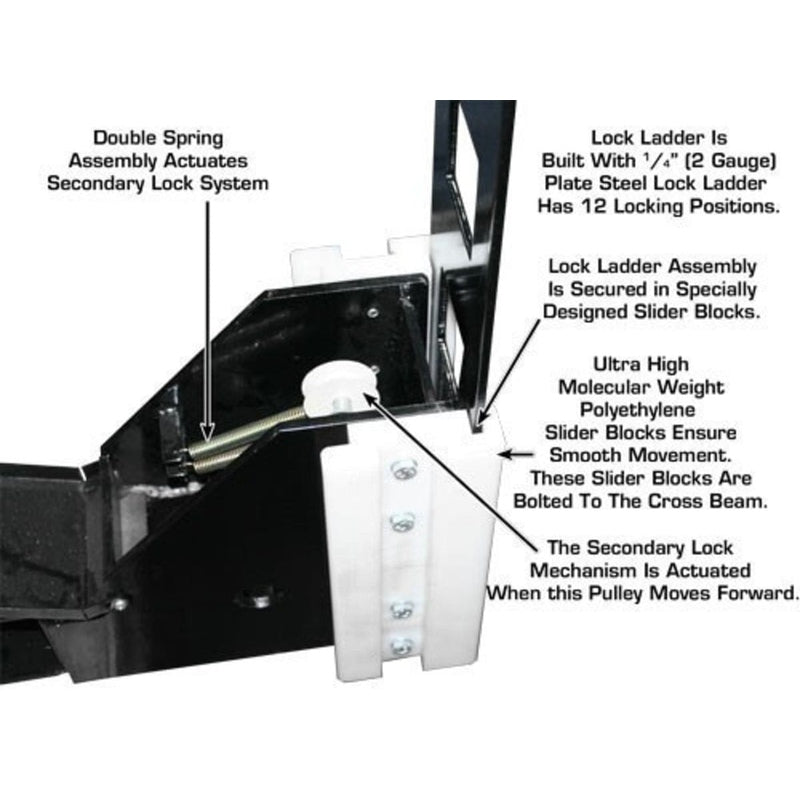

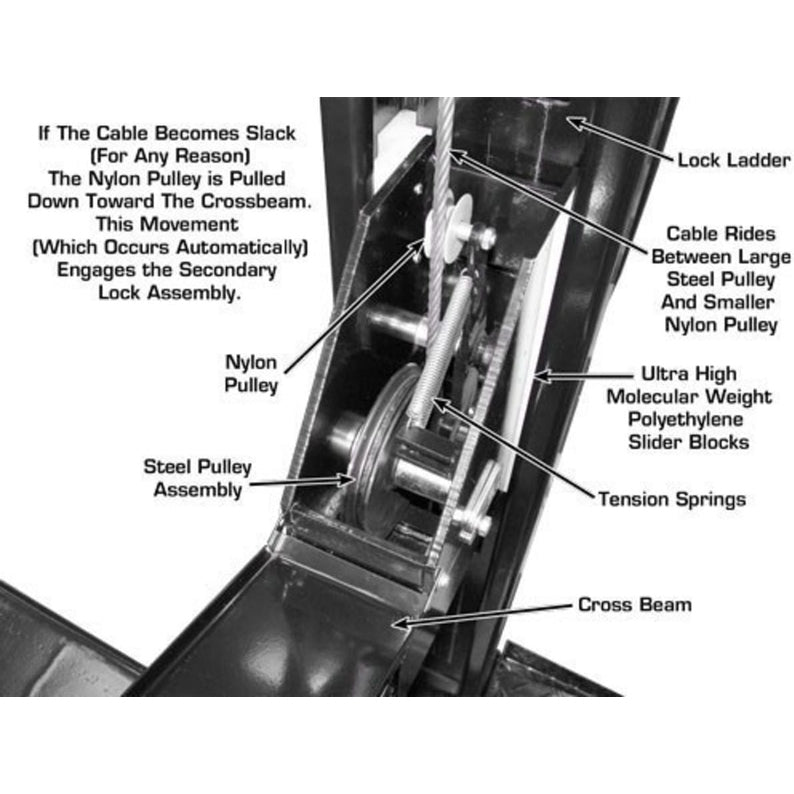

- Lock-ladder design with double-lock safety system

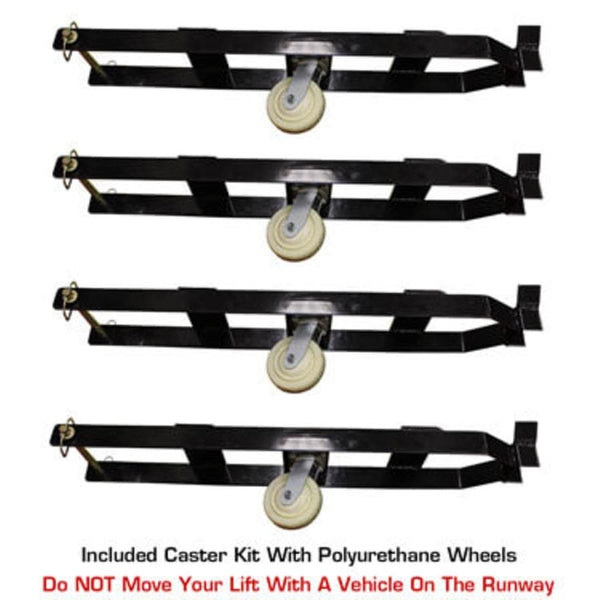

- Caster kit with polyurethane wheels included — installs or removes in minutes for moving the lift between bays or outside

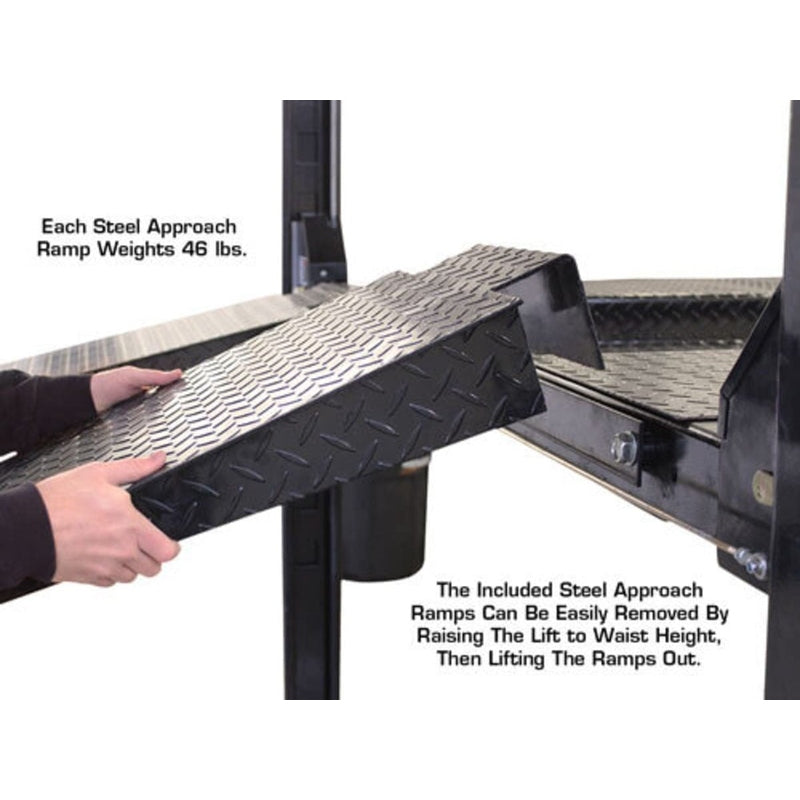

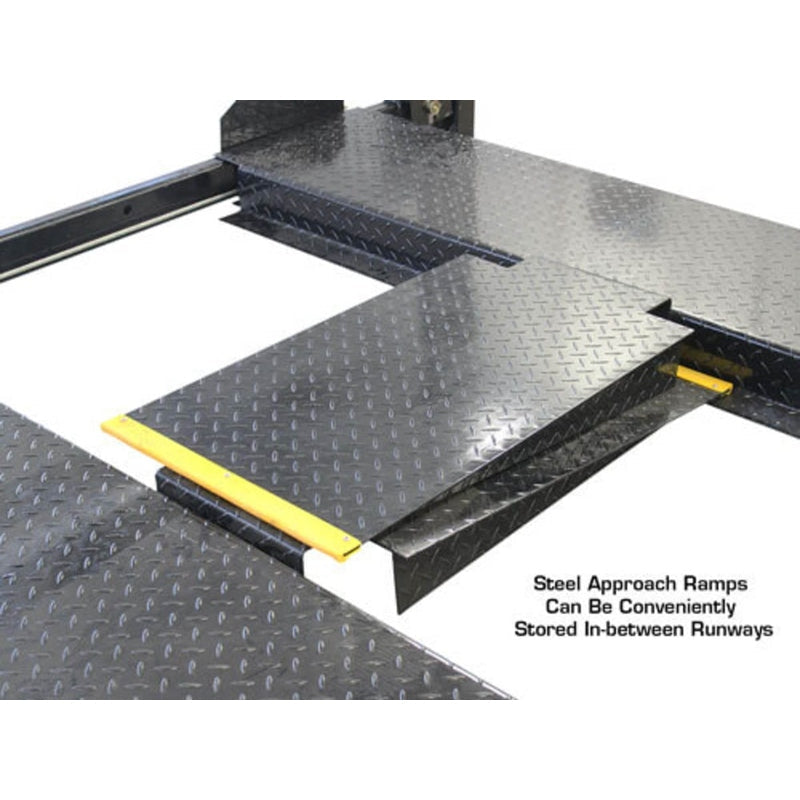

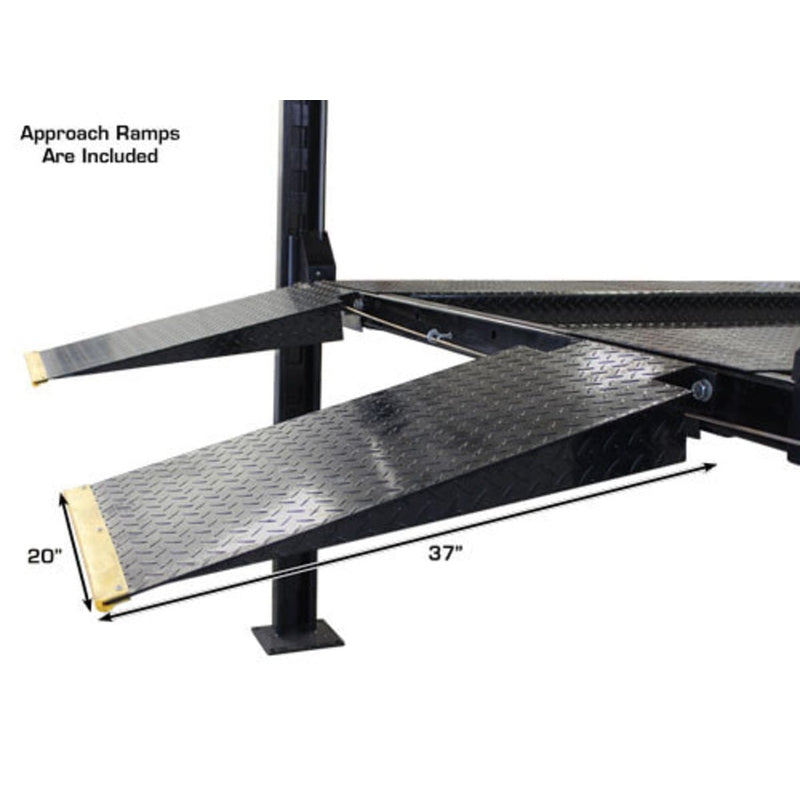

- Steel approach ramps included

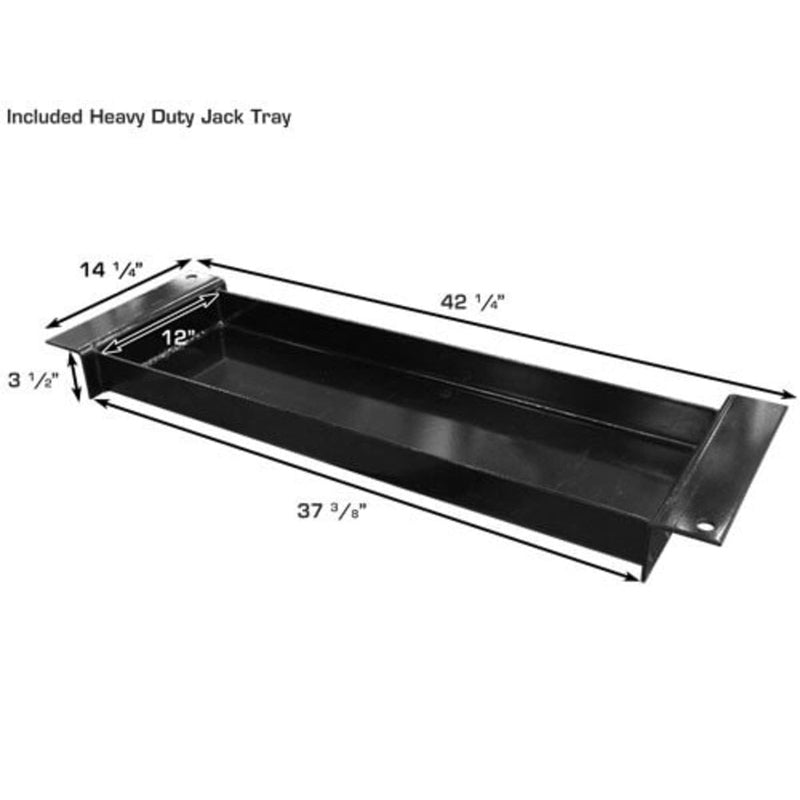

- Steel jack tray included

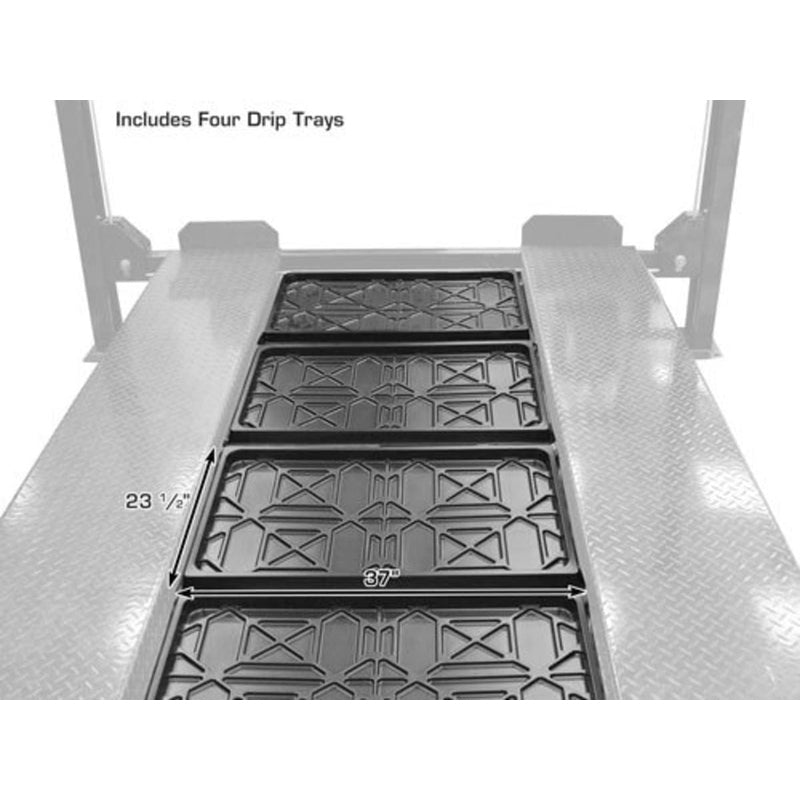

- 4 plastic drip trays included
- 4 wheel stops included

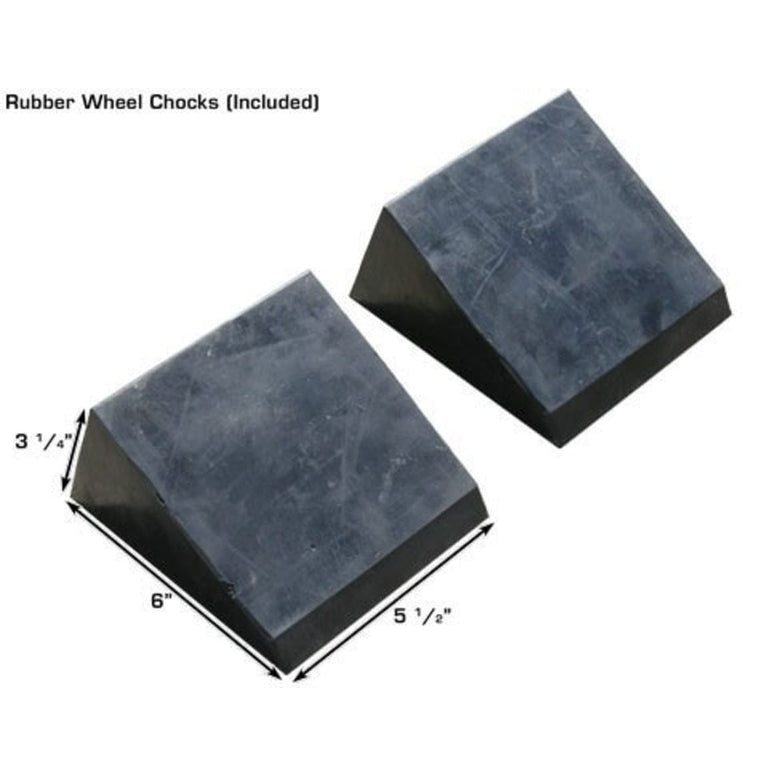

- 2 rubber wheel chocks included

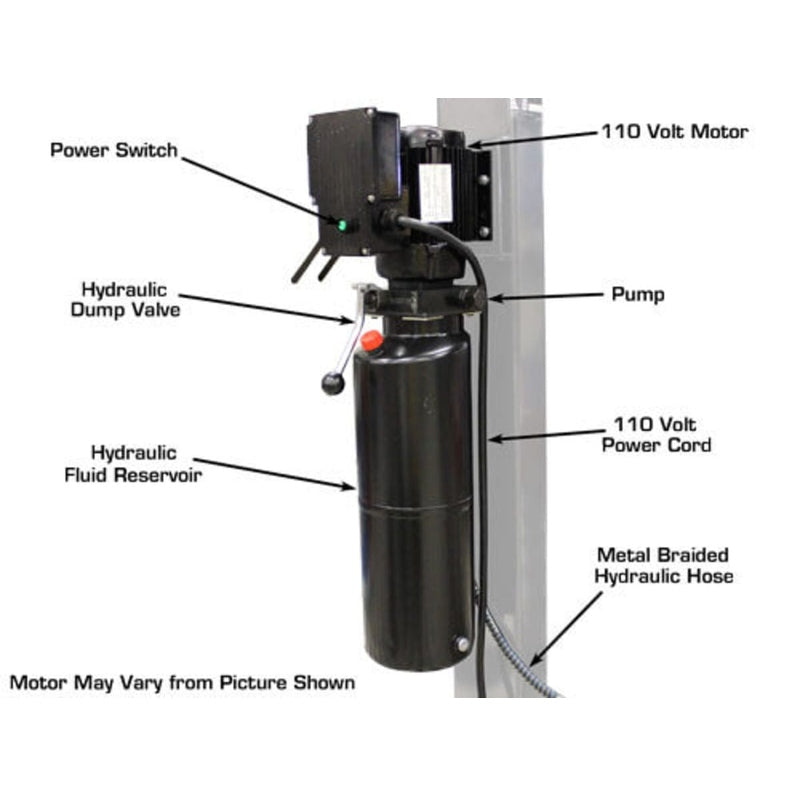

- 110V electric operation (30-amp breaker required)
- Shipping weight 1,900 lbs
- 2-year structural / 1-year hydraulic warranty, parts only
Pro-Floor 8-Panel Set
- Complete 8-piece floor panel set: 6 middle panels and 2 end pieces
- 400 lb capacity per section
- Lightweight design
- Per-panel dimensions: 37 1/4" wide × 19 1/2" deep × 4" tall
- Closes the runway gap to add a continuous storage and work surface above the parked vehicle
Specifications
| Atlas Garage PRO8000EXT-L Specifications | |
|---|---|
| Capacity | 8,000 lb |

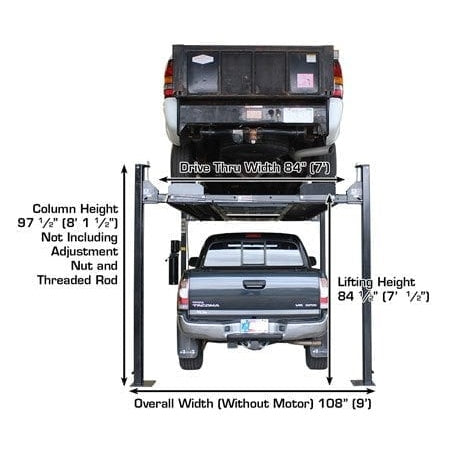

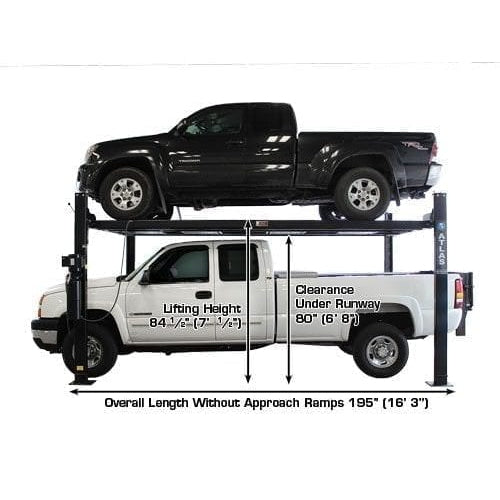

| Lifting Height to Top of Runway | 84" (7') |
| Clearance Under Runways | 78 1/2" (6' 6 1/2") |

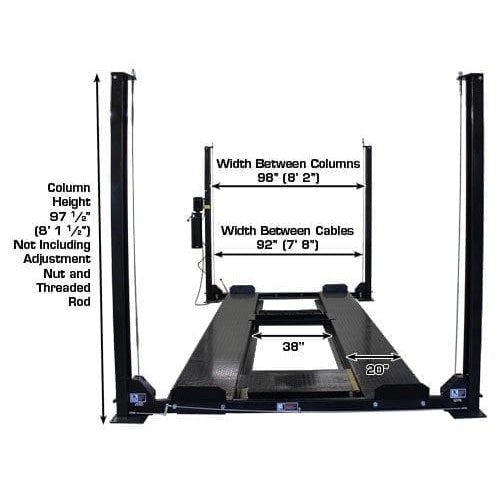

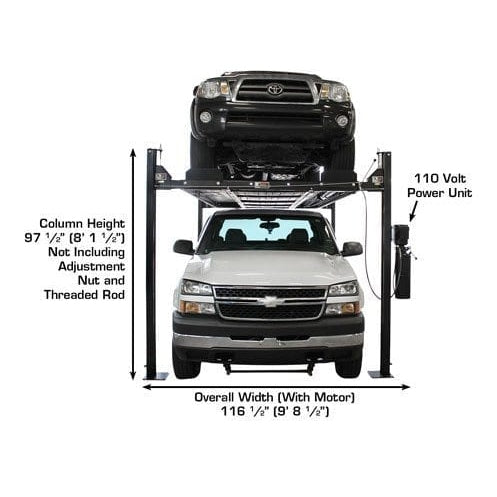

| Height of Columns | 98 1/2" (8' 2 1/2") |
| Overall Width (Without Motor) | 108" (9') |
| Overall Width (With Motor) | 116 1/2" (9' 8 1/2") |
| Overall Length with Approach Ramp | 222" (18' 6") |
| Approach Ramp | 37" (3' 1") |

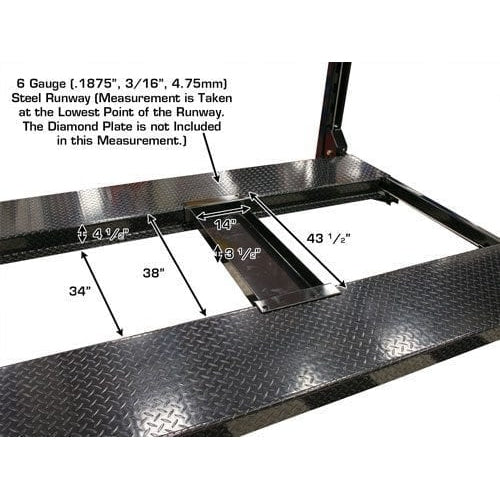

| Runway Width | 22" with rails / 18 3/4" driving surface |

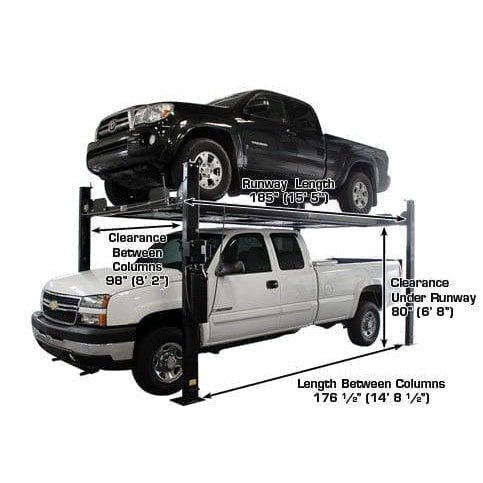

| Runway Length | 185" (15' 5") |
| Runway Thickness | 4 1/2" |
| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 34" (2' 10") |
| Outside Runway to Outside Runway | 77 3/4" (6' 5 3/4") |
| Clearance Between Columns | 98" (8' 2") |

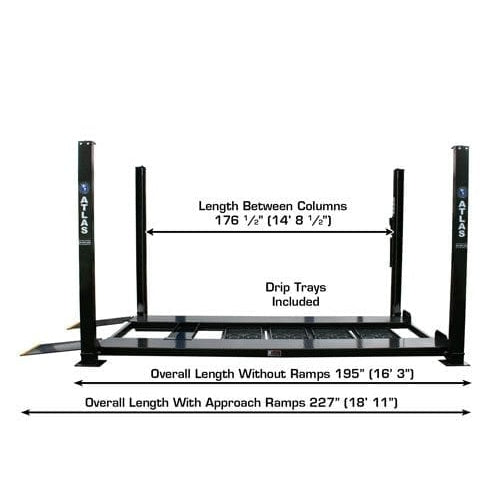

| Length Between Columns | 176 1/2" (14' 8 1/2") |

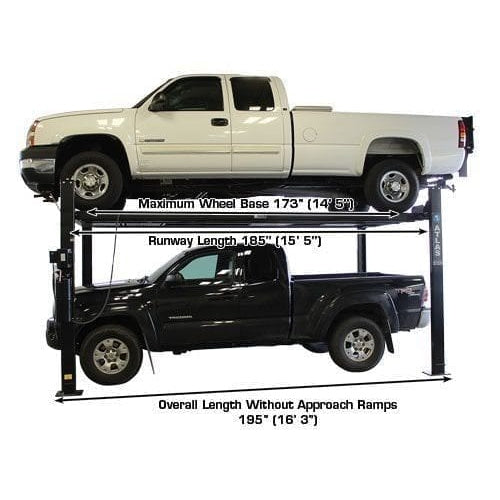

| Maximum Wheel Base | 173" (14' 5") |
| Drive-Thru (Outside of Tire to Outside of Tire) | 84" (7') |
| Motor / Electrical | 110V, 30-amp breaker required |

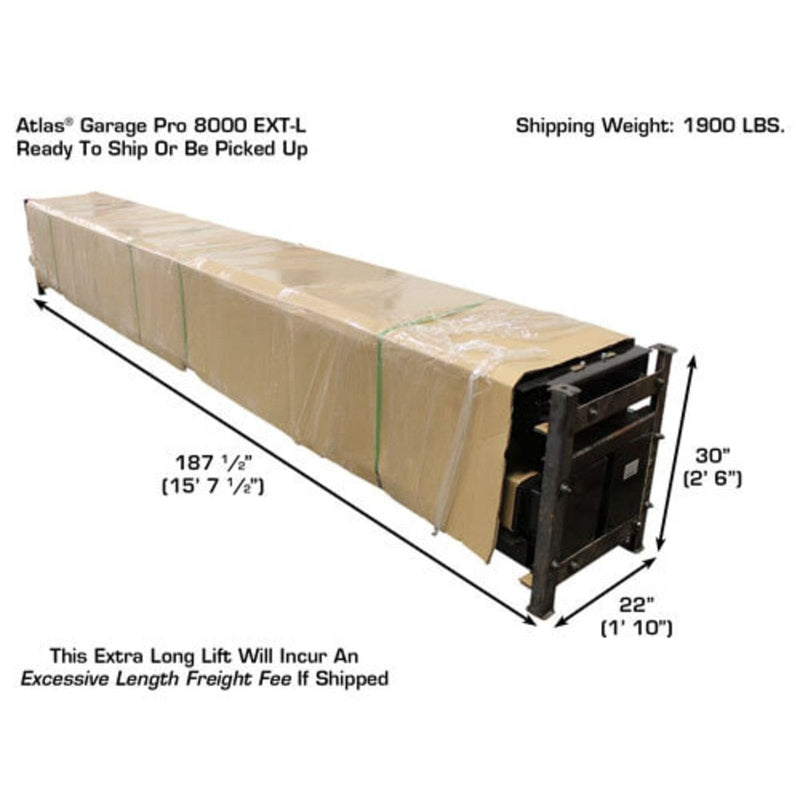

| Shipping Weight | 1,900 lb |
| Warranty: 2-year structural, 1-year hydraulic, parts only. | |
What's Included
- Atlas Garage PRO8000EXT-L 4-post lift
- Caster kit with polyurethane wheels
- Steel approach ramps
- Steel jack tray
- 4 plastic drip trays
- 4 wheel stops
- 2 rubber wheel chocks
- Pro-Floor 8-piece panel set (6 middle pieces + 2 end pieces)
Shipping & Logistics
This product ships via freight.
