Description

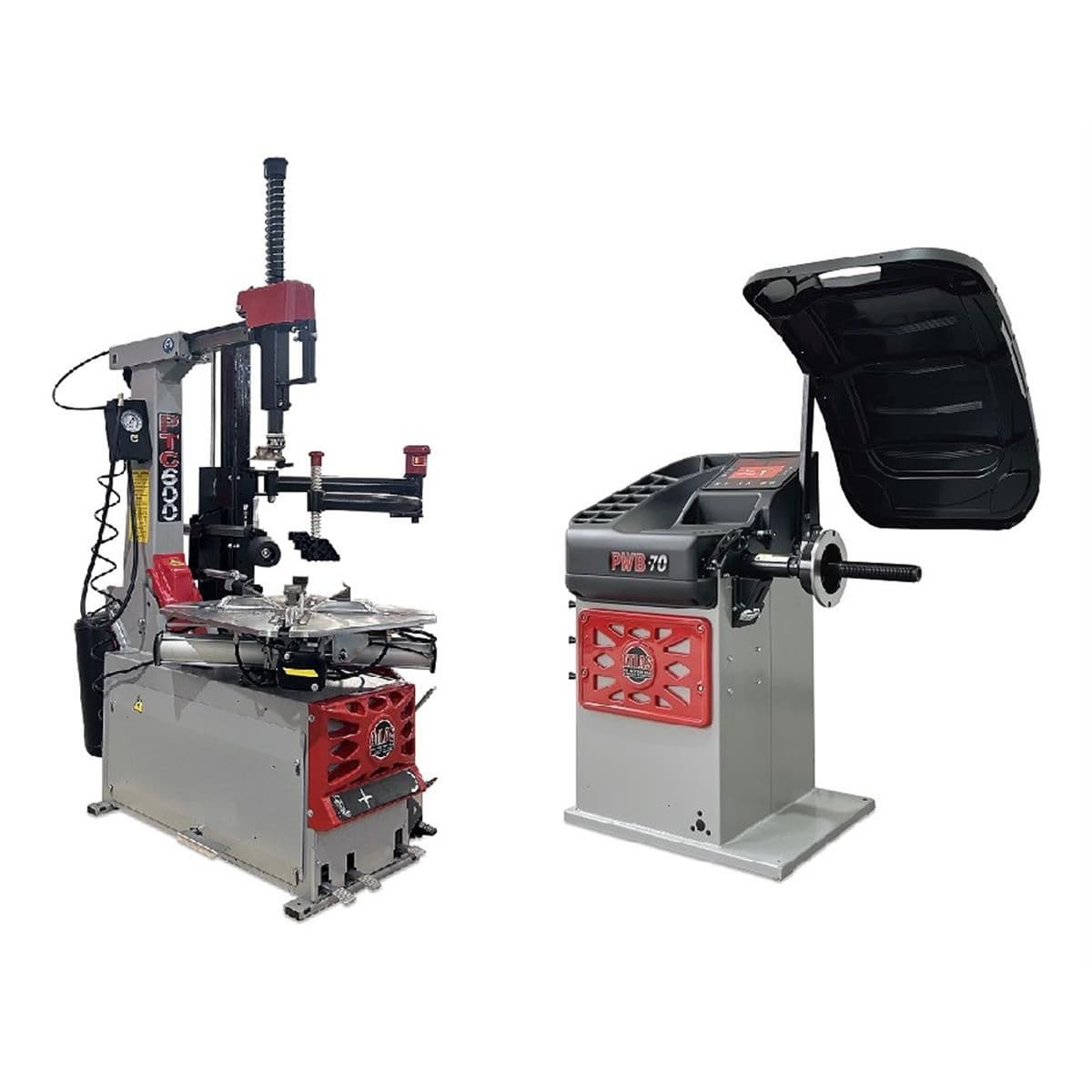

This combo package pairs the Atlas® Platinum PTC600 tilt-back tire changer with the Atlas® Platinum PWB70 computer-controlled wheel balancer. Both units are Italian-engineered for professional tire dealers and high-volume car dealerships, both run on 110V single-phase service, and both carry a 2-year parts warranty.

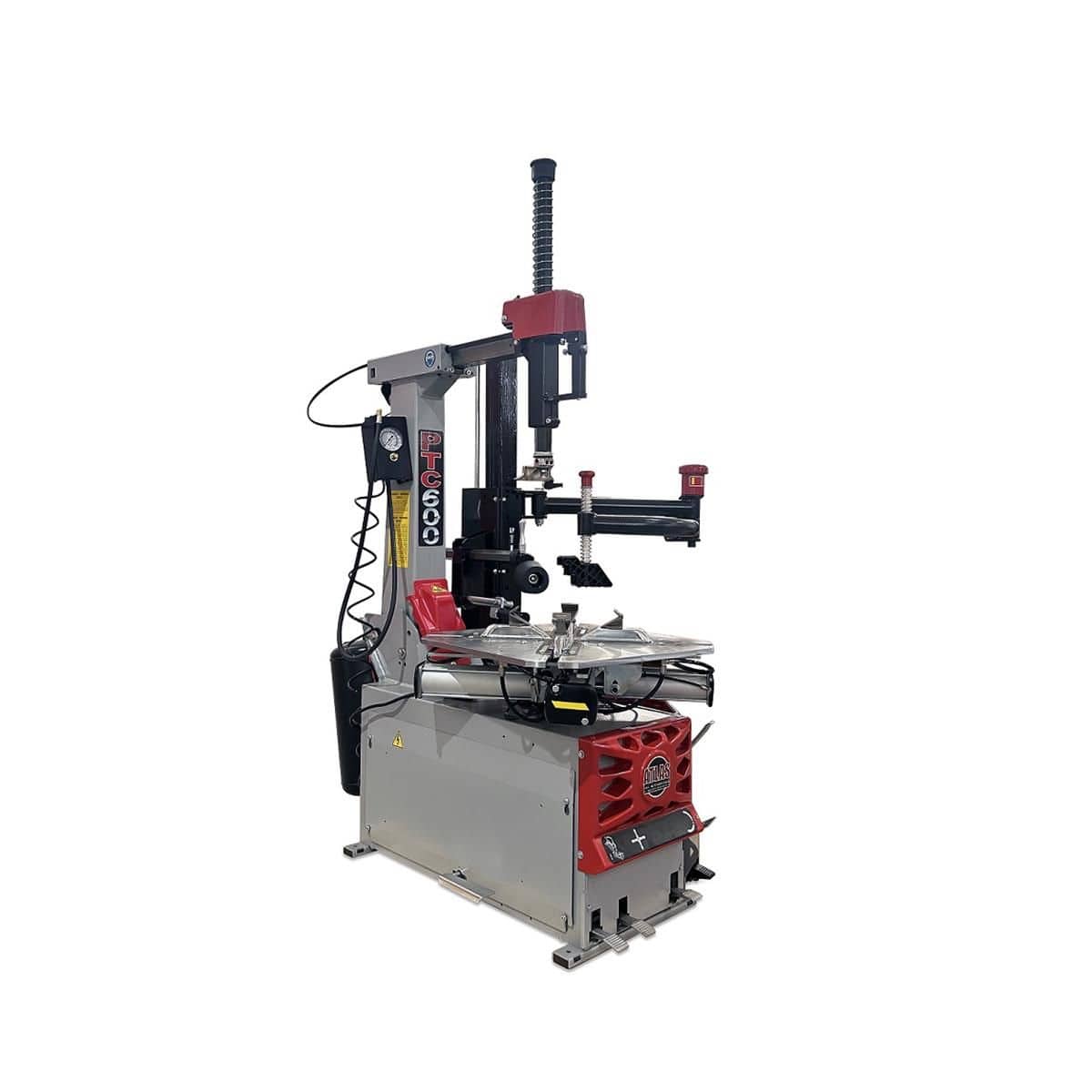

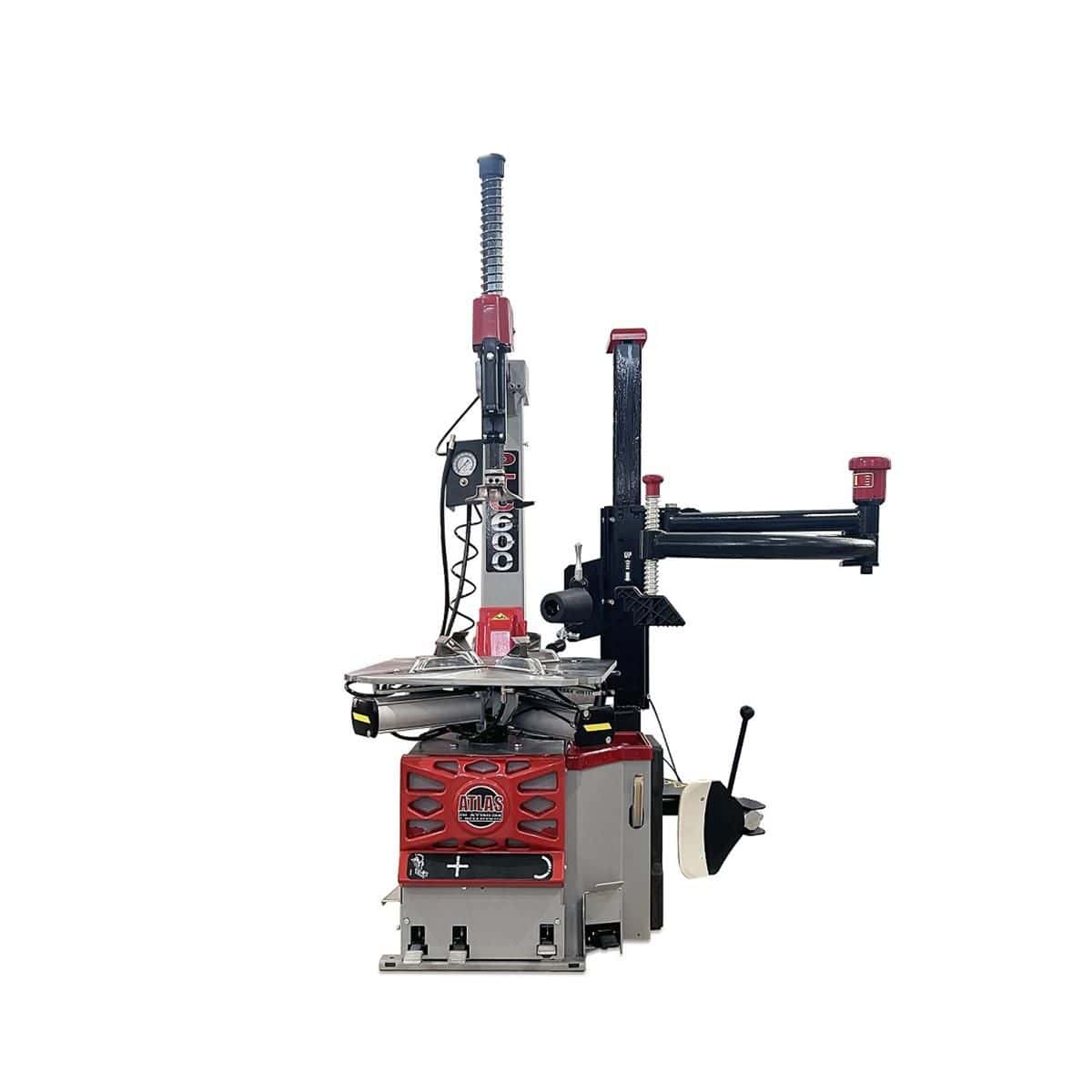

Atlas Platinum PTC600 Tire Changer

The PTC600 is a tilt-back tire changer with a right-hand bead-pressing and bead-rolling assist arm included as standard. The pneumatic locking mount/demount head holds position during use, reducing the risk of head movement that can mar rims. Air-operated jaws and a bead breaker handle clamping and seating — an external air supply at 120–145 PSI is required. The integrated bead-blast system, anodized aluminum bead breaker cylinder, column-mounted inflator with gauge, and FRL (filter / regulator / lubricator) are all standard. Clamping range is 10"–27" externally and 12"–29" internally, and the machine handles tires up to 43" outer diameter with a 16" maximum wheel width at the bead breaker. The PTC600 requires some assembly after delivery.

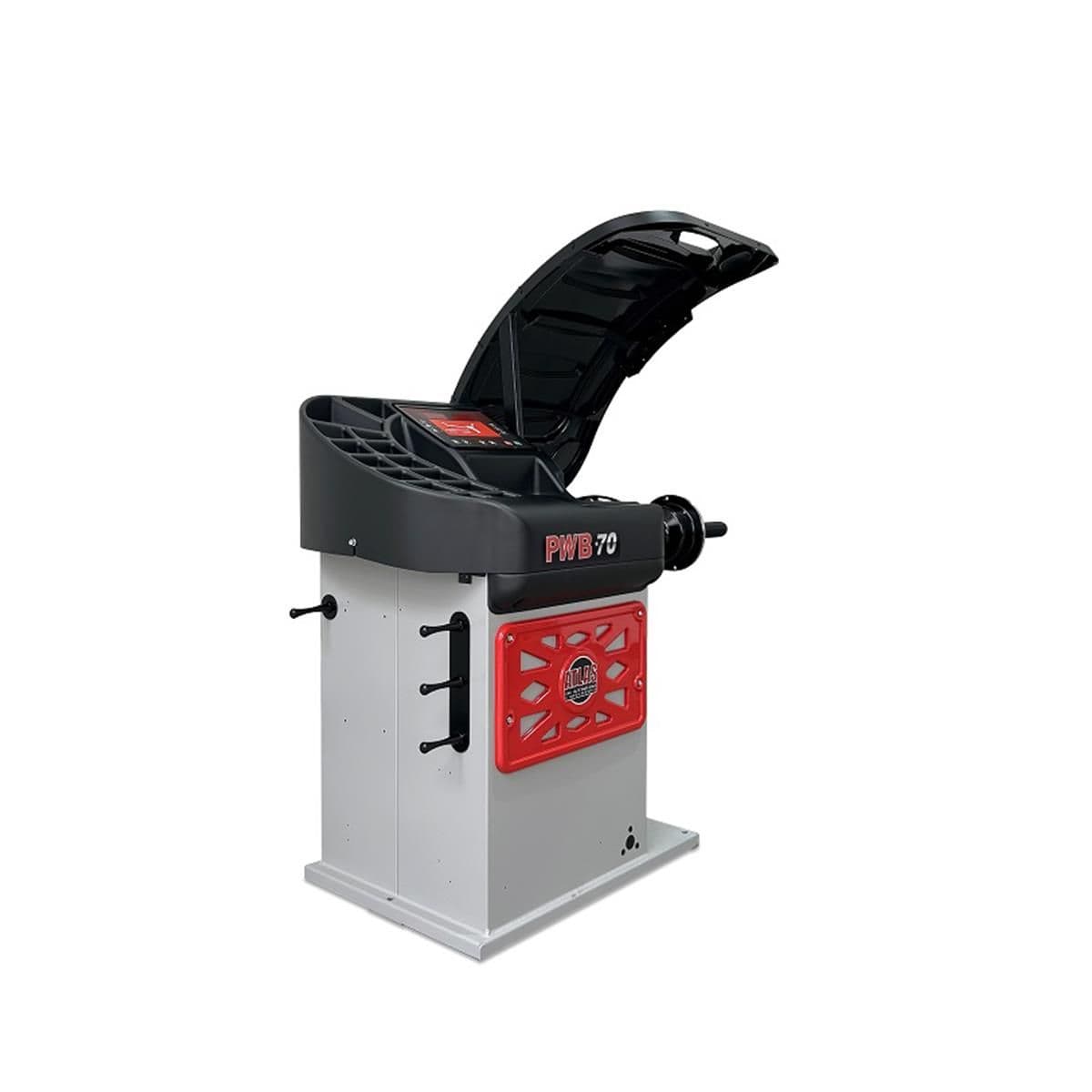

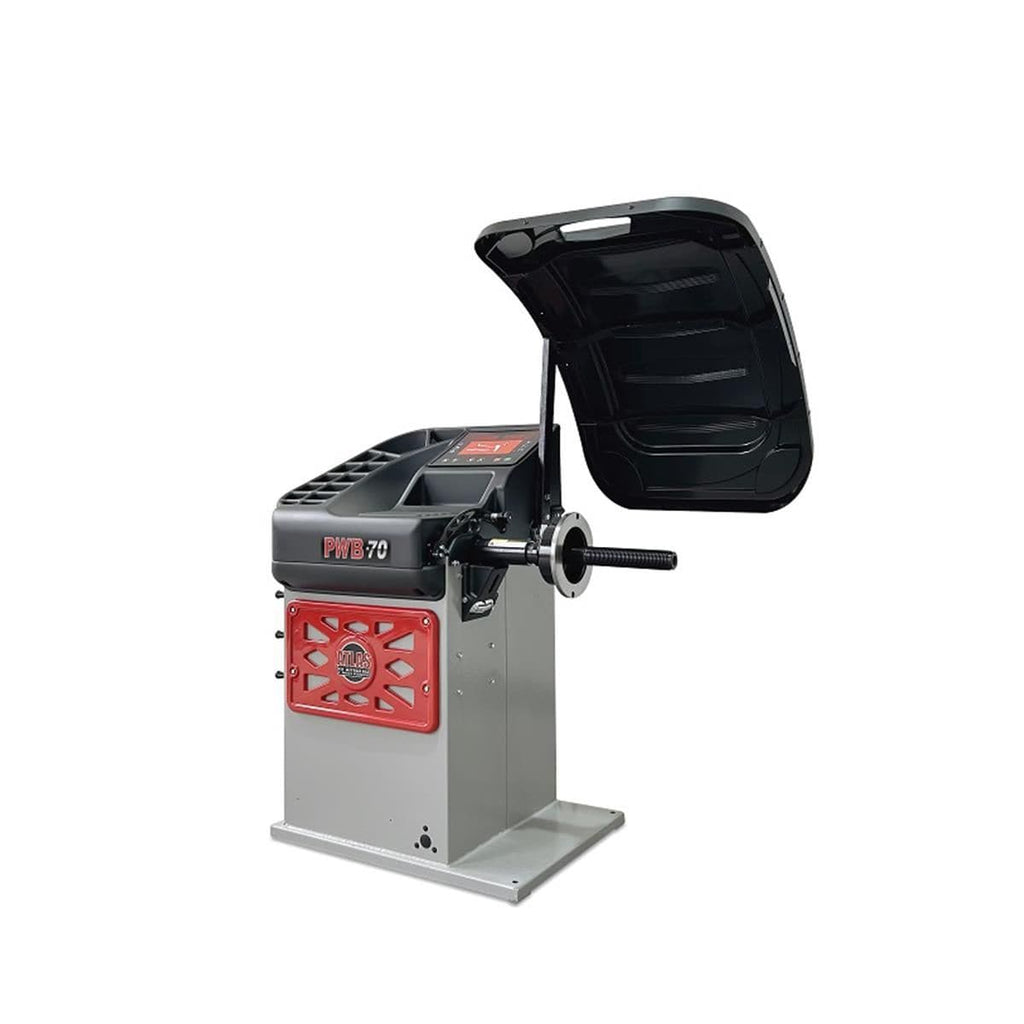

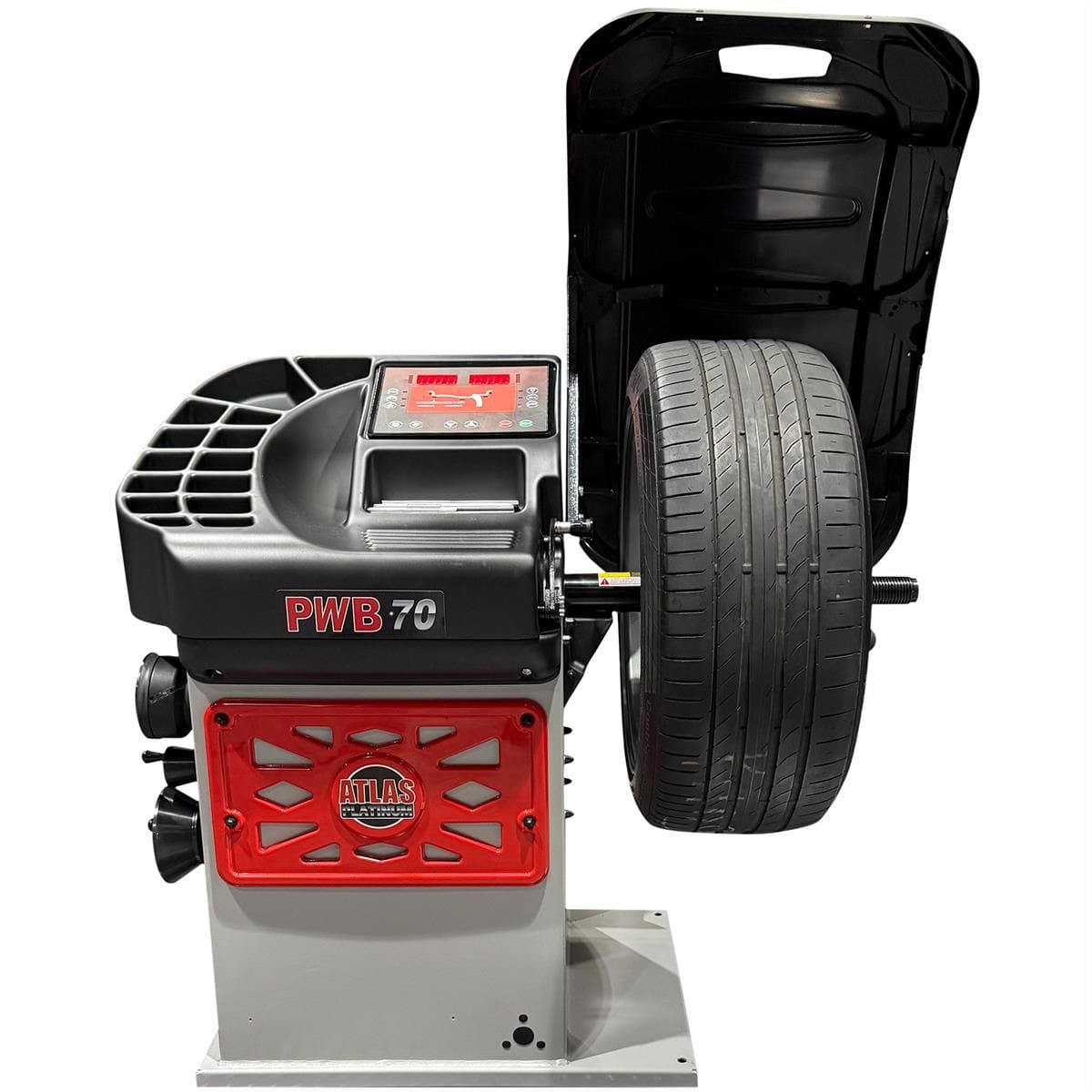

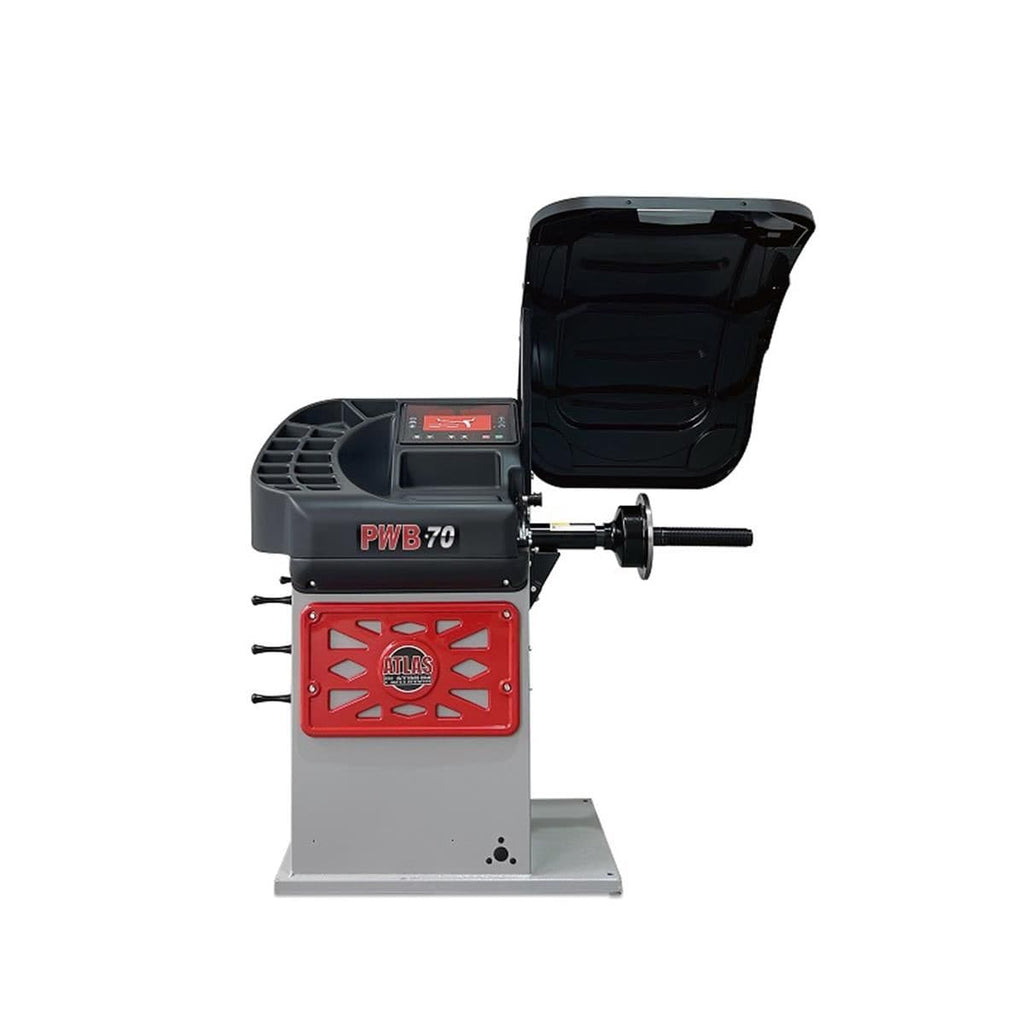

Atlas Platinum PWB70 Wheel Balancer

The PWB70 is a computer-controlled motorized spin balancer that builds on the PWB50 with a larger wheel-weight tray, a larger hood, an LED interior light, and a laser line to guide weight placement. Automatic 2D data entry uses a single data-entry gauge. Static and dynamic balancing modes, ALU-S and other ALU programs, and the NWN (No Wheel Needed) system cover the common workflows. The OPTIMATCH match-mounting routine reduces residual unbalance on difficult tire/wheel pairs. FES (Fast & Easy Split) hides adhesive weights behind spokes, and OPF / OWF (Opposite Position / Opposite Weight Function) moves the weight application position from 12 o'clock to 6 o'clock for easier access on the back side of the wheel. Balancing range is 10"–30" rim diameter and 1.5"–20" rim width on a 40 mm shaft, with a 165 lb maximum balancing weight, 130 RPM balancing speed, and 1-gram accuracy. The system self-diagnoses and self-calibrates, and the hood auto-starts and auto-stops as it raises and lowers. An electric brake with smart-approach function and a weight-position resolution of 1.4 degrees round out the operator features.

Logistics

The PTC600 ships at 795 lb and the PWB70 at 280 lb.

Features

PTC600 Tire Changer

• Tilt-back / swing-arm design with pneumatic locking mount/demount head
• Right-hand bead-pressing and bead-rolling assist arm included
• Air-operated jaws and bead breaker (external air supply required)
• 110V high-torque electric turntable
• Anodized aluminum bead breaker cylinder
• Built-in bead blaster for seating tubeless beads
• Column-mounted inflator box with gauge
• FRL (filter / regulator / lubricator) included
• Metal mount/demount head with replaceable plastic inserts

PWB70 Wheel Balancer

• Computer-controlled motorized spin balancer
• Automatic 2D data entry via a single data-entry gauge
• Static and dynamic balancing modes
• OPTIMATCH match-mounting, FES (Split), and OPF / OWF (Opposite Position / Opposite Weight) functions
• Special ALU-S and other ALU programs
• NWN (No Wheel Needed) system
• Self-diagnosing and self-calibrating
• Display in grams or ounces
• Laser line guides adhesive-weight placement
• LED light illuminates the wheel interior
• Electric brake with smart-approach function
• Larger wheel-weight tray and larger hood than the PWB50
• Hood auto-start and auto-stop on raise / lower

Both Units

• 110V single-phase power supply
• 2-year parts-only warranty (tire changer and wheel balancer)
• Replacement parts and wear items available through MGS

Specifications

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
