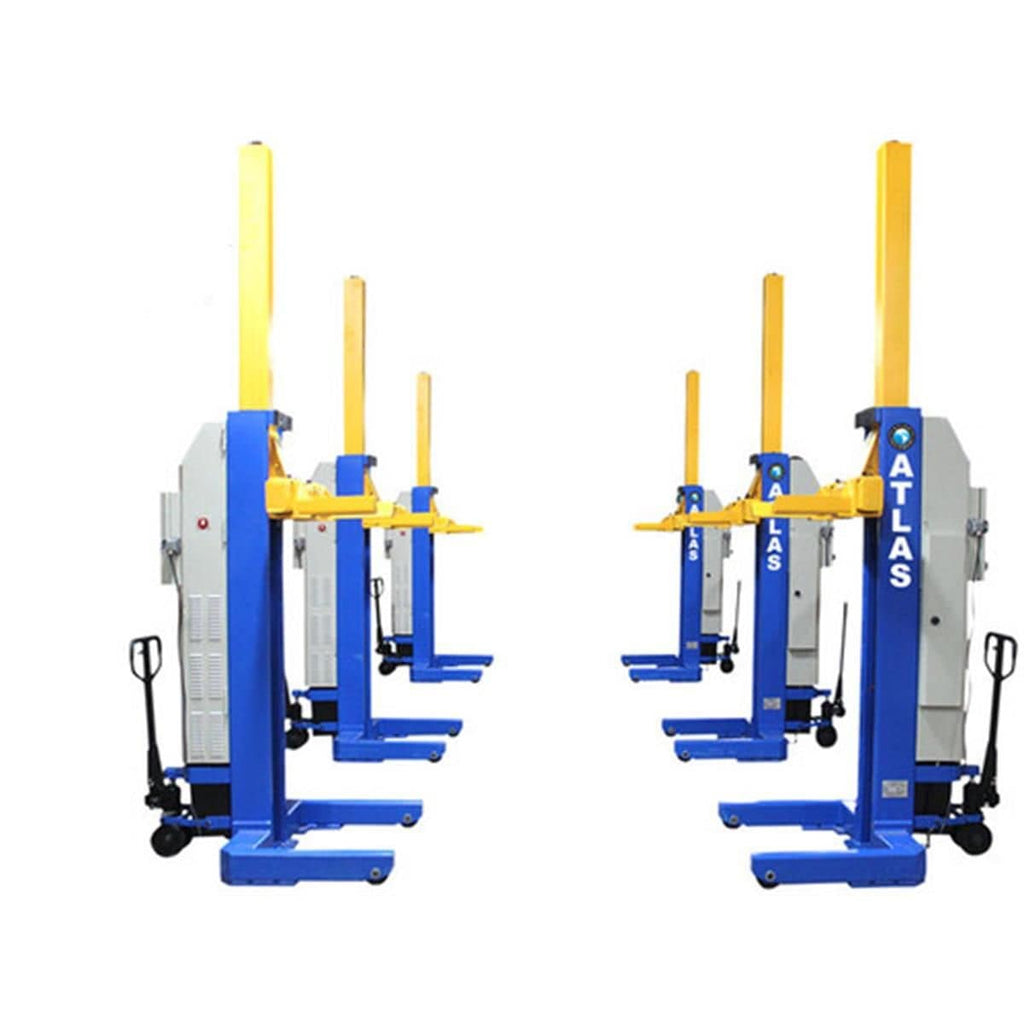

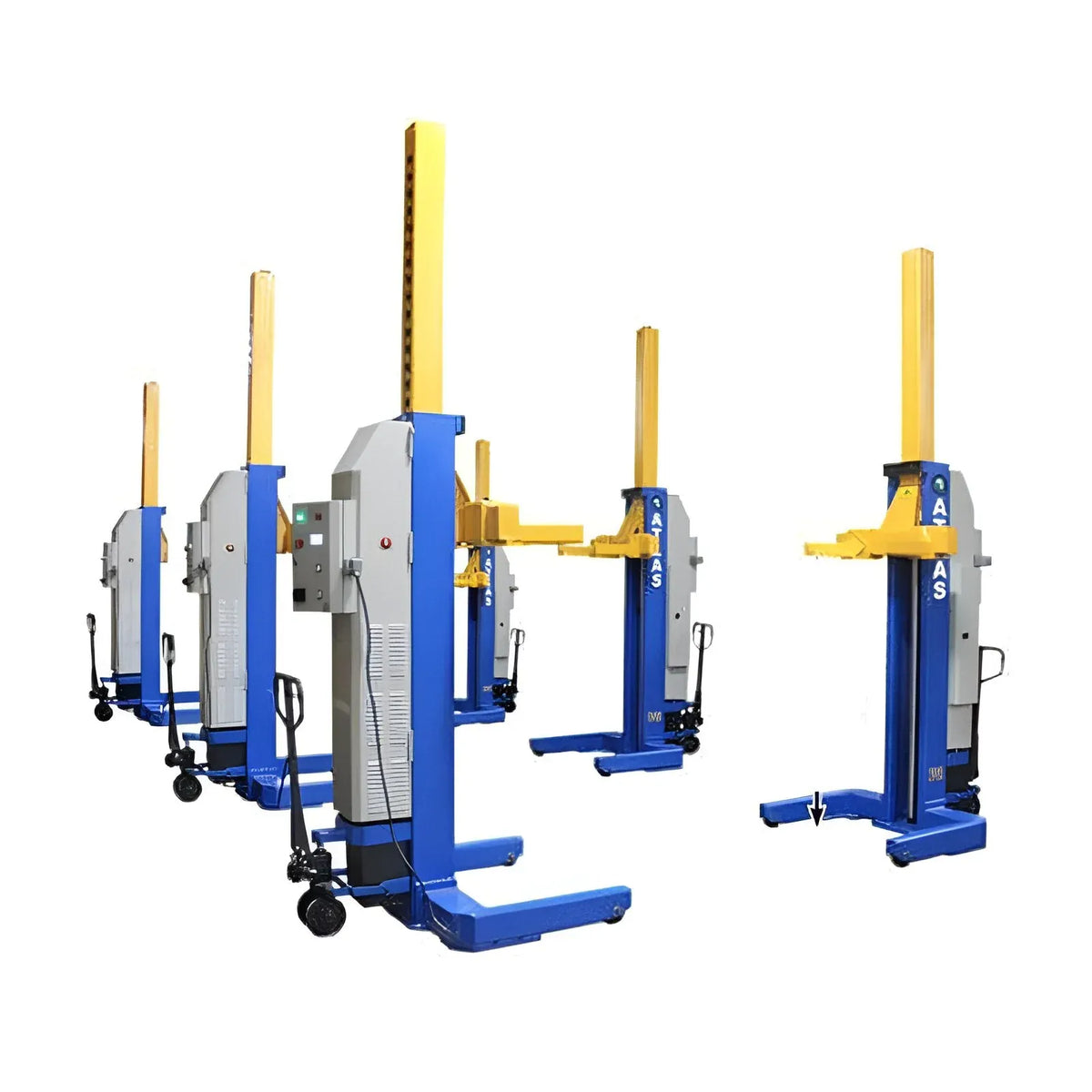

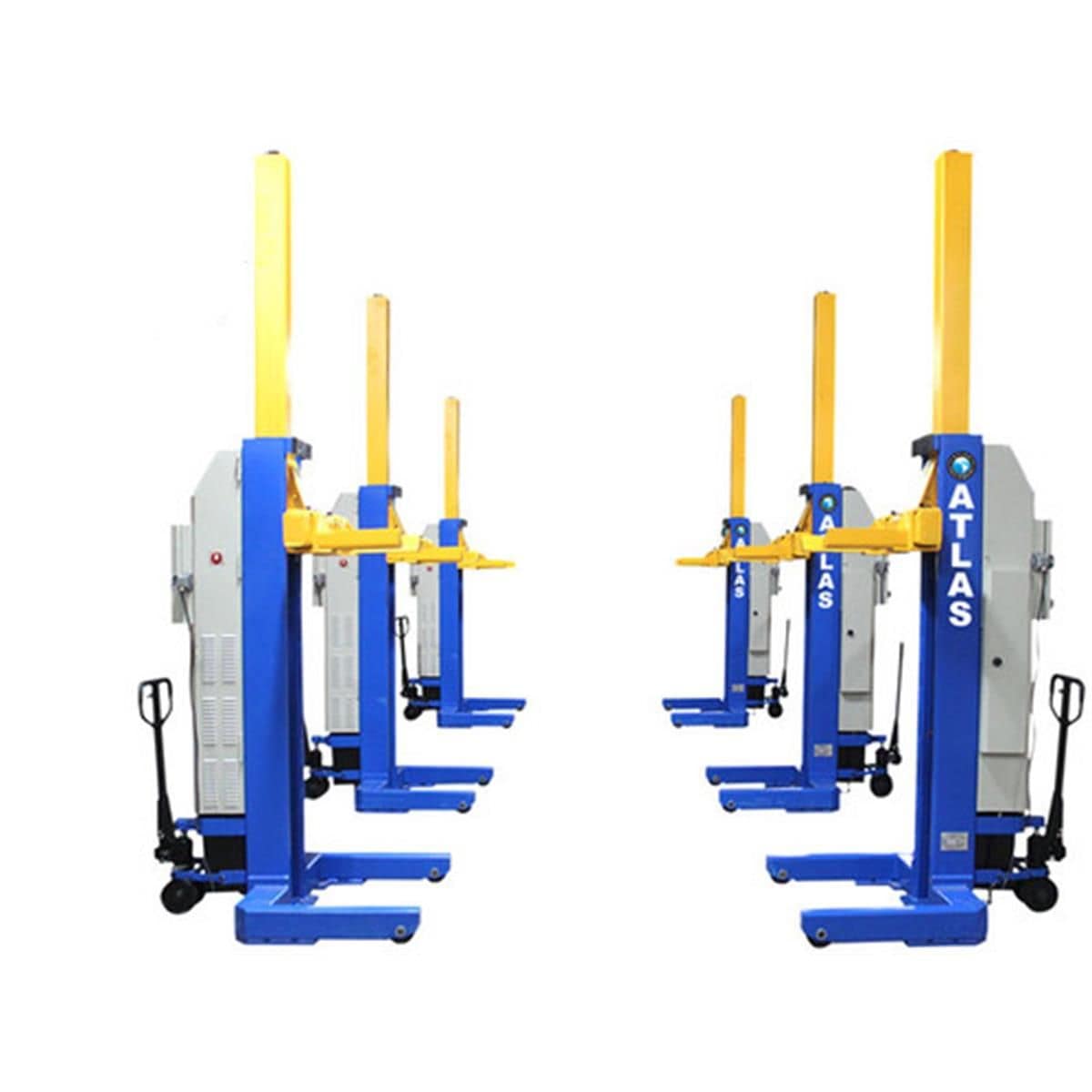

The Atlas ML-6051BC is a six-column battery-powered mobile lift system with 18,500 lb capacity per column and 111,000 lb total system capacity. The Maxima-series ML-6051BC is ALI Certified and gives a heavy-duty truck shop the ability to raise medium- and heavy-duty vehicles without committing a permanent lift bay.
Each column runs on its own 2.2 kW 24V DC motor with two onboard batteries and recharges from a standard 110V single-phase outlet. A full charge supports 10 to 20 lifts depending on load. The columns synchronize electronically, an LCD on every column shows exact lift height in real time, and an emergency stop button on every column keeps each operator a step away from a controlled drop. Mechanical locks plus hydraulic flow control provide redundant safety on the way up and the way down.

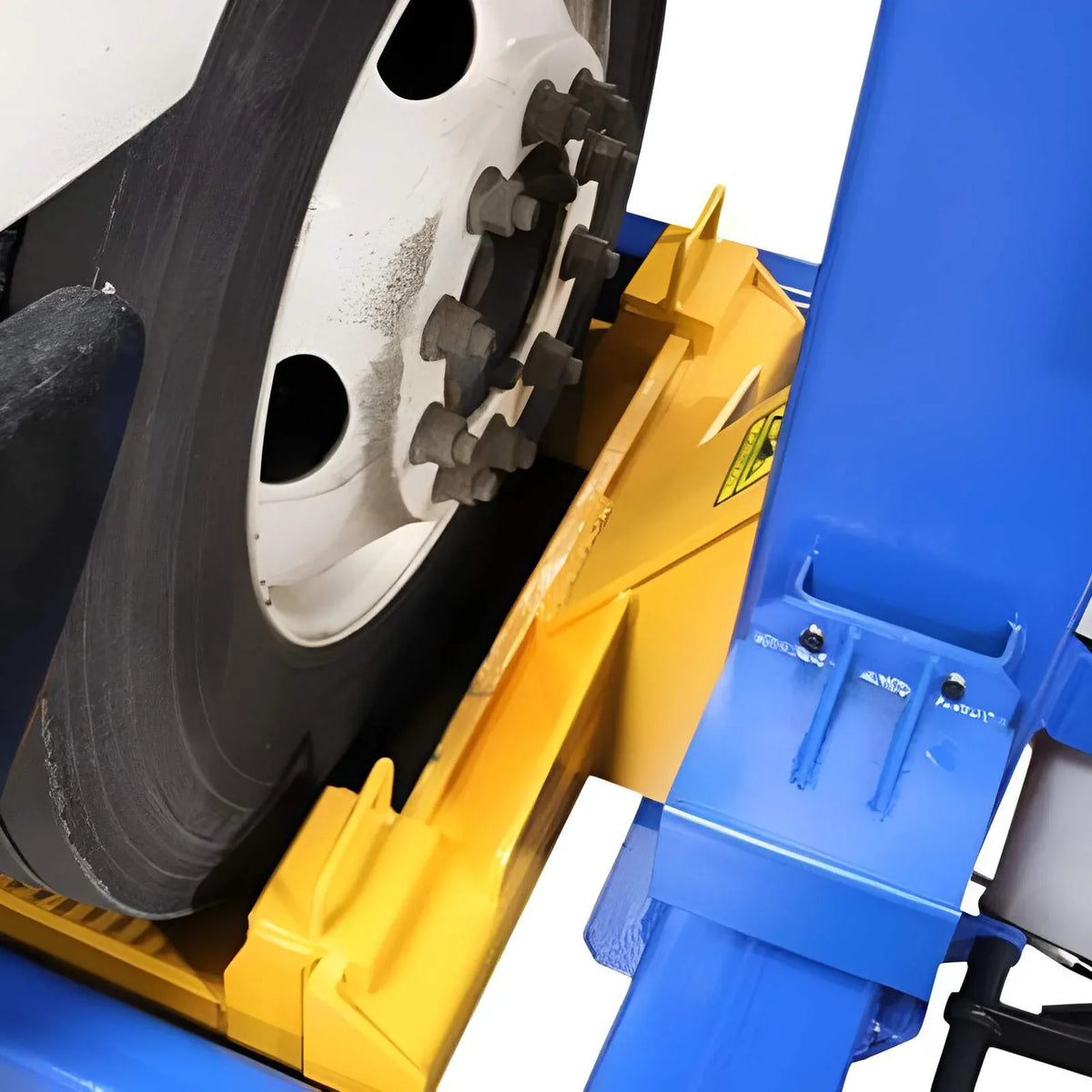

Adjustable forks accommodate tire diameters from 19" to 44", which covers most light-duty trucks through Class 8 tractors. The kit ships with six 32-foot connecting cables, so all six columns can be wired into a single synchronized lift even at the spacing required for a long-wheelbase tractor or a fire apparatus.

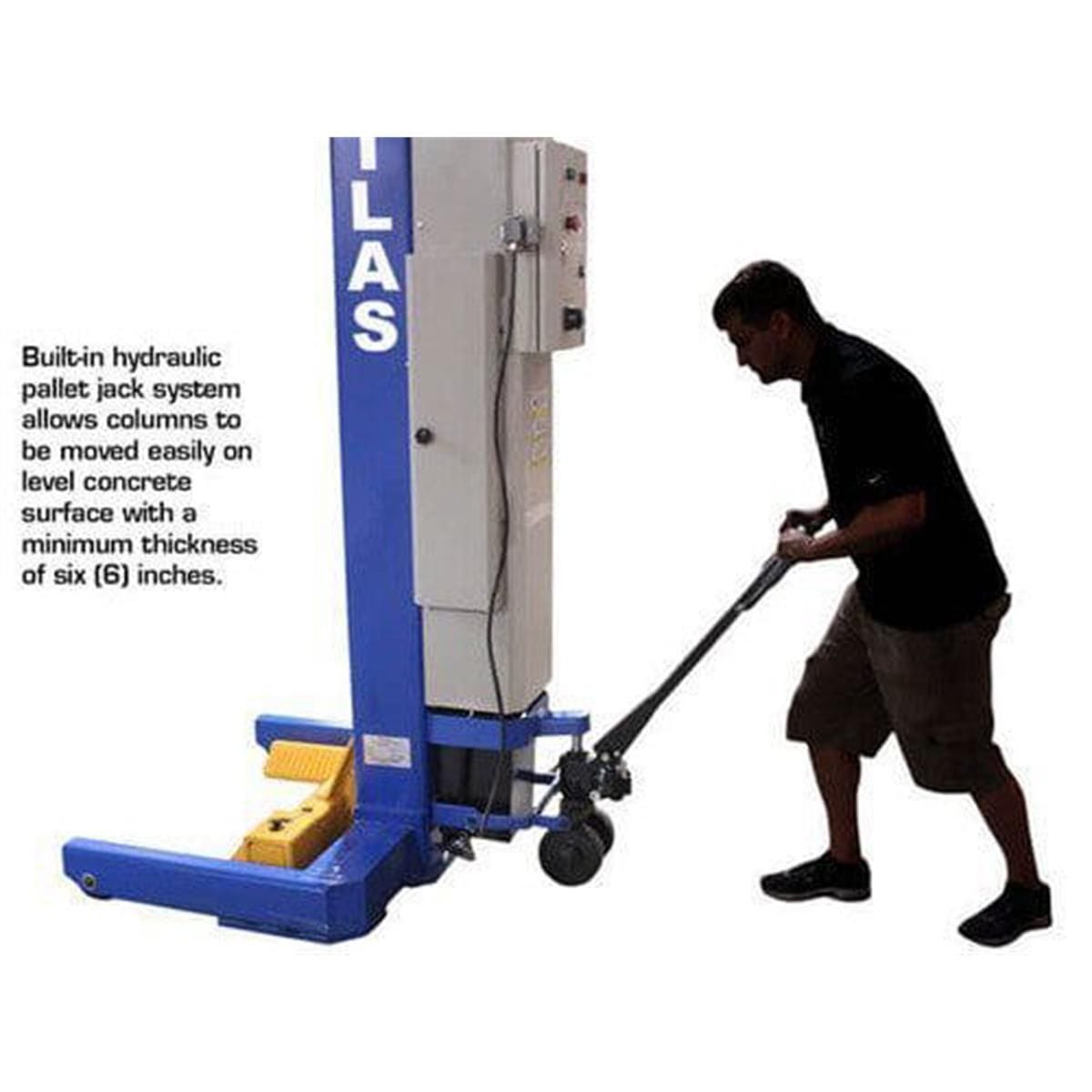

A built-in hydraulic pallet-jack mechanism on each column lets a single operator reposition the lift between bays — or roll columns outside onto a level concrete pad with at least 6 inches of thickness when shop floor space runs out. Each column weighs 1,700 lb and stands 88-1/2" tall when at rest, raising to 145" overall at maximum extension.
Features
ALI Certified
18,500 lb capacity per column; 111,000 lb total system capacity (six columns)
2.2 kW 24V DC motor with two onboard batteries per column
10 to 20 lifts per battery charge; recharges from 110V single-phase
Synchronized electronic operation across all six columns
LCD on every column showing exact lift height
Emergency stop button on every column
Double-safety: hydraulic flow control plus mechanical locks
Adjustable forks accommodate 19" to 44" tire diameters
Built-in hydraulic pallet-jack mobility on every column
Six 32-foot column connecting cables included
2-year limited warranty
Dimensions
Front-view dimensions of a single ML-6051BC column.Side-view dimensions of a single ML-6051BC column showing fork geometry and base footprint.
The diagrams above illustrate column geometry per unit. System-level capacity, lifting height, and shipping dimensions are listed in the Specifications section.
Specifications
Atlas ML-6051BC Specifications
Capacity per Column
18,500 lb
Total System Capacity
111,000 lb (six columns)
Motor
2.2 kW 24V DC, two batteries per column
Battery Charger Power
110V single-phase
Maximum Lifting Height
67" (5' 7")
Overall Height
145" (12' 1")
Resting Height
88-1/2" (7' 4-1/2")
Width
43-1/2" (3' 7-1/2")
Length
55-1/2" (4' 7-1/2")
Column Width
13-1/4"
Min Tire Diameter
19"
Max Tire Diameter
44"
Connecting Cables
Six 32-foot cables included
Lifts per Battery Charge
10 to 20 (load-dependent)
Warranty
2-Year Limited
Weight per Column
1,700 lb
Shipping Weight (six columns)
10,200 lb
Shipping Dimensions per Column
49" L × 47" W × 89" H
Mobile use outside a permanent bay requires a level concrete surface at least 6 inches thick.
