The Atlas Edge TD2.0 Premium is a Ravaglioli-built WiFi wheel alignment system with an 8-camera CCD optical measurement system, 3-Point Touchless Clamps, and a magnetically-backed tablet running the TEQ-LINK app. The whole system stores on slim wall panels with built-in charging plugs, so a single alignment bay can stay clear when the equipment is not in use. Made in Europe.

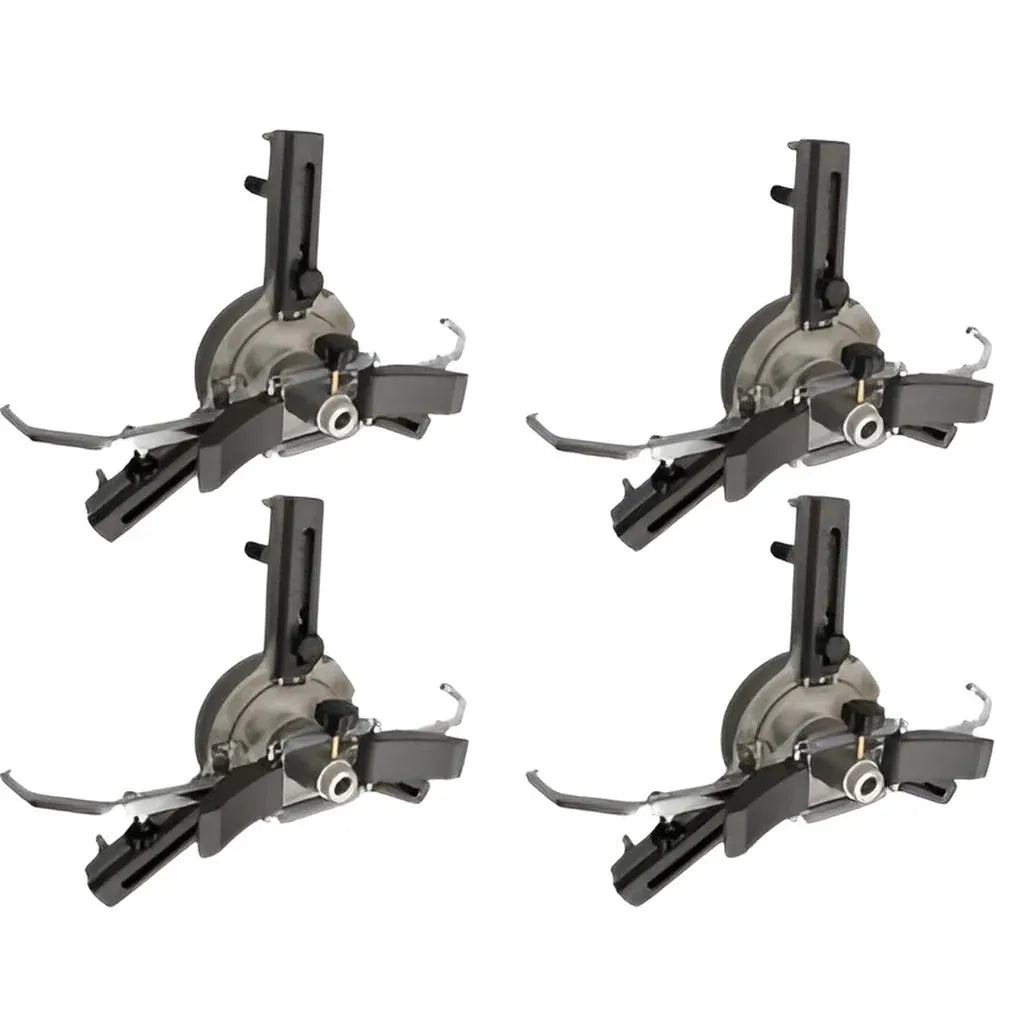

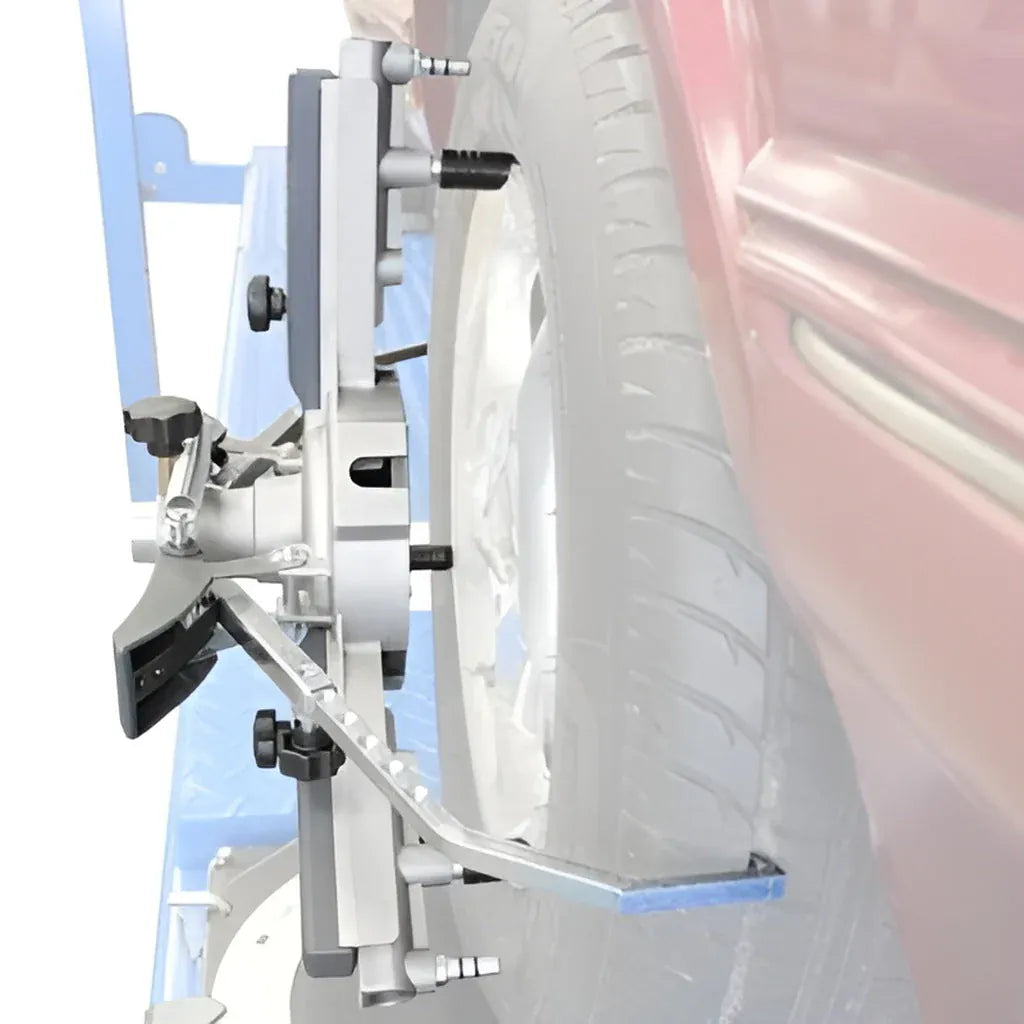

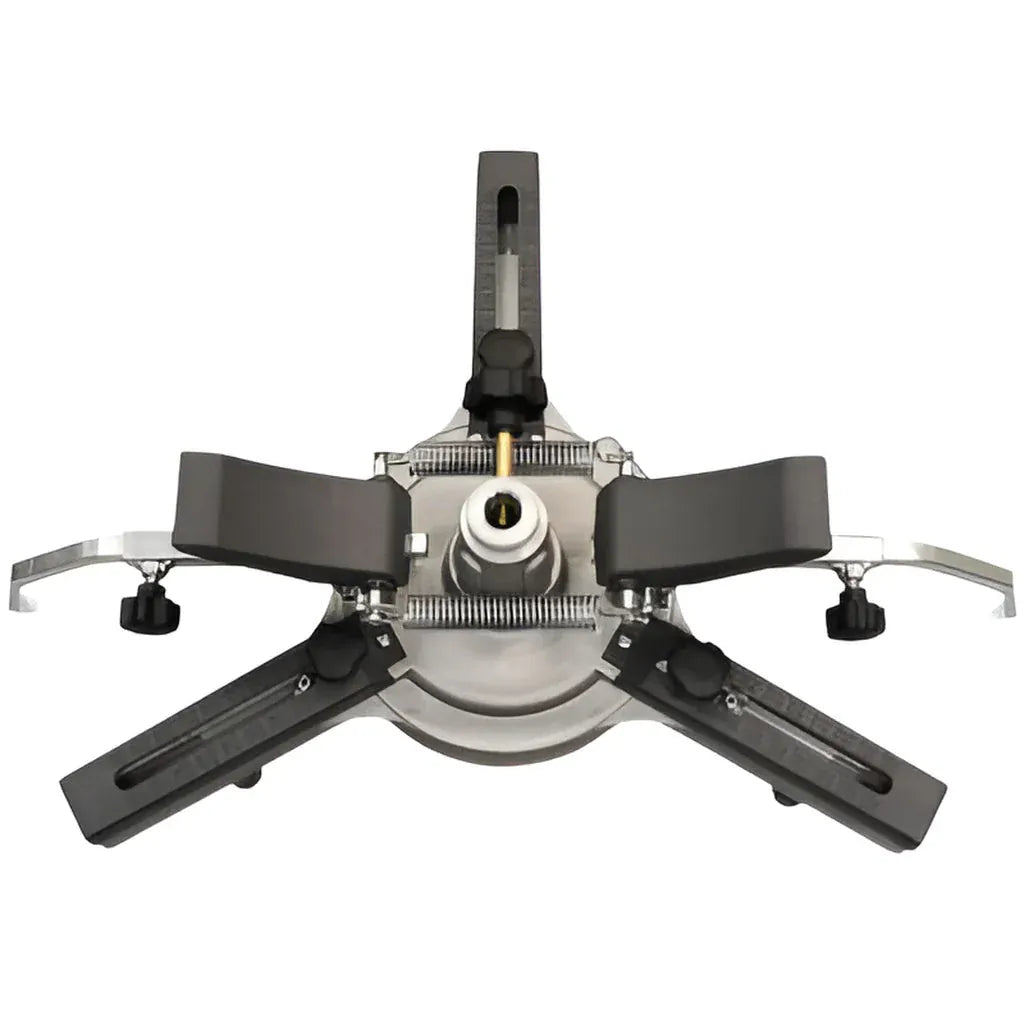

The 3-Point Touchless Clamps grip the tire instead of the rim, which removes the need for roll-back compensation and runout compensation between vehicles. Sensor heads communicate with the tablet over Bluetooth; the tablet talks to the wall cabinet over WiFi. The result is a setup designed to work with most lift varieties — no overhead beam, no floor-locked cabinet, no tethered cables across the bay.
Wall-cabinet layout with tablet, wireless sensor heads, VIN scanner, and bundled lift adapters.
The Premium package adds a VIN code scanner for one-scan vehicle identification against the on-tablet database, a pair of alignment turn tables, two-post lift adapters, a brake pedal depressor, and a steering wheel lock. Free software updates over WiFi keep the application current; the underlying vehicle specifications database is licensed separately.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features
Ravaglioli TD2.0 platform — made in Europe
8-camera CCD optical measurement system
3-Point Touchless Clamps — no roll-back or runout compensation
WiFi system control with Bluetooth sensor data transmission
Magnetically-backed tablet preloaded with the TEQ-LINK app
Wall-mounted storage panels with built-in charging plugs
Vast on-tablet vehicle database
Designed to work with most varieties of lifts
VIN code scanner included
Free software updates over WiFi (vehicle specifications licensed separately)
One of two alignment turn tables included with the Premium package.Steering wheel lock and brake pedal depressor.
Specifications
Atlas Edge TD2.0 Premium WiFi Wheel Alignment System Specifications
Manufacturer
Ravaglioli (made in Europe)
Measurement system
8-camera CCD optical
Wireless
WiFi system control, Bluetooth sensor data
Wheel clamps
3-Point Touchless (no roll-back or runout compensation)
Tablet
Magnetically-backed, TEQ-LINK app preloaded
Storage
Wall-mounted panels with built-in charging plugs
Lift compatibility
Designed for most lift varieties; two-post adapters included
Software updates
Free over WiFi
Vehicle specifications database is licensed separately and not included with free software updates.
Warranty & Support
2-year limited parts warranty. Warranty does not cover damage from abuse, neglect, wear items, consumables, or onsite service visits. Remote technical support is included.
