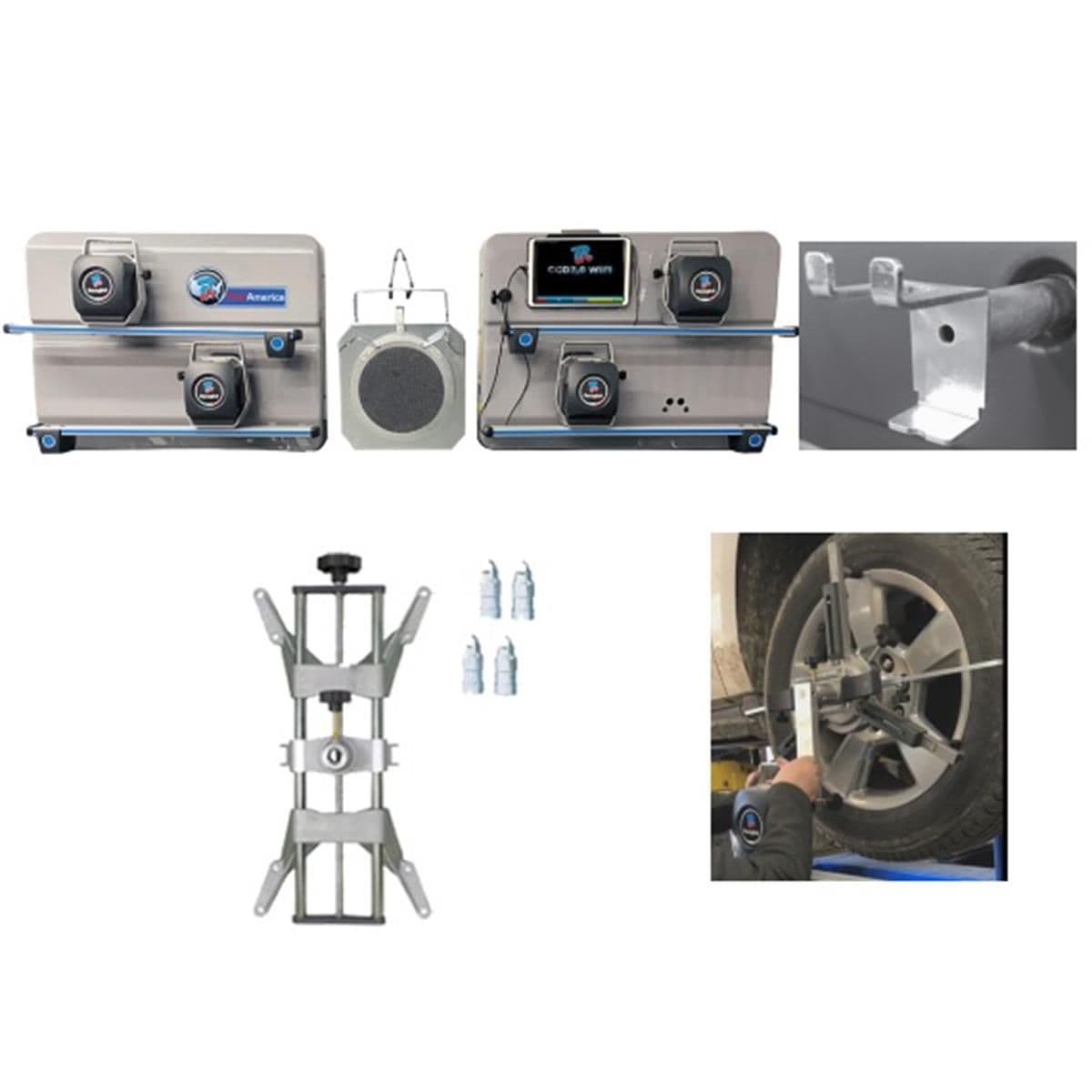

The Atlas Edge TD2.0 Select is a fully wireless wheel alignment system built around the Ravaglioli TD2.0 platform, with an 8-camera optical sensor array, an included tablet running the TEQ-LINK app, and Bluetooth data transmission between the cameras and the tablet. It works on any lift type — drive-on, two-post, or scissor — because the entire workflow is untethered from a stationary console.
The Select package includes the components most alignment shops need on day one: a set of STDA33EU 4-point runout wheel clamps (rolling-runout, no jacking required), two precision turntables for the front wheels, two-post lift adapters, a brake pedal depressor, and a steering wheel lock. Two storage boards and four wall pegs for the clamps are included so the bay stays organized.
Built in Europe by Ravaglioli and supported by a 2-year limited parts warranty through Atlas Automotive Equipment, with remote technical support included.1
Features
Ravaglioli TD2.0 Select WiFi alignment platform
8-camera optical measurement system
WiFi camera-to-tablet operation with Bluetooth data transmission
TEQ-LINK app pre-installed on the included tablet
STDA33EU 4-point runout wheel clamps (rolling runout, no jacking)
Pair of alignment turntables included
Two-post lift adapters included
Brake pedal depressor and steering wheel lock included
Two storage boards for instruments and four wall pegs for clamp storage
Vast vehicle database with free software updates2
Works with all lift types — portable and lightweight
Made in Europe
What's Included
Ravaglioli TD2.0 sensor head with 8-camera optical system
Tablet with TEQ-LINK app pre-installed
STDA33EU 4-point runout wheel clamps (set of 4)
Pair of alignment turntables
Two-post lift adapters
1 brake pedal depressor
1 steering wheel lock
2 storage boards for instruments
4 wall pegs for clamp storage
STDA33EU 4-Point Runout Wheel Clamps
Four rolling-runout wheel clamps are included. The 4-point design grips the wheel from four contact points so runout compensation can be performed by rolling the vehicle, without raising the wheels.
Four STDA33EU 4-point runout wheel clamps
Alignment Turntables
A pair of precision turntables for the front wheels is included for steering-angle measurement during alignment.
Pair of alignment turntables, 14 5/8" × 14 5/8" footprint
Brake Pedal Depressor and Steering Wheel Lock
One brake pedal depressor and one steering wheel lock are included to hold the brakes engaged and lock the wheel straight during measurement.
Brake pedal depressor and steering wheel lock
Specifications
Atlas Edge TD2.0 Select WiFi Wheel Alignment System
Optical system
8-camera
Communication
WiFi (camera-to-tablet) with Bluetooth data transmission
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
1 2-year limited parts warranty does not cover damage from abuse, neglect, wear items and consumables, or onsite service visits.
2 Free software updates do not include vehicle specifications.
