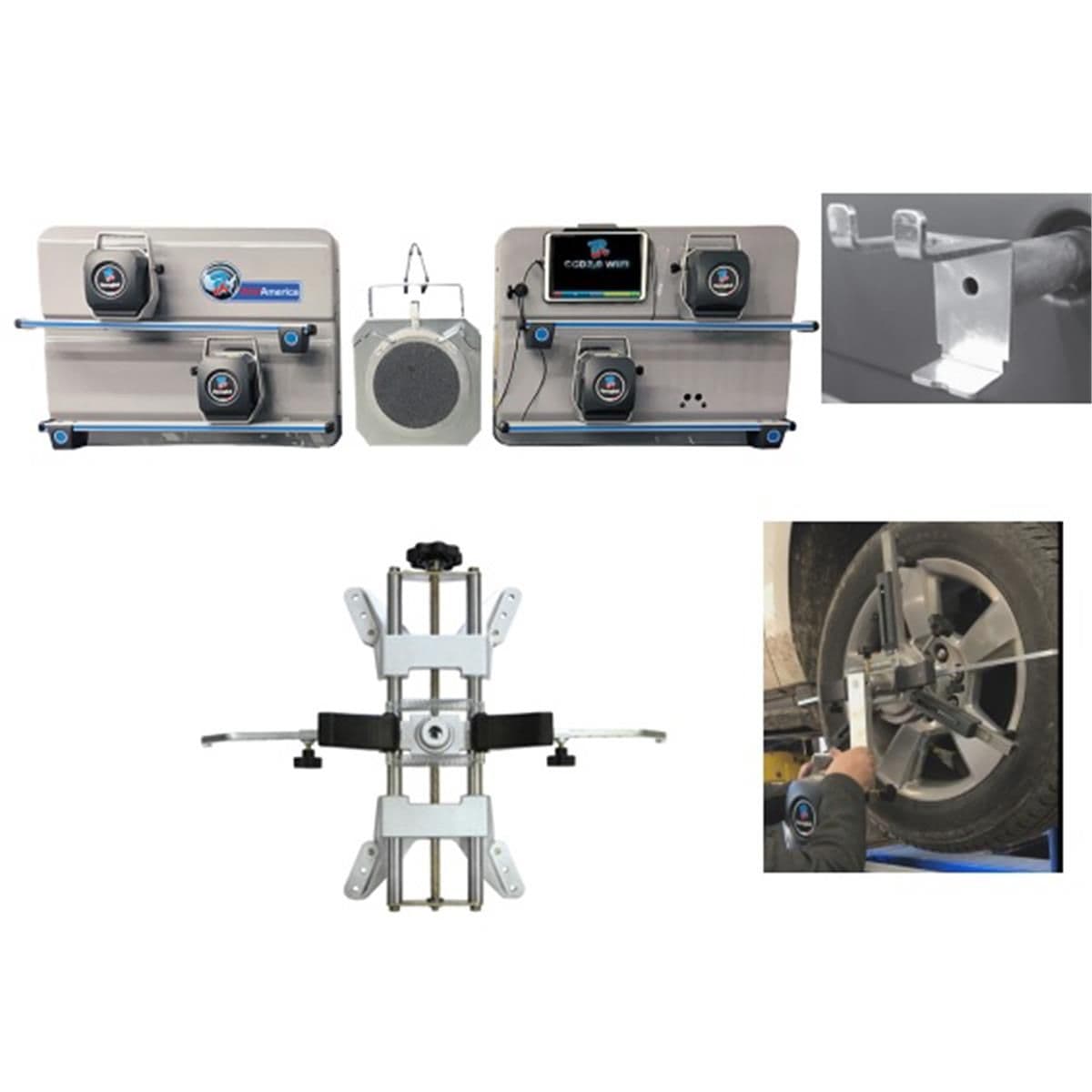

The Atlas Edge TD2.0 Deluxe is a Ravaglioli-built WiFi wheel alignment system built around an 8-camera optical sensor array with Bluetooth data transmission. The Deluxe package adds the upgraded STDA46EU 4-point non-runout wheel clamps, a pair of heavy-duty turntables, two-post lift adapters, a brake pedal depressor, and a steering wheel lock — the full kit for aligning passenger cars and light trucks without buying accessories separately.
Operation runs through the TEQ-LINK app on the included tablet, so the operator can move freely around the vehicle instead of being tied to a fixed console. Wireless WiFi and Bluetooth links between the sensors, clamps, and tablet eliminate the cable-management routine that comes with older alignment rigs.
The system is portable and works with most lift configurations, so a shop running multiple bays or rotating between drive-on and two-post lifts can move one alignment system across the floor instead of dedicating one to a fixed bay. Storage is handled by two instrument boards and four wall pegs for the wheel clamps, keeping the kit organized between jobs.
Specifications come from a vast vehicle database with free software updates for the operating software. Vehicle specification updates are sold separately. The unit ships with remote technical support and a 2-year limited parts warranty.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features
Ravaglioli TD2.0 WiFi alignment system, made in Europe
8-camera optical sensor array with Bluetooth wireless transmission
WiFi operation between sensors, clamps, and tablet
TEQ-LINK app and tablet included

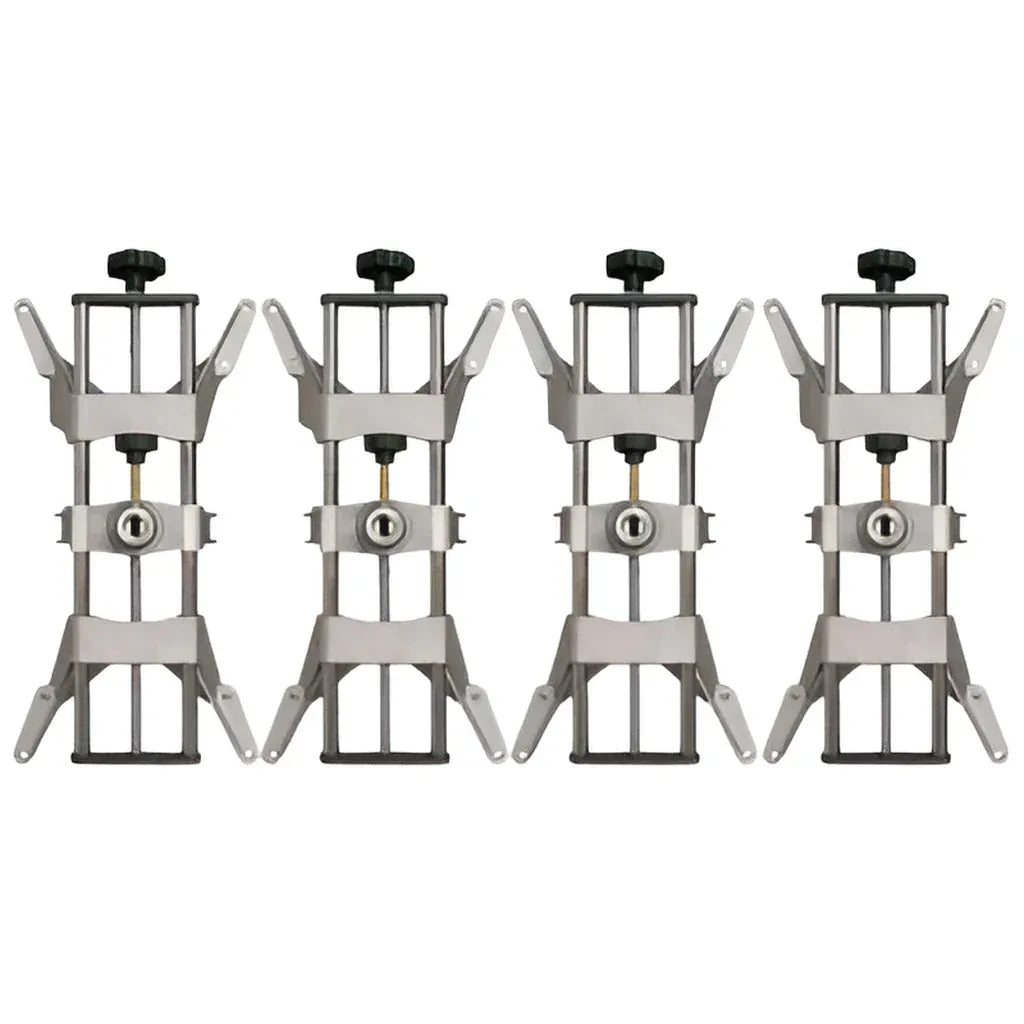

Upgraded STDA46EU 4-point non-runout technology wheel clamps (set of 4)
Pair of heavy-duty alignment turntables included
Two-post lift adapters included

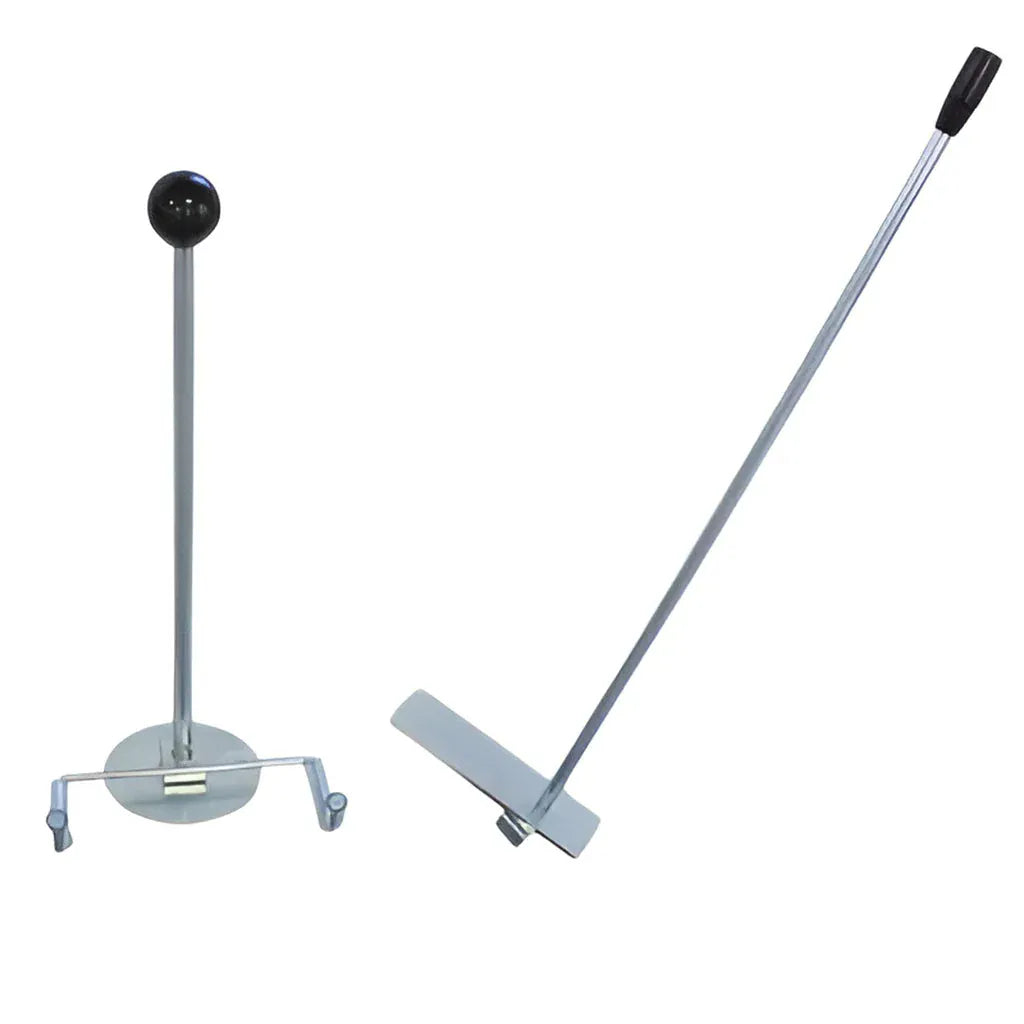

Brake pedal depressor and steering wheel lock included
Two storage boards for instruments plus four wall pegs for wheel clamps
Vast vehicle database with free operating-software updates1
Versatile — works with all common lift configurations
Portable, lightweight design
Remote technical support included
Specifications
Atlas Edge TD2.0 Deluxe Specifications
Sensor system
8-camera optical, Bluetooth wireless
Connectivity
WiFi operation, Bluetooth data transmission
Control software
TEQ-LINK app on included tablet
Vehicle database
Vast database with free software updates1
Turntable footprint
14 5/8" x 14 5/8" each (pair included)
Wheel clamps
STDA46EU 4-point non-runout, set of 4
Lift adapters
Two-post lift adapters included
Accessories
1 brake pedal depressor, 1 steering wheel lock
Storage
2 instrument boards, 4 wall pegs for clamps
Technical support
Remote technical support included
Warranty
2-year limited parts2
Origin
Made in Europe
1 Free software updates apply to operating software. Vehicle specification updates are sold separately.
2 Limited parts warranty does not cover damage from abuse, neglect, wear items, or consumables, and does not include onsite visits.
What's Included
Ravaglioli TD2.0 WiFi alignment system with 8-camera optical sensors
Tablet with TEQ-LINK app preloaded
4 STDA46EU 4-point non-runout wheel clamps
2 alignment turntables (14 5/8" x 14 5/8" each)
2 two-post lift adapters
1 brake pedal depressor
1 steering wheel lock
2 instrument storage boards
4 wall pegs for wheel clamp storage
Two heavy-duty turntables included, 14 5/8" x 14 5/8" each.
