Atlas BP8000 8,000 lb Baseplate 2 Post Lift
Warehouse Pickup
£1,638.00
Sale price
£1,638.00
Regular price
Skip to product information
Atlas BP8000 8,000 lb Baseplate 2 Post Lift
£1,638.00
Sale price
£1,638.00
Regular price
Shipping calculated at checkout.
ATEATTD-BP8000
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Kawasaki OEM Bolt 92002-1327-(05-26) Ninja ZX-6R, ZX-10R (15-25) Mule PRO-FXT,FX
£8.00
Add to Basket
Description
Atlas Baseplate 8,000lb. Capacity 2-Post Lift

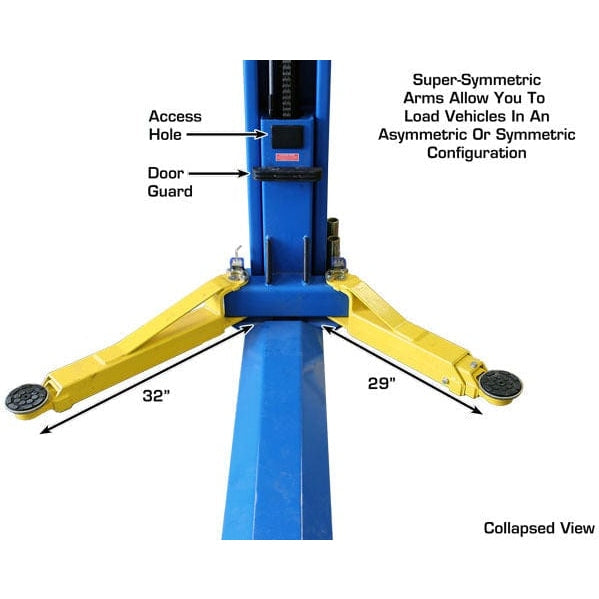

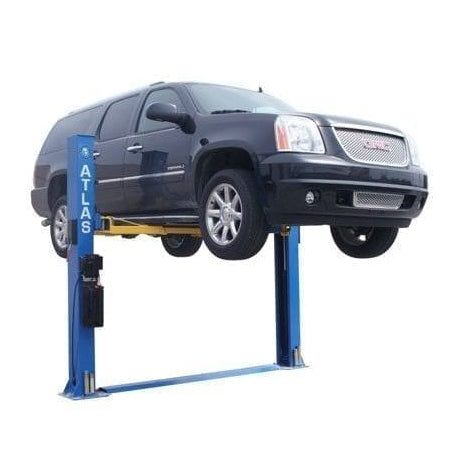

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features
- 8,000 lb. Capacity
- Hobbyist Grade Lift – Not intended for heavy commercial use
- Baseplate, Open-Top Style Lift

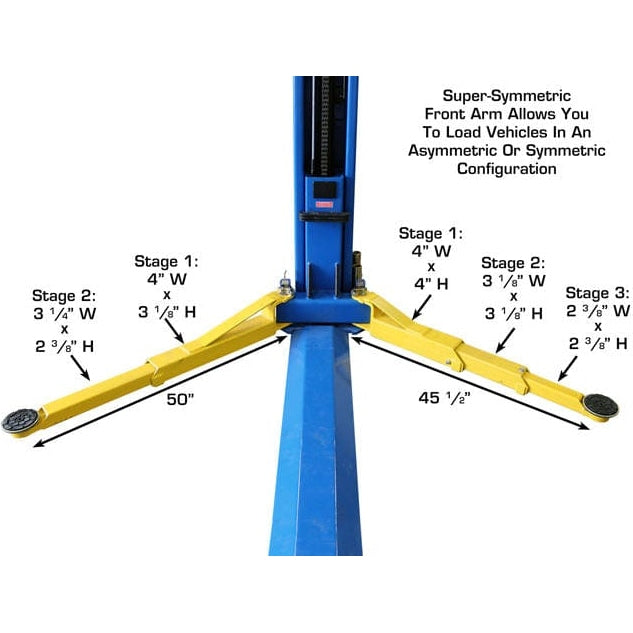

- 3-Stage front arms/2-Stage rear arms

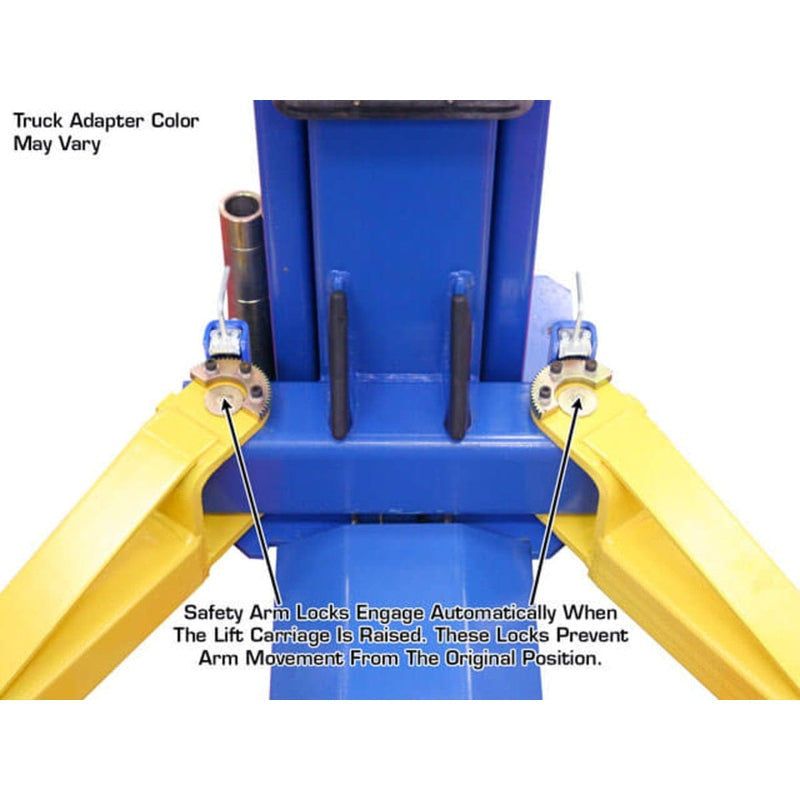

- Automatic Arm Restraints

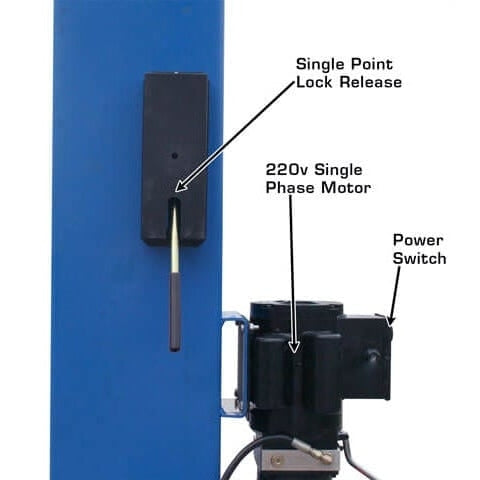

- Single-Point Lock Release
- Double Safety Lock System

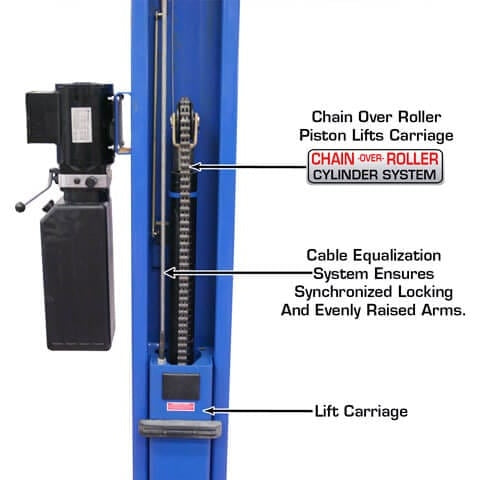

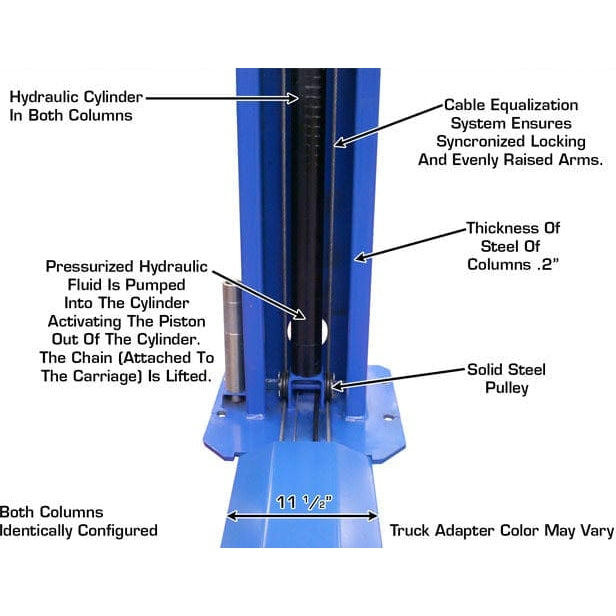

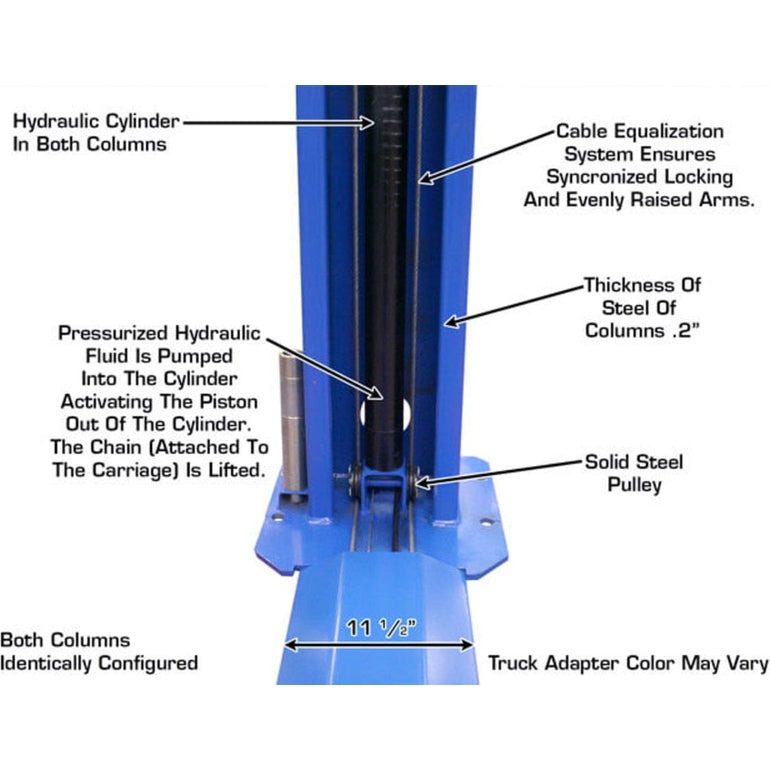

- Dual Hydraulic Chain-Drive Cylinders

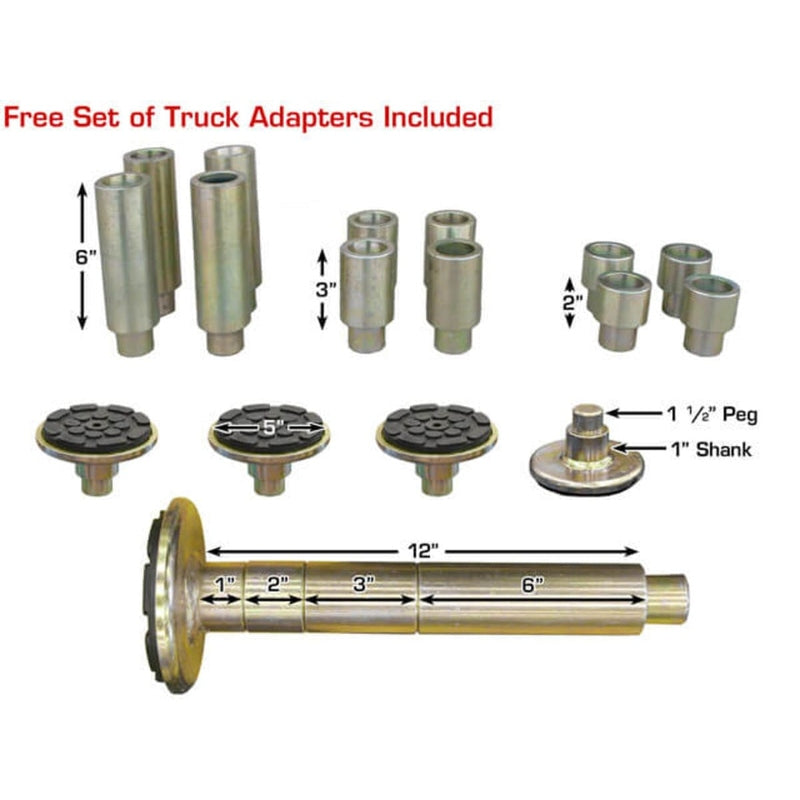

- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,300 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Specifications
| Atlas® ATTD-BP8000 Specifications | ||
| Capacity | 8,000 LB. | |

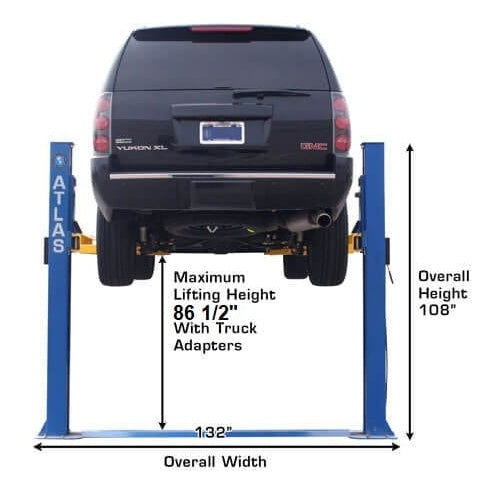

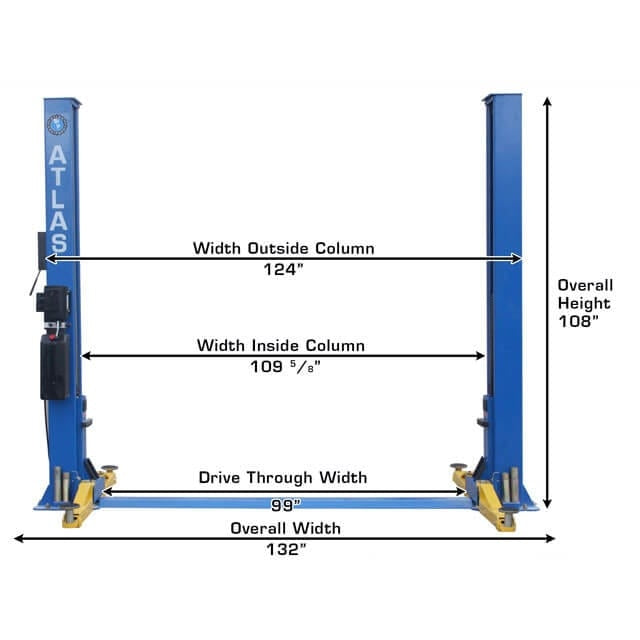

| Overall Height | 108" (9’) | |
| Overall Floor Width | 132" (11’) | |
| Outside Column to Outside Column | 124" (10’ 4") | |

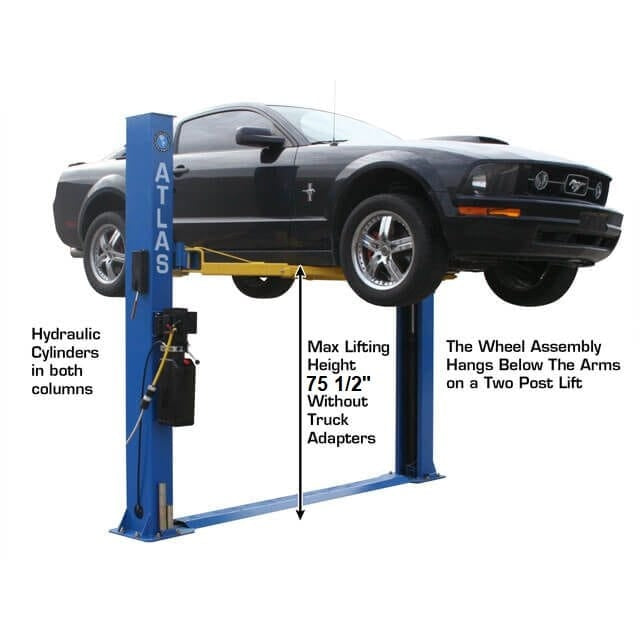

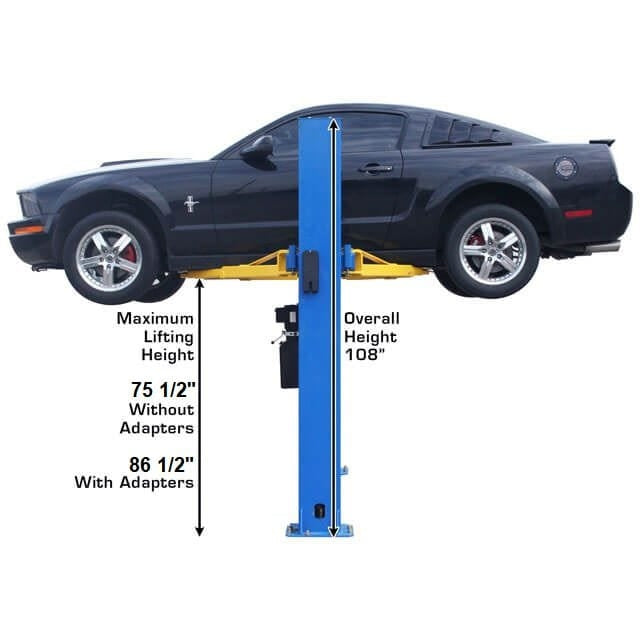

| Maximum Lift Height (Without Adapters) | 75 1/2" | |

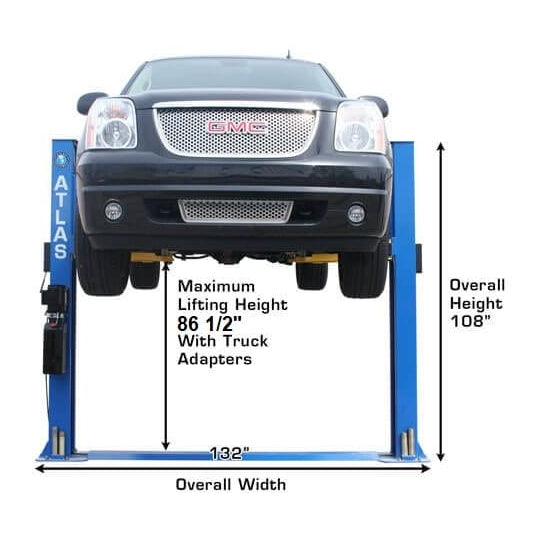

| Maximum Lift Height (With Adapters) | 86 1/2" | |
| Minimum Arm Height | 4" | |
| Inside Column | 109 1/8” (9’ 1 1/8”) | |

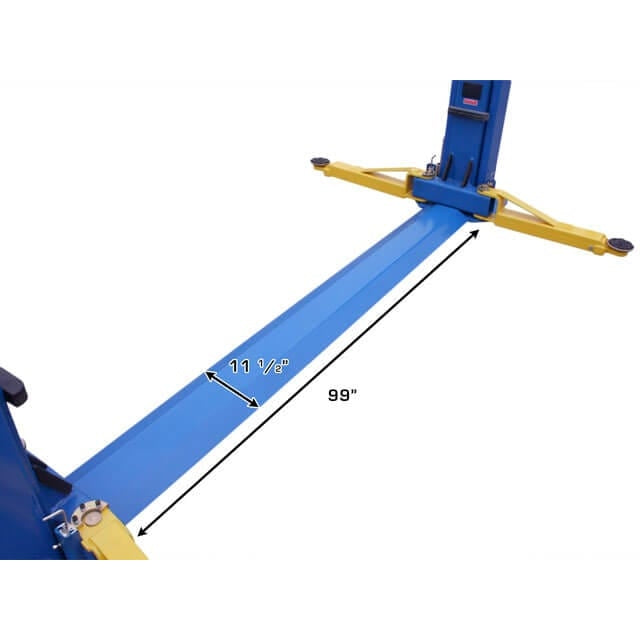

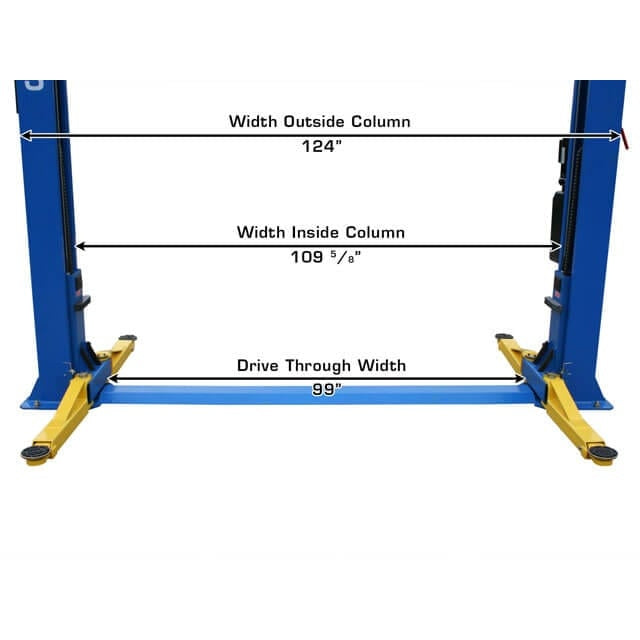

| Drive Thru | 99” (8’ 3”) | |

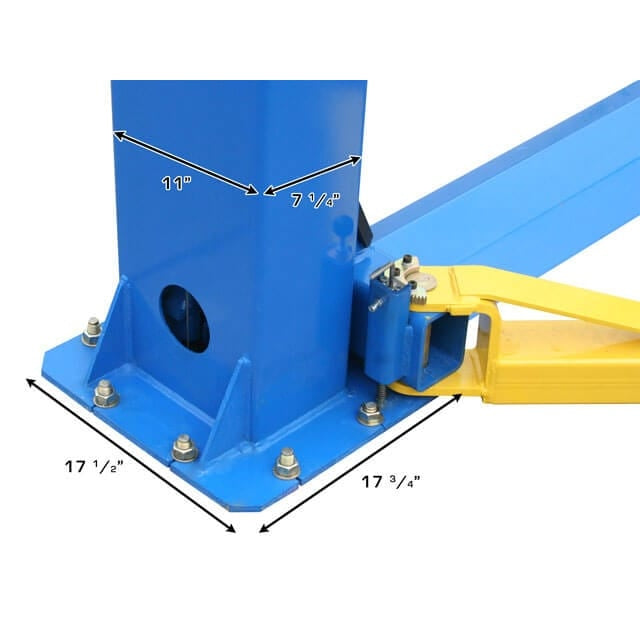

| Column Size | 7 1/4" x 11" | |
| Column Thickness of Steel | 6mm | |

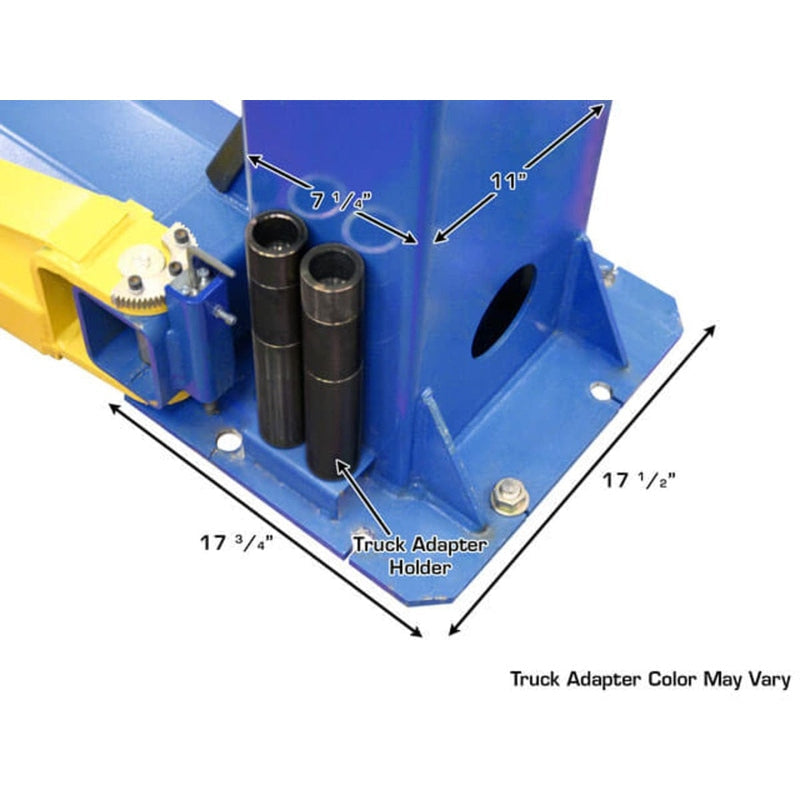

| Base Of Lift | 17 1/2" x 17 3/4" | |

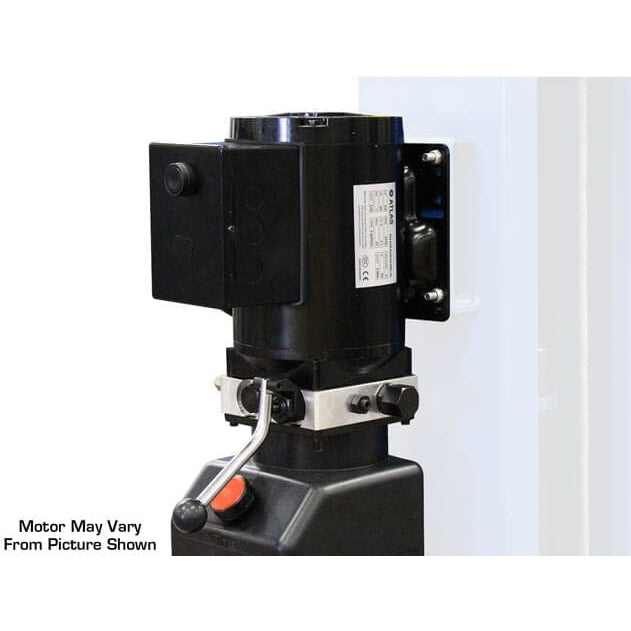

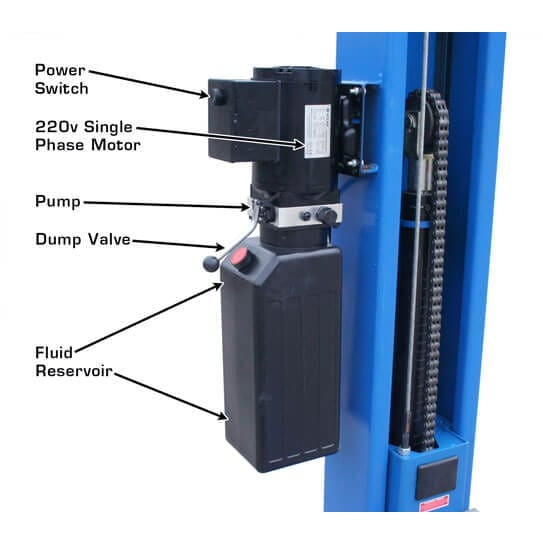

| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended | |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |

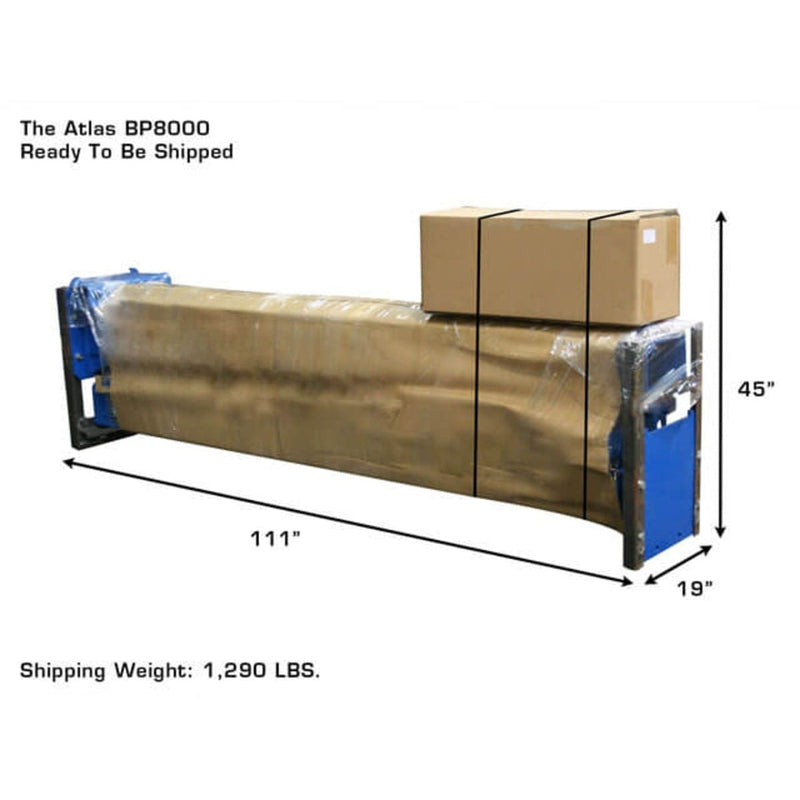

| Shipping Weight | 1,300 LBS. | |

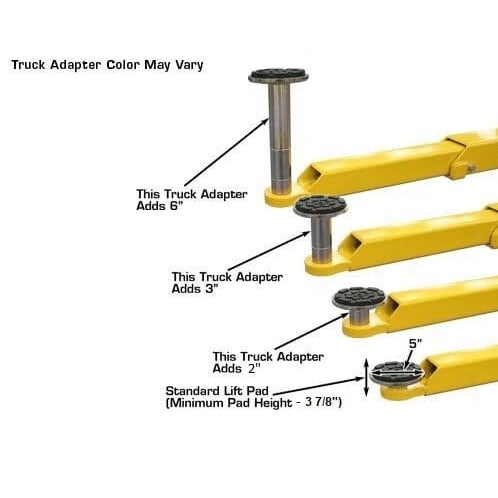

| Adapter Heights | 4 Each 2”, 3”, 6” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
| Requires a minimum of 4" of concrete with a 3000 psi. rating | ||
Documents
Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
