Description

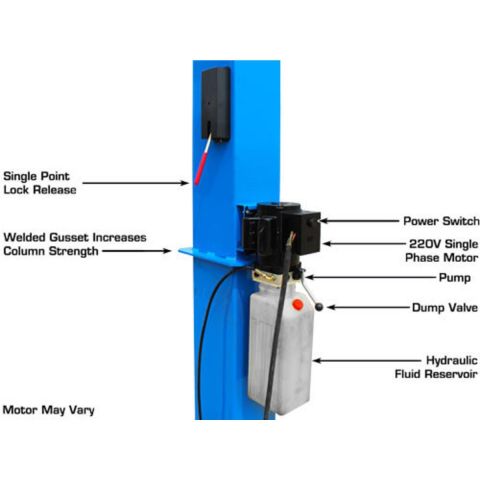

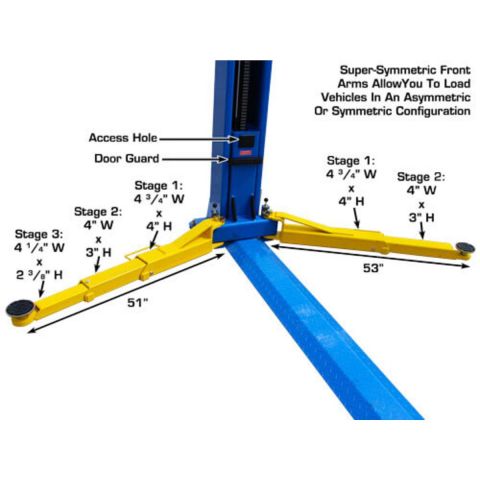

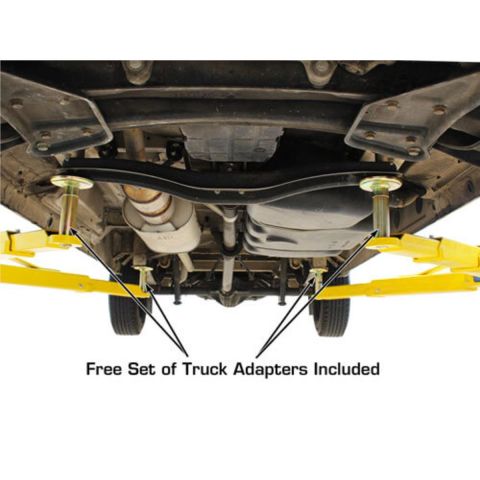

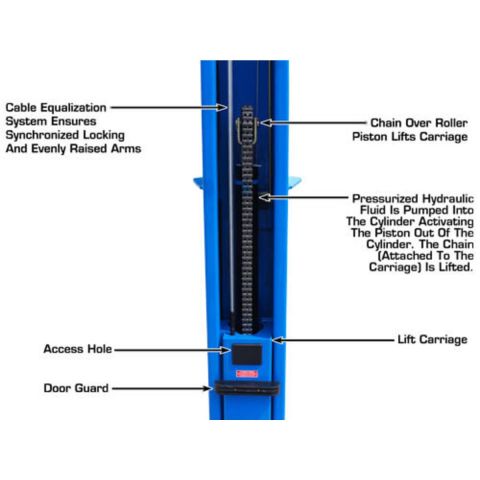

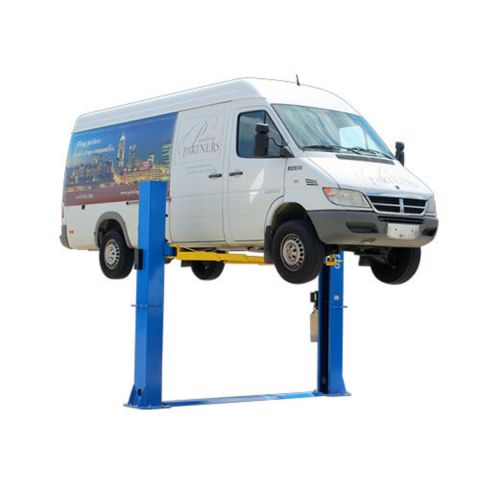

The Atlas® BP10000X is a heavy-duty, commercial-grade two-post baseplate lift designed for shops with low ceiling clearance that still need serious lifting power. With a 10,000 lb. lifting capacity and a compact 111 7/8" height, this open-top, baseplate-style lift is ideal for garages with ceilings under 12 feet. The BP10000X features a welded support gusset at the column center for increased strength and stability, plus super-symmetric arms for maximum flexibility in lifting everything from compact cars to one-ton trucks. Equipped with dual hydraulic chain-drive cylinders, automatic arm restraints, and a single-point lock release, this lift combines durability, ease of use, and safety. Finished in powder coat and complete with a 12-piece truck adapter set, the BP10000X is built for reliable performance in demanding environments.
| Product Features |
|---|
| 10,000 lb. Capacity Commercial Grade Baseplate, Open-Top Style Lift Overall Height: 111 7/8" (9' 3 7/8") Single-Point Lock Release Super-Symmetric Arms Dual Hydraulic Chain-Drive Cylinders Welded Support Gussets for Extra Strength Automatic Arm Restraints Durable Powder Coat Finish Free 12-Piece Truck Adapter Set Shipping Weight: 1,640 lbs. 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only |
| ![]() |
| Product Specifications | |
|---|---|
| Capacity | 10,000 LB. |
| Overall Floor Width | 139 1/8" (11' 7 1/8") |
| Outside Column to Column | 134 1/2" (11' 2 1/2") |
| Max Lift Height (No Adapters) | 77 3/8" |
| Max Lift Height (With Adapters) | 86 3/8" |

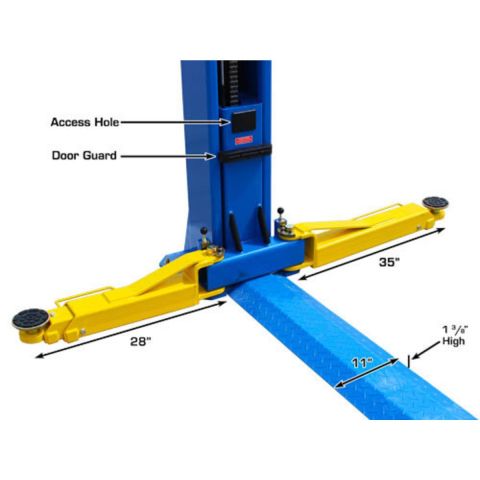

| Minimum Arm Height | 4" |
| Inside Column Height | 112 1/4" (9' 4 1/4") |
| Drive Thru Clearance | 101 1/4" (8' 5 1/4") |

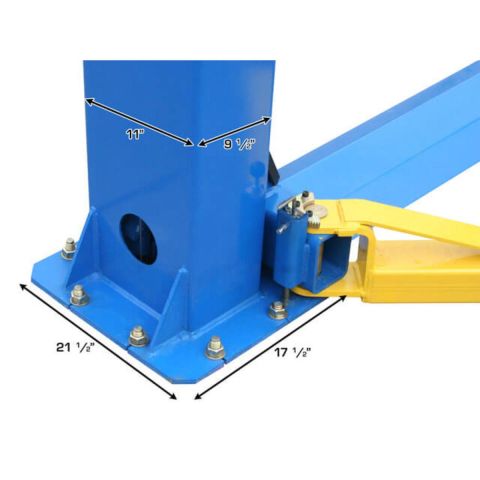

| Column Dimensions | 9 1/2" x 11" |
| Power Requirements | 220V Single Phase, 30 Amp Breaker |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

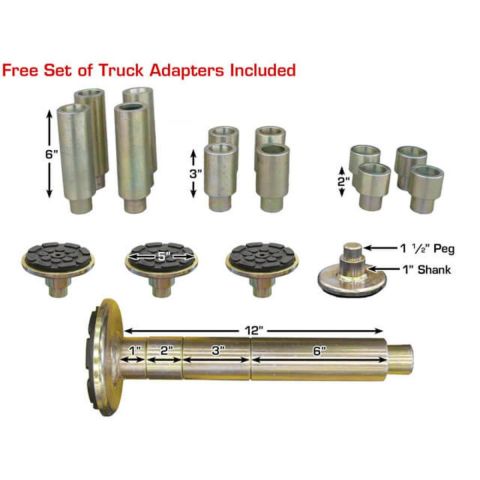

| Adapter Heights | 4 Each – 2", 3", 6" |

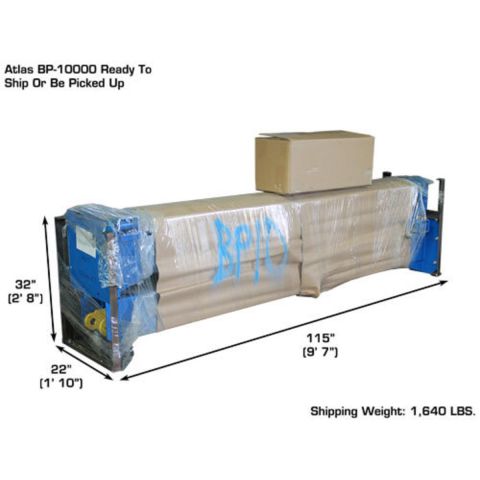

| Shipping Weight | 1,640 LBS. |
