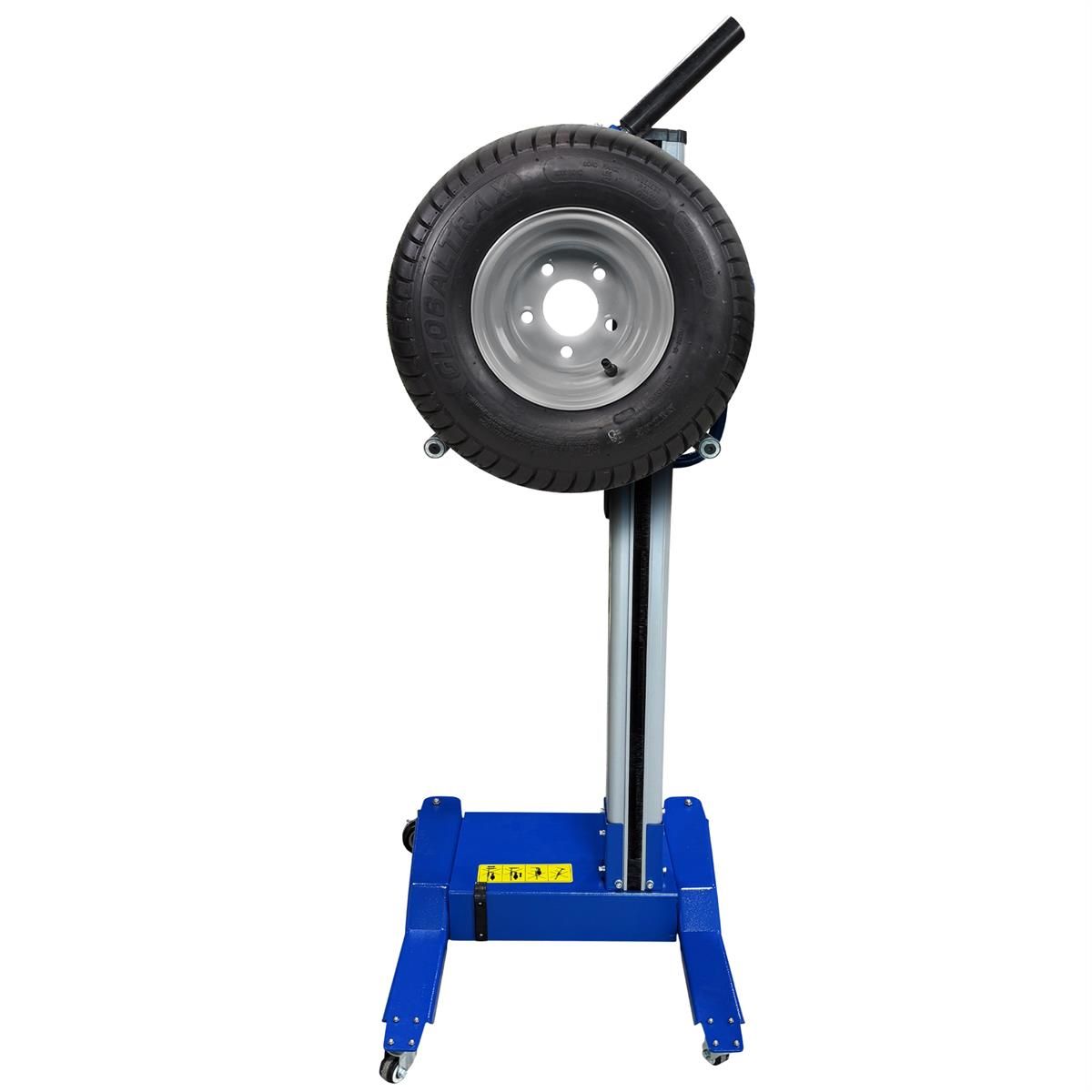

Getting a heavy wheel-and-tire assembly onto a balancer shaft or tire changer turntable without straining a back is exactly what the Atlas ATEHTWL200 is built for. This 145-lb capacity portable wheel lift uses an offset column design that keeps the mast out of the way of lug nuts and valve stems, so you can position the wheel and get straight to work instead of fighting the equipment for clearance.
Power comes from a 24V rechargeable battery — no compressor, no shop air line to run. A 110V charging cord is included, so topping off the battery is as simple as plugging into any standard outlet between jobs, and one-touch up/down controls make raising and lowering the wheel a single-handed operation. It's backed by a 90-day parts warranty.
Features
24V rechargeable battery power — cordless operation with a 110V charging cord included
Offset column design clears lug nuts and valve stems for easier wheel positioning
One-touch up/down control for single-handed operation
Battery level indicator shows remaining charge at a glance
Low-profile base lowers to 2", sliding under vehicles raised on a 2-post or scissor lift

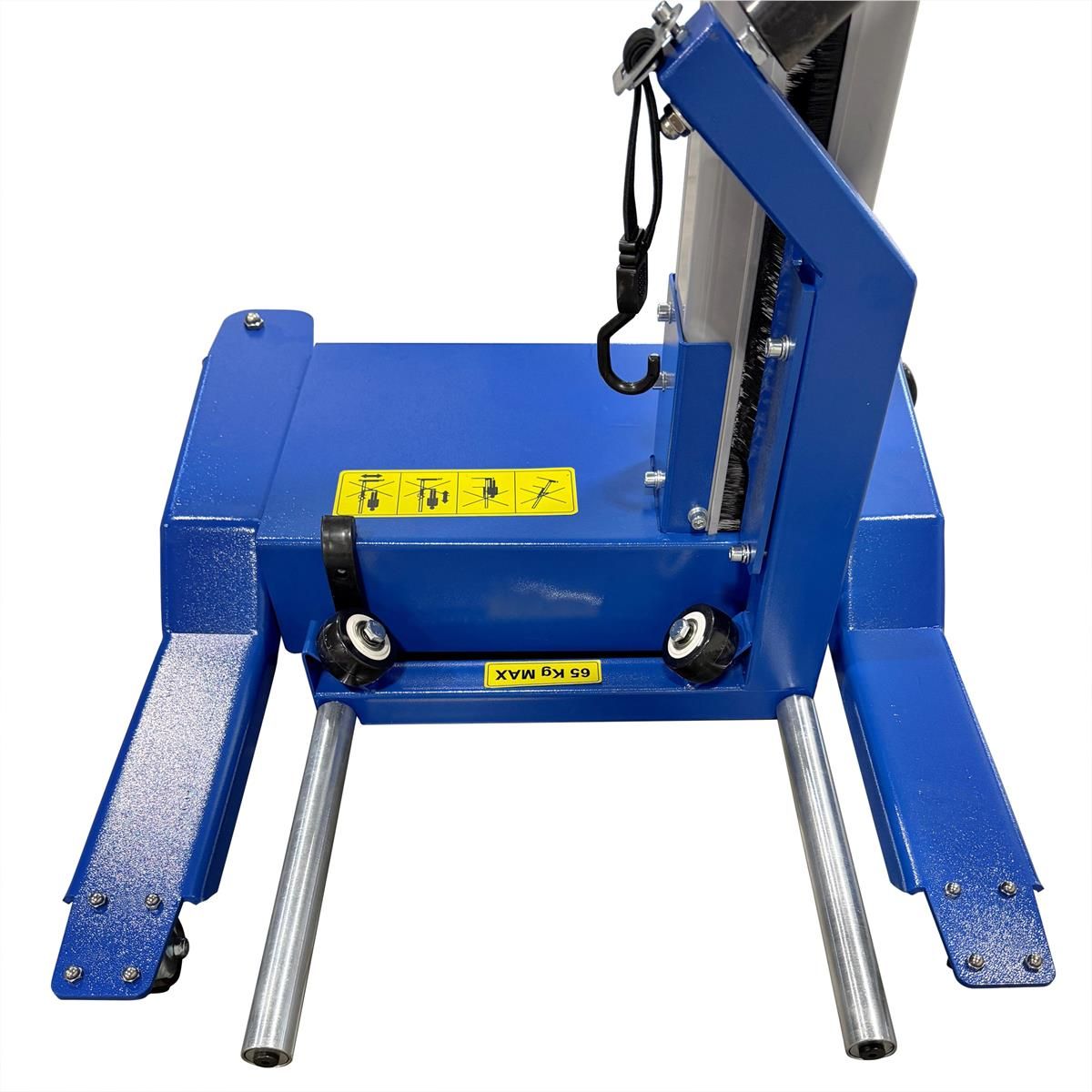

Roller arms let you reposition the wheel across the carriage without re-lifting

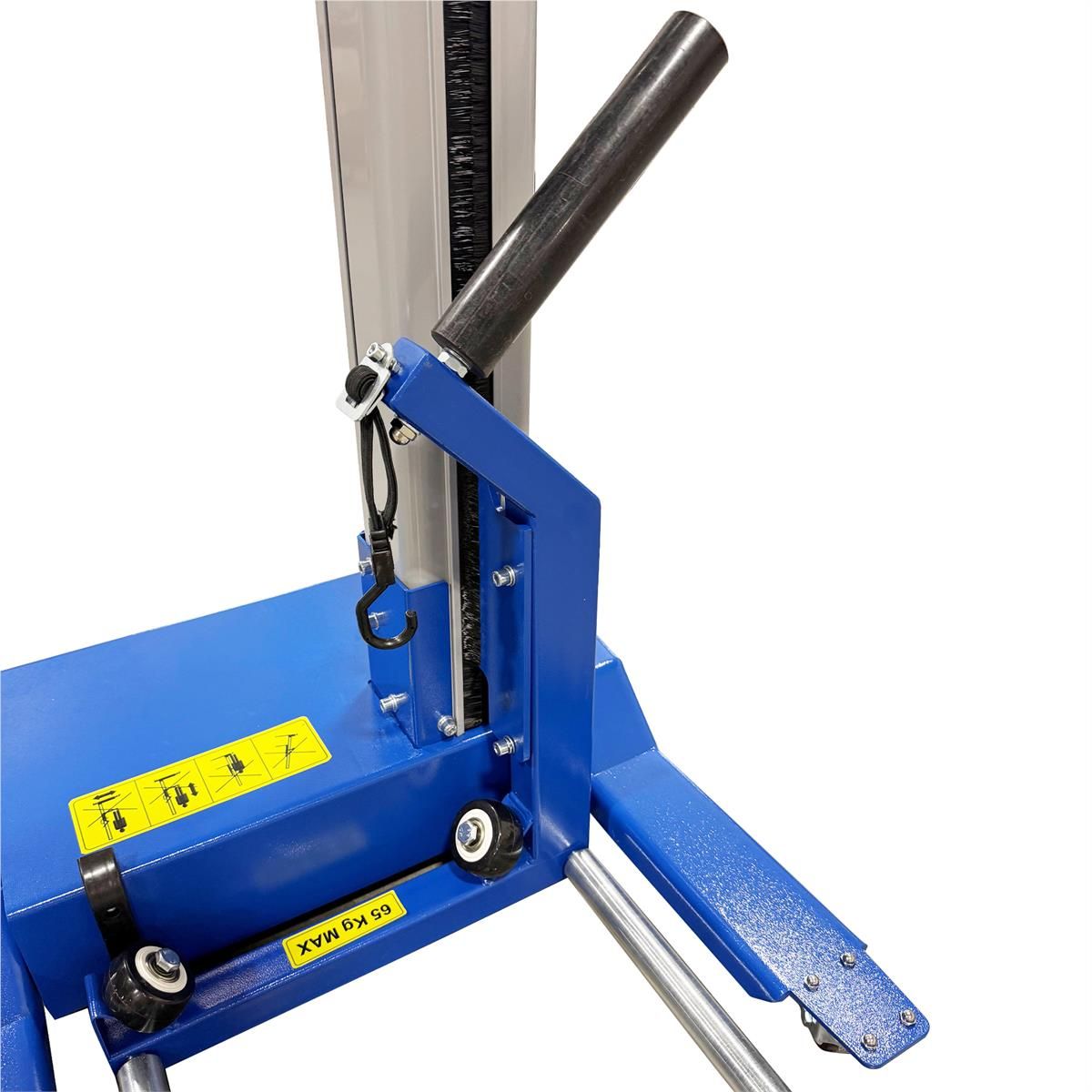

Built-in tie-down point secures the wheel while it's being moved

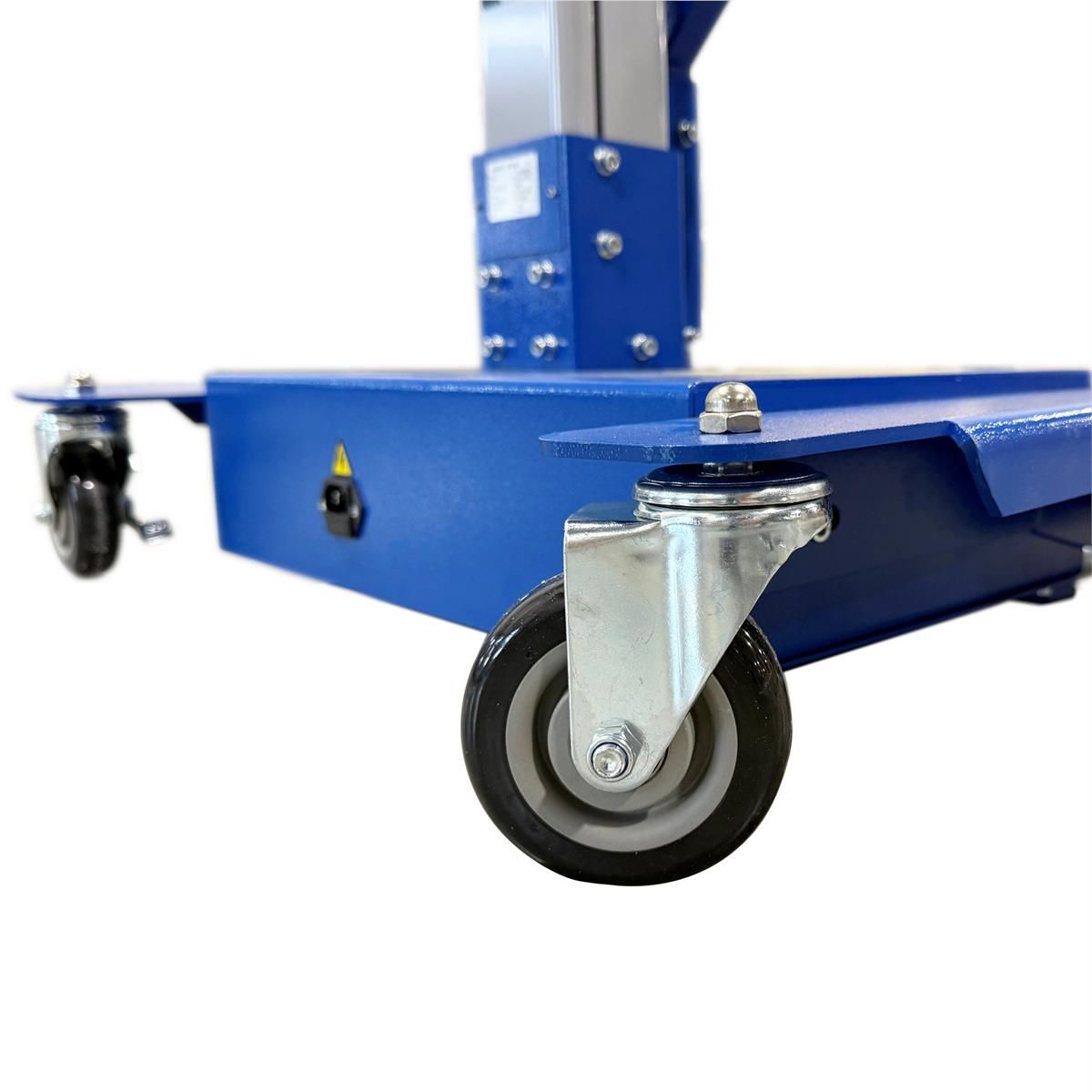

Swivel casters make the whole unit easy to maneuver around the shop

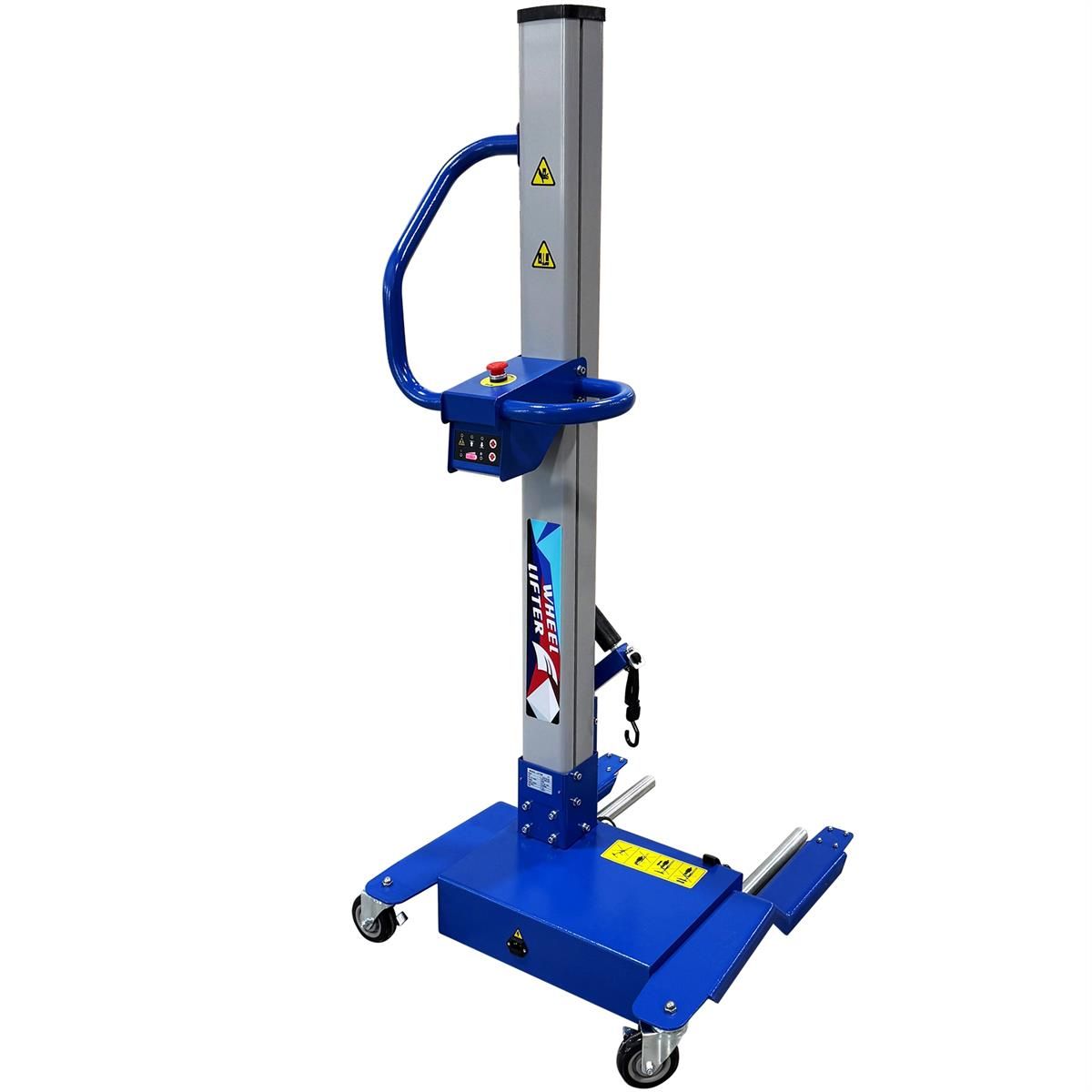

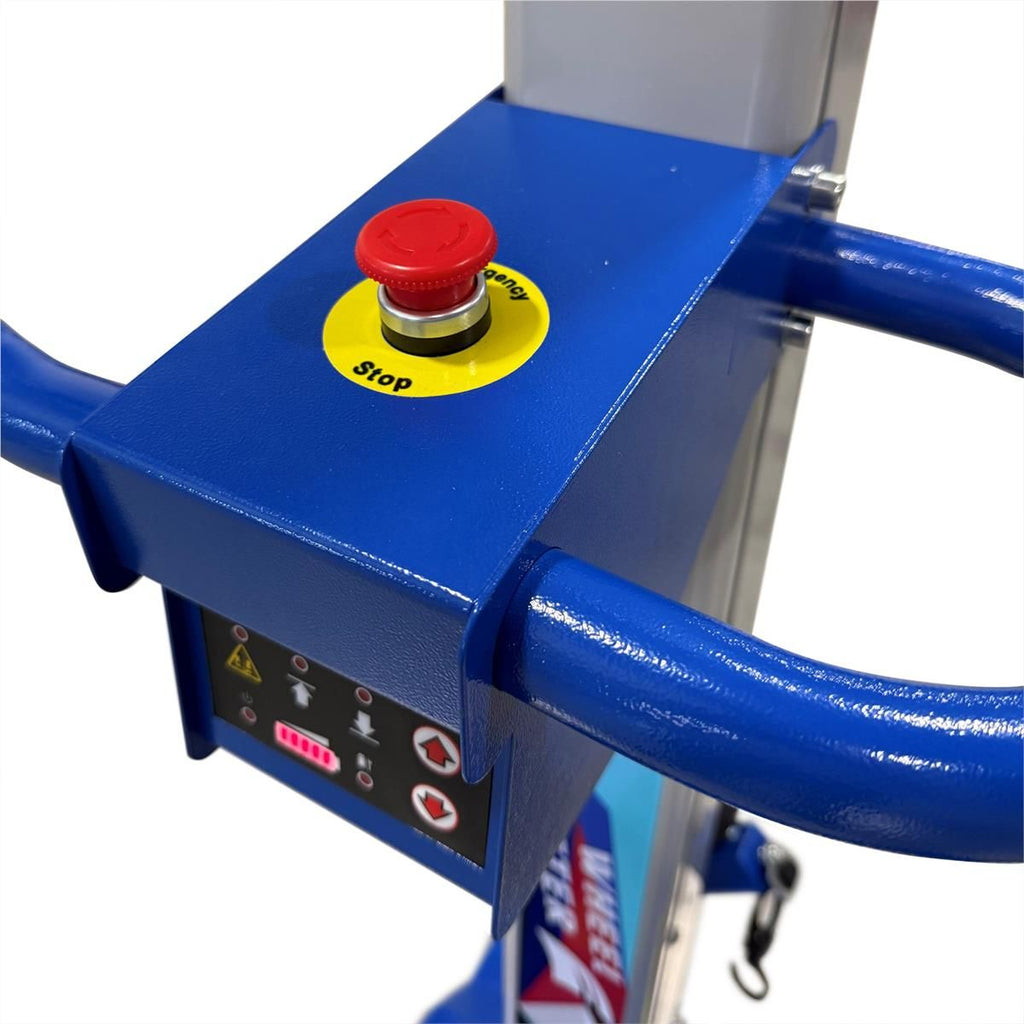

One-touch up/down control with battery-level display and e-stop
Specifications
Atlas ATEHTWL200 Specifications
Lift Capacity
145 lbs
Power Supply
24V Battery / 110V Charge
Cycles Per Charge
200
Lowered Height
2"
Raised Height
47"
Base Dimensions
27" wide x 30" deep
Tower Height
65 1/2"
Carriage Height (fully raised)
71 1/2"
Shipping Weight
200 lbs
Crate Dimensions (shipped item)
66 3/4" L x 21 1/2" W x 19" H
External 110V power supply required to recharge the battery.
Warranty
The Atlas ATEHTWL200 carries a 90-day parts-only warranty.
FAQ
What's the maximum wheel and tire weight this lift can handle?
145 lbs — enough for most passenger and light-truck wheel-and-tire assemblies, and many medium-duty ones as well.
Does it run on battery only, or does it need to stay plugged in?
It runs on a 24V rechargeable battery good for about 200 lift cycles per charge. Recharge with the included 110V cord between shifts — no compressor or shop air required.
Will it fit under a vehicle raised on my lift?
Lowered height is just 2", and it raises to 47" — low enough to slide under a vehicle on a 2-post or scissor lift, tall enough to reach most balancer and tire-changer shaft heights.
How do I move the wheel once it's on the lift?
Roller arms let you reposition the wheel across the carriage without re-lifting, and swivel casters make it easy to wheel the whole unit around the shop.
