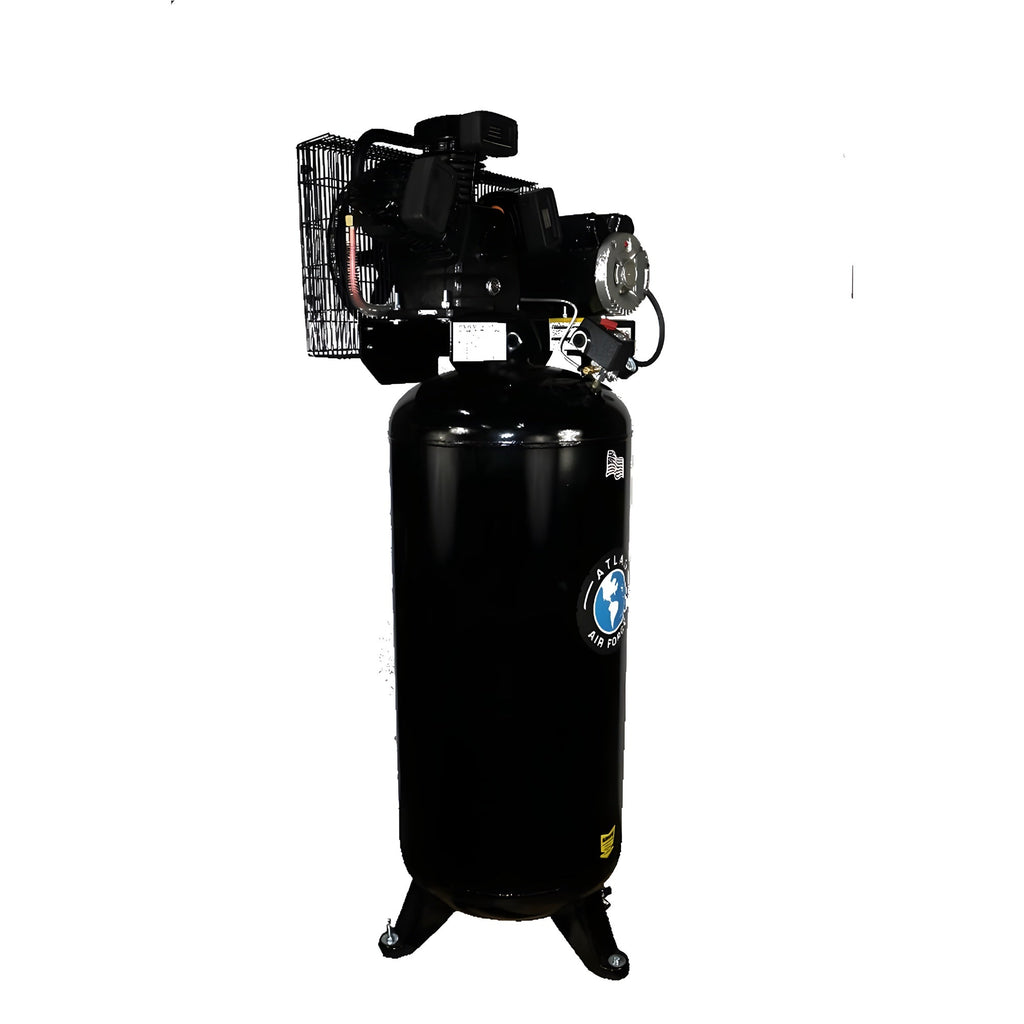

The Atlas Air Force AF5 is a 5 HP, 60-gallon single-stage vertical air compressor built for steady shop air on a 220V single-phase service. A three-cylinder cast-iron reciprocating pump moves 20 CFM at 40 PSI and 18 CFM at 90 PSI, with the tank cycling between 90 and 125 PSI. The vertical 60-gallon tank is made in the USA.
The AF5 lands at the entry point of Atlas's Air Force line — enough output to run most pneumatic tools (impacts, ratchets, die grinders, paint sprayers), and enough tank to keep cycle times reasonable in a one- or two-bay shop. Atlas notes that the AF5 can run an Atlas SBC420 entry-level sandblast cabinet for short periods, but not continuously; shops that need extended sandblasting should size up to the AF6 or larger.
Component callouts and overall envelope: 68 in tall, 28 in wide.
Features
Three-cylinder, single-stage cast-iron pump for high volume at a competitive price
5 HP running motor (6.5 HP peak), 3450 RPM
60-gallon vertical tank, made in the USA — space-saving footprint with generous air storage

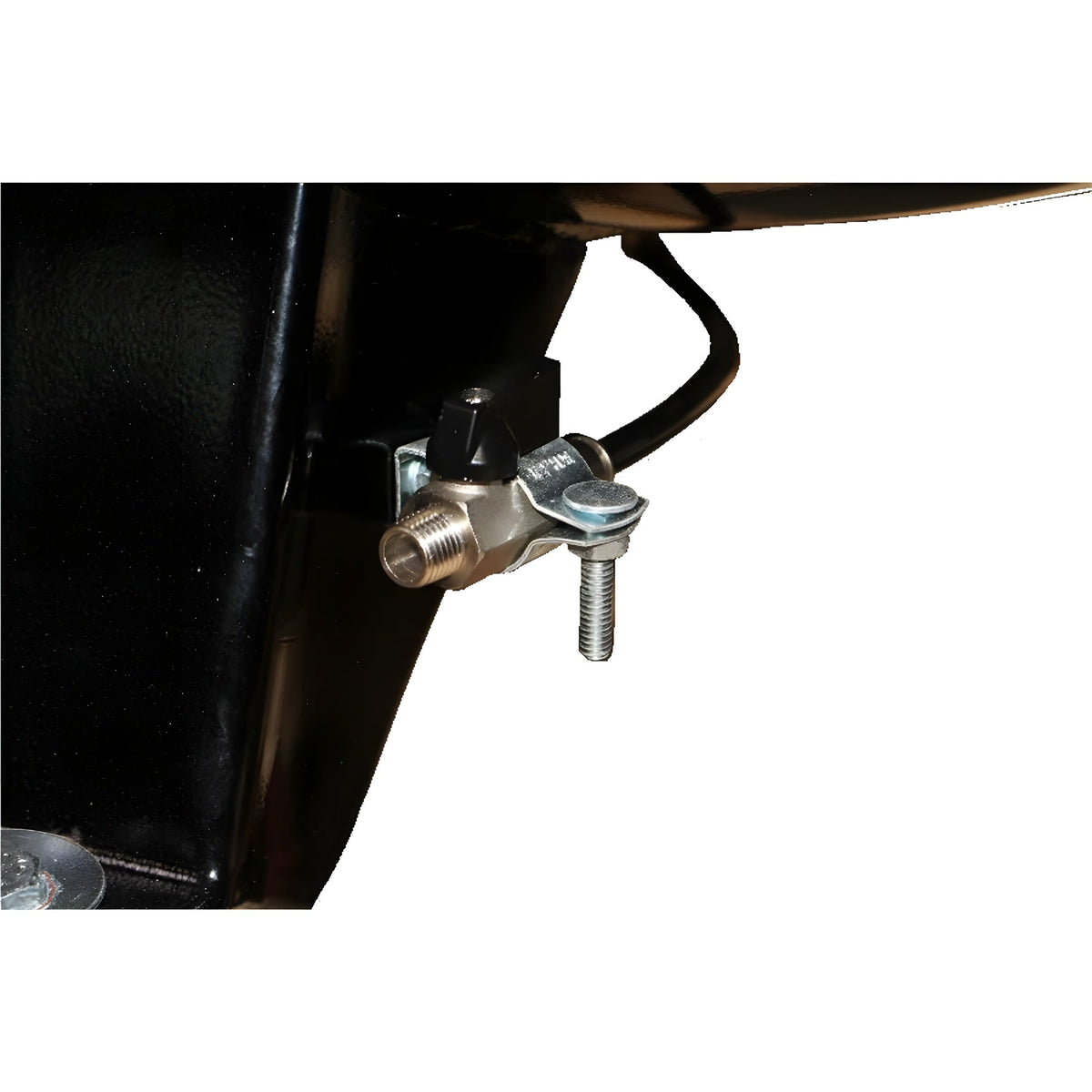

Hands-free tank drain extension so daily draining doesn't require crawling behind the tank
Finned tank inlet tube to reduce moisture accumulation inside the tank
Heavy-duty metal belt guard over the pump and motor
Vibro-isolation pads included to dampen floor-transmitted vibration

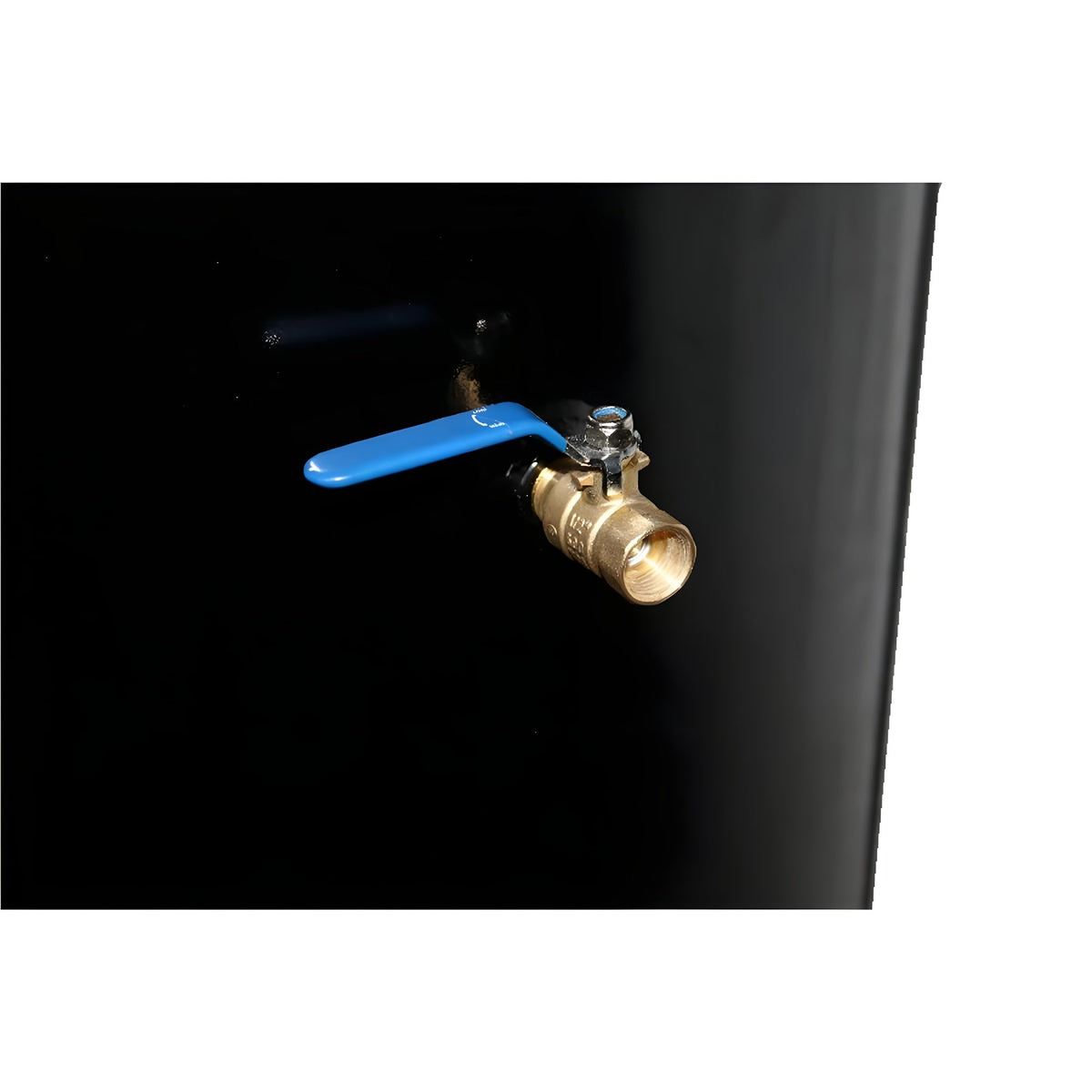

1/2" NPT air outlet with ball valve included
Atlas Air Force line — built to the same standards as Atlas's professional-grade shop equipment
What's Included
Atlas Air Force AF5 air compressor (assembled tank + pump + motor)
1/2" NPT ball valve at the air outlet
Hands-free tank drain extension
Set of vibro-isolation pads
Specifications
Atlas Air Force AF5 Specifications
Motor (running)
5 HP
Motor (peak)
6.5 HP
Motor speed
3450 RPM
Pump
3-cylinder, 1-stage
Air delivery @ 40 PSI
20.0 CFM
Air delivery @ 90 PSI
18.0 CFM
Pressure range
90–125 PSI
Tank capacity
60 gallons (vertical, made in USA)
Air outlet
1/2" NPT (ball valve included)
Electrical
220V, 1-phase, 30 A breaker, #10 wire required
Overall dimensions
28" L × 18" W × 68" H
Shipping weight
400 lb
Confirm your shop has 220V single-phase service on a dedicated 30 A circuit with #10 gauge wire before installation.
Warranty
1-year parts-only warranty from Atlas Automotive Equipment.
FAQ
Can the AF5 run an Atlas SBC420 sandblast cabinet?
For short periods, yes. The AF5 produces enough PSI to operate the SBC420 entry-level sandblast cabinet for short bursts, but not enough air to keep it running for extended sessions. Shops that sandblast continuously should step up to the Atlas AF6 or larger.
What electrical service does the AF5 need?
220V single-phase on a 30 amp breaker, wired with #10 gauge wire. Confirm your shop has the dedicated circuit before delivery.
What's the air-outlet size?
1/2" NPT, with a ball valve installed at the outlet.
Is the tank made in the USA?
Yes. The 60-gallon vertical tank is USA-made.
What pneumatic tools can the AF5 run?
At 18 CFM @ 90 PSI, the AF5 covers the air requirements of most shop tools — impacts, ratchets, die grinders, sanders, paint sprayers, and pneumatic body tools. High-consumption tools that draw continuously (large sandblast cabinets, plasma cutters with extended duty cycles, HVLP paint guns at full output) may exceed the AF5's sustained CFM and call for a larger compressor.
