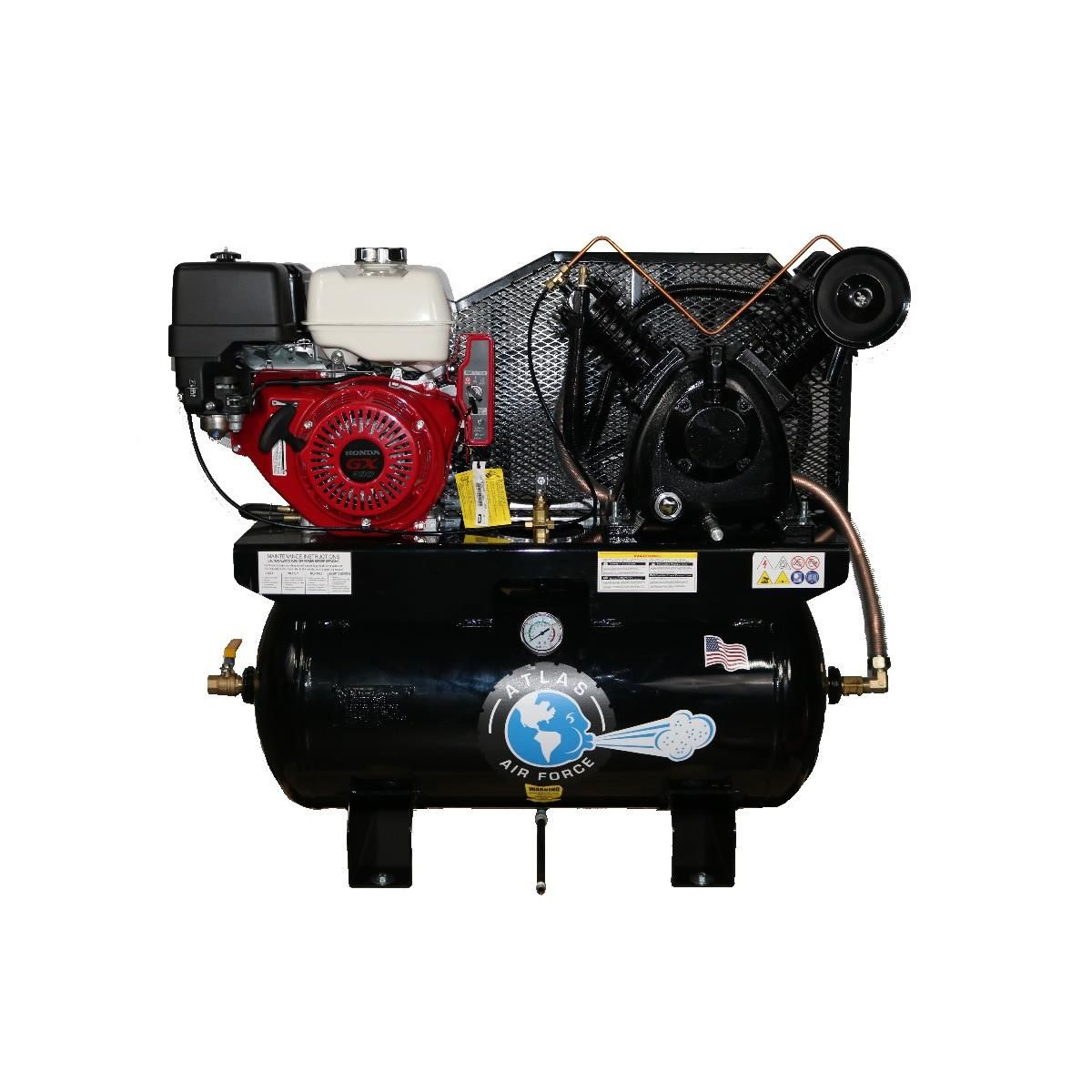

The Atlas Air Force AF13 is a gas-powered, two-stage truck-mount air compressor built around a Honda GX390 13-HP electric-start engine and a 30-gallon horizontal tank made in the USA. It is designed for mobile service work where shop power is not available and where the tools on the truck still need to run all day.
The compressor operates between 145 and 175 PSI and delivers 25 CFM at 90 PSI and 19 CFM at 175 PSI through a 3/4" NPT outlet, paired with a two-stage, two-cylinder pump and a heavy-duty metal belt guard. The Honda engine is EPA / CARB emission compliant, 4-cycle air-cooled single-cylinder, and starts on a keyed electric switch with a recoil pull-handle as backup. A finned tank-inlet tube is used to reduce water accumulation in the tank.

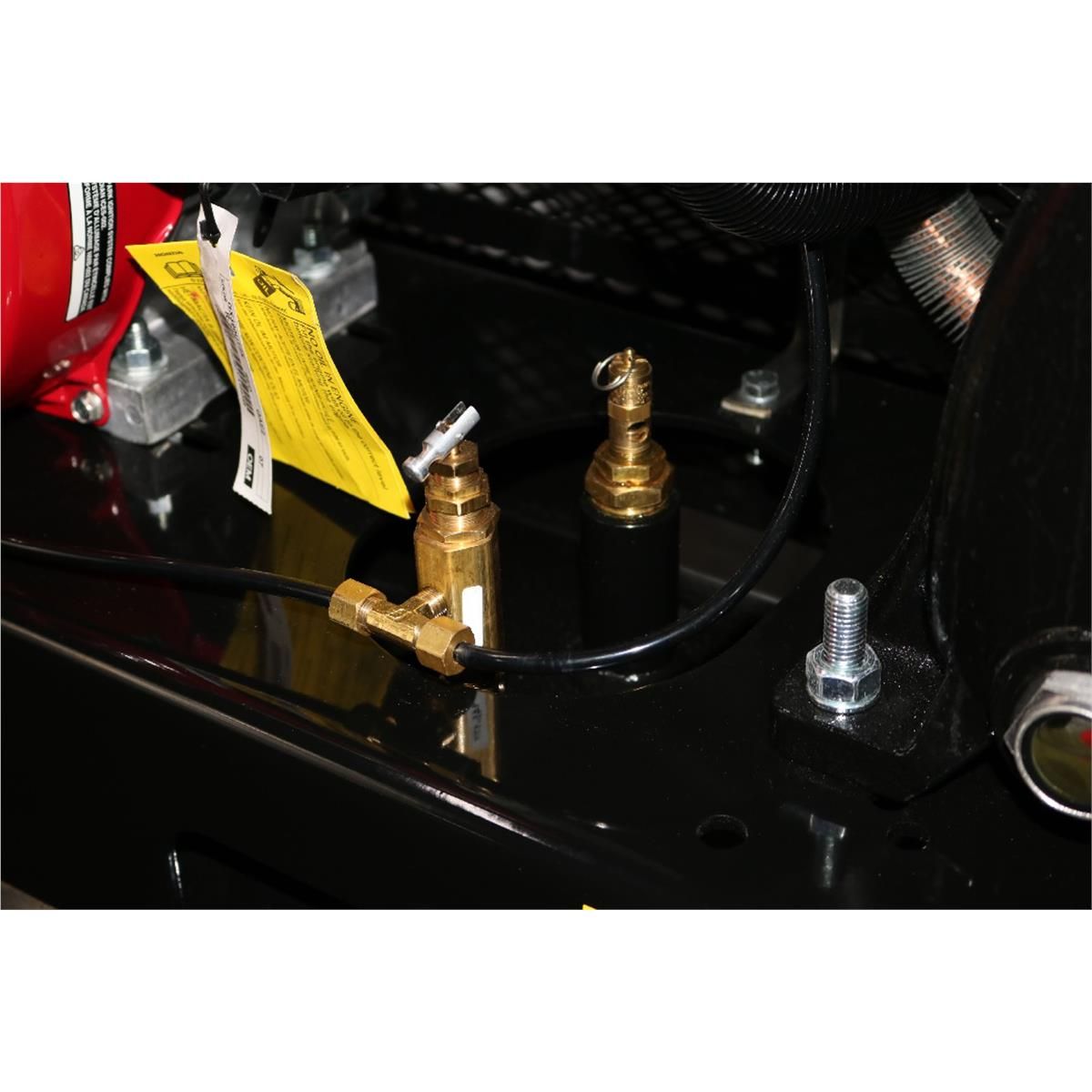

Component layout on the Atlas Air Force AF13.
Features
Honda GX390 13-HP engine with keyed electric-start switch and recoil pull-handle backup
Two-stage, two-cylinder pump rated at 145–175 PSI working pressure
30-gallon horizontal tank, made in the USA
Heavy-duty metal belt guard over the flywheel and belt drive
Finned tank-inlet tube for reduced tank water accumulation
Keyed electric-start with recoil pull-handle backup
Compressor pump
Two-stage, two-cylinder
Pressure setting
145–175 PSI
Delivered CFM @ 90 PSI
25
Delivered CFM @ 175 PSI
19
Tank capacity
30 gallons, horizontal, made in the USA
Air outlet
3/4" NPT
Belt guard
Heavy-duty metal, installed
Tank inlet
Finned tube for reduced water accumulation
Overall dimensions
46" L × 19" W × 37" H
Shipping weight
627 lbs
Package dimensions
48" × 24" × 44" (palletized)
Vibration pads
Four pads, 4" × 4" × 7/8" (included; anchors not included)
Warranty
1-year parts-only warranty through Atlas Automotive Equipment.
FAQ
Is the AF13 truck-mountable for mobile service work?
Yes. The AF13 is built on a single horizontal-tank skid and is sized for service-truck deck mounting. Package footprint on the pallet is 48" × 24" × 44" and total shipping weight is 627 lbs.
Is the 30-gallon tank made in the USA?
Yes. Atlas specifies the AF13 tank as a 30-gallon horizontal steel tank made in the USA.
Does the engine have both electric-start and recoil backup?
Yes. The Honda GX390 on the AF13 has a keyed electric-start switch with a recoil pull-handle as backup; both are visible on the engine.
What is included with the compressor?
The AF13 ships with the assembled compressor unit, an installed heavy-duty metal belt guard, an installed finned tank-inlet tube, a set of four vibration-isolation pads (4" × 4" × 7/8"), and the owner's manual and parts list.
