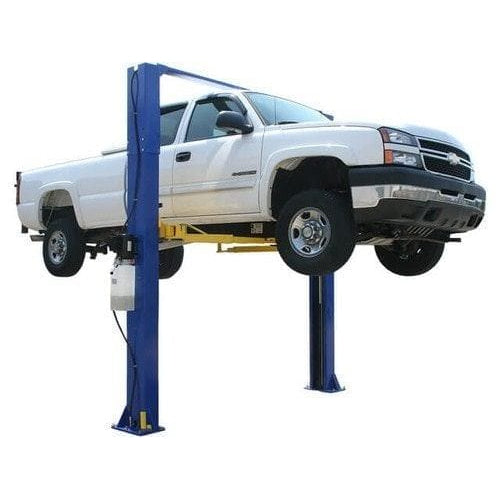

Atlas Overhead 9,000lb. Capacity 2-Post Lift
The light duty Atlas 9KOHX lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for Mr. Homeowner or small commercial shops looking to service cars, SUVs and light duty trucks. The 9KOHX can be adjusted to two different height settings, either 11' 6" or 11' 10", allowing it to fit in almost any standard garage.

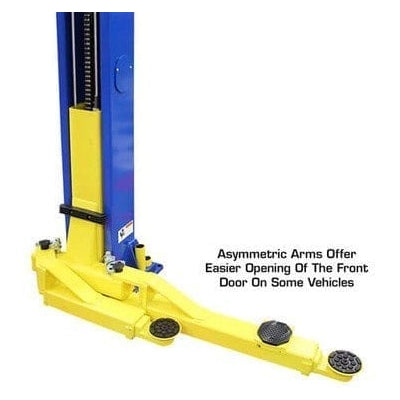

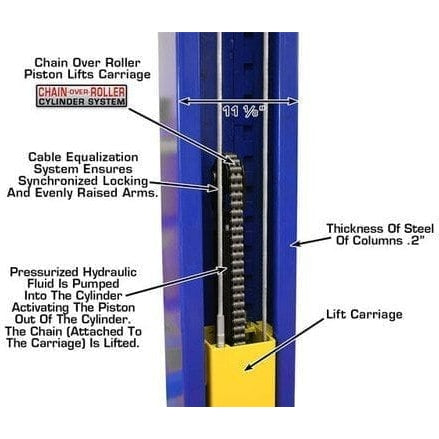

The Atlas 9KOH has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas 9KOHX two post chain over roller lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.
The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.
Features
- 9,000 lb. Capacity
- Overhead, Open-Floor design

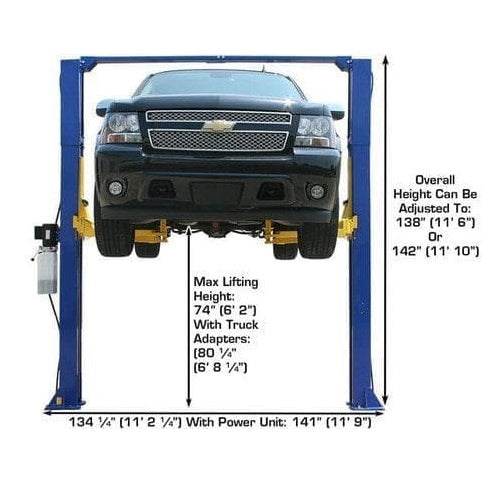

- Overall Height: 138" (11' 6") or 142" (11' 10")

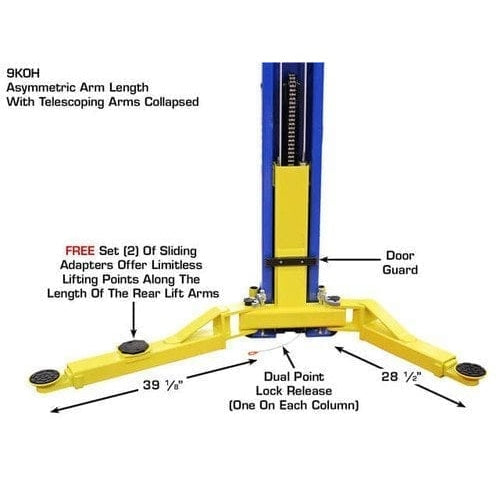

- Asymmetric/Symmetric Arms
- Automatic Arm Restraints

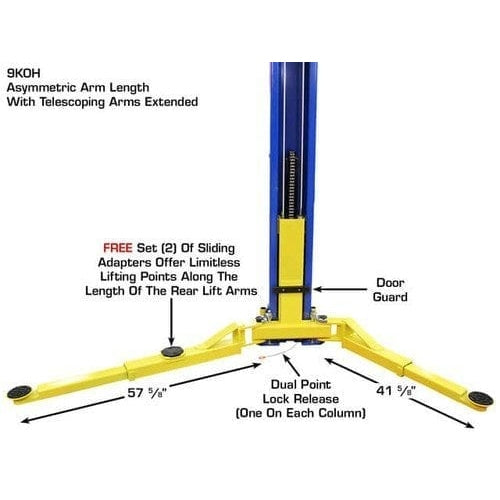

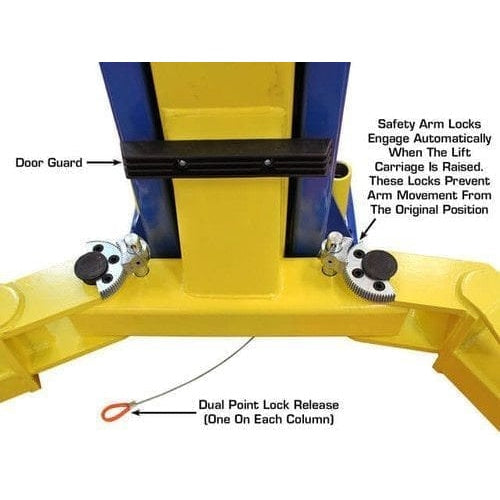

- Dual-Point Lock Release
- Rubber Guards on Carriages

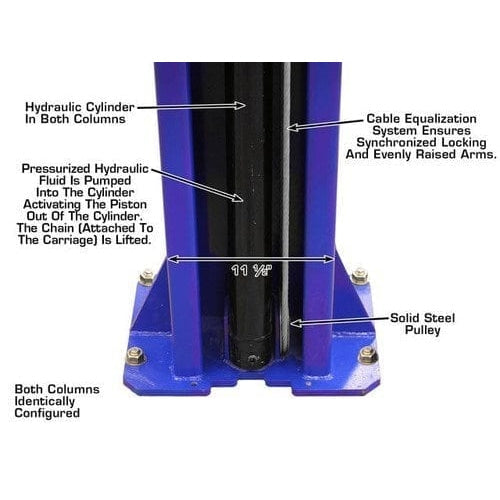

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System

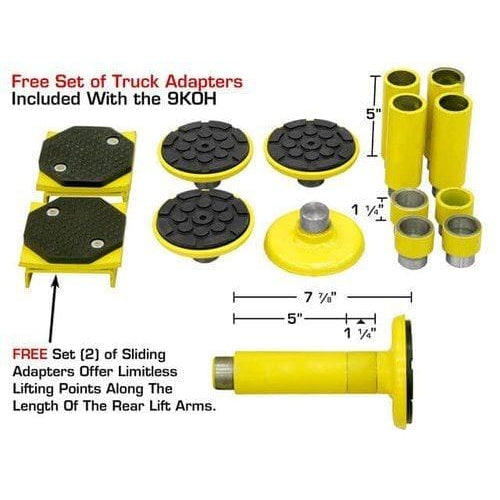

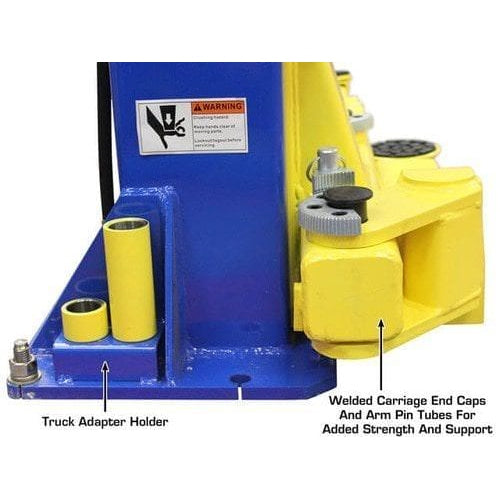

- Free 8 Piece Truck Adapter Set
- Free set of Sliding Arm Adapters

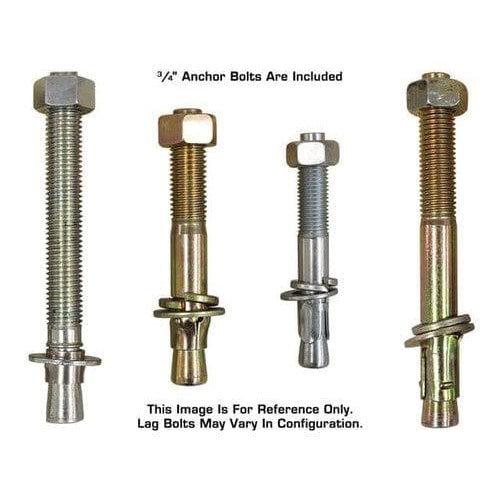

- Mounting Hardware Included

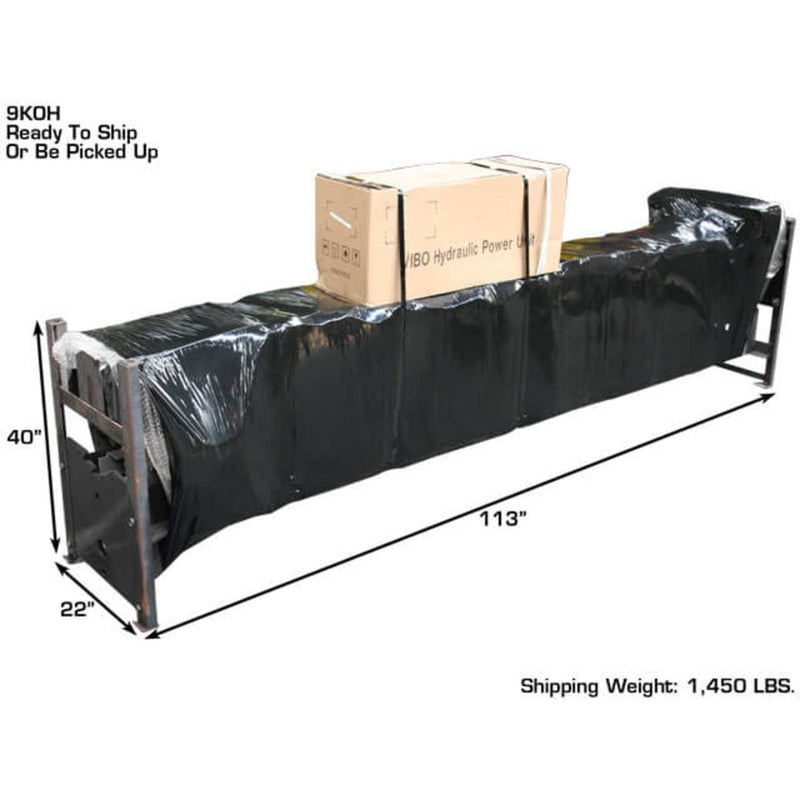

- Shipping Weight: 1,450 lbs.
- 2 yr Structural 1 yr Hydraulic Warranty Parts Only
- Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

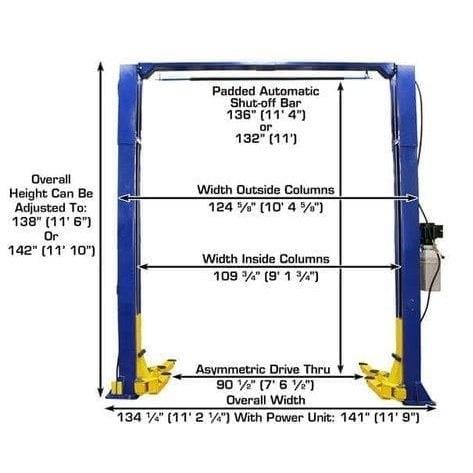

Atlas 9KOHX Specifications
| Capacity | 9,000 LB. | |
| Overall Height | 138" (11 6") or 142 (11 10) | |
| Overall Floor Width | 134 1/2" (11 2 1/2") | |
| Outside Column to Outside Column | 124 7/8" (10 4 7/8") | |

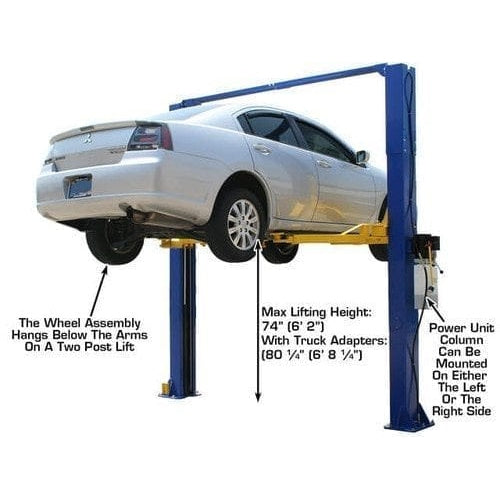

| Maximum Lift Height (Without Adapters) | 74 1/2" | |
| Maximum Lift Height (With Adapters) | 81" | |

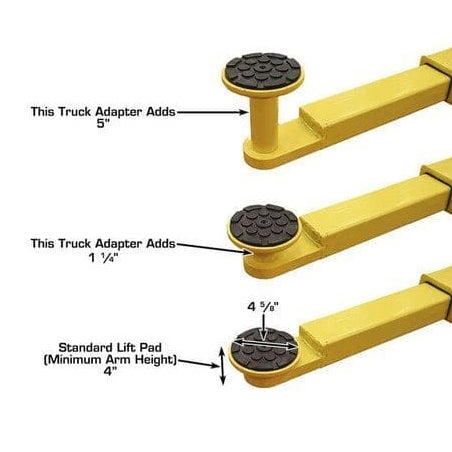

| Minimum Arm Height | 4" | |
| Inside Column | 110 (9 2) | |

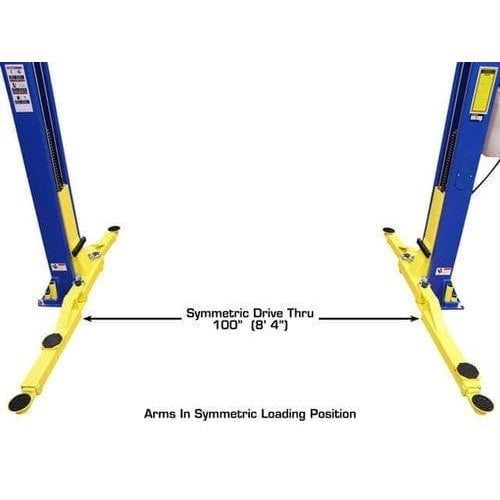

| Drive Thru | 100 (8 4) Symmetric/ 90 1/2" (7 6 1/2) Asymmetric | |

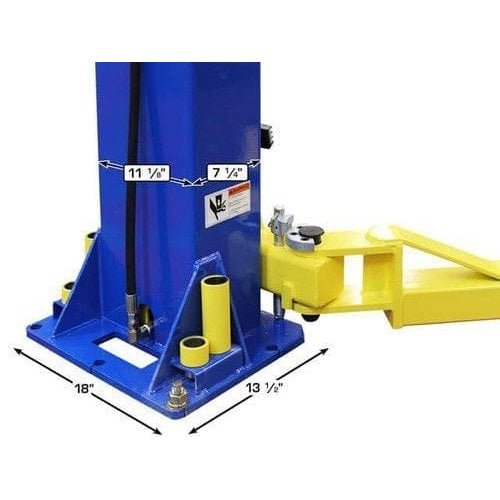

| Column Size | 7 1/4" x 11" | |
| Column Thickness of Steel | 5mm | |
| Base Of Lift | 14 1/4" x 18" | |

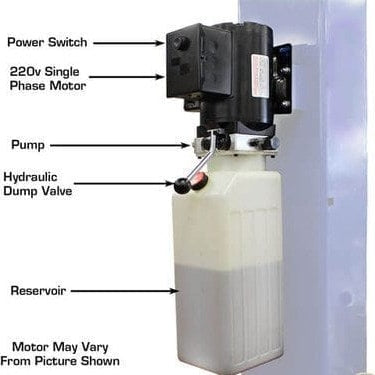

| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended | |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,450 LBS. | |
| Adapter Heights | 4 Each 1.5, 5 | |
| Arm Hole/Adapter Peg Size | 1.5 | |
| Requires a minimum of 4" of concrete with a 3000 psi. rating | ||
