Next-Gen Pool Heating: TropiCal Inverter T70

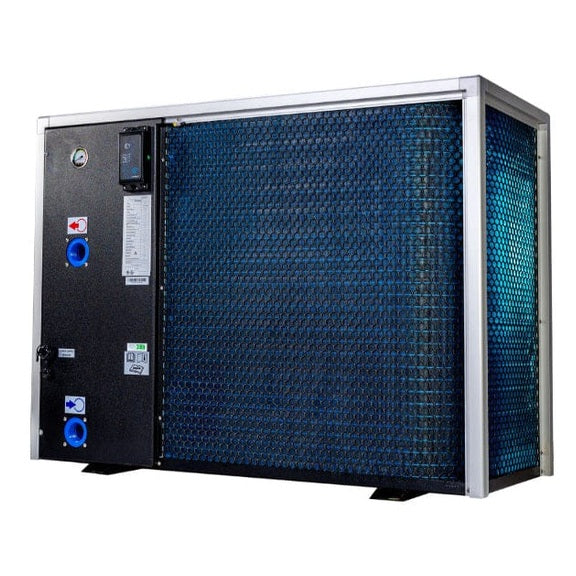

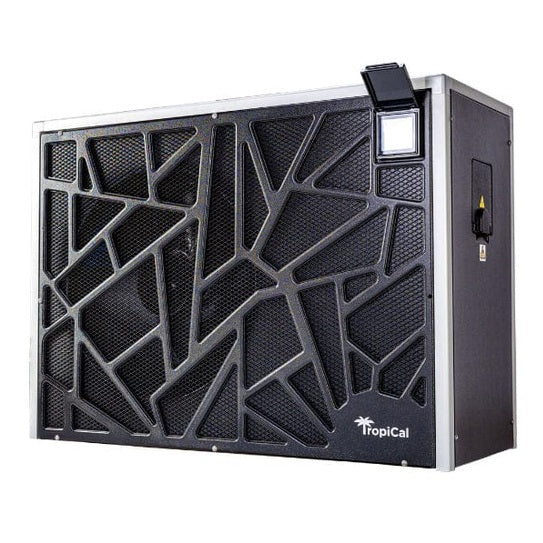

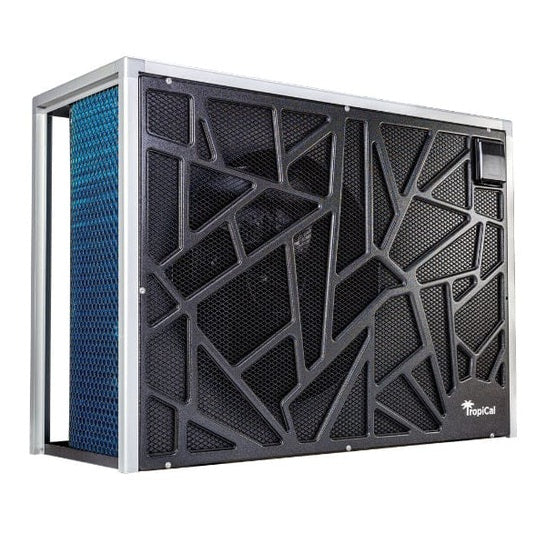

Meet the AquaCal TropiCal Inverter Heat Pump T70—AquaCal’s newest leap forward in pool heating technology. Built with full inverter technology, the T70 automatically adjusts output to hold your target water temperature with less energy use and quieter operation. The result? A pool that stays comfortable, day after day, without the constant cycling and wasted power of traditional heat pumps.

Why Inverter Technology Matters

Think of inverter technology like cruise control for your pool. Instead of repeatedly switching on and off, the TropiCal smoothly ramps up or down to maintain the temperature you set. That steady, intelligent modulation helps deliver better comfort, lower operating costs, and reduced noise—especially during longer run times when consistency counts.

Three Smart Operating Modes

Different days call for different performance. The TropiCal T70 gives you three intelligent modes so you can match heating behavior to your priorities—whether you want rapid warm-up, maximum energy efficiency, or a perfectly balanced middle ground.

• Boost Mode: Faster heat-up when you want warm water sooner.
• Eco Mode: Optimizes efficiency for everyday temperature maintenance.
• Balanced Mode: The sweet spot between speed, savings, and sound.

Easy Control: Touchscreen + PoolSync App

Control is simple and modern. Use the built-in 4-inch full-color touch screen to set your temperature and operating mode, or manage your heat pump remotely with the PoolSync mobile app (secure connection). Adjust settings without walking to the equipment pad—because convenience should come standard.

High-Efficiency Performance You Can Feel

The TropiCal T70 is engineered to deliver strong heat output while keeping efficiency front and center. In Eco mode, it can achieve a COP up to 10.8, helping you maintain comfort with impressive energy savings. It also uses R32 refrigerant, a modern refrigerant option designed for high performance.

Specifications (AquaCal TropiCal Inverter Heat Pump T70)

• Heating Capacity (Boost Mode)
  • 80/80/80: 63,000 BTU (COP 5.4)
  • 80/80/63: 60,000 BTU (COP 5.1)
  • 80/50/63: 26,000 BTU (COP 4.0)
• kW Output: 18.5 – 7.6
• COP (Eco Mode, 80/80/80): 10.8
• Refrigerant: R32
• Electrical: Heat & Cool (H&C)
• kW Input: 3.4
• Voltage/Hz/Phase: 230V / 60Hz / 1
• Minimum Circuit Ampacity: 13.1
• Max Time Delay (Breaker): 20
• Water Flow (gpm): 20 – 60
  Note: Exceeding the maximum flow rate requires a bypass. Damage due to excessive water flow will void warranty.
• Weight: 139 lbs
• Dimensions (L x W x H): 43" x 19" x 28"
• Shipping Weight: 158 lbs
• Shipping Dimensions (L x W x H): 44" x 20" x 35"
