Anker AX170J40 Power Dock for E10 Automatic Backup Kit | 10-30kW Turbo Output | Smart Grid & Storm-Guard
Features

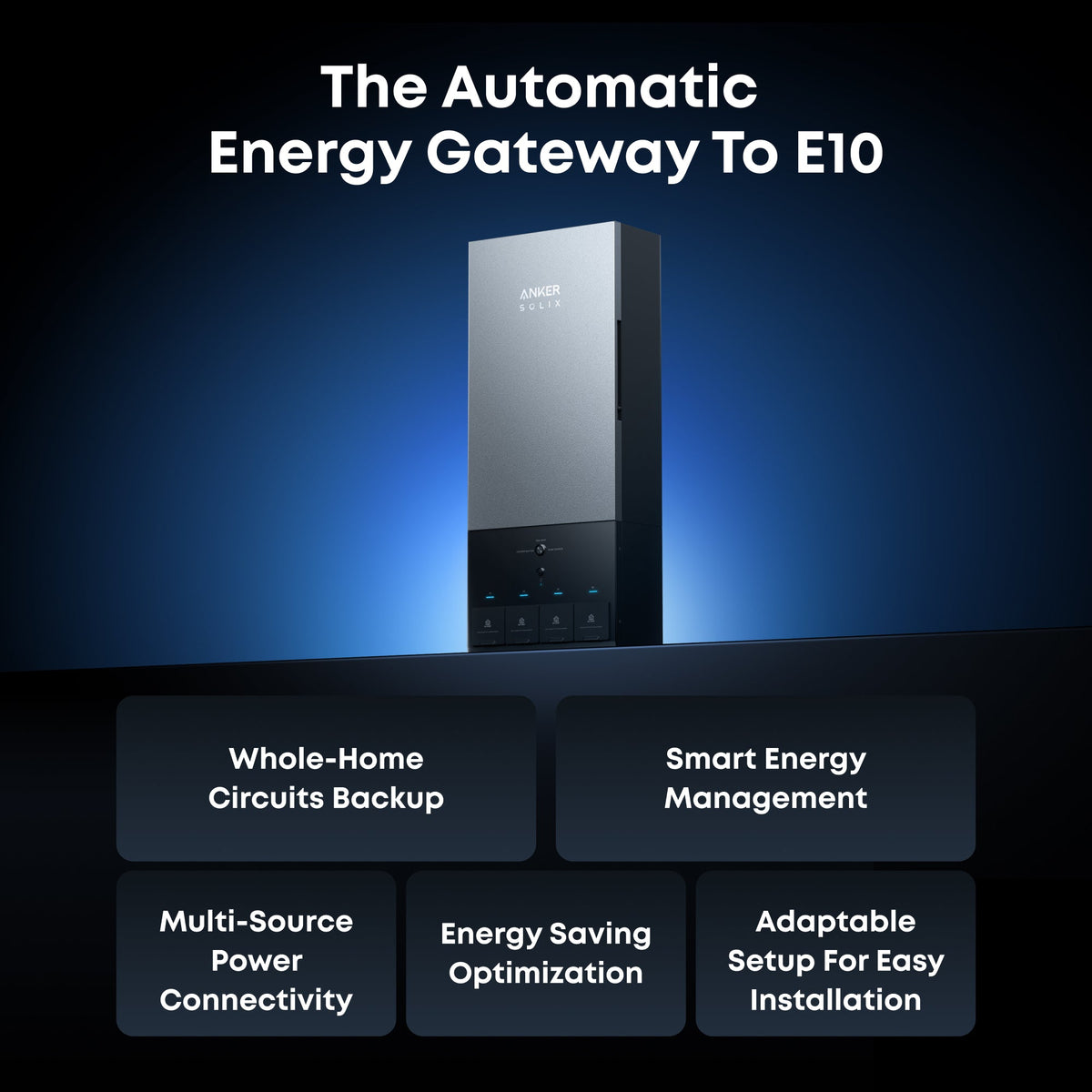

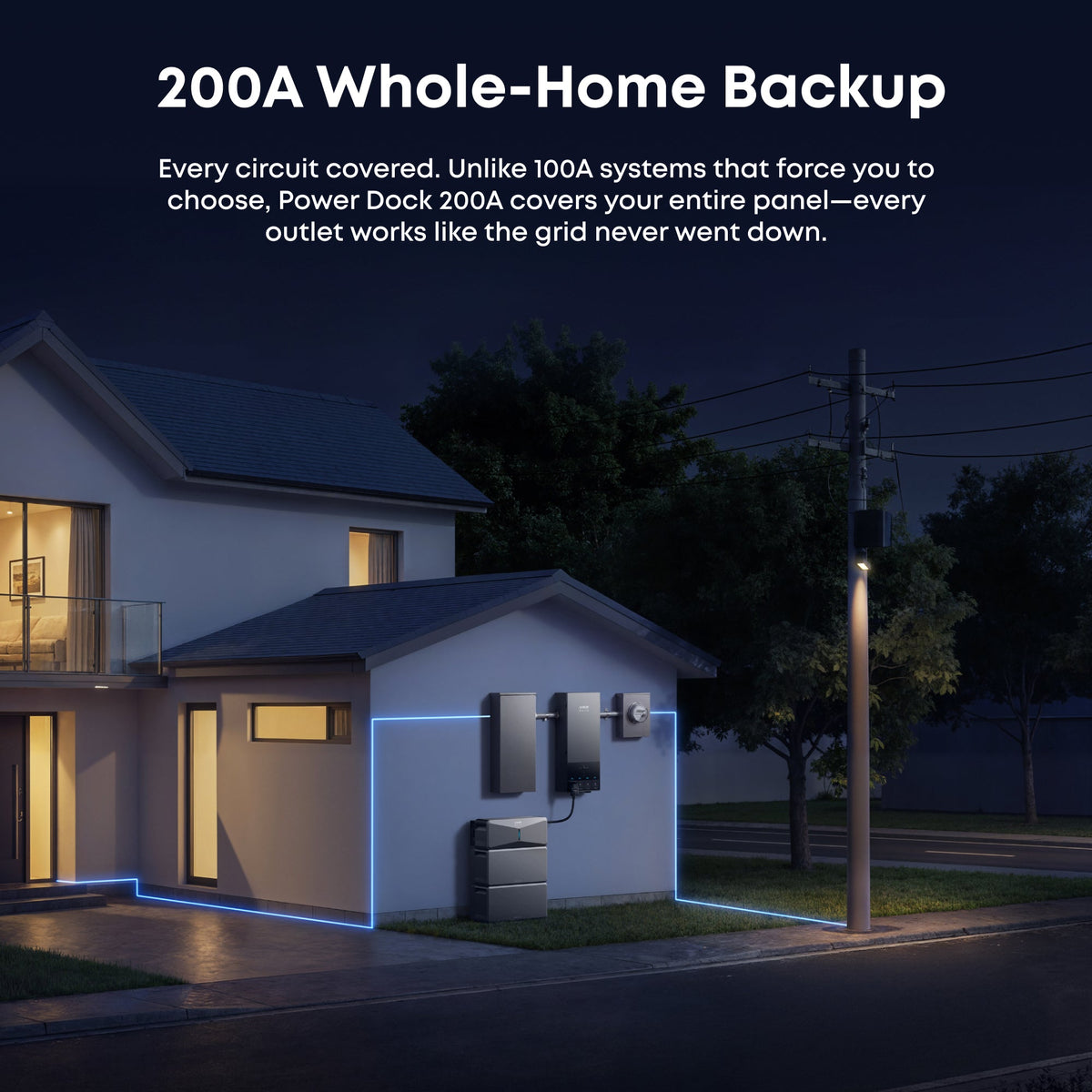

- Automatic Energy Gateway with 200A Service Entrance
- Power Dock connects E10 for 200A whole-home backup—every circuit protected. Storm Guard mode pre-charges to 100% when storms approach. Activation takes under 20ms—keeping devices and data safe.

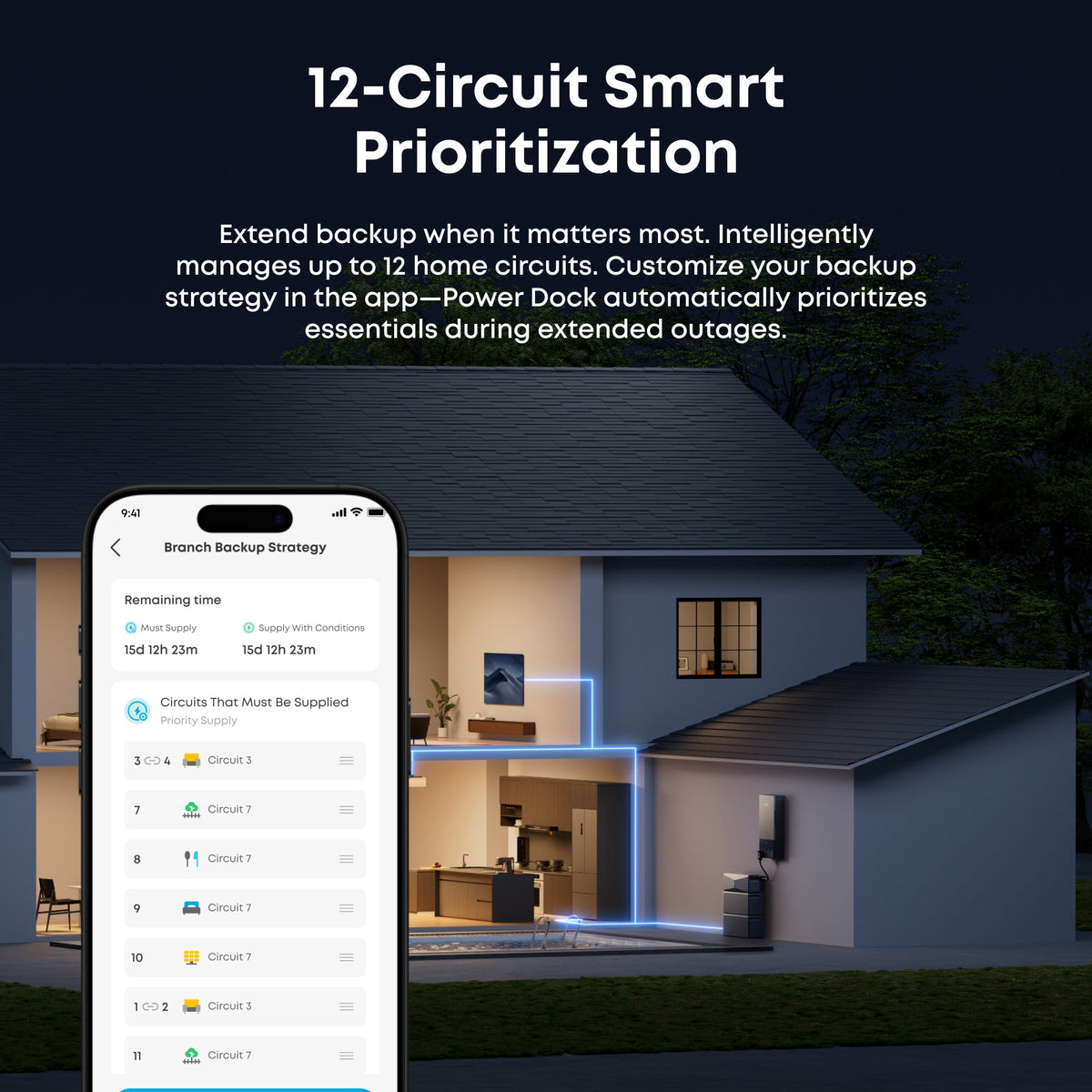

- 12-Circuit Smart Prioritization
- Manages up to 12 circuits. Customize priorities in the app—Power Dock automatically protects essentials during extended outages, stretching backup time significantly. One-time setup, lifelong peace of mind.
- Reduce Up to 80% Electricity Bills
- Self-Consumption and TOU Modes store 100% excess solar and off-peak grid power, then use it during expensive peak hours. Supports 15.3kW AC solar input for third-party rooftop solar integration—maximize savings.
- Up to 24kW Generator Pass-Through
- Works with any 240V generator—portable or standby. Delivers up to 24kW direct pass-through, optimizing energy use and storing excess. Compatible with high-output standby generators for maximum flexibility.
- NEMA 3R Weatherproof for Harsh Conditions
- Rated NEMA 3R for superior outdoor protection. Sealed against rain, snow, ice, dust, and debris. Operates reliably from -4°F to 131°F in extreme weather—built to withstand harsh conditions without shelter.

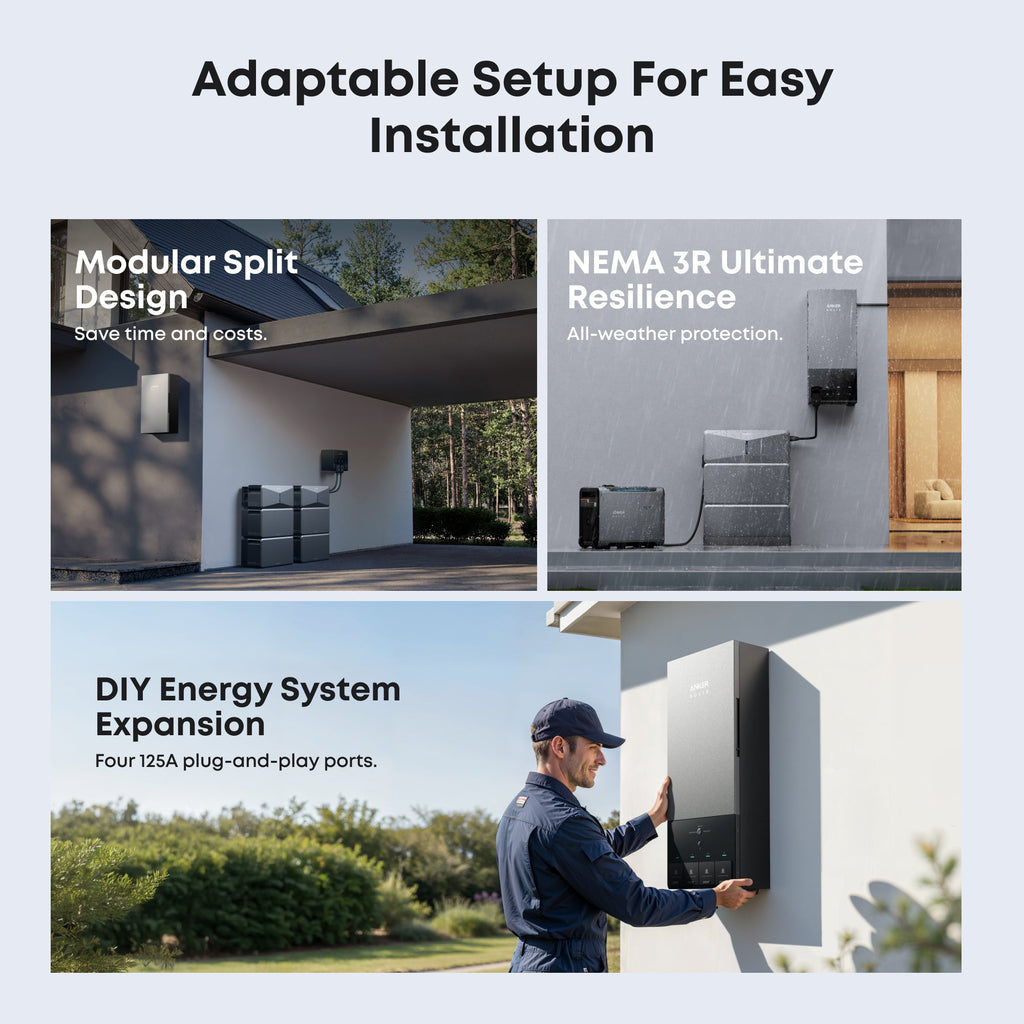

- Effortless Plug & Play, Professional Support
- Quick-connect ports and pre-wired cables simplify installation—hours, not days. Wall or floor mount. Expert support and professional installation available.
What's in The Box

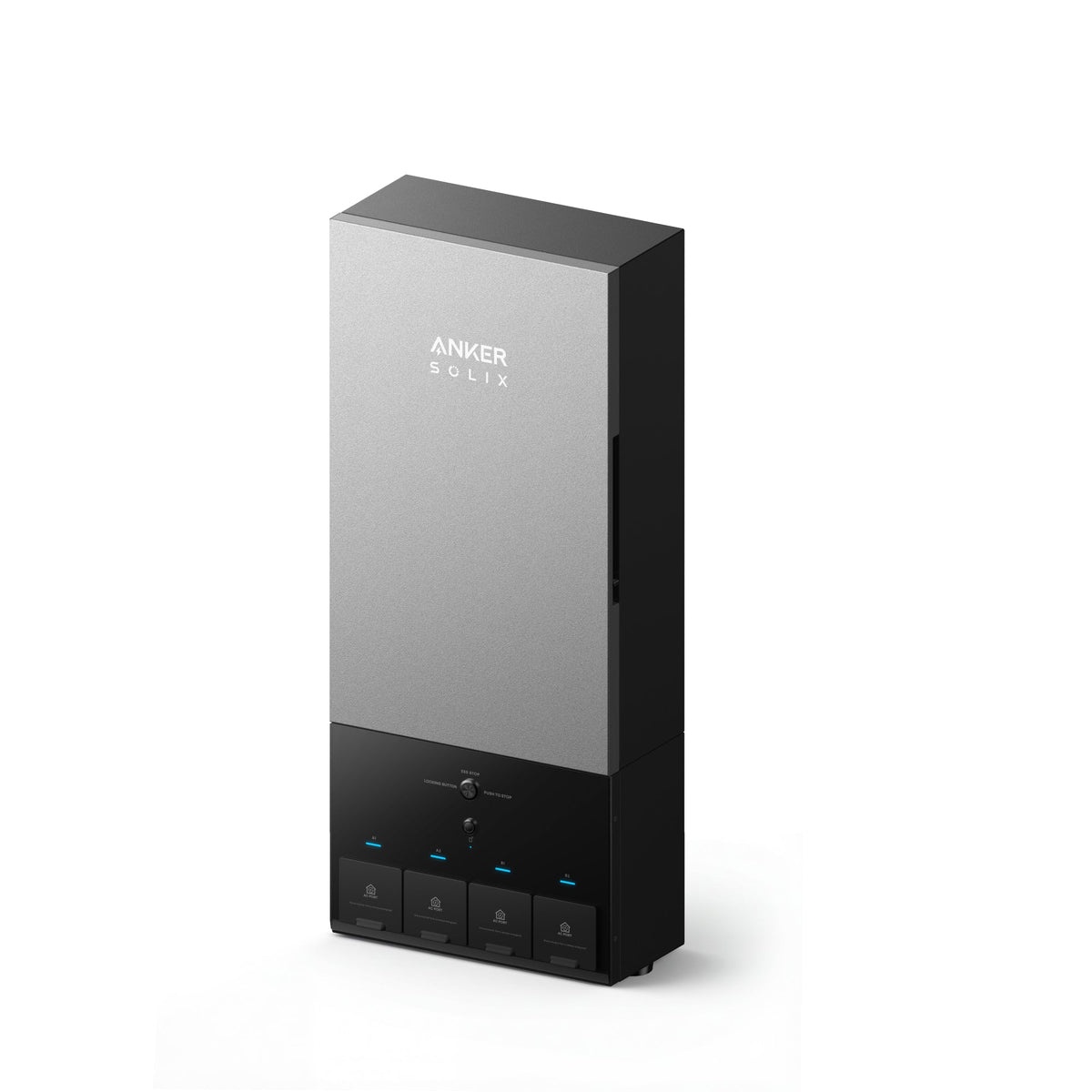

- Anker Power Dock (200A ATS)
- ON-Grid Cable
- 3x CTs
- Quick Start Guide
Warranty
Specifications
| SKU | AX170J40 |
| Product Name | Anker Power Dock |
| Model | AX170J40 |
| Performance Specifications | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time (On-Grid to Off-Grid) | <20 ms |
| Switchover Time (Off-Grid to On-Grid) | 0 ms |
| Grid Connection | |
| Current Rating | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | |
| Current Rating | 200 A Maximum, 160 A Continuous |
| Plug & Play AC Port | |
| AC Ports | 4 |
| Continuous Current Rating per Port | 100 A |
| Continuous Current Rating Total 4 Ports | 100 A (Connected to One Breaker), 160 A (Connected to Two Breakers) |
| Integrated Circuits | |
| Circuits 1 & 2 Current Rating (Load or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 & 8 Current Rating (Load or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3,4,5,6,9,10,11,12 Current Rating (Load) | 60 A Maximum, 48 A Continuous |
| Circuits for Batteries Current Rating | 125 A Maximum, 100 A Continuous |
| Others | |
| Connectivity | Wi-Fi, Bluetooth |
| Installation Option | Wall Mounting |
| Dimensions (W × H × D) | 36.1" × 15" × 7.1" (916 × 380 × 180 mm) |
| Weight | 60 lbs (27.2 kg) |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55 °C) |
| Warranty | 10 Years |
| Certification Information | ATS Box = UL 67, UL 1741, UL 1741 CRD, UL 3141, UL 869A, CSA C22.2 No. 107.1-16, CSA C22.2 No. 29-15, 47 CFR Part 15, ICES-003, CP65, TSCA, PFAS; Combiner Box = UL 1741, CSA C22.2 No. 107.1:16, ANSI/CAN/UL 9540, 47 CFR Part 15, Subpart B, 47 CFR Part 15, Subpart C 15.247, ICES-003, RSS247, CP65, TSCA, PFAS |
| What's in the Box | Accessories = L1 Current Transformer ×1, L2 Current Transformer ×1, PV Current Transformer ×1, 4×200 mm Cable Ties ×3, Circuit Breaker Bracket ×1, M3×8 Phillips Pan-Head Combination Screw ×2, M4×12 Phillips Pan-Head Combination Screw ×1, M6×50 Imperial Hex-Head Self-Tapping Screw ×8 |
| Documents | QSG, Safety |
