Amptron 12V 15A AC-DC Lithium LiFePO4 Battery Charger
£84.00
Sale price
£84.00
Regular price
£119.00
Skip to product information
Amptron 12V 15A AC-DC Lithium LiFePO4 Battery Charger
£84.00
Sale price
£84.00
Regular price
£119.00
Shipping calculated at checkout.
AT-240-1215ALFPV01 B
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Projecta IS1400 12V 1400A Intelli-Start Professional Lithium Jump Starter and Power Bank
£170.00
Add to Basket
Description
The Amptron® 12V 15A LiFePO4 charger is the ideal companion charger for smaller 12V lithium battery setups perfectly matched to Amptron's 12V 50Ah and 100Ah batteries. Plugs straight into a standard Australian 240V power point and delivers a clean, LiFePO4-specific charge profile that safely achieves 100% state of charge every time. The built-in BMS wake-up function can revive a deeply discharged battery that has gone into BMS protection mode - something a generic charger simply can't do. Fully protected against over-voltage, over-current, short circuit, and reverse polarity, with automatic recovery once the fault condition is cleared. RCM certified for Australian electrical safety compliance. Compact, lightweight, and ready to use out of the box with M8 ring terminal connections.
Features
BUILT IN PROTECTION SYSTEM
AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers have a built-in Protection System to prevent damage to the charger from almost any external accidental occurrence that would normally cause damage. The internal Protection System will automatically disconnect to prevent damage to the charger, and will automatically reconnect when the error condition has been resolved.
PROTECTION SYSTEM FEATURES
Over Voltage Protection – When the charger output voltage exceeds the maximum charging voltage, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.
Over Current Protection – When the charger output current exceeds the maximum charging current, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.
Short Circuit Protection – When the charger detects a short circuit at output terminals, the charger enters a short-circuit protection state. It will restore to normal working conditions automatically after troubleshooting.
Reverse Polarity Protection – When the charger detects that the polarity at the output terminals are reversed, the charger enters a reverse polarity protection state. It will restore to normal working conditions automatically after troubleshooting. This Protection System is designed to last throughout the life of the charger and provide reliable charging for thousands of cycles.
BATTERY WAKE UP FUNCTION
The wake up feature can help low voltage / non responsive batteries to be recovered. It is essentially a switching mechanism which momentarily applies the charge voltage at a low current to try and wake the batteries Battery Management System (BMS). Once the battery is deemed responsive the current will ramp up to full current after a period of time.
CHARGER CERTIFICATION
AMPTRON® Lithium Iron Phosphate (LiFePO4) battery chargers have been certified and registered with the Australian – Electrical Equipment Safety System. Achieving the Regulatory Compliance Mark (RCM) is a testament to our commitment regarding safety & product quality.
Specifications
| Item | Specification | Description/Remark |
| Model | AT-240-1215ALFPV01 B | AC/DC 12V 15A LiFePO4 Battery Charger |
| Input Voltage | min 200Vac to max 264Vac | |
| Input Power | Max 267W | |
| Constant charge voltage | Vdc min 14.4V to max 14.8V | |
| Constant charge current | Min 14.7A to max 15.3A | |
| Charge complete current | Vdc min 0.6A to max 0.9A | |
| Ripple voltage | 250mV | |
| Efficiency | 80% | At full load |

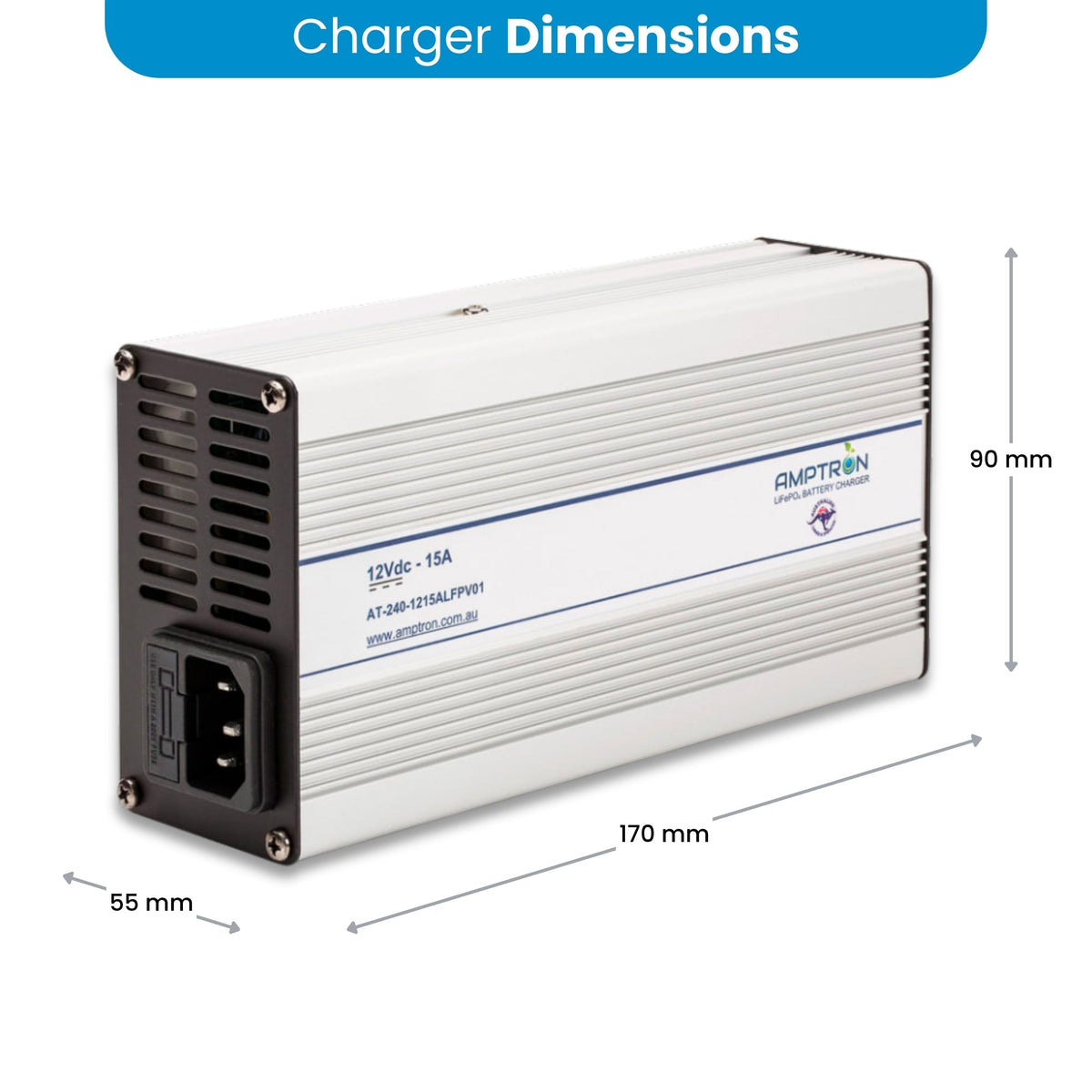

| Product Dimensions | L-170mm x W-90mm x H-55mm | Foot Mount Bracket = L-14mm on each side of charger body |
| Packaged Weight | 1.3Kg |
Charge Curve
