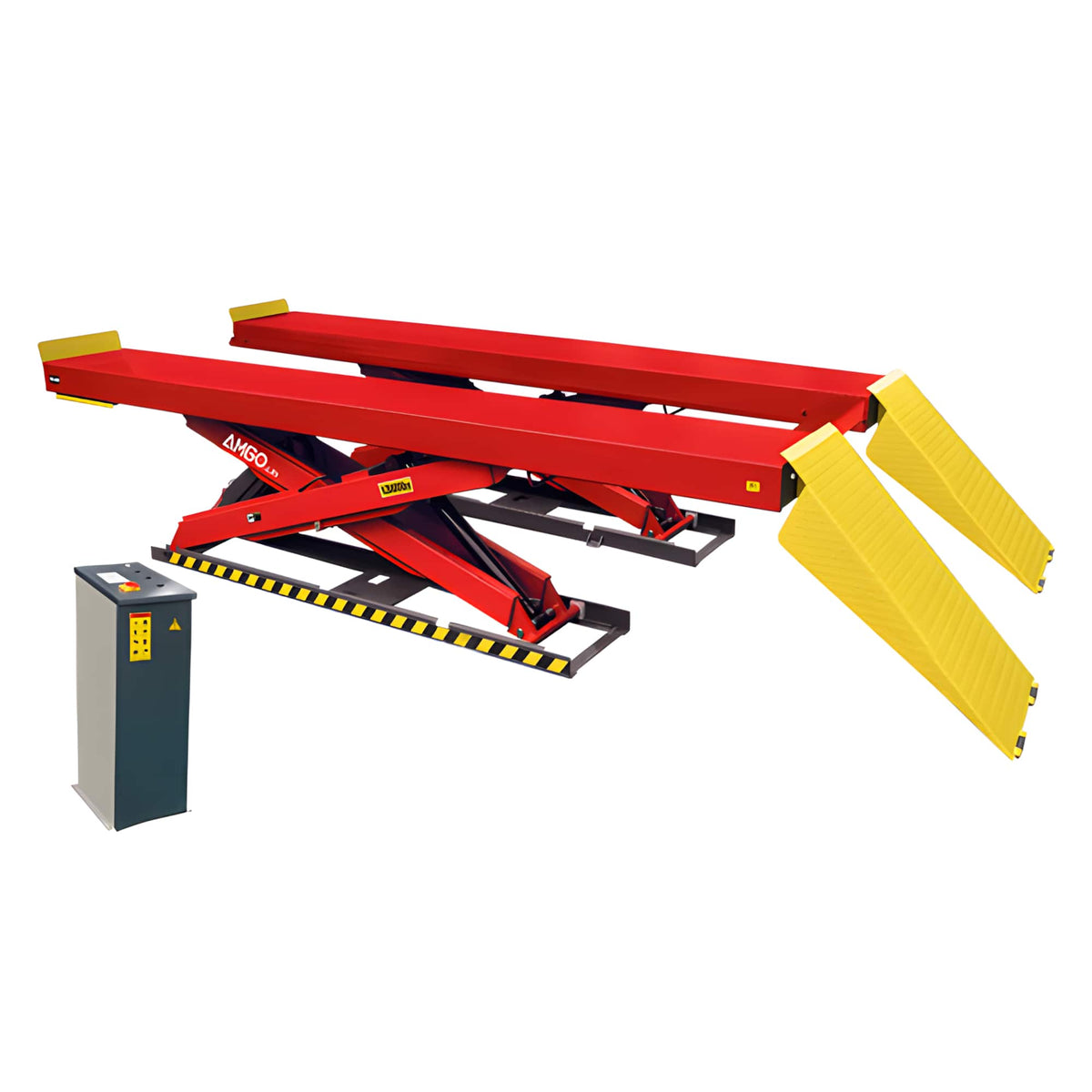

The AMGO AX-12 is a 12,000-lb full-rise scissor lift built for general service work on heavier vehicles — 3/4-ton and 1-ton trucks, vans, and SUVs in brake, exhaust, suspension, and underbody jobs. AMGO Hydraulics has manufactured automotive lifts for over 30 years, and the AX-12 carries the AMGO 5-3-2 warranty: five years on steel structure, three years on hydraulics, two years on electrical and power unit.

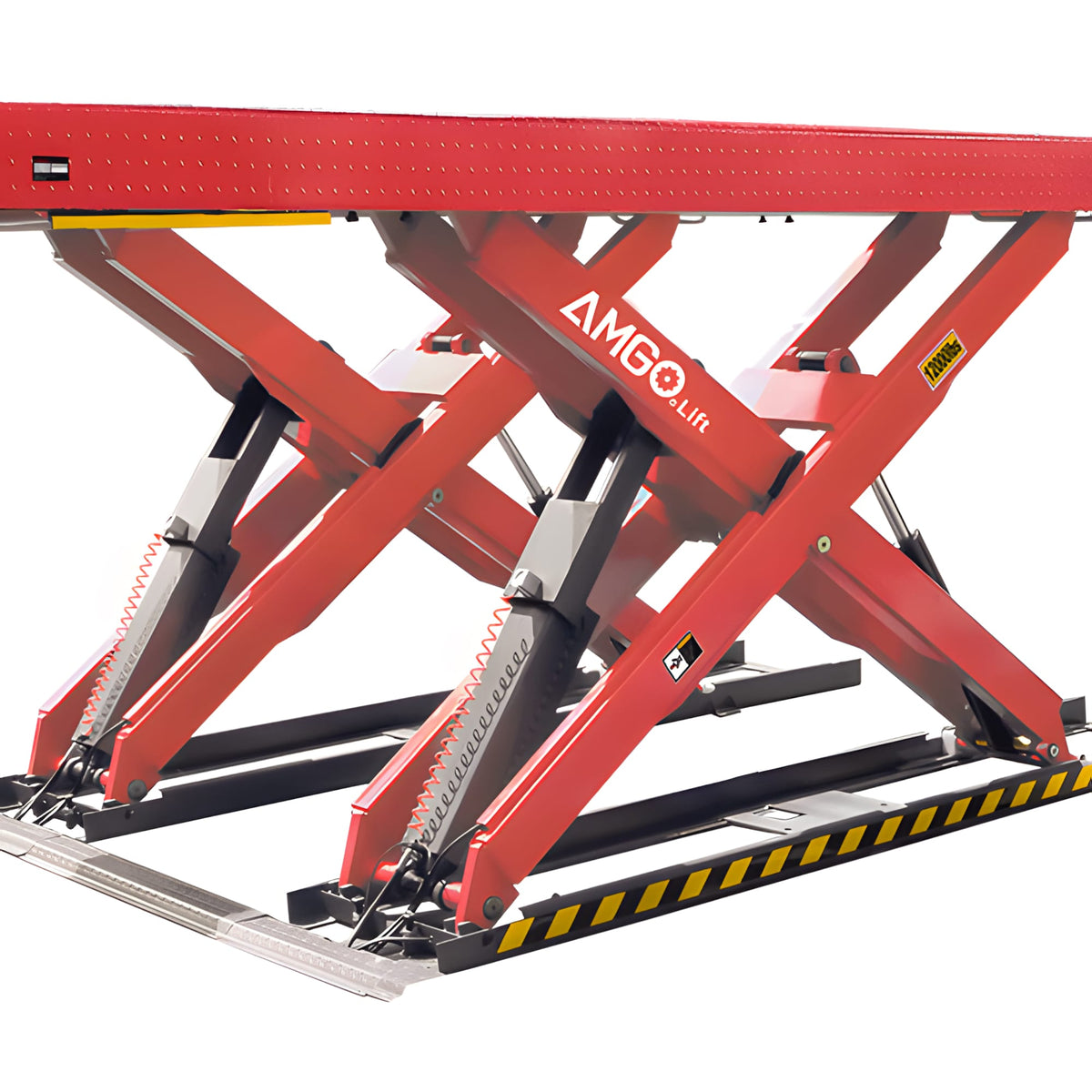

The AX-12 is built around a robust X-scissor structure of large-section steel tubes, paired with two groups of dual hydraulic cylinders in parallel. Dual cylinders equalize platform travel and prevent the rocking that single-cylinder scissor designs develop under off-center loads. The full-rise design clears 72 13/16" at maximum lift with a mechanical lock at 71 1/16", putting the vehicle at stand-up working height while the scissor geometry stays clear of the underbody.
The AX-12 ships with an ETL-certified AMGO power unit (Intertek 5013694) on a 2.0 HP electric-hydraulic system. Hydraulic synchronization pairs with automatic mechanical safety locks across the lifting range; a pneumatic air release lowers the platforms with a single button. Drive-on ramps and a pull-out service tray are included.
The AX-12 ships at 4,872 lbs gross via standard freight in two lift units per crate plus a separate control cabinet carton — plan for a forklift at the delivery site. Hydraulic oil is sold separately. Optional accessories: PX001 platform extension, PX004A air line kit, and the RJ-6A 6,000-lb rolling jack.
Features
12,000-lb lifting capacity
Full-rise scissor design with 72 13/16" maximum lift height
Robust X-scissor structure fabricated from large-section steel tubes
Two groups of dual hydraulic cylinders with synchronized platform movement
Automatic mechanical safety locks across the lifting range
Pneumatic air-release single-button lowering

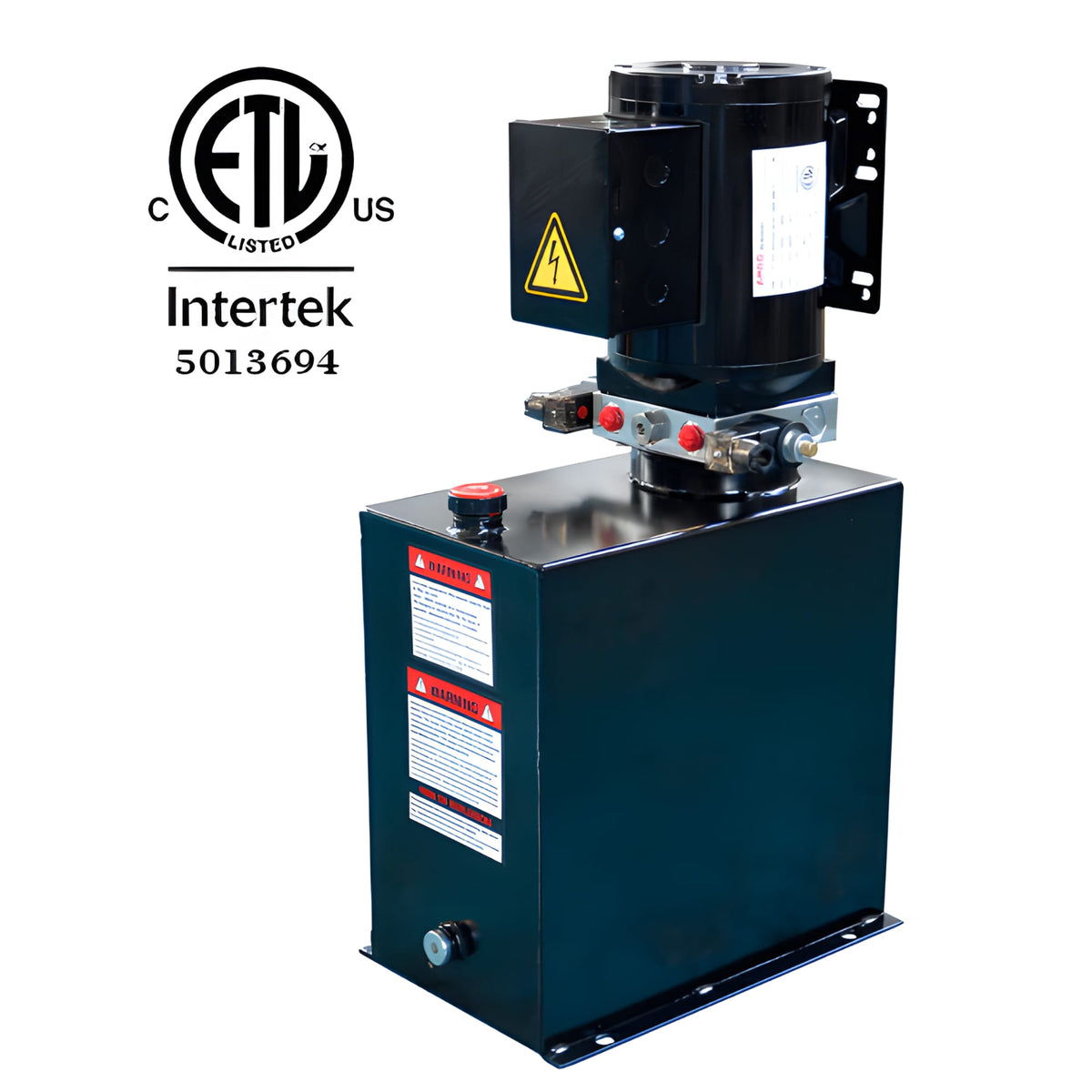

ETL-certified AMGO power unit (Intertek 5013694)
2.0 HP electric-hydraulic power system
Non-slip extended platforms for a wide vehicle range

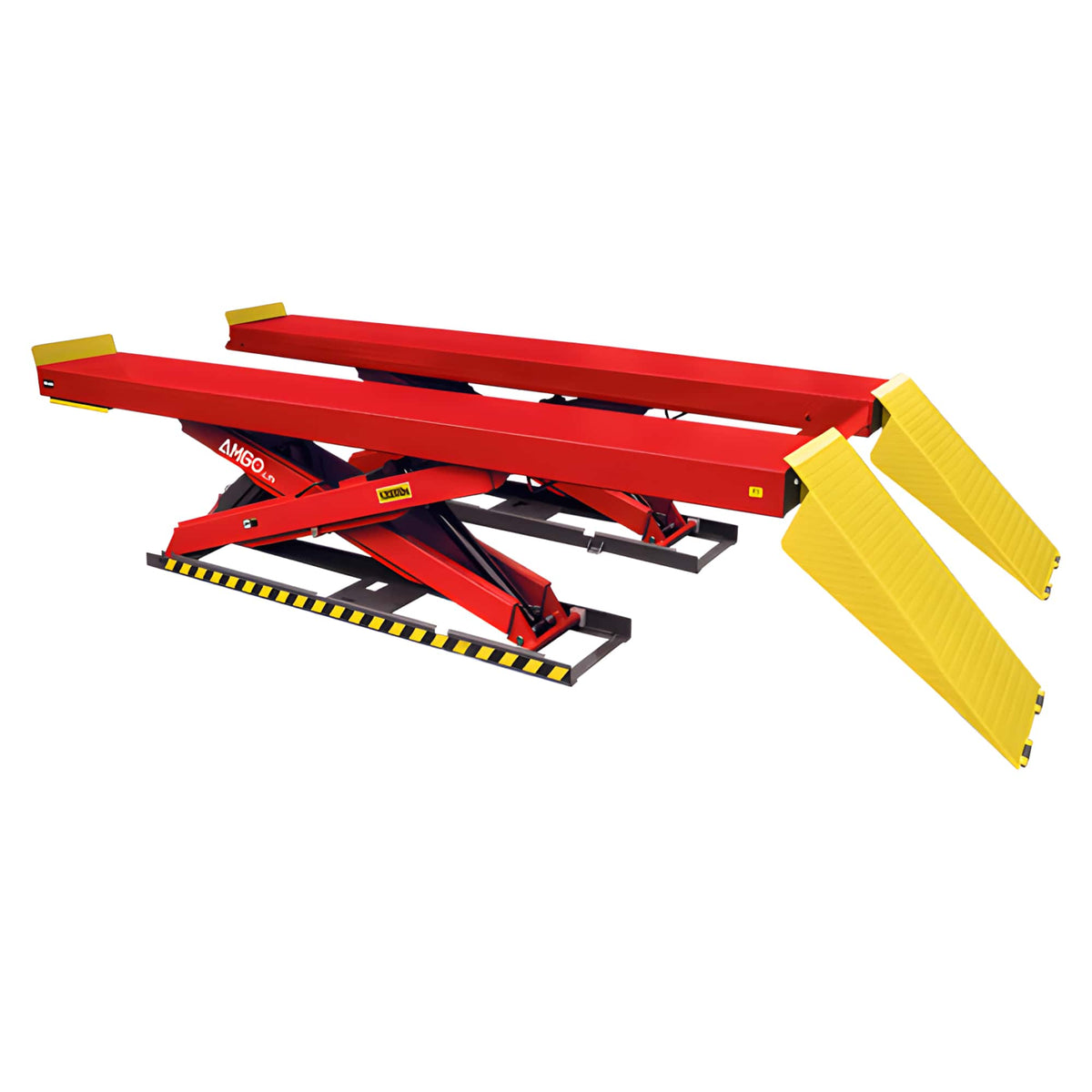

Drive-on ramp assemblies included (P/N: 11530617)
Pull-out service tray included
Lifting time: 75 seconds
Optional extension platform (P/N: PX001)

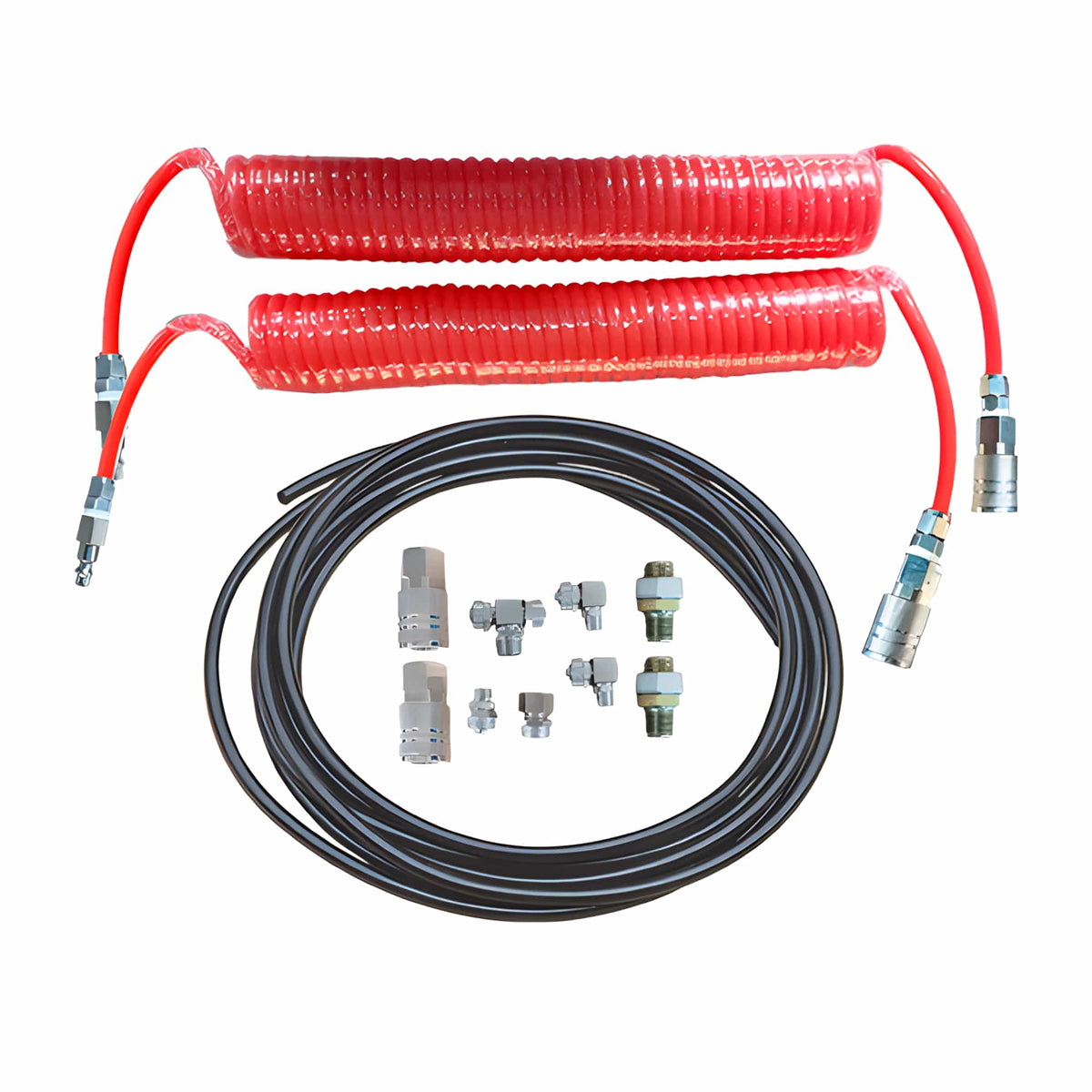

Optional air line kit (P/N: PX004A)
Optional RJ-6A 6,000-lb sliding rolling jack with 2.5" extension adapters
AMGO 5-3-2 Warranty: 5 yr Structural – 3 yr Hydraulic – 2 yr Electrical & Power Unit
Specifications

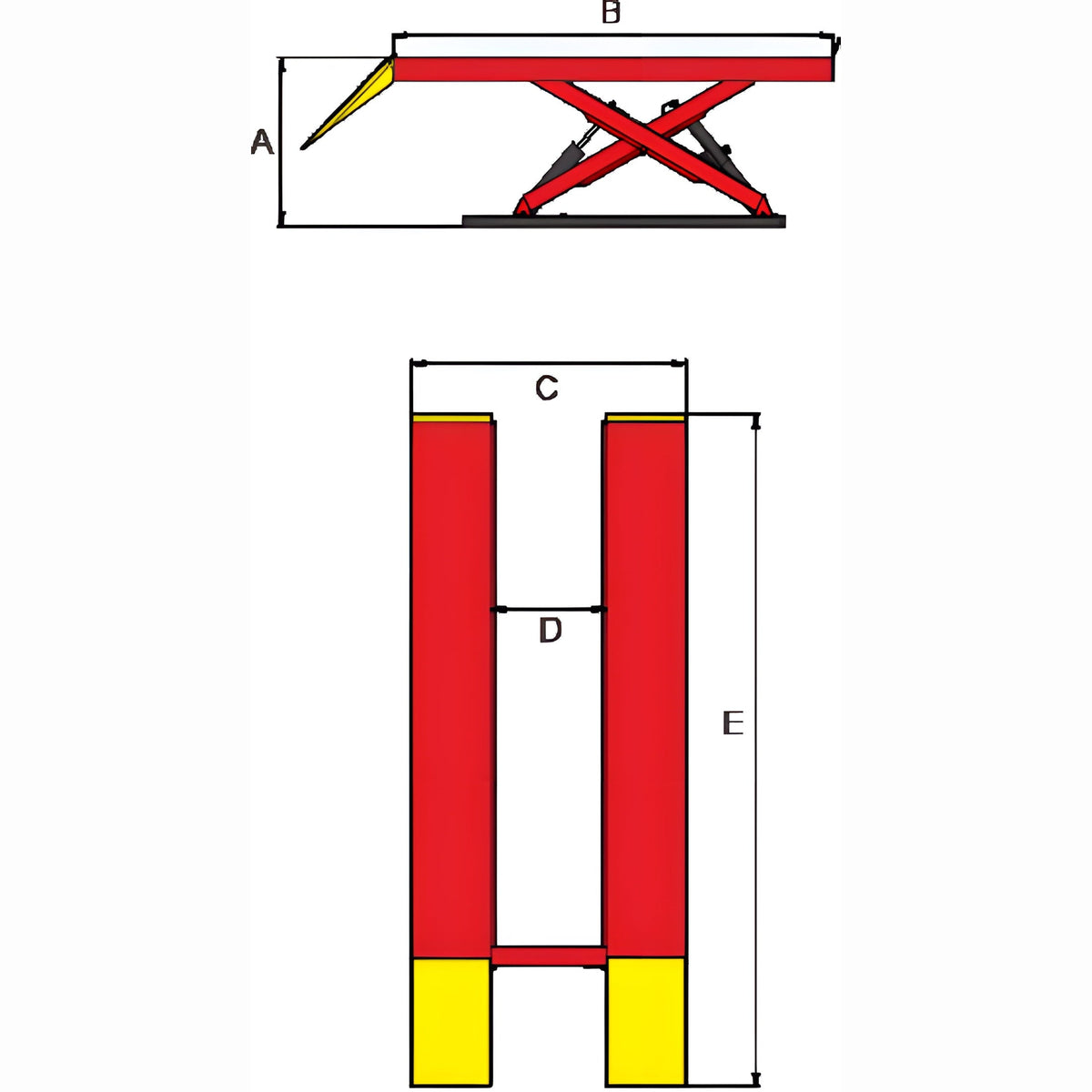

Letter callouts (A–E) correspond to the rows below.
AMGO AX-12 Specifications
Lifting Capacity
12,000 lbs
Lifting Time
75 seconds
(A) Maximum Lifting Height
72 13/16"
(A) Maximum Lock Height
71 1/16"
(A) Minimum Height
12"
(B) Runway Length
197 9/16"
(C) Overall Width
90 3/16"
(D) Width Between Runways
40 15/16"
(E) Overall Length (Including Ramps)
267 1/16"
Gross Weight
4,872 lbs
Motor
2.0 HP electric-hydraulic
Power Unit Certification
ETL Listed (Intertek 5013694)
Lift Packaging (2 per crate)
203 9/16" × 29 15/16" × 80"
Control Cabinet Packaging
16 7/8" × 18 13/16" × 48 5/8"
Warranty
AMGO 5-3-2 (5 yr Structural / 3 yr Hydraulic / 2 yr Electrical)
Hydraulic oil sold separately. Call 307-381-1810 to confirm electrical service requirements (volt/phase) before installation.
Detailed Images

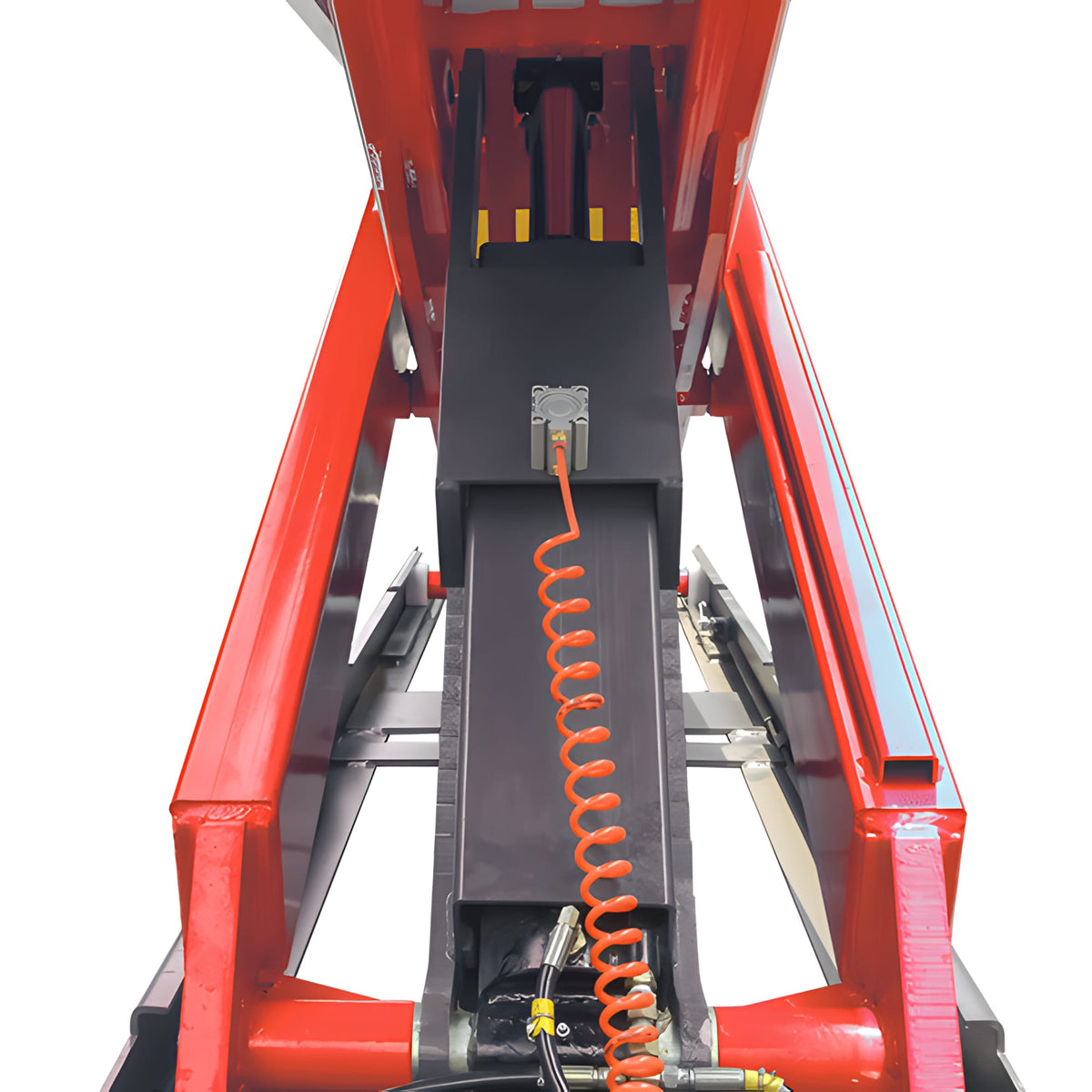

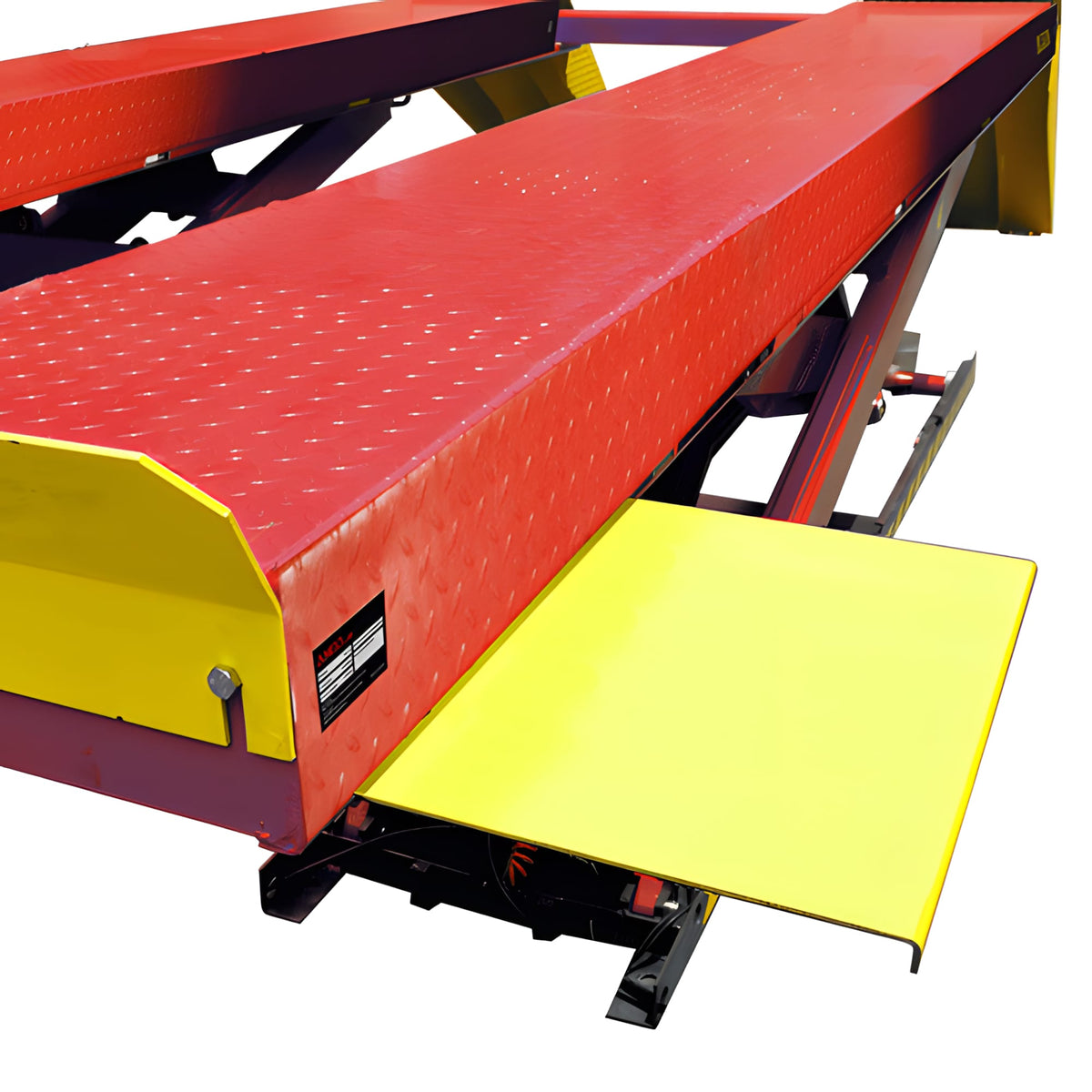

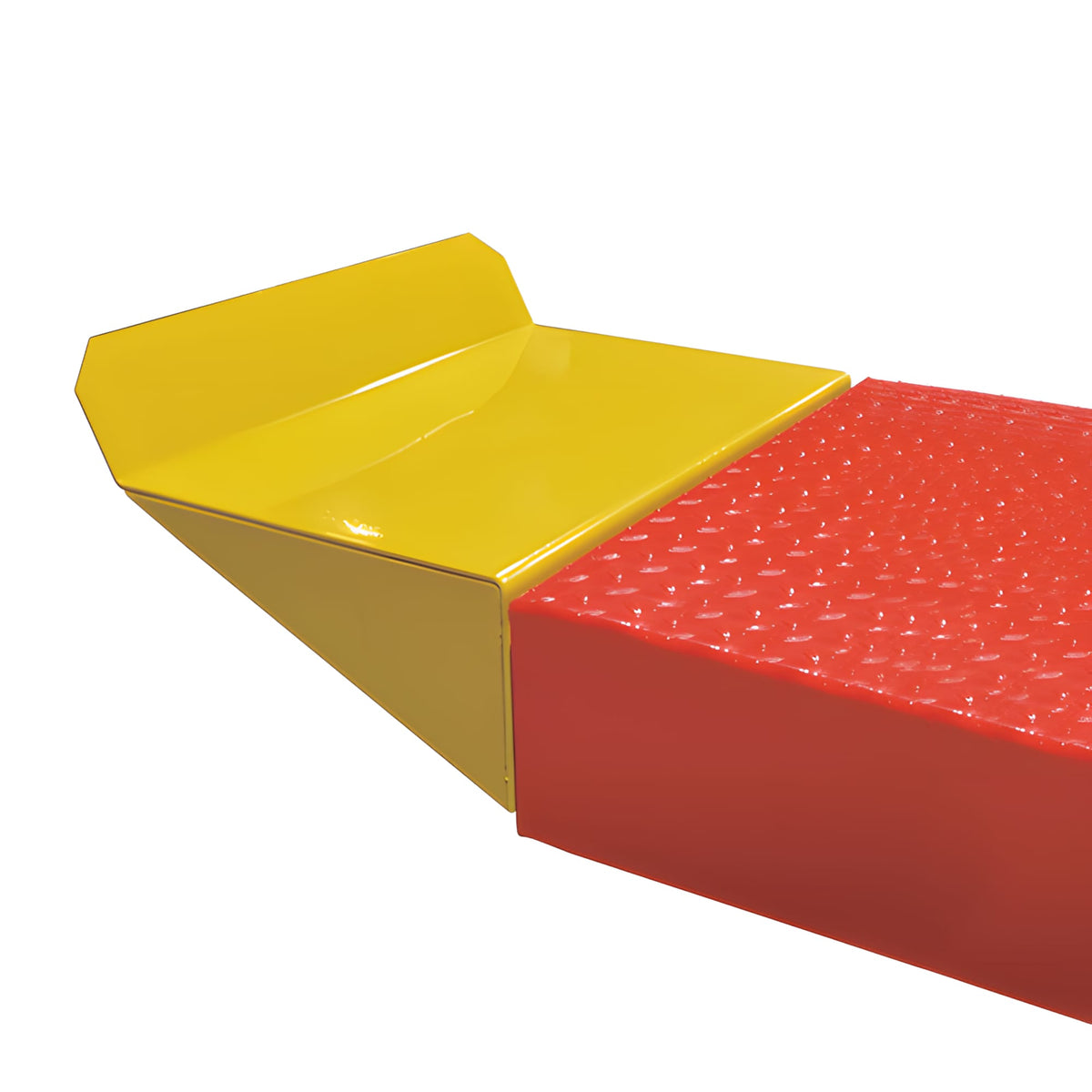

Electro-air control system with mechanical safety locks.ETL-certified AMGO power unit (Intertek 5013694).Pull-out service tray comes standard.Two groups of dual hydraulic cylinders integrated to equalize and protect both platforms.Heavy-duty X-scissor design built from large steel tubes for strong capability under heavy workloads.Non-slip extended platforms accommodate a wide vehicle range. Drive-on ramp assembly P/N: 11530617.Optional extension platform, P/N: PX001.Optional air line kit, P/N: PX004A.Optional RJ-6A sliding rolling jack with pneumatic-hydraulic operation. 2.5" extension adapters included. Capacity 6,000 lbs.
Shipping Information

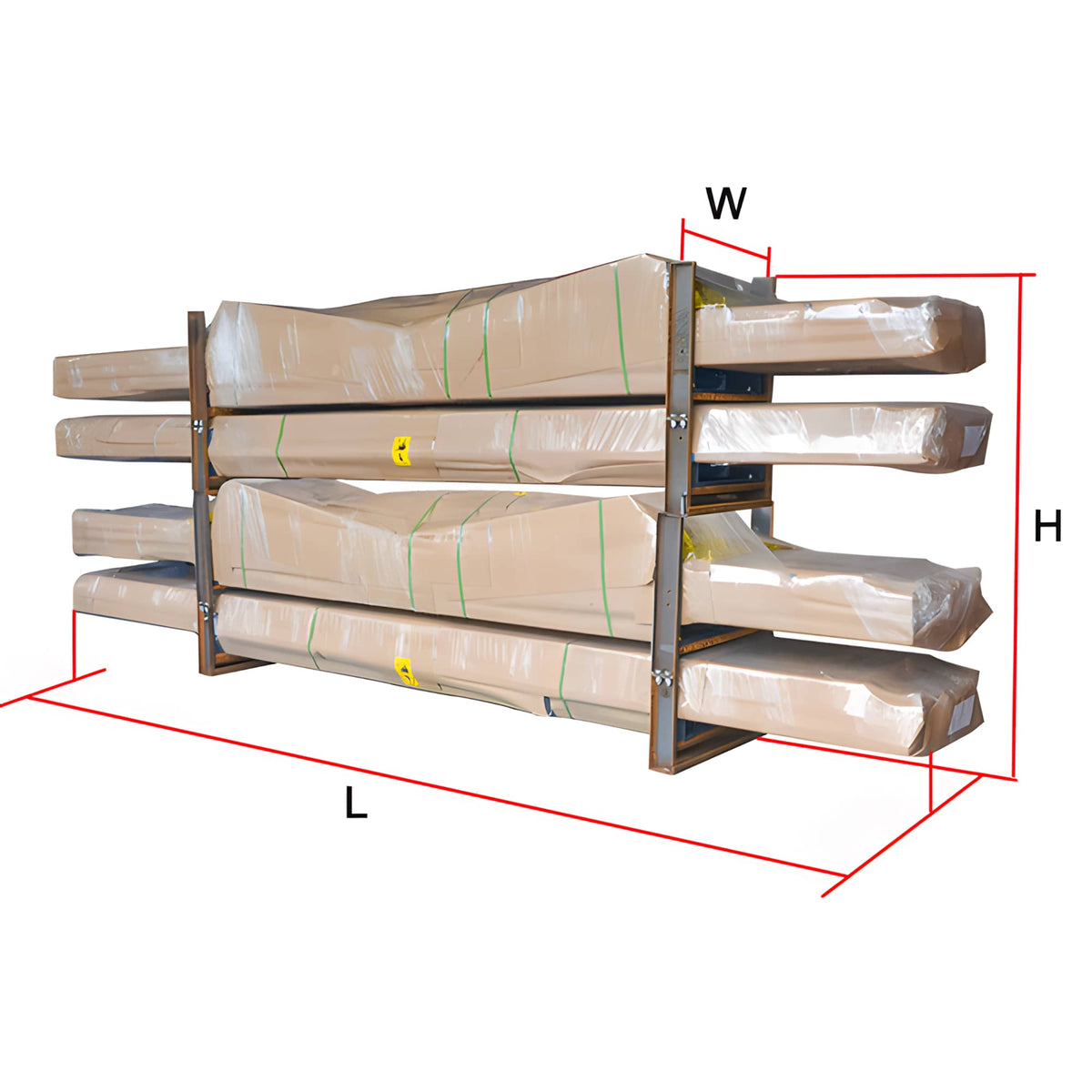

2 units per package. Packing measurement (L×W×H): 203 9/16" × 29 15/16" × 80".Forklift access required for loading and unloading at the delivery site.1 unit per carton. Control cabinet packing measurement (L×W×H): 16 7/8" × 18 13/16" × 48 5/8".
