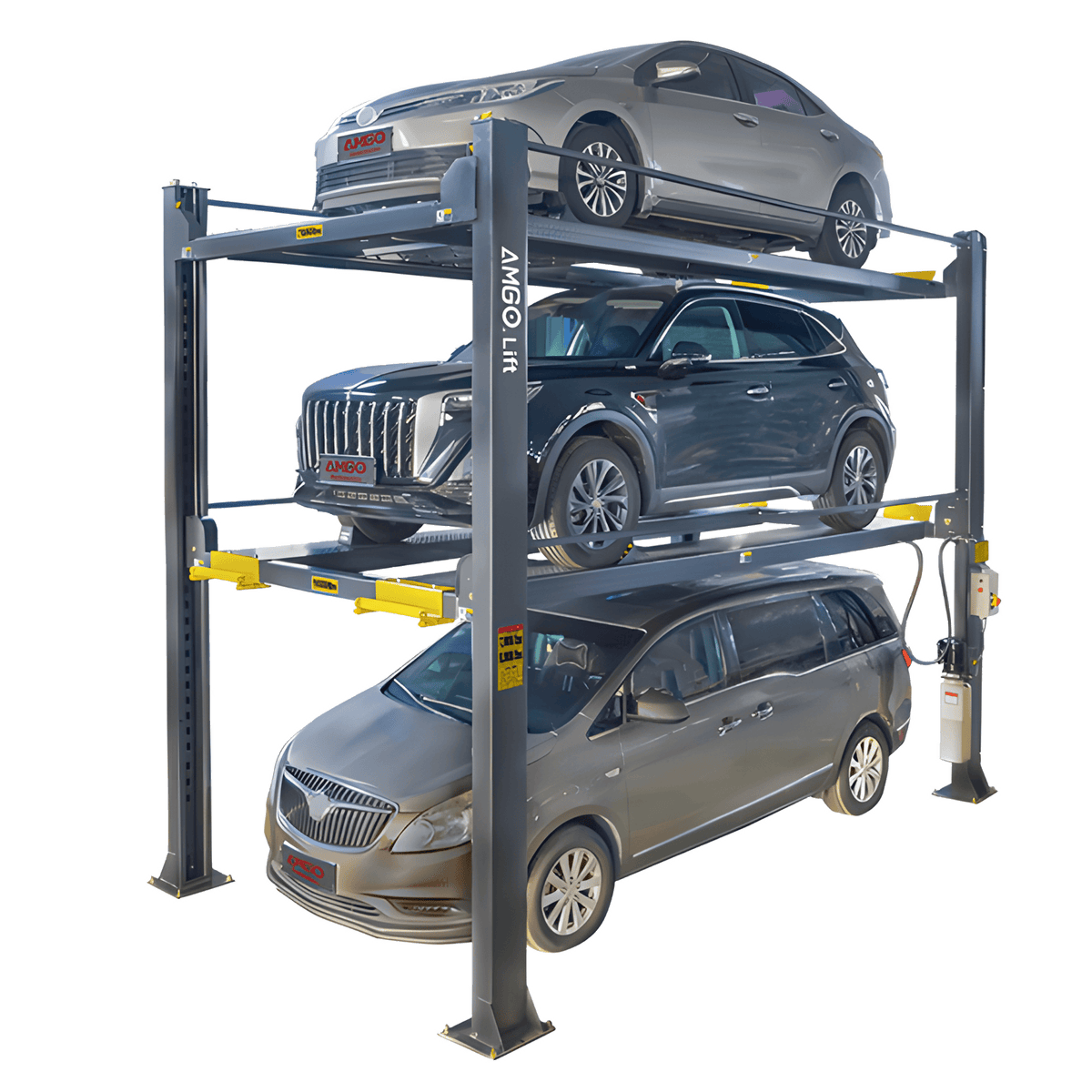

The AMGO 4097X is a four-post triple parking lift that stores three vehicles in the footprint of a single bay — one on the upper platform, one on the lower platform, and a third driven in at floor level once both platforms are raised. The lower platform is rated at 9,000 lb and the upper at 7,000 lb. AMGO Hydraulics has built car lifts for over 30 years and backs the 4097X with the 5-3-2 warranty: five years on the steel structure, three years on hydraulic parts, and two years on the power unit and other electrical components.
The platforms sit just 7 1/16" off the floor at minimum height, thanks to an embedded-platform design that lets one set of drive-in ramps serve both lower and upper levels. The ramps are proprietary multi-functional units that double as tire stops once the vehicle is parked, and they detach without tools when ground-level access is needed underneath. Drive-through clearance under the lifted upper platform measures 82 1/16".
Double safety locks engage on both upper and lower platforms during operation. Built-in safety devices protect the parked vehicle from collision while the lower platform is in motion and prevent the upper and lower platforms from separating during descent. Operation runs from a side-mounted control box with fingertip push-button lock release — no manual lever at the column. The 2.0 HP power unit is ETL Certified and runs on 220V single-phase 60 Hz service.
Each 4097X ships as a single packaged unit, or as a three-unit bundle for multi-bay installations. The system arrives via standard freight.
Features
Patented design with double safety locks on both upper and lower platforms
Embedded-platform design — one set of drive-in ramps serves both platforms; minimum height 7 1/16"
Anti-collision safety device protects vehicles during lower-platform travel
Anti-separation safety device keeps upper and lower platforms paired during descent
Fingertip push-button lock release operation
2.0 HP, 220V/60 Hz single-phase power unit, ETL Certified
Proprietary drive-in ramps function as both tire stop and drive-on ramp; quick assembly and disassembly
Specifications
AMGO 4097X Triple Parking Lift Specifications
Lifting Capacity (Upper)
7,000 lb
Lifting Capacity (Lower)
9,000 lb
Lifting Time
104 seconds
Overall Length, including ramps (A)
247 9/16"
Outside Edge of Crossbeams — Upper (B)
197 13/16"
Outside Edge of Crossbeams — Lower (B)
204 1/16"
Overall Width (C)
113 15/16"
Width Between Posts (D)
96"
Drive-Through Clearance (E)
82 1/16"
Overall Height (F)
170 1/16"
Minimum Height (G)
7 1/16"
Max. Lifting Height (H)
158 3/8"
Max. Lock Height to Top of Runway
155 3/8"
Max. Height Underneath Runway (I)
152 15/16"
Max. Lock Height Underneath Runway
150"
Width Between Runways — Upper (J)
37"
Width Between Runways — Lower (J)
38 3/16"
Overall Width of Single Parking Unit — Upper (K)
78 3/4"
Overall Width of Single Parking Unit — Lower (K)
75 9/16"
Gross Weight (per unit)
4,246 lb
Motor
2.0 HP
Power Supply
220V / 60 Hz, single-phase
Certification
ETL (power unit)
Detailed Images
Proprietary drive-in ramps function as both tire stop and drive-on ramp, with quick assembly and disassembly.Double safety locks on both upper and lower platforms ensure safe operation.Effortless fingertip push-button operation.Standard rubber wheel chocks included.Optional plastic oil tray — kit no. 40806.Optional storage wave panels — kit no. 40812.
Shipping Information
Single-unit packing dimensions (L × W × H): 210 5/8" × 22 1/4" × 40". Power unit included in crate.Three-unit packing dimensions (L × W × H): 210 5/8" × 22 1/4" × 79 7/8".Use forklift fork extensions when loading or unloading the full crate length.
