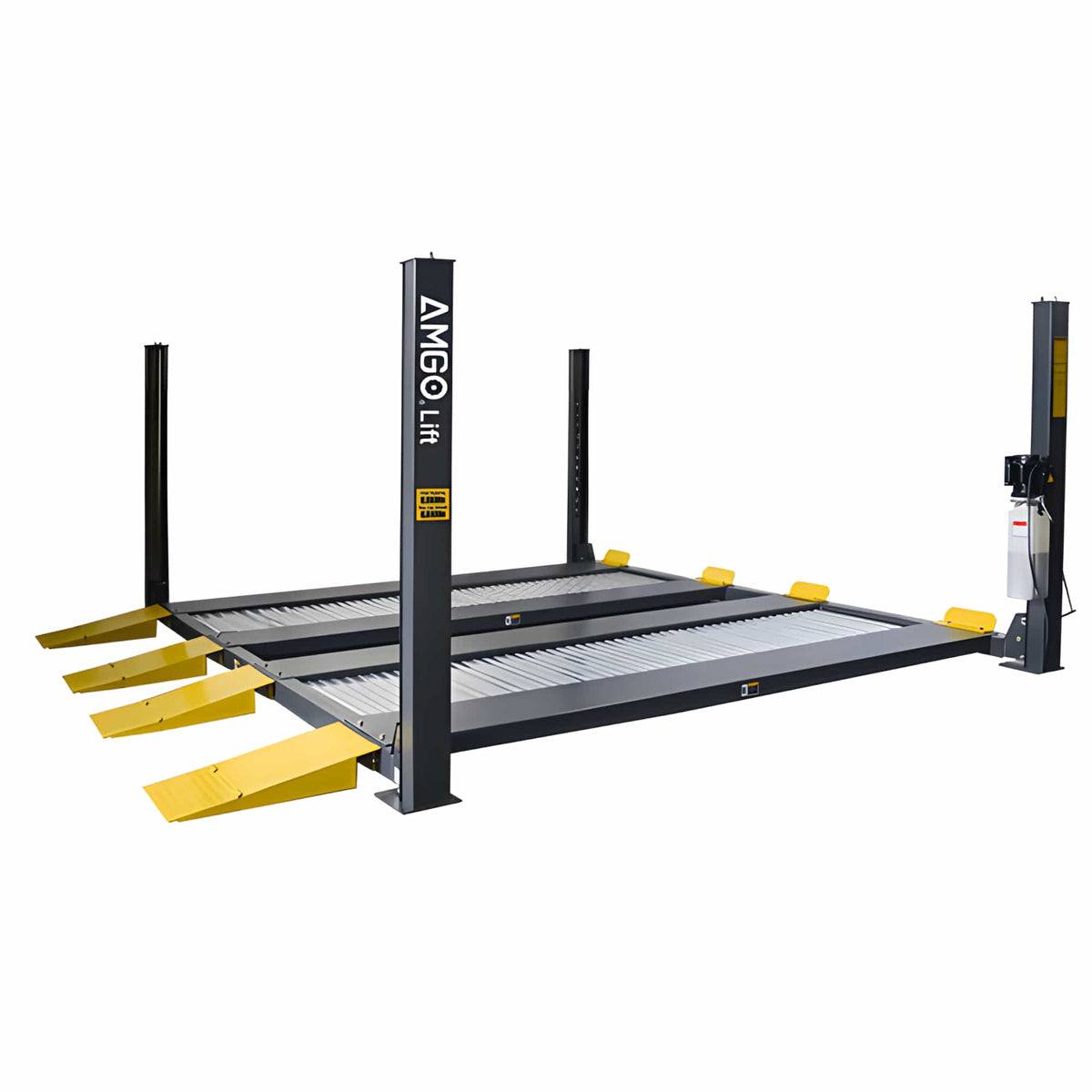

The AMGO 409-DP is a 9,000-lb four-post double parking lift that stores two vehicles in the vertical footprint of a single bay — built for collectors, multi-car households, and shops looking to recover floor space without expanding the building. AMGO has manufactured automotive lifting equipment for over three decades, and the 409-DP carries the AMGO 5-3-2 warranty: five years structural, three years hydraulic, two years on the power unit and electrical components.
The 409-DP runs two parallel runways on a shared four-column frame, supporting up to 9,000 lbs total at 6,000 lbs maximum per vehicle. The low-profile 5 15/16" minimum runway loads without a separate ramp beyond the foldable drive-on ramps that ship standard, and 68 7/8" of clearance underneath the upper runway is enough for full-height passenger cars and most SUVs to park beneath the stored vehicle.
Two safety systems run in parallel. Dual mechanical safety locks engage at multiple positions throughout the lifting range, and a separate cable-slack protection system catches the platform if a cable loses tension. AMGO's patented concealed safety lock control device adds single-point manual release — operators disengage all four locks from one position rather than walking the lift. The 110V single-phase 1.0 HP power unit completes a full lift cycle in 100 seconds.
The 409-DP ships at 2,771 lbs gross via standard freight — no 53' truck required. The unit runs on 110V single-phase service; hydraulic oil is sold separately. A forklift is needed to unload and position the crates on site.
Features
9,000-lb total lifting capacity (6,000 lbs maximum per single vehicle)
Four-post double parking design — stores two vehicles in one bay footprint
68 7/8" of clearance underneath the upper runway for full-height vehicles below
Dual mechanical safety locks engage at multiple positions throughout the lifting range
Cable-slack protection system catches the platform if a cable loses tension
AMGO patented concealed safety lock control device with single-point manual release
I-beam profile columns for column-axis strength
Non-slip diamond plate runways
Foldable drive-on ramps come standard (two per lift, P/N: 104533025C-01)
110V single-phase 1.0 HP power unit, 100-second full lift cycle
2,771-lb gross weight ships via standard freight (no 53' truck required)
AMGO 5-3-2 warranty: 5 years structural / 3 years hydraulic / 2 years power unit and electrical
Specifications
Letter callouts (A through L) match the rows in the specification table.
AMGO 409-DP Specifications
Lifting Capacity
9,000 lbs total (6,000 lbs max per single vehicle)
Lifting Time
100 seconds
Overall Length, including ramps (A)
208 1/16"
Outside Edge of Crossbeams (B)
167 5/8"
Overall Width (C)
190 9/16"
Width Between Columns (D)
181"
Drive Through Width (E)
169 13/16"
Overall Height (F)
82 7/8"
Minimum Runway Height (G)
5 15/16"
Maximum Lifting Height (H)
73 5/8" (Max Lock to Top of Runway: 70 7/8")
Max Height Underneath Runway (I)
68 7/8" (Max Lock Underneath: 66 1/8")
Width Between Runways (J)
37"
Overall Width of Single Parking Unit (K)
74 7/16"
Width Between Two Parking Units (L)
13 3/4"
Gross Weight
2,771 lbs
Motor / Electrical Requirement
110V / 60Hz / 1.0 HP single-phase
Single-Unit Packing (L × W × H)
192 3/16" × 21 5/8" × 37" (with power unit)
Stacked Packing, 3 Units (L × W × H)
192 3/16" × 21 5/8" × 74 7/16"
Oil Requirement
Hydraulic oil sold separately
Warranty
AMGO 5-3-2 — 5 yr structural / 3 yr hydraulic / 2 yr power unit and electrical
Detailed Image

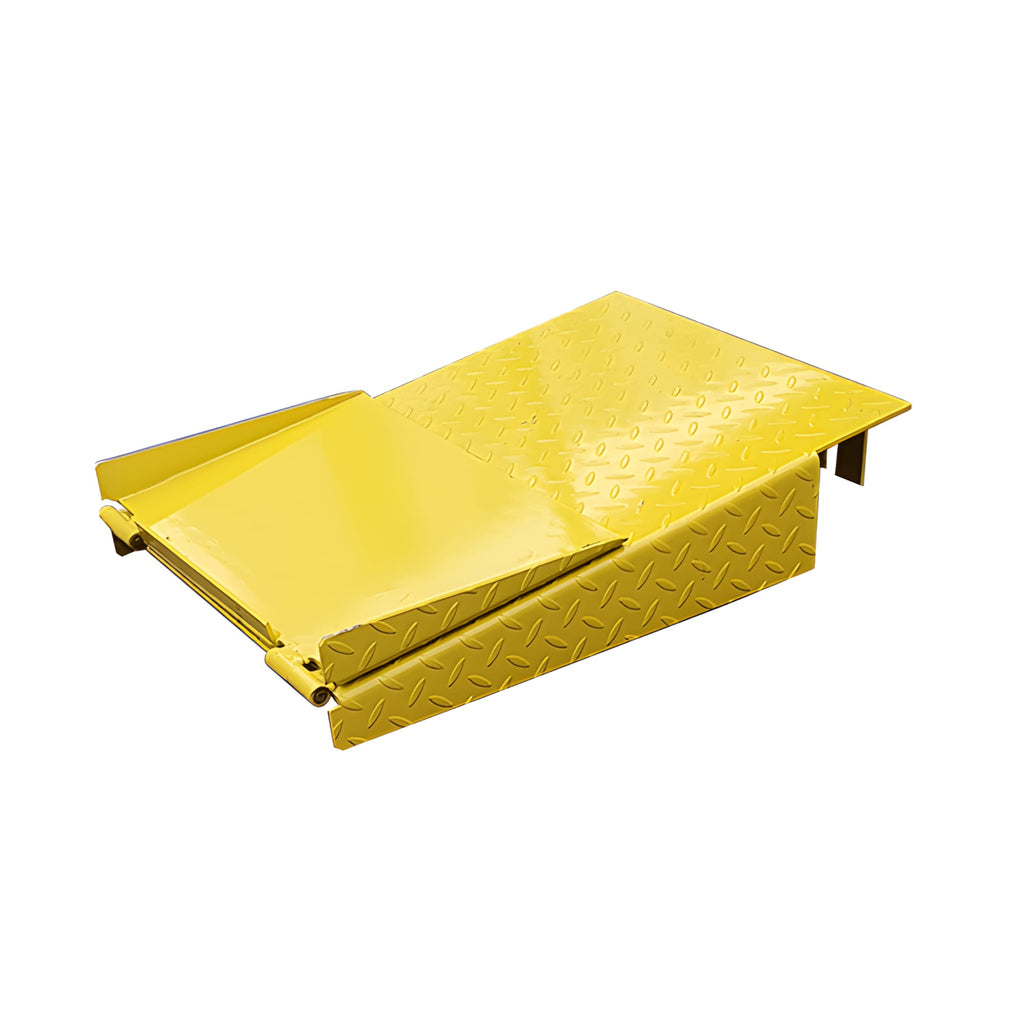

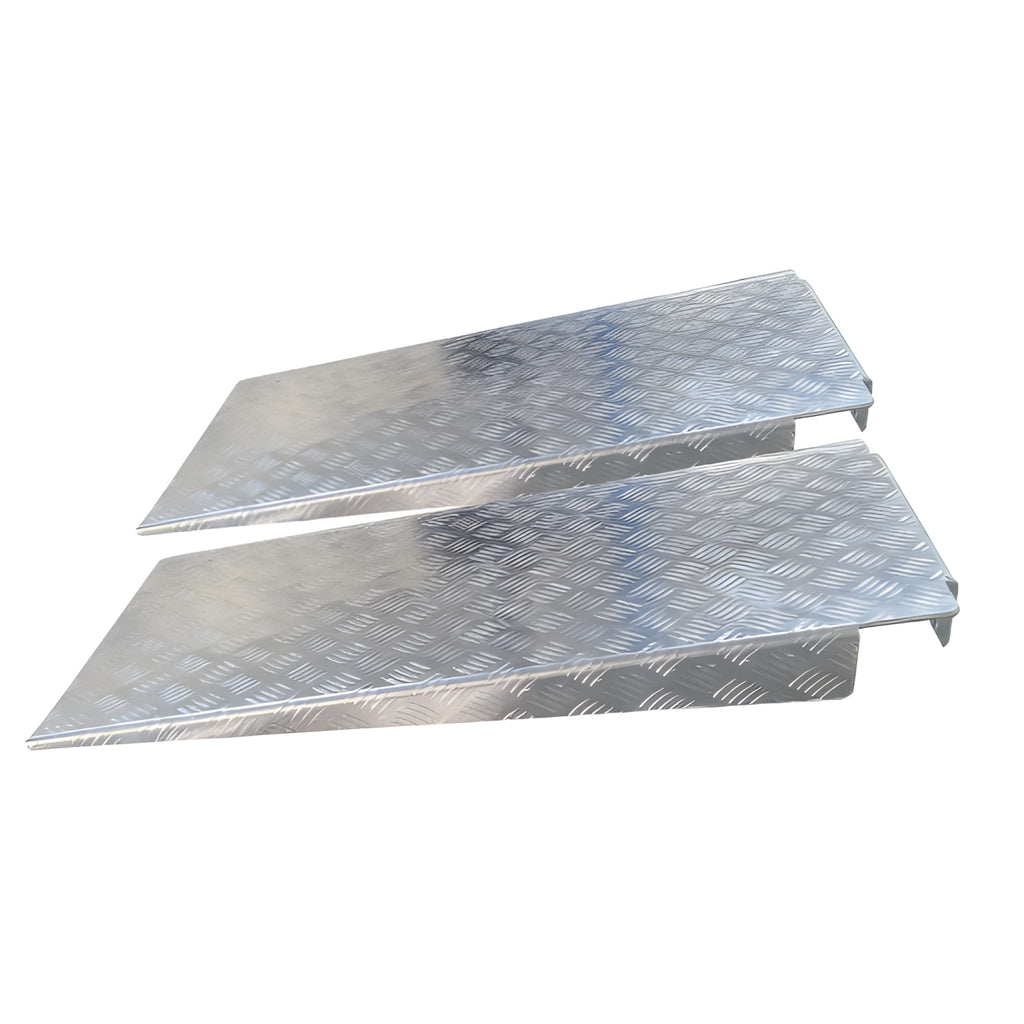

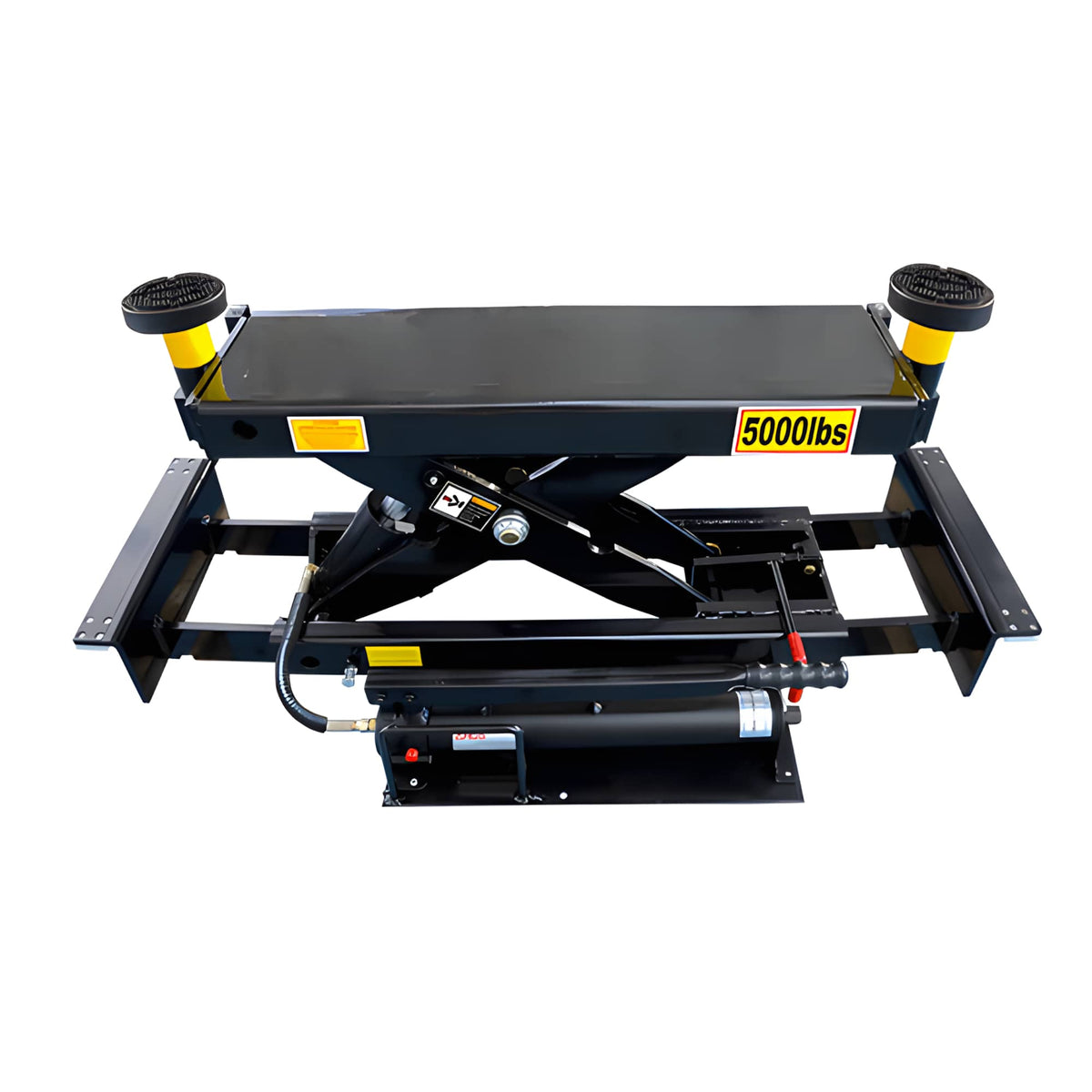

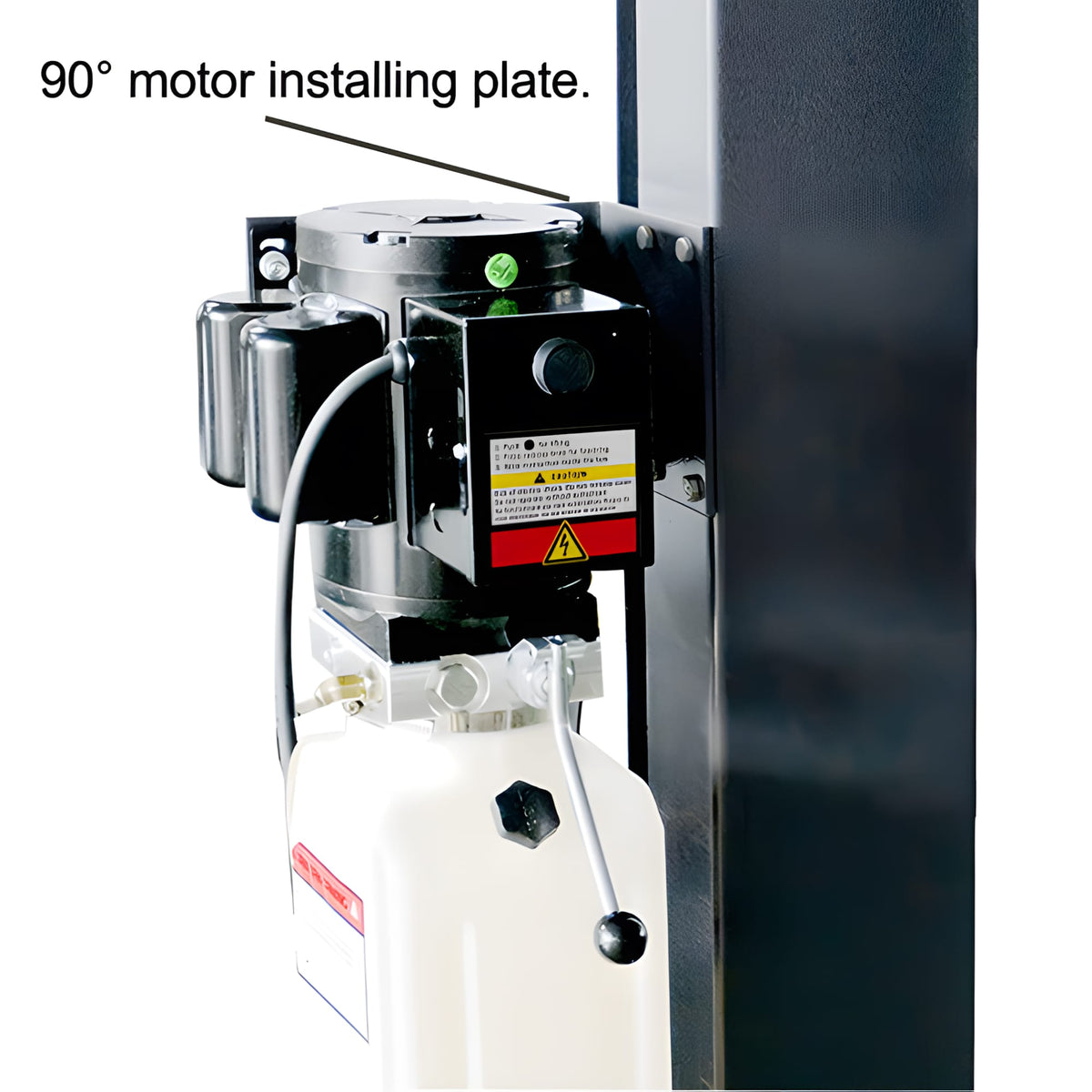

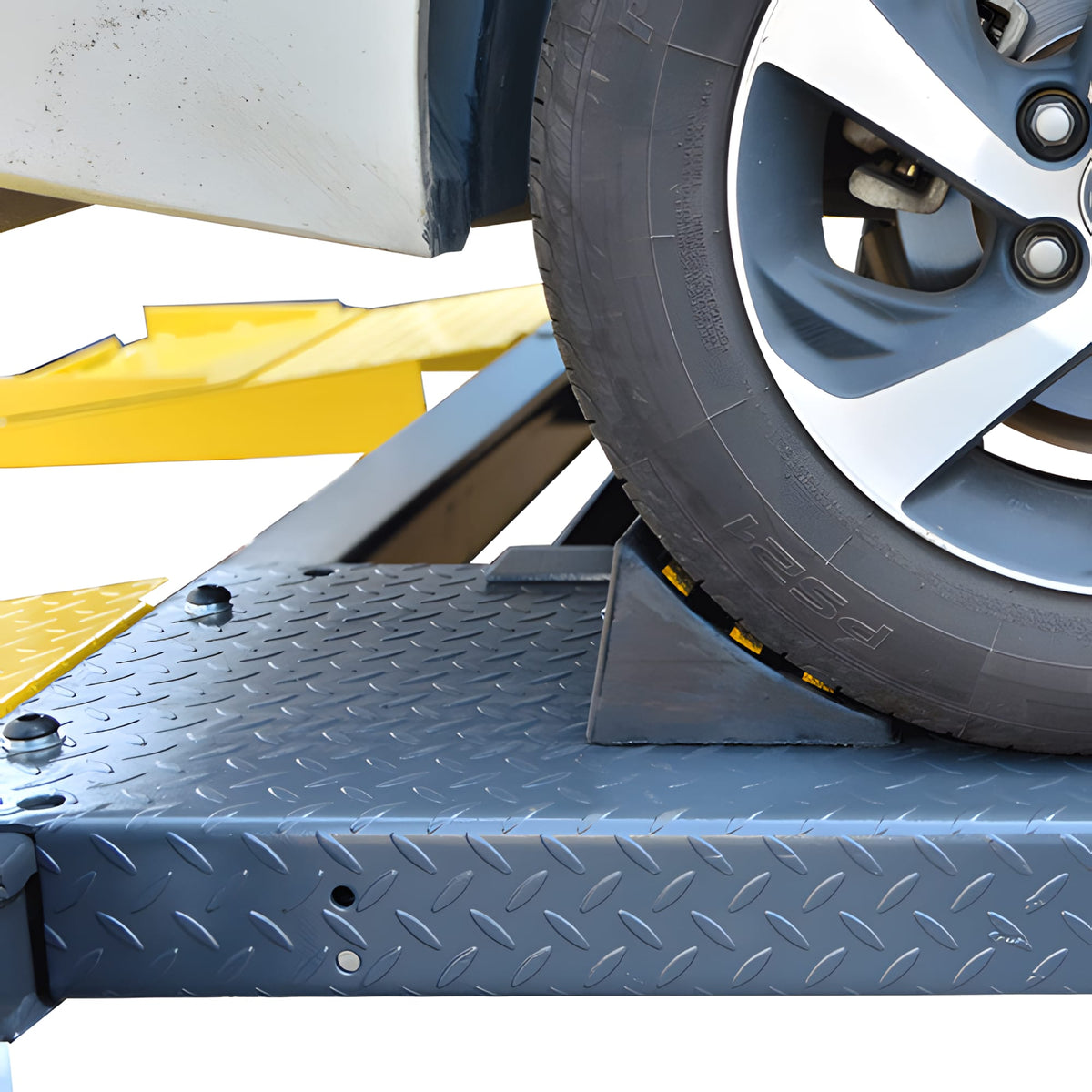

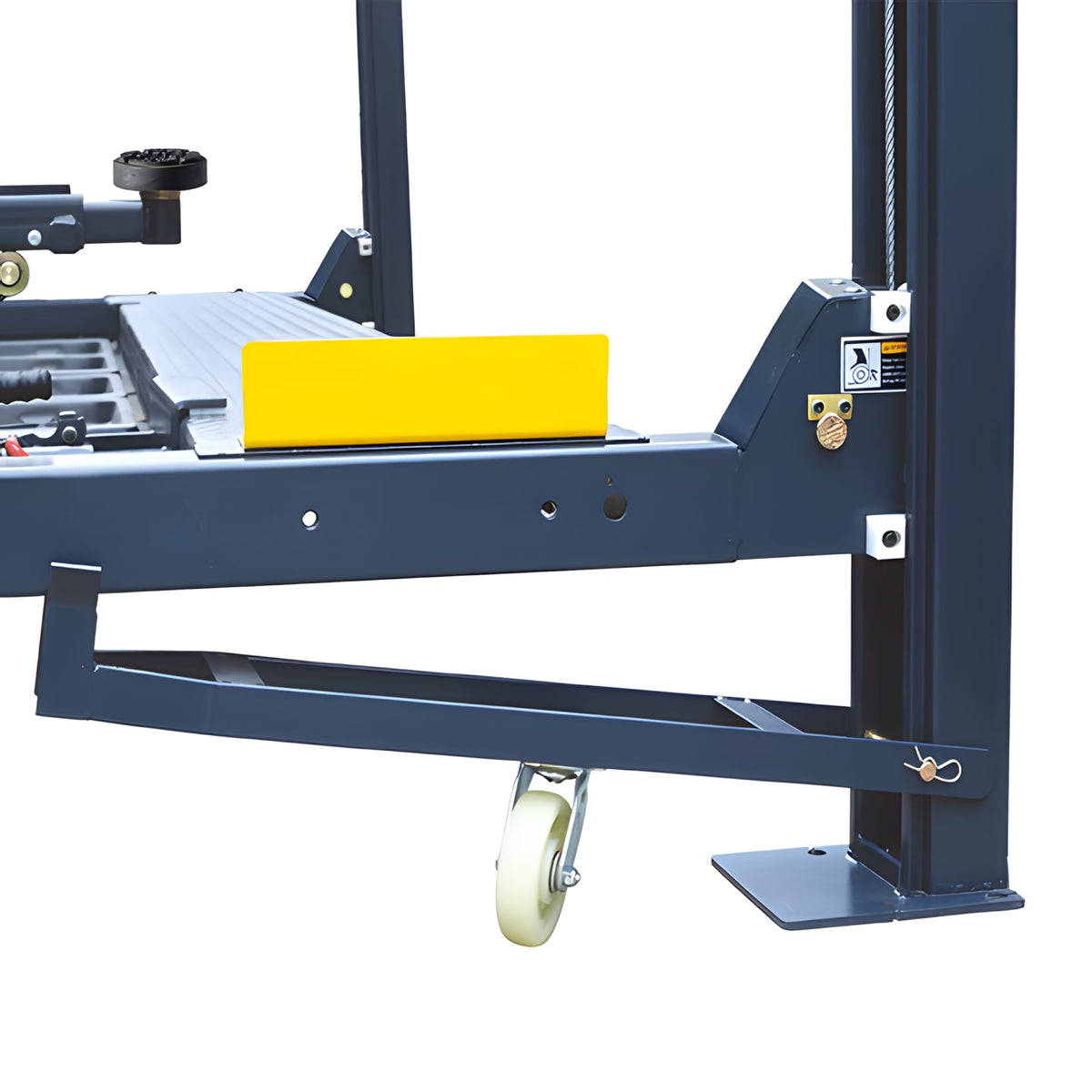

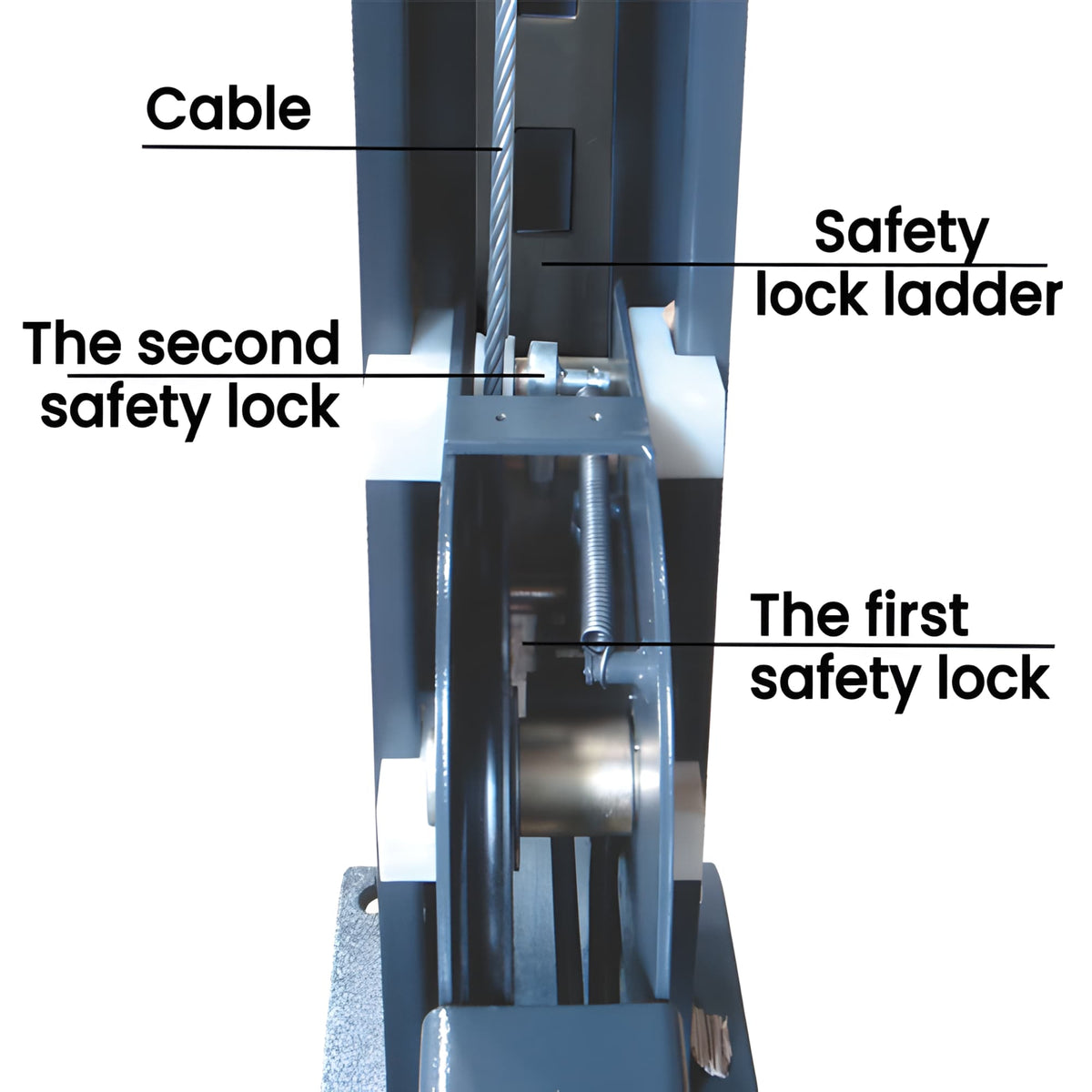

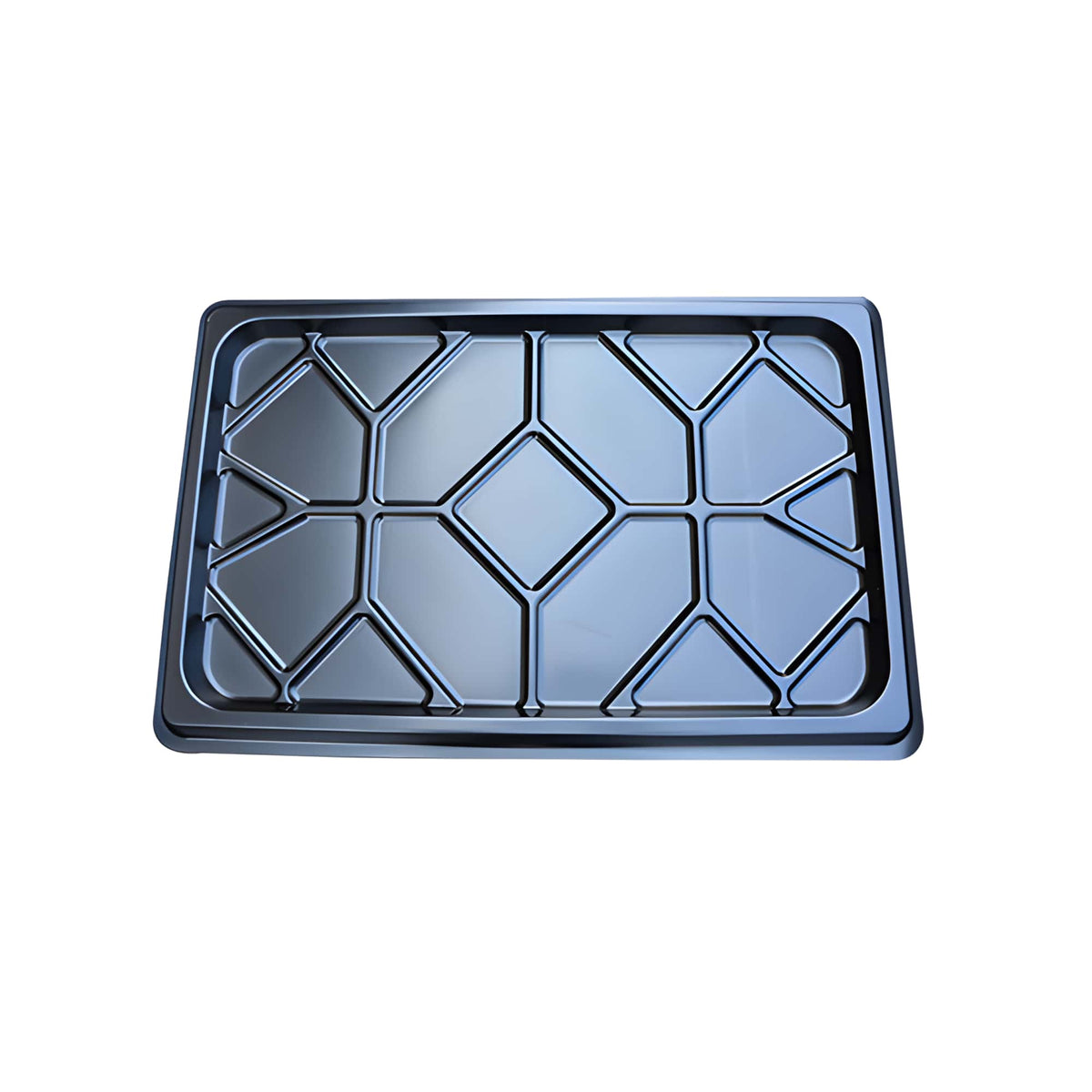

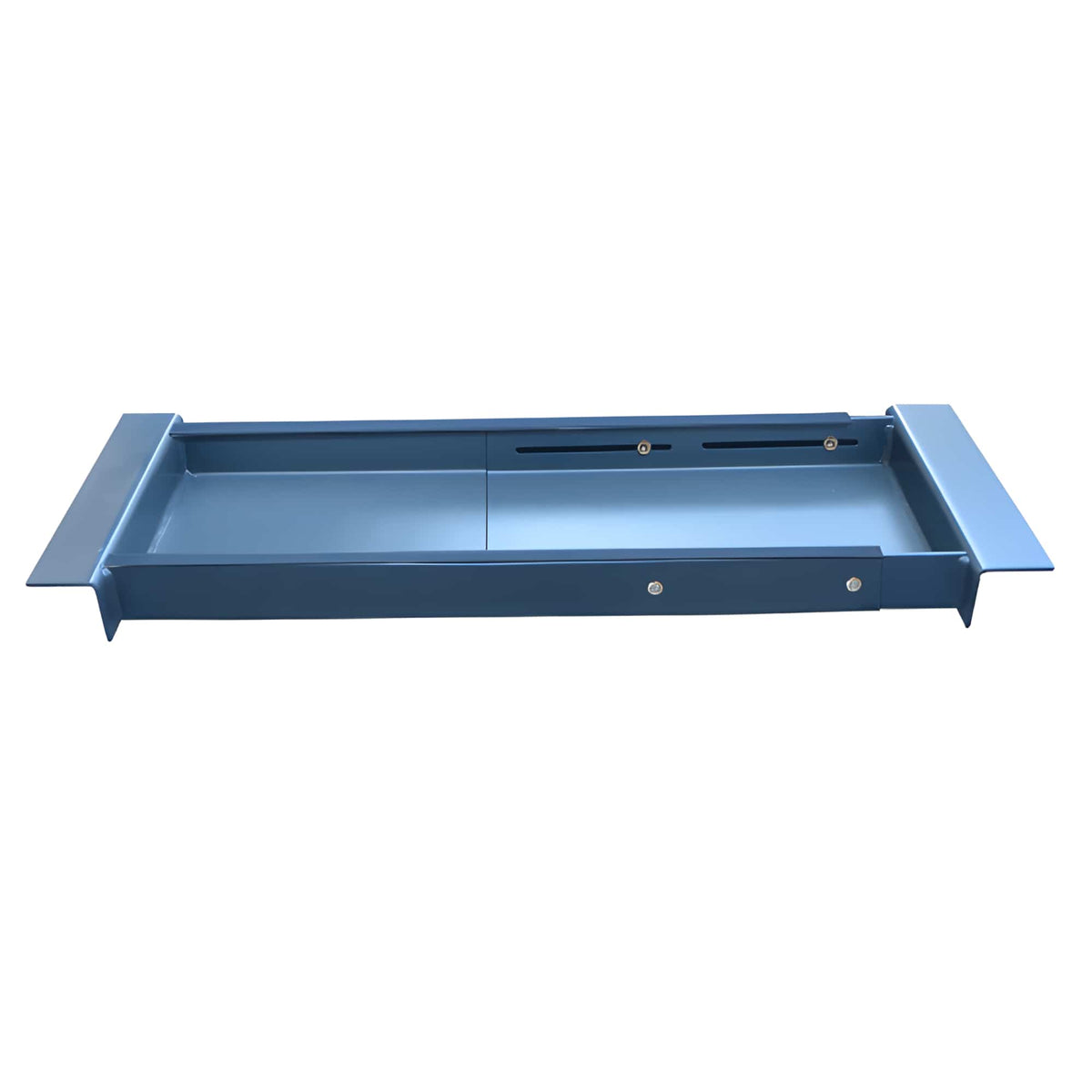

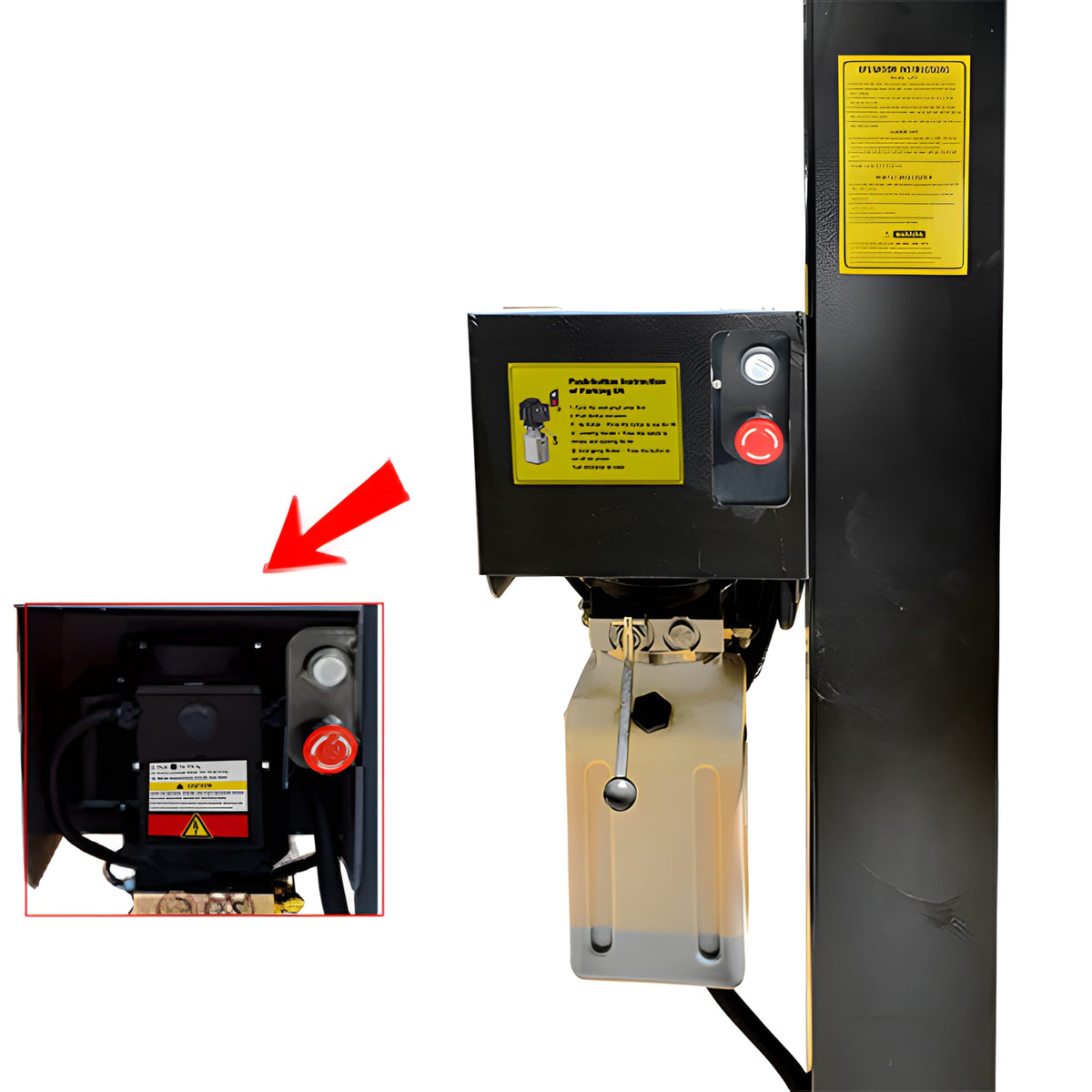

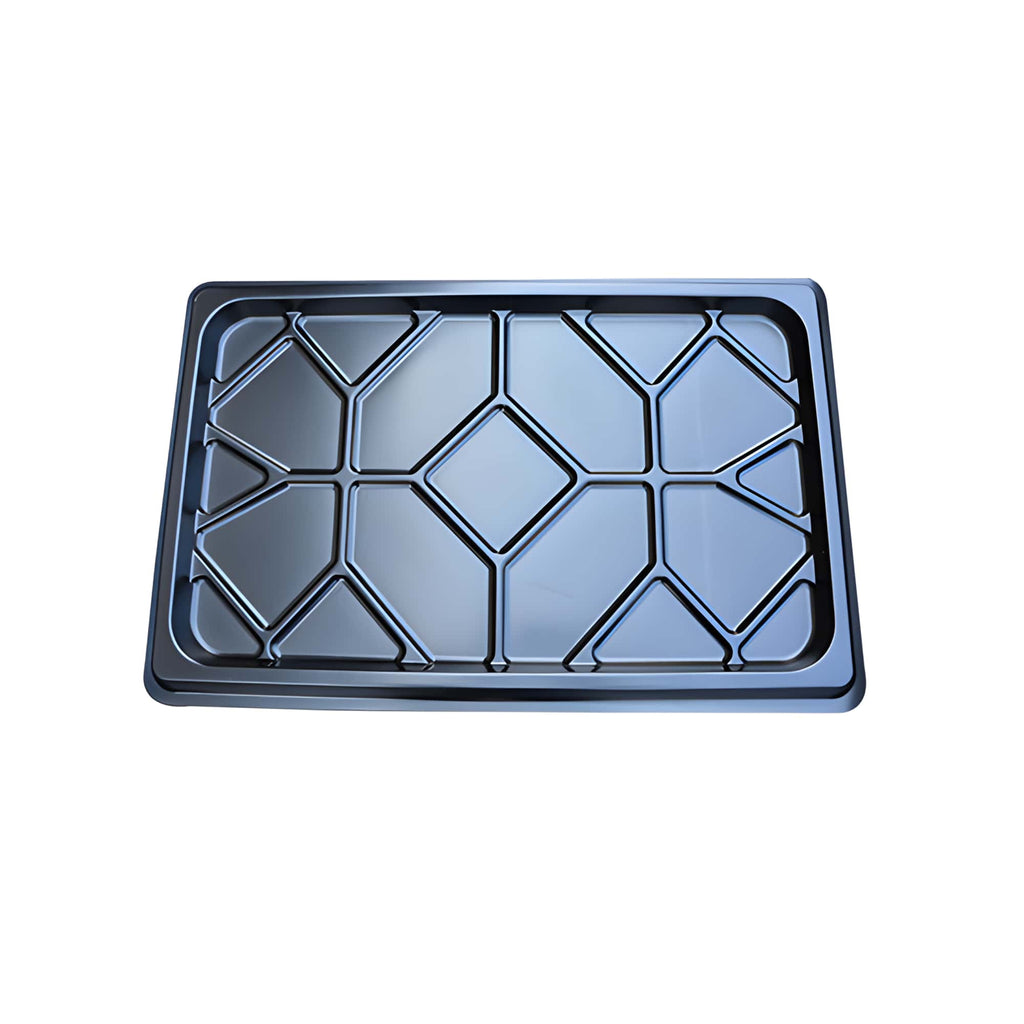

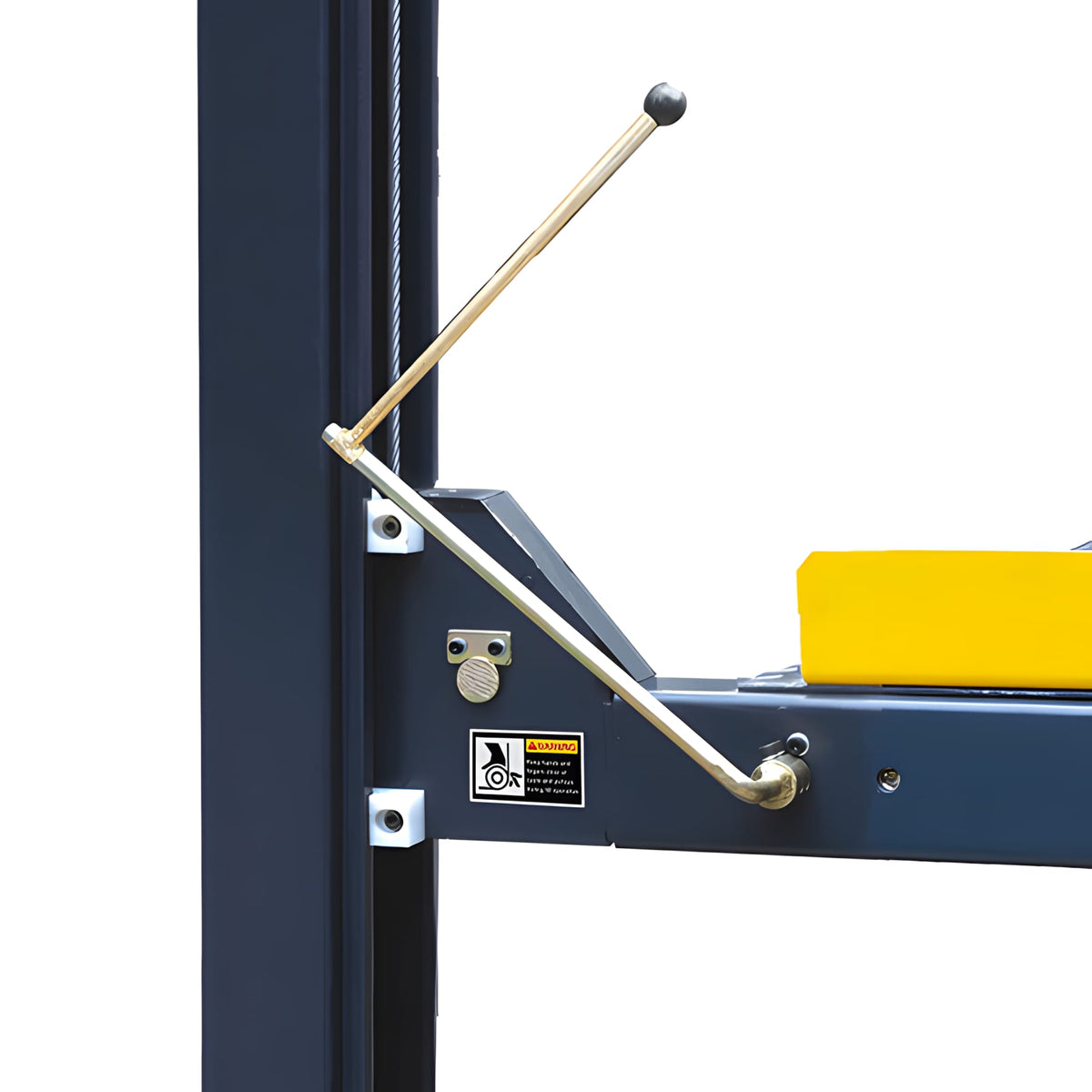

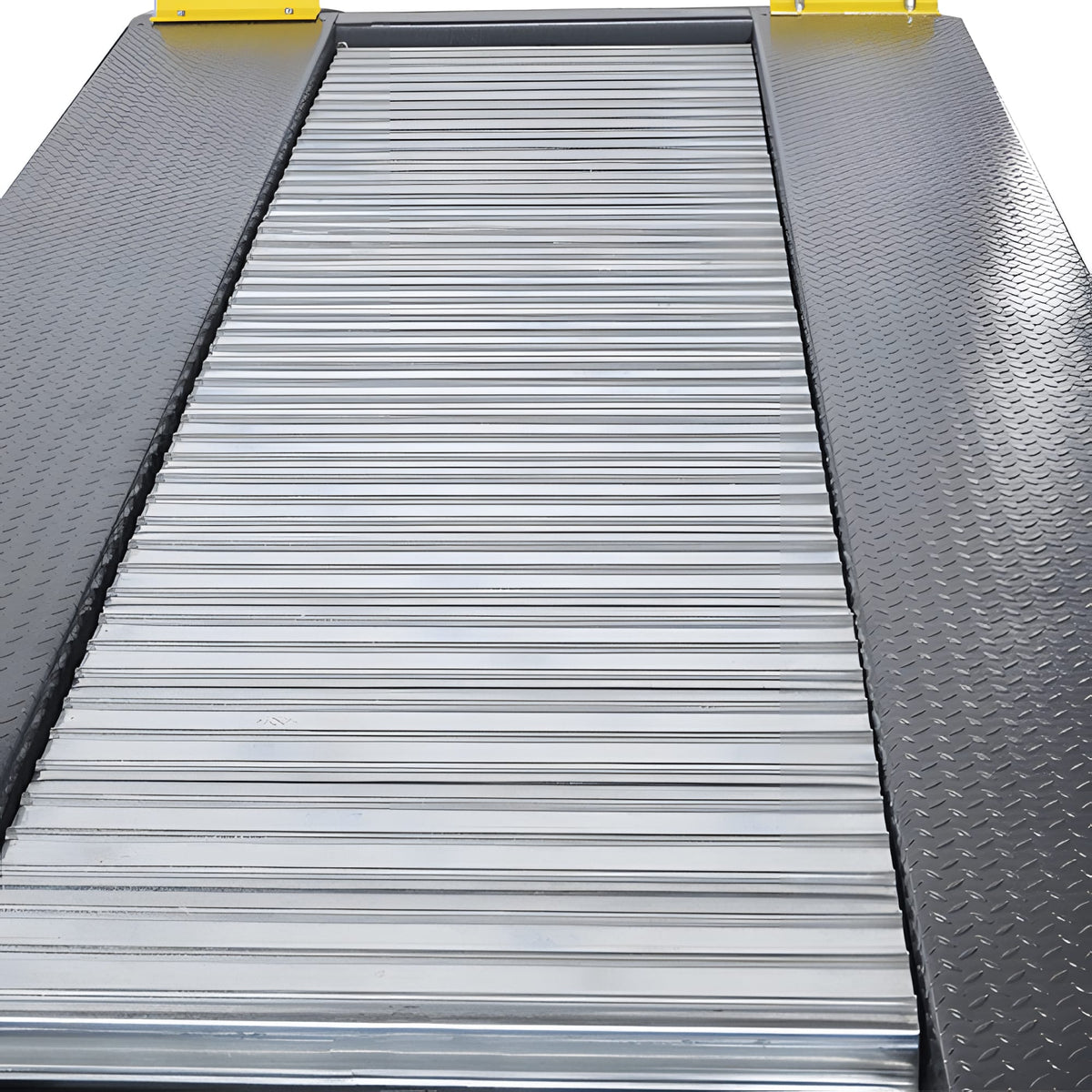

AMGO patented design: concealed safety lock control device with manual single-point lock release.Foldable drive-on ramps come standard — two units per lift (P/N: 104533025C-01).Dual mechanical safety locks engage throughout the lifting range, with cable-slack protection.110V single-phase 1.0 HP power unit on the 90° motor installing plate (P/N: 40802).Optional caster kit (4 pieces, Kit No. 40801) lets one person reposition the lift on a flat shop floor.Optional plastic oil drip tray, 4-piece set (Kit No. 40806).Optional extended aluminum drive-in ramps (P/N: 40815) — two required per lift.Optional adjustable jack tray (P/N: 40816).Optional motor protective cover with integrated emergency stop switch (Kit No. 40810).Optional rubber wheel chock (P/N: 40811) prevents vehicle roll-off during storage.Optional storage wave panels (Kit No. 40812) add a between-runway storage surface.Optional J5H sliding jack with hand pump — 5,000-lb capacity, 2.5" extension adapters included.
Shipping Information

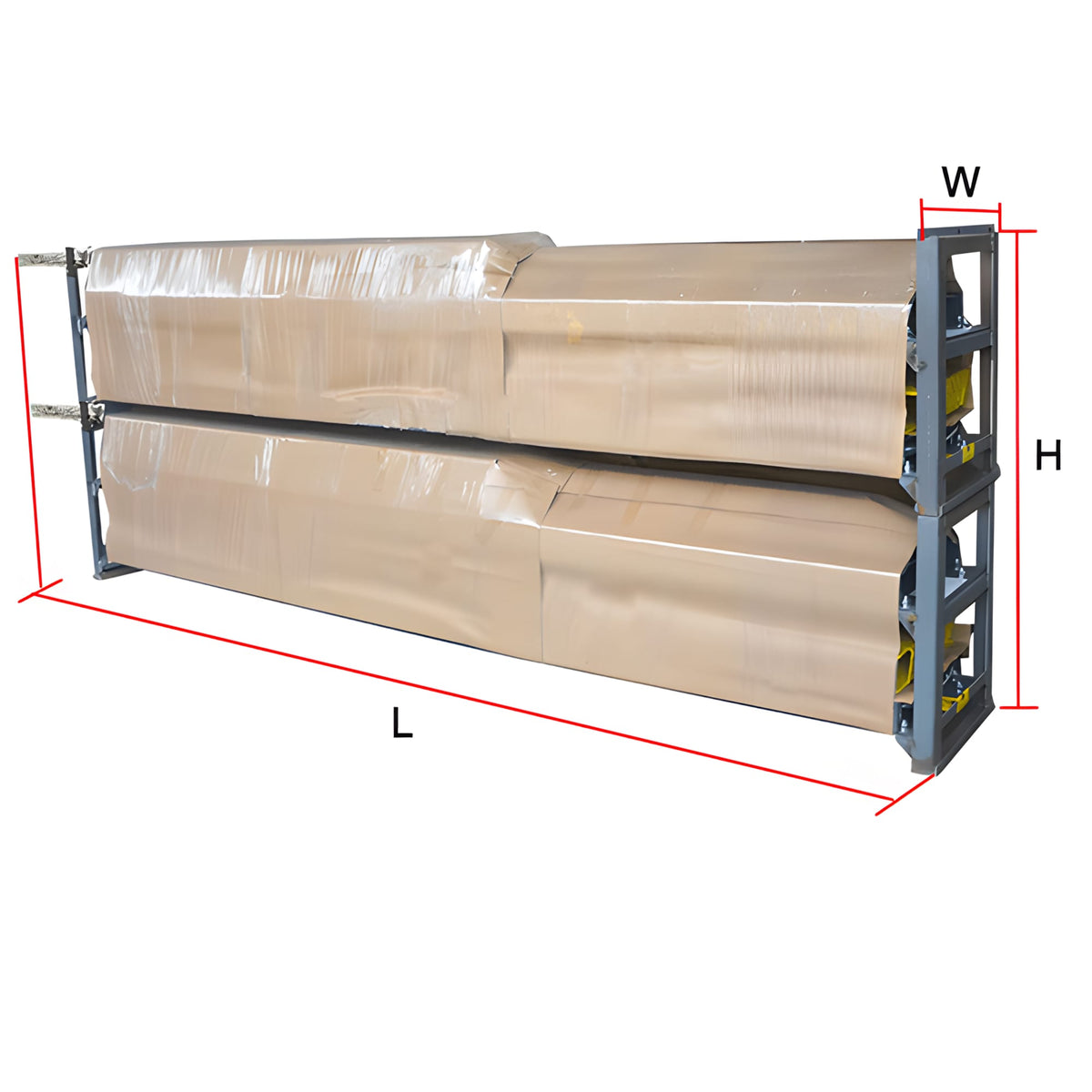

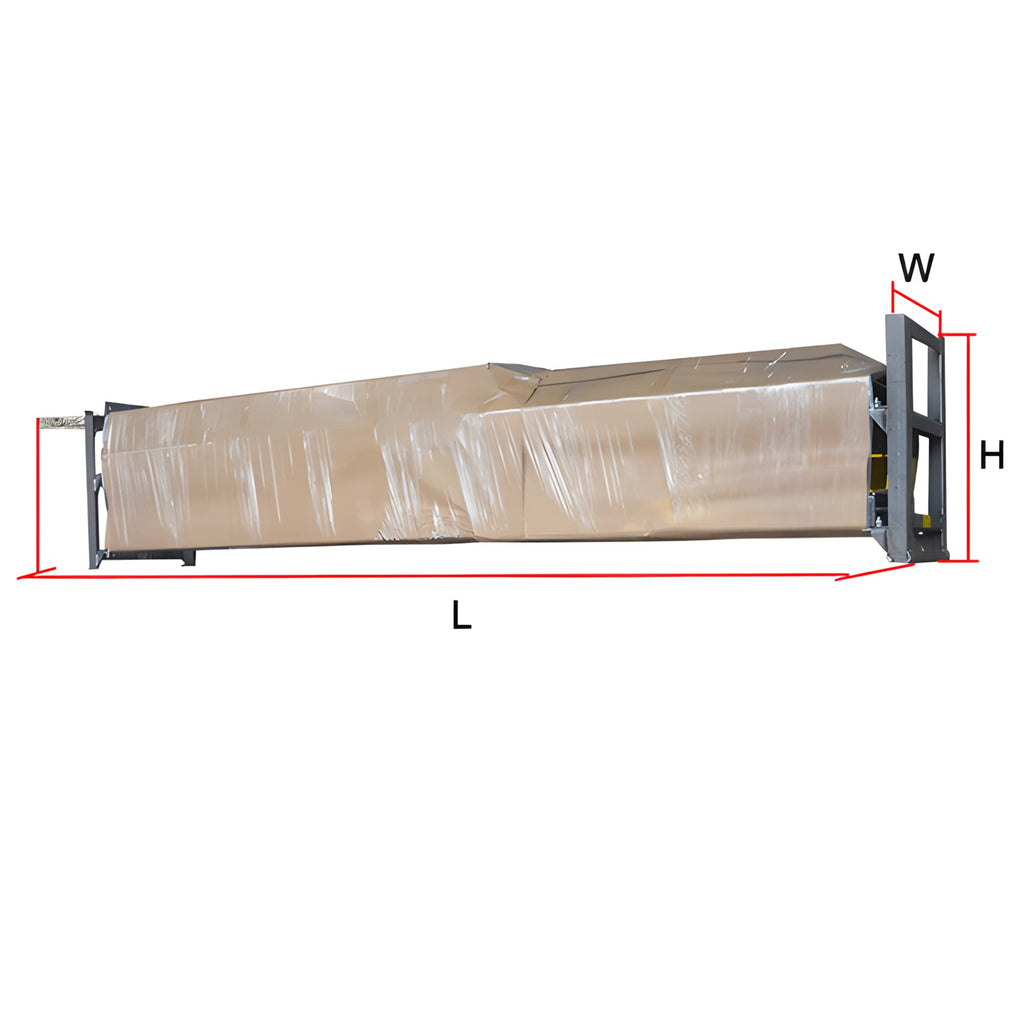

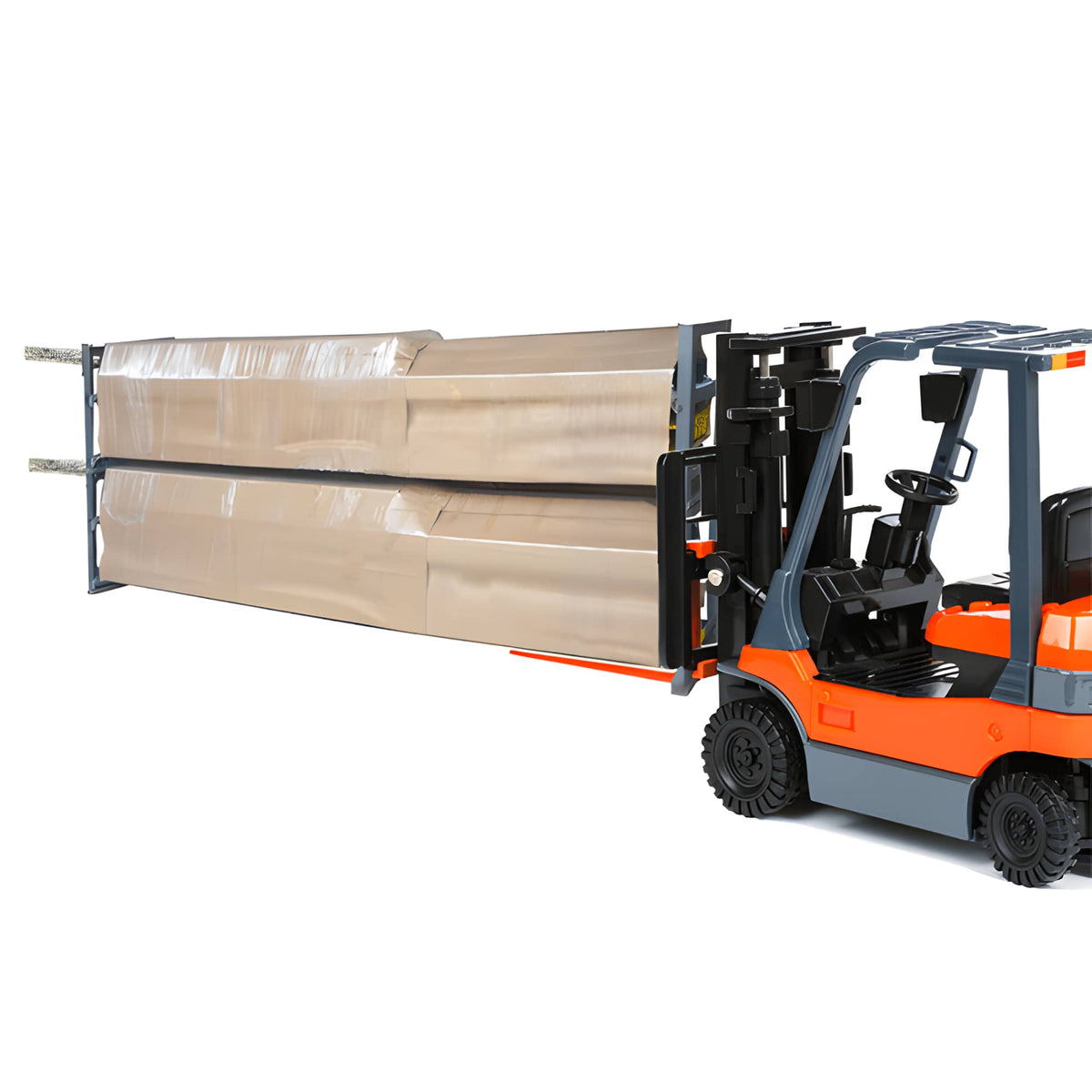

Single-unit packing — 192 3/16" × 21 5/8" × 37" (L × W × H), packed with power unit.Three-unit stacked packing — 192 3/16" × 21 5/8" × 74 7/16" (L × W × H).A forklift is required to load and unload the pallets.
