Overview

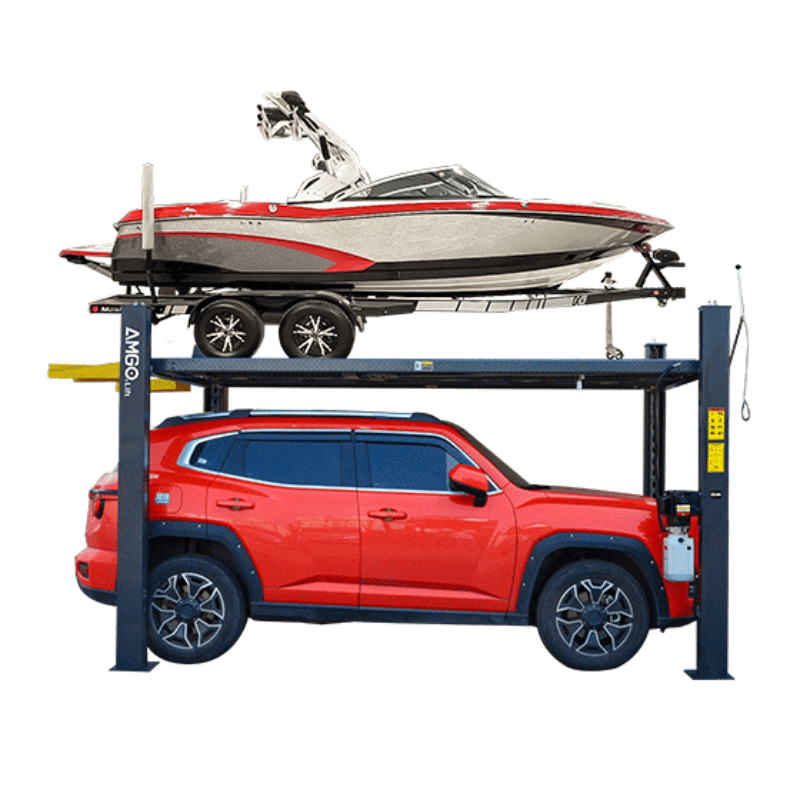

The AMGO 408-HPX Boat Storage Lift is built to make boat storage feel straightforward again. With an 8,000-lb. lifting capacity, a generous 111" drive-thru clearance, and adjustable runway width settings, it’s designed to handle a wide range of trailers without turning parking and storage into a trial-and-error routine.

This lift is all about clean, practical functionality. Drive in, position the trailer, raise it, lock it, and reclaim valuable floor space underneath. Whether you’re storing a recreational boat for the season or organizing a high-value indoor storage setup, the 408-HPX gives you the height, width flexibility, and safety features to do it with confidence.

Key Highlights

• True 8,000-lb. Capacity: Built for recreational boat storage with the strength to handle substantial trailer-and-boat combinations.
• Wide Drive-In Clearance: Spacious 111" drive-thru opening helps accommodate a variety of trailer setups.
• Two-Width Runway Settings: Adjustable platform spacing allows better fitment for different trailer widths.
• Single-Point Lock Release: AMGO’s concealed lock-control device uses a manual single-point release—no air source required.
• Dual Safety Systems: Primary safety locks plus cable-slack protection add peace of mind while the lift is raised.
• Non-Skid Diamond Platforms: Integrated diamond plate runways improve traction during loading and unloading.
• Flexible Power Unit Mounting: Power unit can be mounted at any corner to better suit your installation layout.

Why It Works So Well for Boat Storage

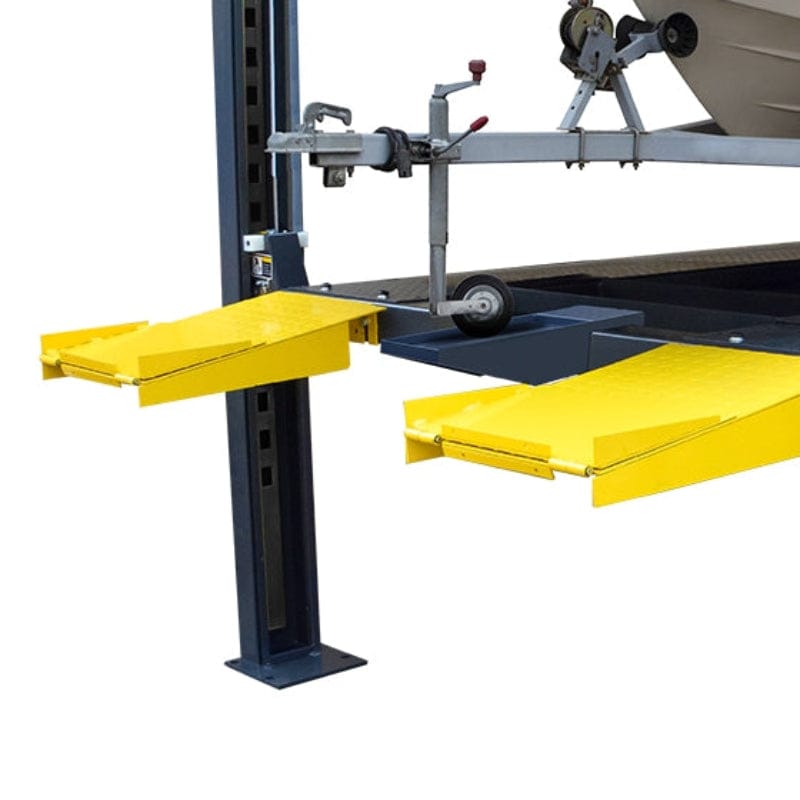

Boat trailers are not all built the same. Some sit wider. Some track narrower. Some need more approach confidence than others. That’s exactly why the 408-HPX stands out: it gives you width flexibility, foldable drive-in ramps, and enough clearance to make loading feel controlled instead of awkward.

Once the trailer is in place, the lift raises smoothly and creates substantial usable space underneath. That means more room in the building, better organization, and an easier way to protect valuable equipment without giving up your entire floor plan.

Safety & Locking System

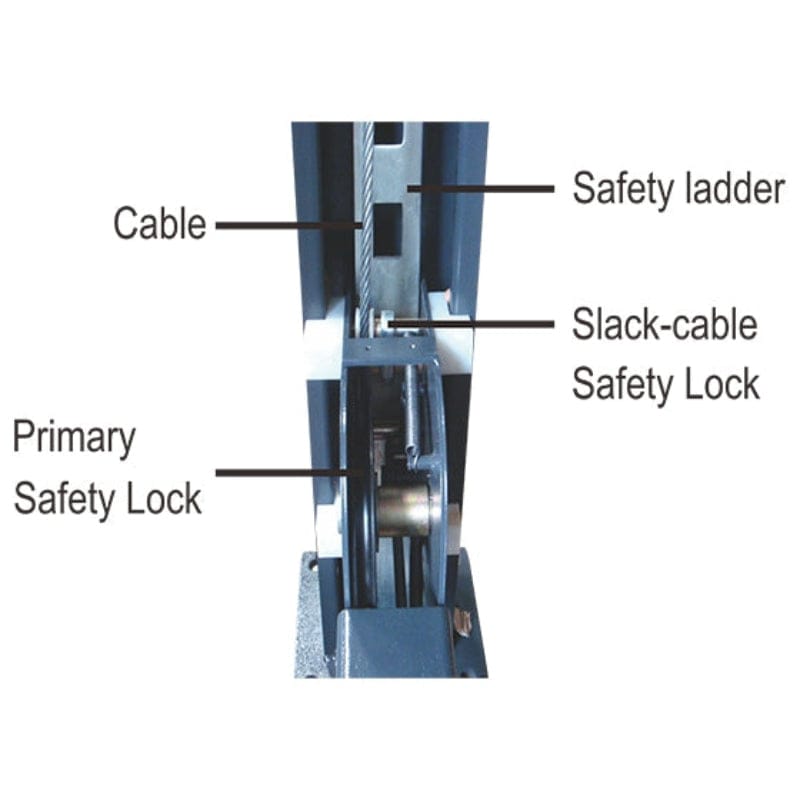

Storage lifts need to inspire confidence, not doubt. The 408-HPX uses AMGO’s proprietary concealed lock-control device with a manual single-point release, keeping operation simple while eliminating the need for an external air source. Dual safety mechanisms—primary safety locks and cable-slack protection—add another layer of security during storage.

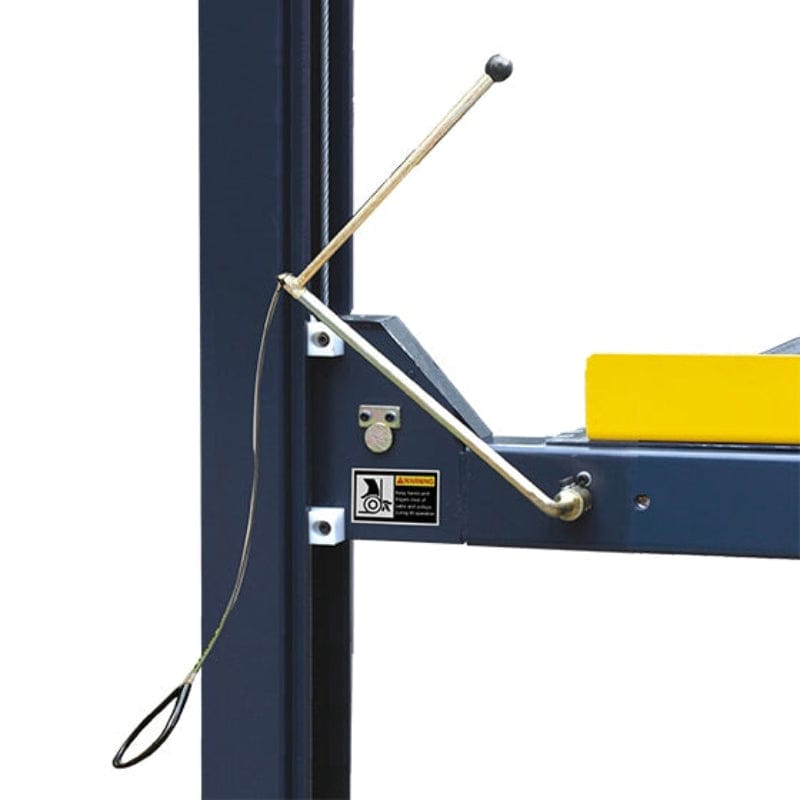

• Concealed lock-control device with manual single-point release
• No air source required
• Primary safety locks
• Cable-slack protection system

Loading, Fit & Trailer Compatibility

• Drive-Thru Clearance: 111"
• Width Between Runways: 46 1/2" – 66 3/8"
• Outside Edge of Runways: 83 7/8" – 103 3/4"
• Width Between Posts: 122 3/16"

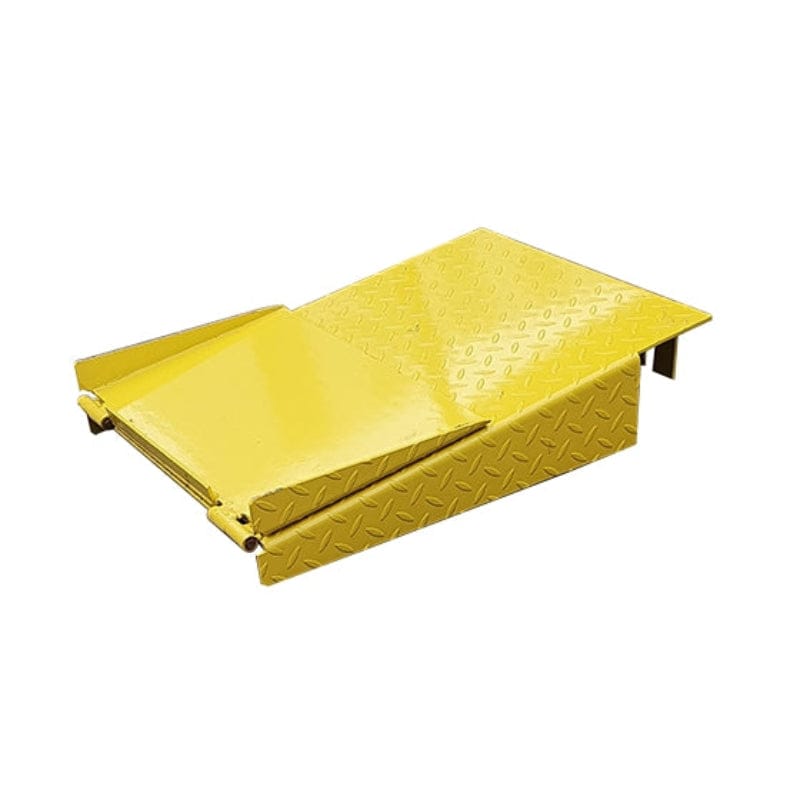

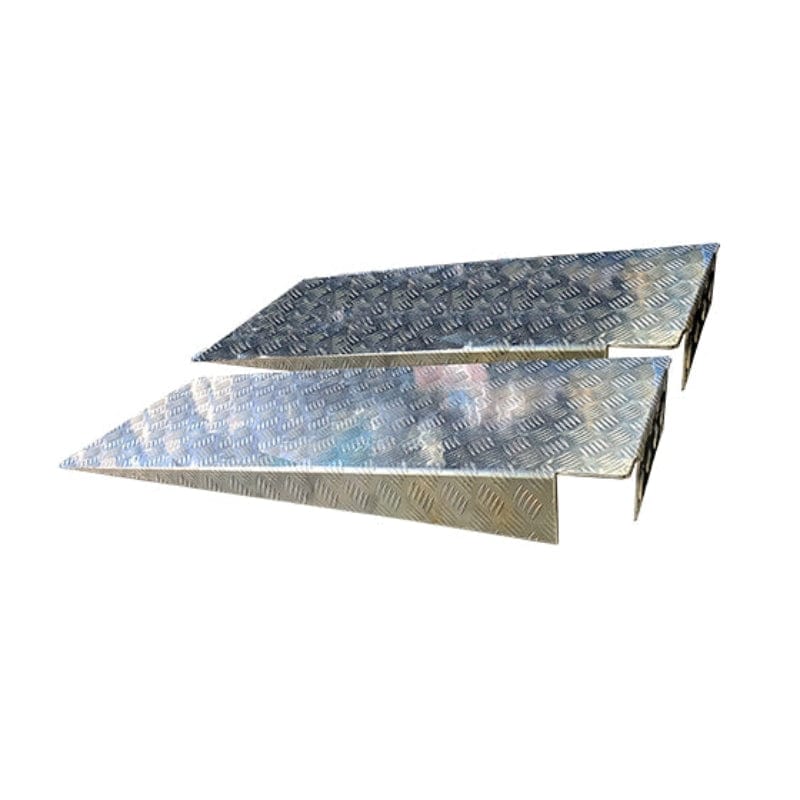

• Standard foldable drive-in ramps included

Lifting Performance

• Lifting Capacity: 8,000 lbs
• Lifting Time: 46 seconds
• Max. Lifting Height: 87 11/16"
• Max. Locking Height: 84 15/16"
• Minimum Height: 5 11/16"
• Max. Underneath Height: 82 15/16"
• Max. Lock Underneath Runway: 80 3/16"

Construction, Power & Installation Flexibility

• Integrated non-skid diamond platforms for improved traction

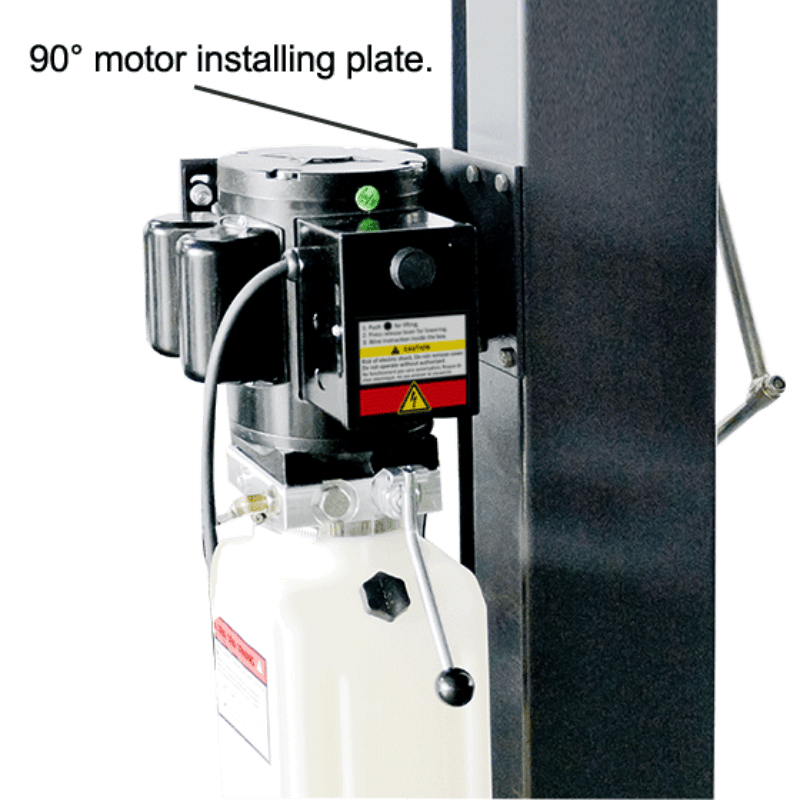

• Flexible power unit mounting at any corner

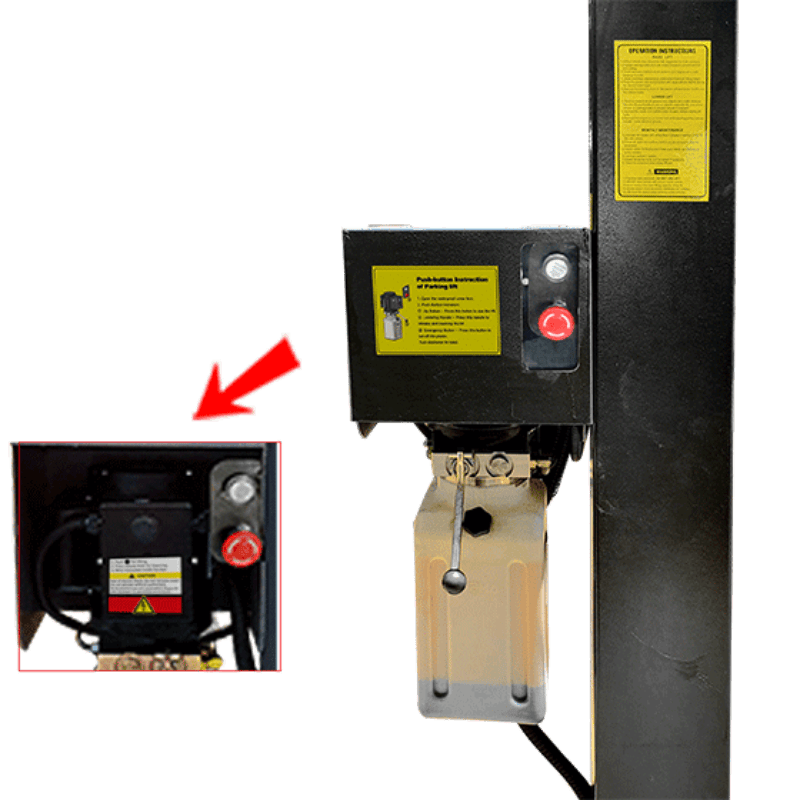

• ETL certified power unit
• Motor: 2.0HP, 220V / 60Hz

What’s Included

• AMGO 408-HPX Boat Storage Lift
• Standard foldable drive-in ramps
• Integrated non-skid diamond platforms
• Manual single-point lock release system
• ETL certified power unit

Specifications

• Model: 408-HPX
• Lift Type: Boat Storage Lift
• Lifting Capacity: 8,000 lbs
• Lifting Time: 46s
• Overall Length (Inc. Ramps): 222 1/8"
• Overall Length (Without Ramps): 188 9/16"
• Overall Width: 131 7/8"
• Width Between Posts: 122 3/16"
• Max. Lifting Height: 87 11/16"
• Max. Locking Height: 84 15/16"
• Overall Height: 96 5/8"
• Minimum Height: 5 11/16"
• Max. Underneath Height: 82 15/16"
• Max. Lock Underneath Runway: 80 3/16"
• Drive-Thru Clearance: 111"
• Width Between Runways: 46 1/2" – 66 3/8"
• Outside Edge of Runways: 83 7/8" – 103 3/4"
• Motor: 2.0HP, 220V / 60Hz

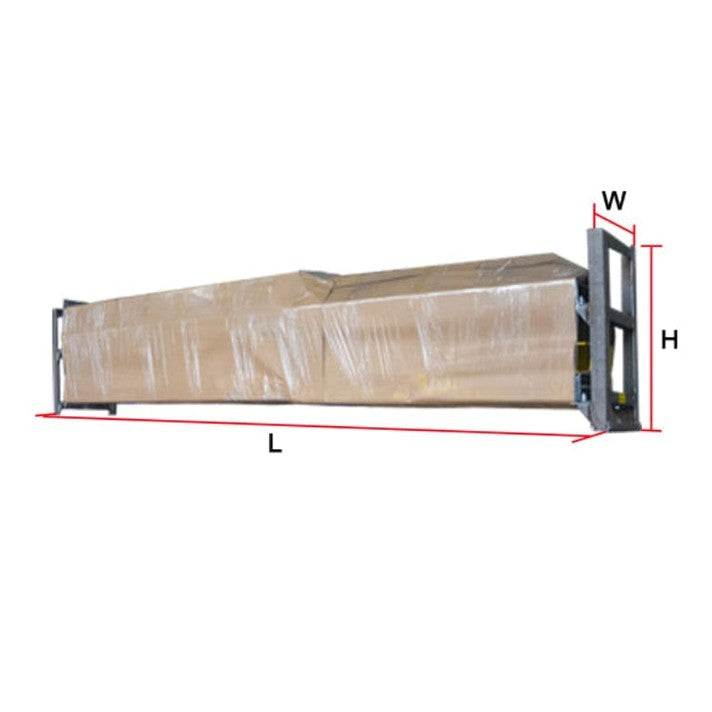

• Gross Weight: 1,585 lbs

Bottom Line

The AMGO 408-HPX is a smart, heavy-duty answer for boat owners and storage facilities that need dependable lifting strength, wide trailer compatibility, and a simple locking system without air requirements. It’s spacious where it matters, flexible where it counts, and purpose-built to make indoor boat storage cleaner, safer, and far more efficient.
