Part Number: 208-Short

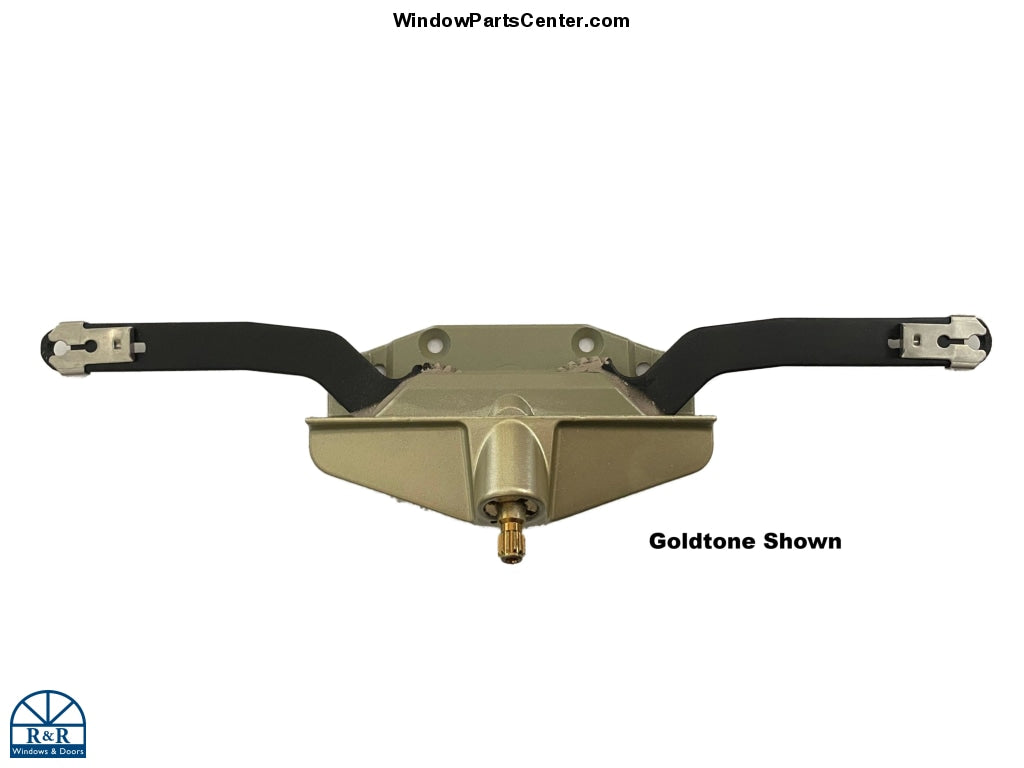

Amesbury Truth 11 Series (11.16) Awning Operator Short Arm Version

 Dimension: Center to Center hole 11 3/8 inch. Overall Arm Length End to end 11 3/4 Inch.

Custom Size Arms Available: If you need a different size arm length we offer custom size arm lengths please email info@windowpartscenter.com for quote. When you are ready to order a custom size length arm operator we will ask for you to mail in your operator as sample so we can match up the arm and hole spacing exactly and will ship out the new operator and your sample operator back to you when done.

Known to be used on Hurd brand windows from 1988-Feb 2, 1998 on. For Awning Windows 27,31,35,43 wide. Also have been used on multiple other window brands over the years.

 Known Part Number: U.S. PAT. 4505601, PAT. CAN. 1986, 45301, 11.16 Operator
Known Brands: Hurd, Truth, Amesbury Truth, Biltbest, Cradco, Weather Sheild.

Guide Bar and Shoe Stud (part # 214) Sold Separately

Screws Not Included - Factory Recommended Screws: Wood : #10 X 1.0 PHILLIPS, FLAT HEAD, SHEET METAL SCREWS. PVC and Metal  #10 PHILLIPS, FLAT HEAD SCREWS (LENGTH AND THREAD TYPE TO BE DETERMINED BY PROFILE)

 The below video shows how to replace an awning operator.
