Features

High-Performance LiFePO₄ Cells

• 7,000+ Cycle Life: Delivers exceptional long-term performance and lower ownership costs.

• 5120Wh Nominal Energy: Provides dependable energy storage with ≤5% monthly self-discharge.

• Grade A LiFePO₄ Cells: Deliver superior reliability, safety, and long service life.

Intelligent Battery Management

• Advanced BMS: Protects against overcharge, over-discharge, overcurrent, short circuit, and temperature risks.

• Wi-Fi + Bluetooth Monitoring: View real-time battery status through the RICH SOLAR App.

• LCD Touchscreen & LED Indicators: Display battery status, alarms, and system information at a glance.

Flexible System Integration

• CAN, RS485, RS232 & Dry Contact Communication: Compatible with major inverter brands for seamless system integration.

• Supports Up to 30 Batteries in Parallel (30P): Expands system capacity up to 153.6kWh.

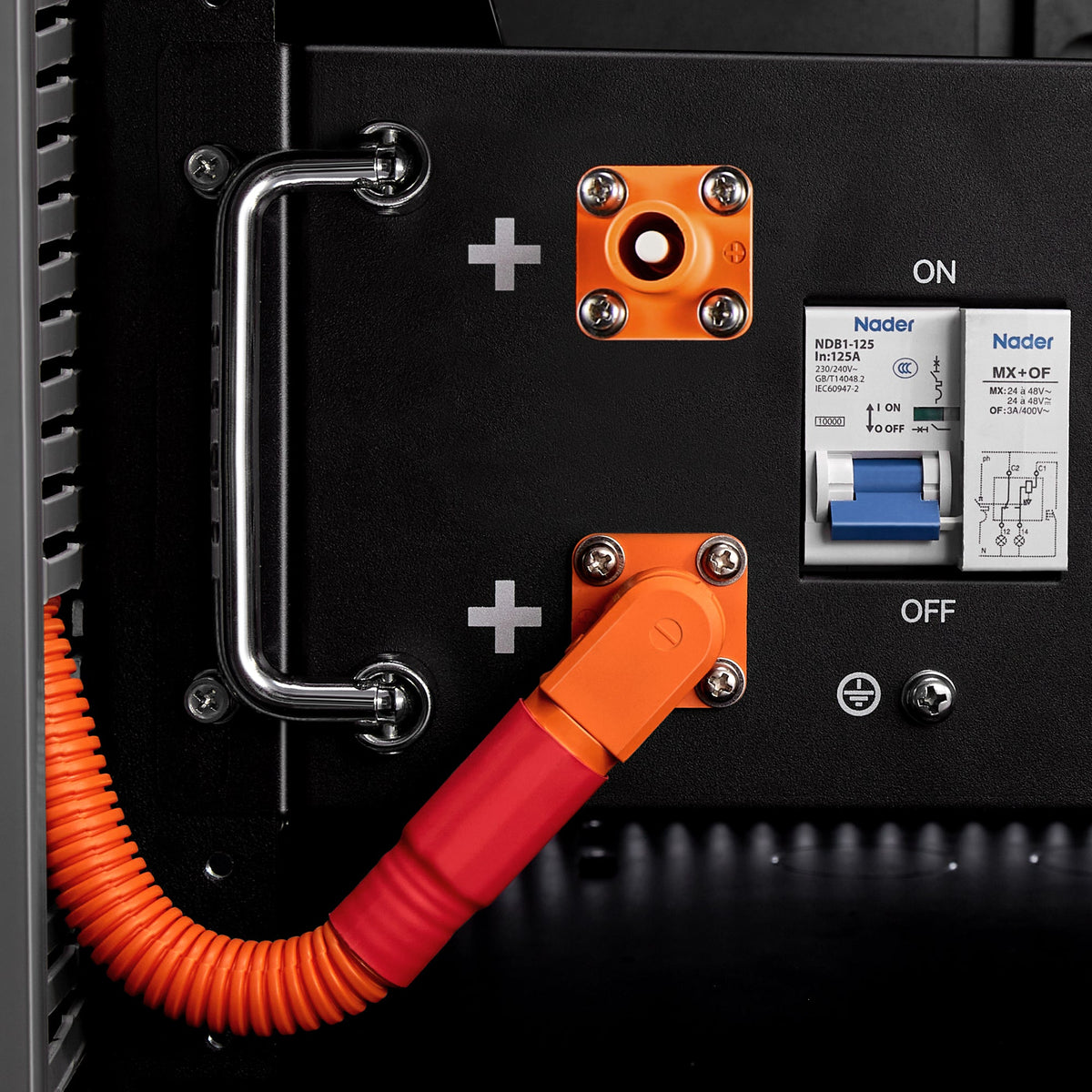

• Dual Power Terminals: Simplify installation and large-scale battery expansion.

Rugged & Reliable Performance

• Built-In Internal Heating: Automatically warms the battery for safe charging in cold-weather conditions.

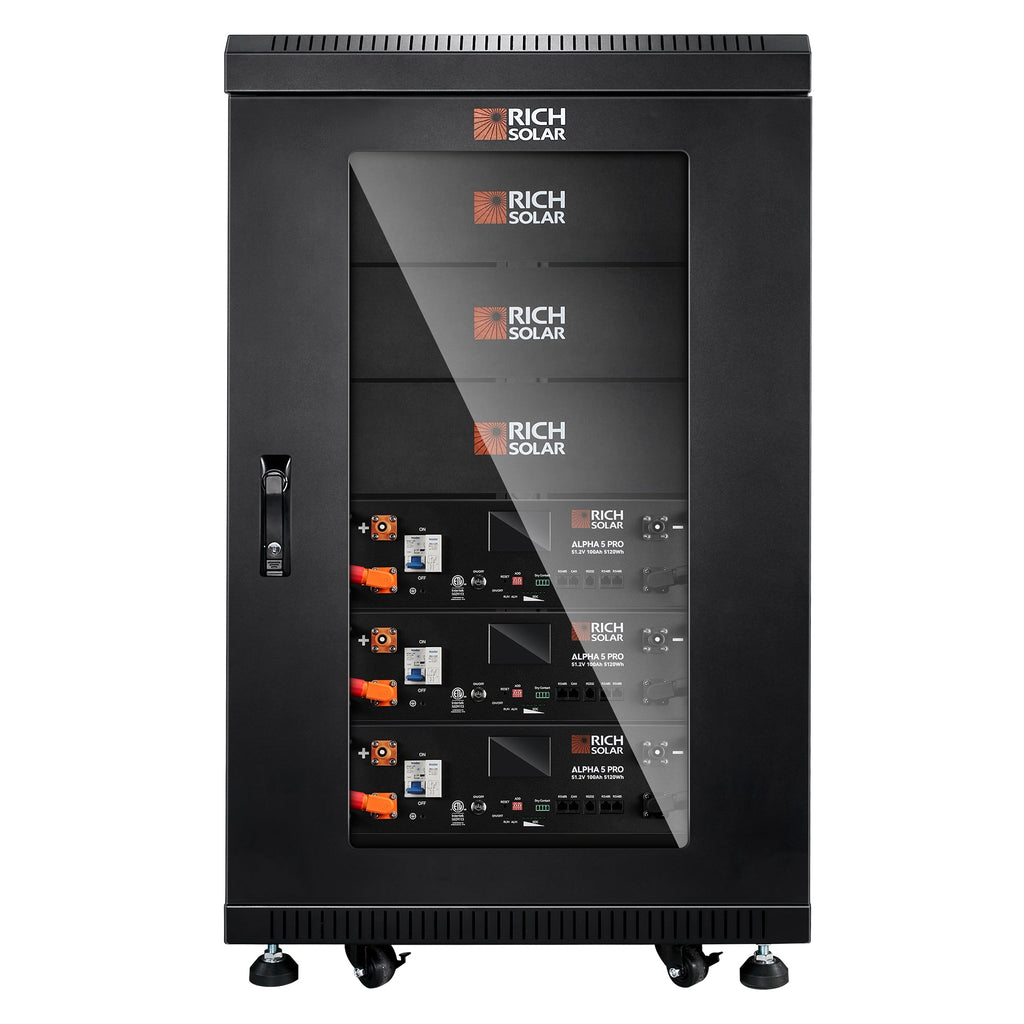

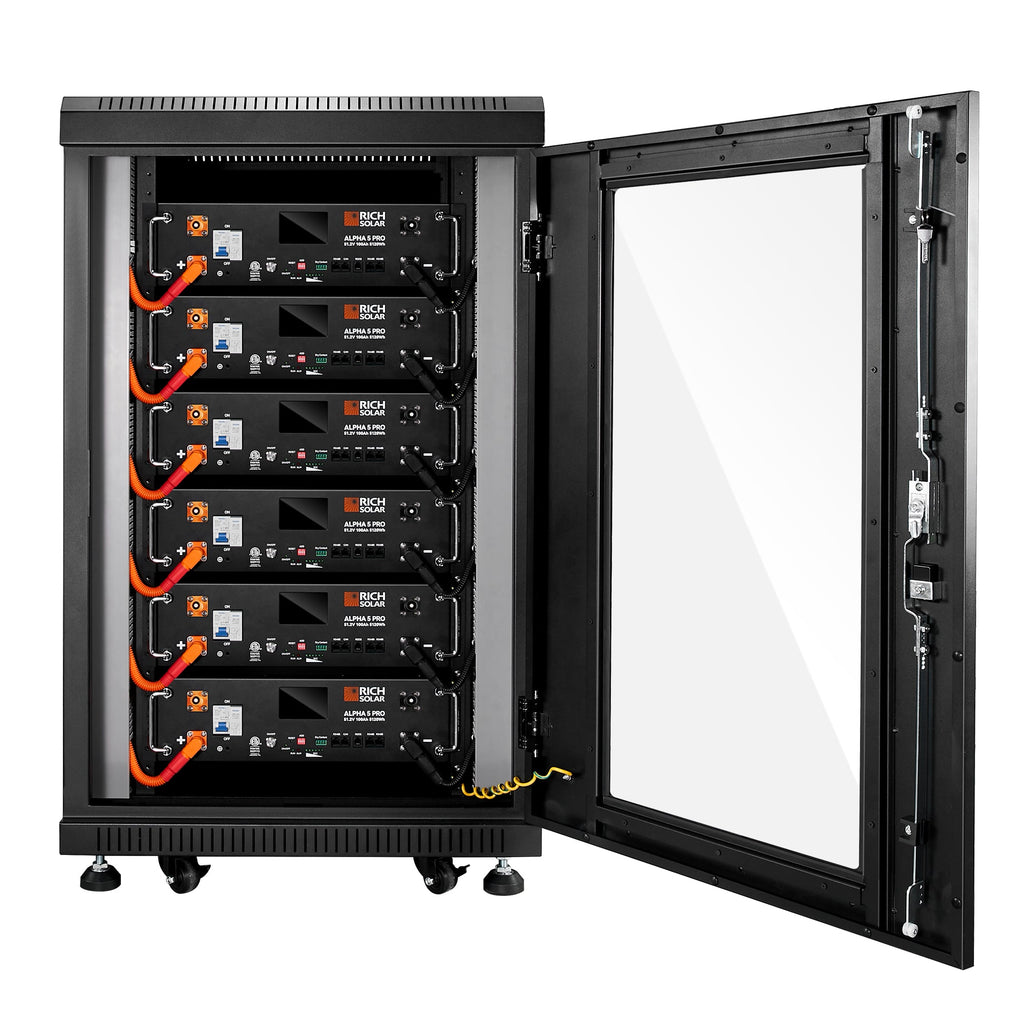

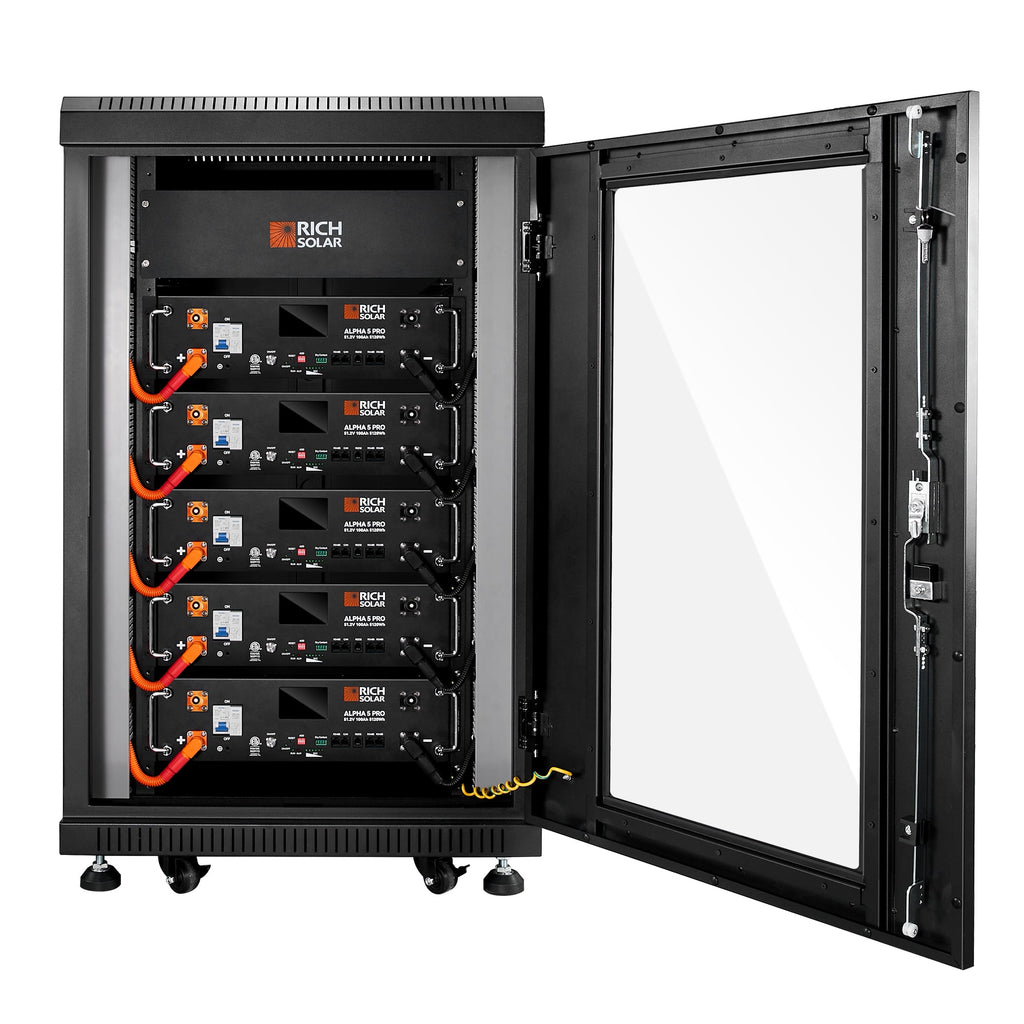

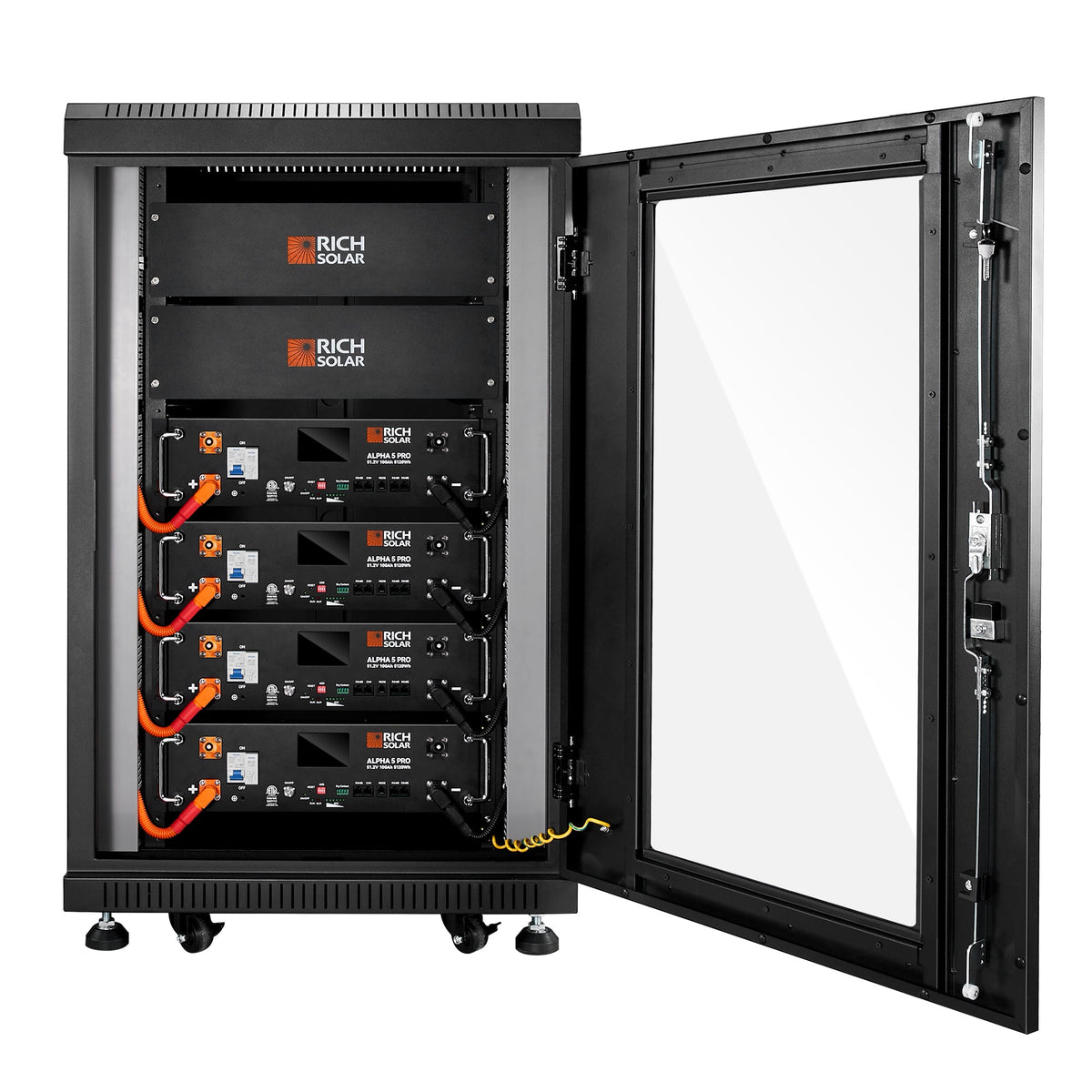

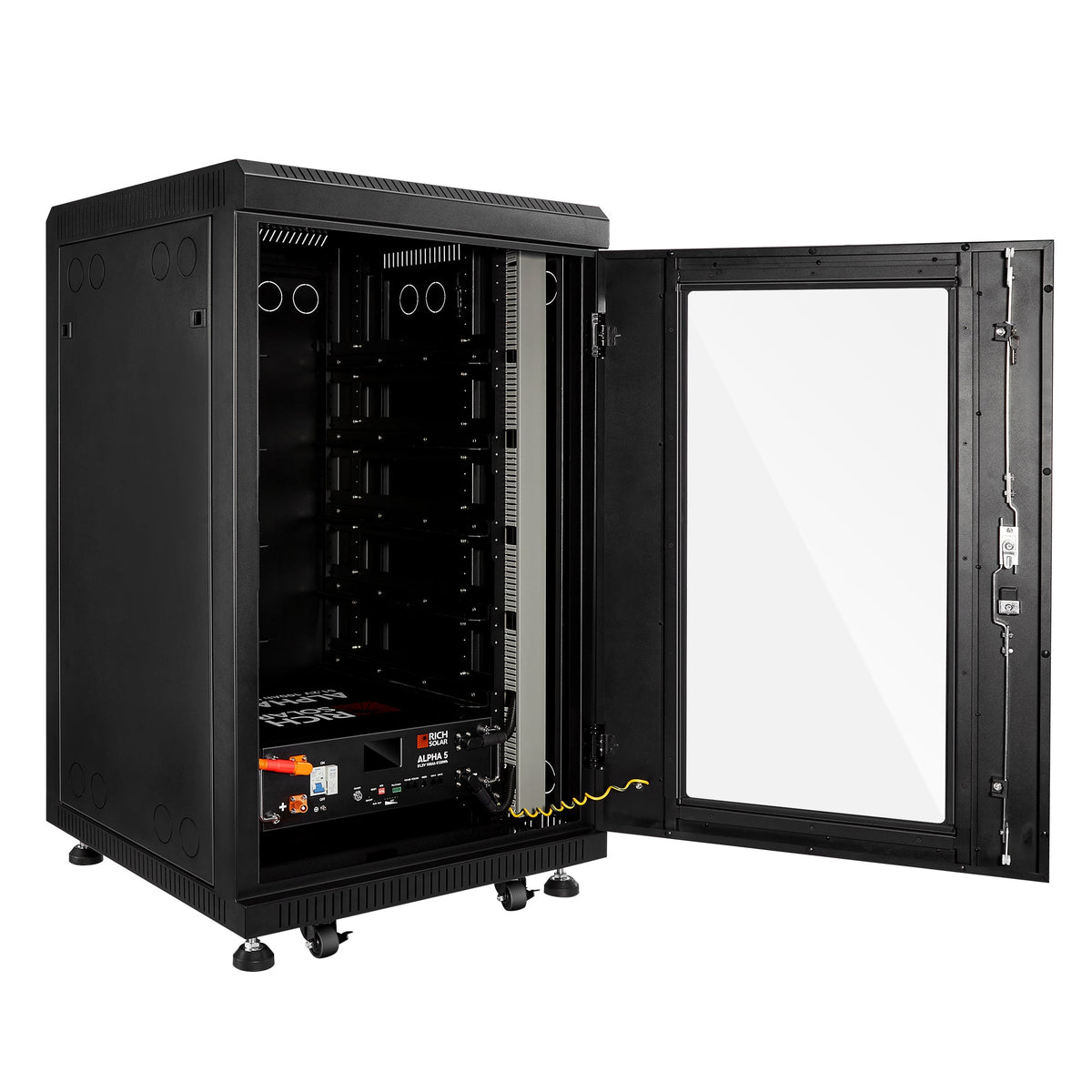

• Metal Rack-Mount Housing: Designed for long-term durability in residential and commercial energy storage systems.

• Ideal for Off-Grid Homes, Residential Backup, Commercial Energy Storage, and RV Applications.

Specifications

• Nominal Voltage: 51.2V

• Rated Capacity: 100Ah

• Nominal Energy: 5120Wh

• Cell Chemistry: LiFePO₄

• Cycle Life: 7,000+

• Charging Voltage: 57.6V

• Max. Charge Current: 100A

• Max. Continuous Discharge Current: 100A

• Parallel Expansion: Up to 30 units (30P)

• Wireless Monitoring: Wi-Fi + Bluetooth

• Internal Heating: Yes

• IP Rating: IP21

• Warranty: 10 Years

• Dimensions (L × W × H): 17.7 × 17.8 × 5.2 in

• Net Weight: 100.9 lbs

• Communication Ports: RS485/RS232/CAN

• Certifications: UL 1973, UL 9540A, FCC, UN 38.3, MSDS

• Package Dimensions: 22.64 × 21.85 × 10.24 in

• Gross Weight: 139 lb
