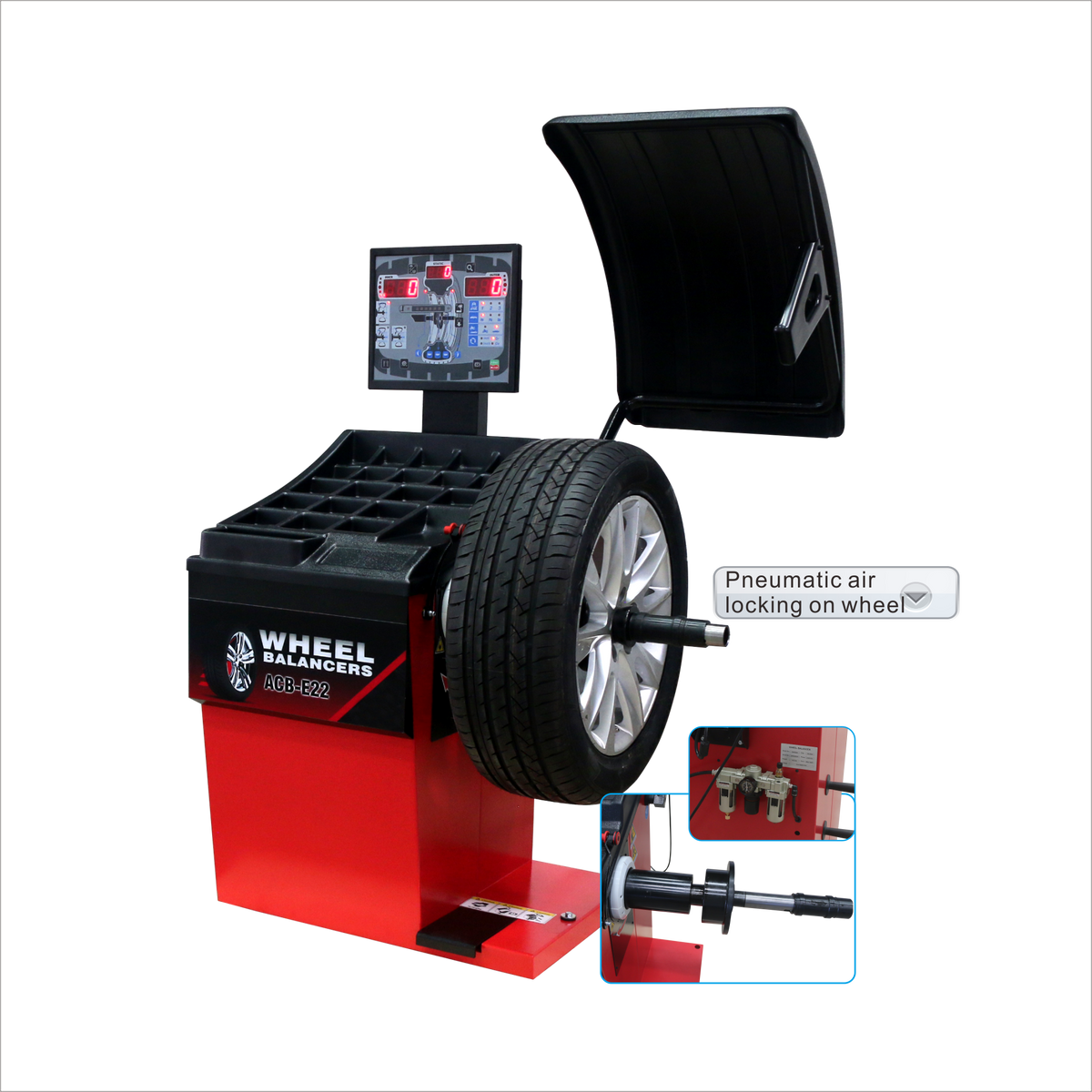

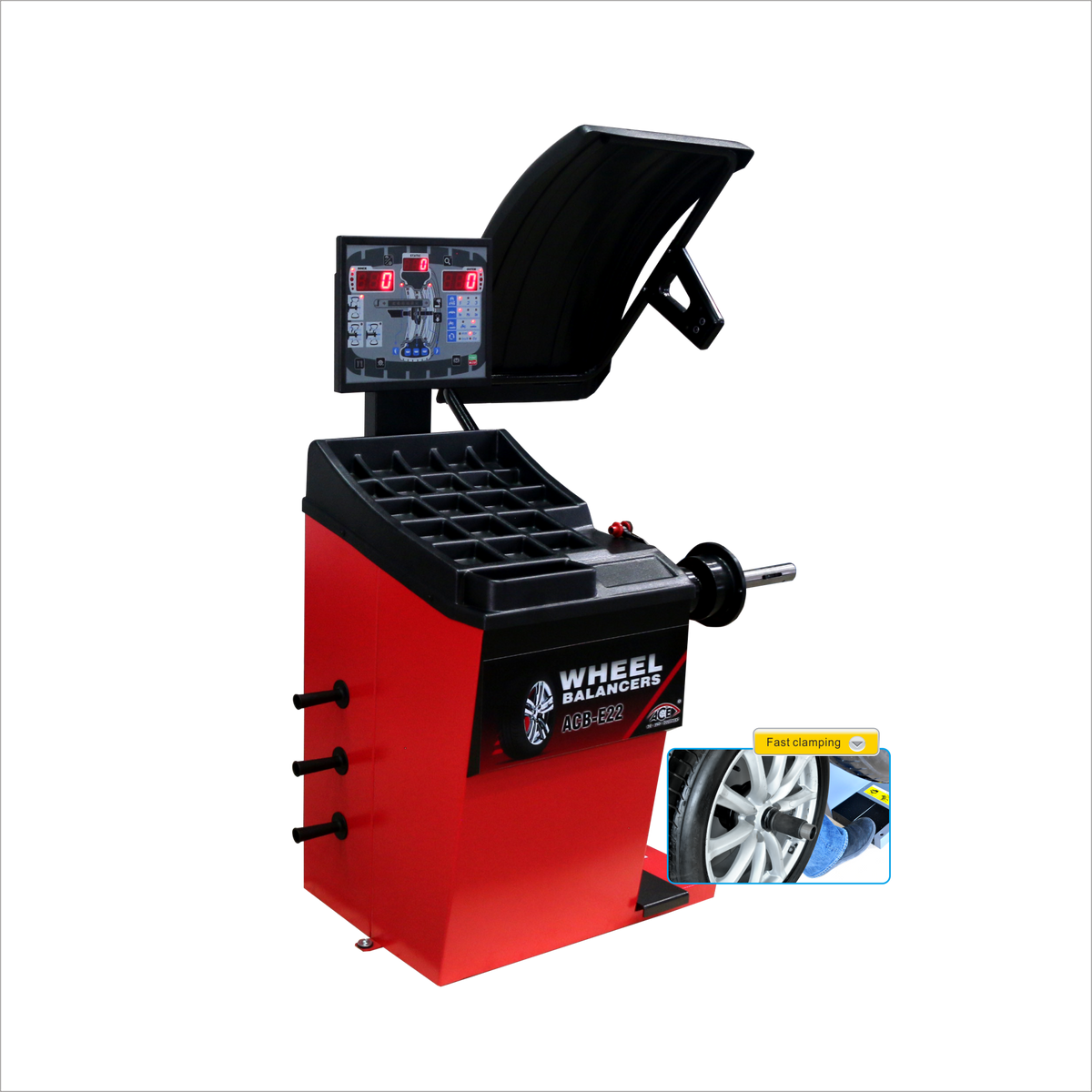

ACE Wheel Balancer ACB-E22 – LCD Display, Pneumatic Lock, 10"-32" Rim automatic locating and locking position, laser indicator for 12o'clock and 6o'clock position
£1,109.00
Sale price
£1,109.00
Regular price
Skip to product information
ACE Wheel Balancer ACB-E22 – LCD Display, Pneumatic Lock, 10"-32" Rim automatic locating and locking position, laser indicator for 12o'clock and 6o'clock position
£1,109.00
Sale price
£1,109.00
Regular price
Shipping calculated at checkout.
ACBE2202
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
l Multi-user management enables the effective management of each user's workload and resource consumption.
l It features comprehensive self-diagnosis capabilities and a built-in error inquiry function, which greatly facilitates maintenance and repair work.
l After one time measurement, you can freely switch the position of the applied weights between the 12 o'clock and 6 o'clock position. This feature also makes rim inner cleaning and the application of sticking weights more convenient.
l The "rotating wheel input" function enables rapid function selection and parameter setting.
l The built - in economical mode saves balance weights and time.
l There are four cones made of precision - machined, hardened steel.
l A self-calibration function is for the shaft and adaptors.
| E22 | |
| Rim Diameter | 10”-32" |
| Rim width | 1.5"-25” |
| Maximum Tire Diameter | 46" |
| Maximum Tire Weight | 176lbs180Kg |
| Accuracy | +/-1g(.0350z) |
| Placement Accuracy | 1· |
| Cycle Time | 6S |
| Rotation Speed | 200rpm |
| Power Supply | 110V/60HZ/1PH |
| Motor Power | 0.25KW |
| Shaft Diameter | 40mm |
| Standard Cones Quantity Diameter Range | 4 pcs /1.8"-5.25" |
| Distance Between the Flange and the Body | 10.8"/275mm |
| Package Dimensions | 960*750*1130 |
| Model | E22 |
| Wheel guard | YES |
| Automatic gauge A/D | YES |
| Automatic gauge B | YES |
| Automatic locating and locking unbalanced position| | YES |
| Laser indicator for inner 12 o'clock position | YES |
| Laser indicator for inner 6 o'clock position | YES |
| Display | LED |
| Lighting | YES |
| Rim runout diagnosis | YES |
| EALU function | YES |
| Calibration, self diagnosis, setting up functions | YES |
| Wheel locking method | Pneumatio |
