Part Number: 826 New Style. Direct Replacement for 826 Old Style (See video)

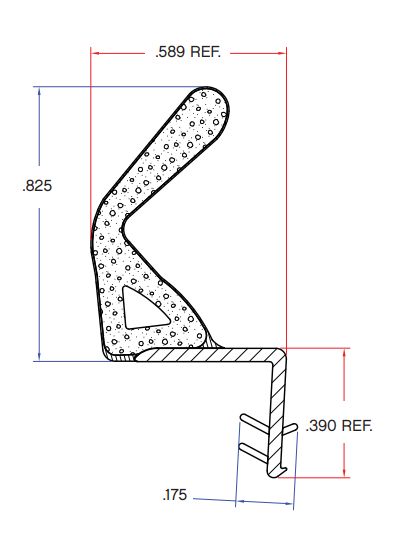

Amesbury Truth E-Lon .825 Compression Seal Swing Door Kerf Weather Strip Foam Seal

Black Size: 4 foot or 12 foot long

White and Bronze Size:  97 inch long Only No returns for special order items, all sales final

Custom Orders: Custom sizes / colors available upon request. Minimum order of 24,000 feet would be required please email info@windowpartscenter.com for quote - no returns for custom orders. All sales final

SERIES 12604

PRODUCT APPLICATIONS
Compression Seal / Swing Door

MATERIAL
Closed cell foam
Thermoplastic Elastomers (TPE’s)
Rigid kerf material

KERF WIDTH
.125” (3.175mm)

KERF DEPTH
.50” (12.7mm)

COMPRESSION
50% (+10/-40)

RABBET DEPTH
2.125” (54mm)

COMPRESSION SET (AAMA 702 test method)
Less than 9% when compressed @
75% 22 hours @ 158F (70C)

WATER ABSORPTION
Float - 0.4% , 1” Wick - 1.0%, Submerge - 5.4%

INSTALLATION
Same profile seals the strike side, hinge side, and header.
Installs easily in most out of spec kerfs.

FIRE AND SMOKE RATINGS

• UL certification for 20 minute fire rating
• Equates to a category “J” rating
• UL certification to 1784 standard
• Equates to a category “H” rating for the gasket
• Having the “H” rating will allow customers to use the gasket in door assemblies that are rated for smoke and draft (an “S” rated door system).

Maintenance: Weather Strip Seals are an maintenance item. You should replace your weather strip periodically once it’s worn out so doors seal properly. Lifespan of weatherstripping depends on your climate, weather conditions of the area you live in, and other wear and tear factors that is put on the window.
