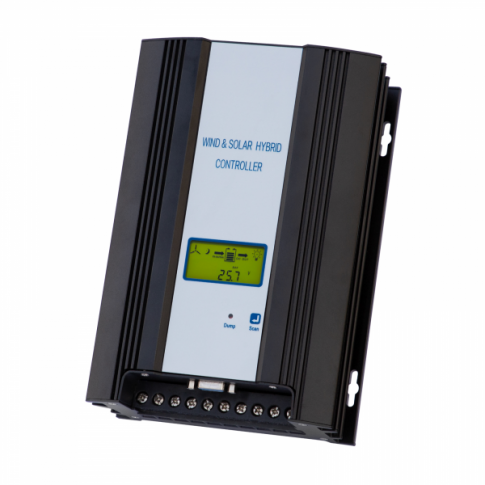

600W 24V hybrid wind MPPT charge controller with 300W solar input and LCD display
£88.00
Sale price
£88.00
Regular price
Skip to product information
600W 24V hybrid wind MPPT charge controller with 300W solar input and LCD display
£88.00
Sale price
£88.00
Regular price
Shipping calculated at checkout.
HCM600-24-24
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
HCM600-24-24 HYBRID CONTROLLER
600W Wind / 300W Solar MPPT Controller for 24V Systems
The HCM600-24-24 is an advanced hybrid charge controller specifically engineered for off-grid power systems. Combining high-efficiency Wind MPPT (Maximum Power Point Tracking) with Solar PWM technology, this unit maximizes energy harvest from both sources simultaneously. It is designed to charge 24V battery banks and includes a sophisticated electronic braking system to protect your wind turbine during high-wind events.
PERFORMANCE: Features low-wind boost technology to begin charging even at low turbine rotation speeds, ensuring consistent power delivery.
Key Features
- ✔ Dual Source Charging: 600W Wind & 300W Solar
- ✔ MPPT Technology: Optimized wind power extraction
- ✔ LCD Interface: Real-time voltage and current monitoring
- ✔ Intelligent Protection: Auto-braking and overcharge safety
- ✔ RS232 Port: Advanced software configuration capable
Technical Specs
| Battery Voltage | 24V Auto-Recognize |
| Max Wind Power | 600W |
| Max Solar Power | 300W |
| Wind Input Range | 4V - 32V (MPPT) |
| Max Solar Voc | 48V |
| DC Load Outputs | 2x 10A Terminals |
| Dimensions | 150 x 220 x 83 mm |
| Weight | 2.3 kg |
Compatibility / Fitment Guide
| System Type | Battery Application | Notes |
|---|---|---|
| Off-Grid Hybrid | 24V Lead-Acid / AGM / Gel | Ideal for Hybrid 24V configurations |
| Wind Turbine | 3-Phase AC or DC (24V) | Max 600W rating |
| Solar Array | 24V Nominal Panels | Max 300W / 48V Voc |
OEM Cross Reference
| Photonic Universe | HCM600-24-24 |
| Phaesun Article No. | 310133 |
| Series Code | SWM-600/300-24 |
Installation Guide
1. Connect the 24V Battery bank first to allow the controller to initialize. 2. Connect the Solar panels (optional). 3. Connect the Wind Turbine. 4. Ensure all connections are tightened and insulated. Mounting should be in a well-ventilated indoor environment away from direct moisture.
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket hybrid controller designed by industry-leading power engineers to meet or exceed the performance of original manufacturer equipment for 24V off-grid systems.
How do I know if it is compatible?
Verify that your battery bank is 24V and your wind turbine does not exceed 600W. If your previous controller matched SKU HCM600-24-24, this is a direct replacement.
Does it include an automatic brake?
Yes, it features an integrated electronic turbine braking function which triggers automatically during high wind speeds or when the battery is fully charged to prevent over-rotation and system damage.
Note: Please verify your system voltage and power ratings against the specifications above before purchasing. Domain: solarika.co.uk
