Battery Isolator Switch BS-600
600A Heavy-Duty High Current Disconnect
The Solarika BS-600 is a professional-grade battery isolator switch designed for high-demand electrical environments. Whether managing a large off-grid solar battery bank or a marine engine system, this switch provides a reliable and safe way to isolate your power source. Built with robust materials to handle extreme cranking loads and continuous high current without overheating.
RELIABILITY: Features M12 tin-plated copper studs for maximum conductivity and corrosion resistance, essential for marine and outdoor solar applications.
Key Features
- ✔ 600A Continuous current rating
- ✔ 2500A Cranking capacity (10 secs)
- ✔ Compatible with 12V, 24V, & 48V DC
- ✔ Ignition protected (safe for gas boats)
- ✔ Removable side plates for easy wiring
Technical Specs
| Continuous Rating | 600 Amps DC |
| Intermittent Rating | 900 Amps DC |
| Cranking Rating | 2500 Amps DC |
| Max Voltage | 48V DC |

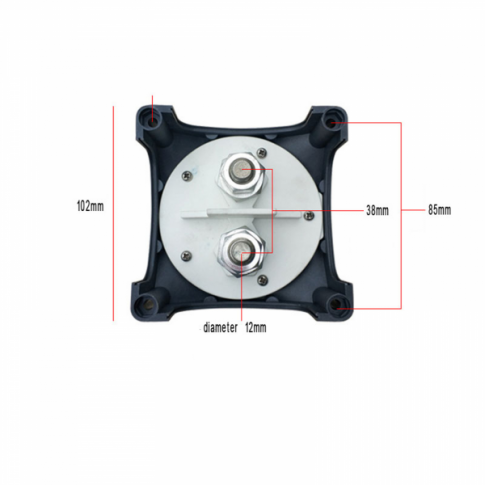

| Terminal Stud | M12 (12mm) |

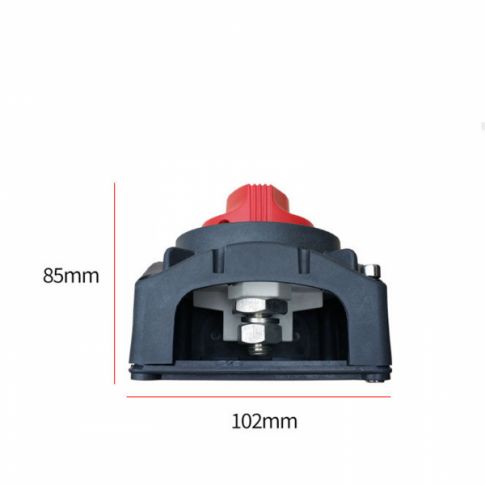

| Dimensions | 102 x 102 x 85 mm |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Solar Photovoltaic | Inverter & Battery Bank | Safely disconnects high-wattage inverters for maintenance. |
| Marine / Yacht | Main Engine Disconnect | Corrosion-resistant studs handle saltwater environments. |
| Motorhome / RV | Leisure Battery Isolation | Prevents parasitic drain during long-term storage. |
OEM Cross Reference
| Blue Sea Systems | 3000 Series / 3002 Equivalent |
| BEP Marine | 720 / 720-DP Equivalent |
| Photonic Universe | BS-600 |
Installation Guide
1. Ensure all power sources are disconnected before installation. 2. Mount on a flat surface using the four pre-drilled holes. 3. Use M12 ring terminals for battery cable connections. 4. Torque terminals to 13.5 Nm (120 in-lb). 5. Re-check all connections for tightness after initial use. Professional installation by a qualified electrician is recommended for high-current DC systems.
Questions & Answers
Is this a genuine original part?
This is a premium quality Solarika replacement part, manufactured to meet or exceed original equipment (OE) standards for heavy-duty power isolation.
How do I know if it is compatible?
We recommend checking the SKU/MPN (BS-600). If your system requires a 600A disconnect with M12 studs, this is the industry-standard choice.
Can this be used with 48V Lithium (LiFePO4) batteries?
Yes, the BS-600 is rated for up to 48V DC, making it perfectly suited for modern 48V lithium-ion or LiFePO4 battery banks common in solar storage.
Note: Please verify your required amperage and system voltage before purchasing. Visit Solarika.co.uk for further technical documentation.
