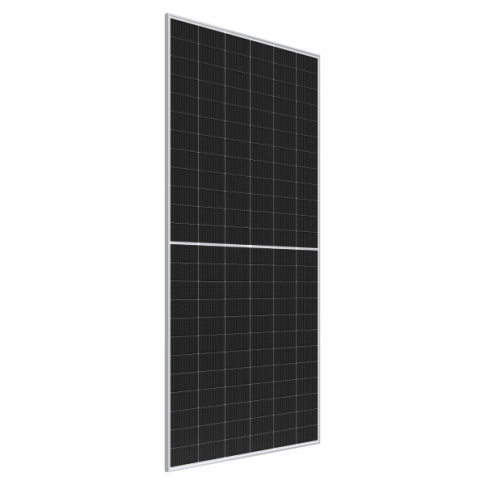

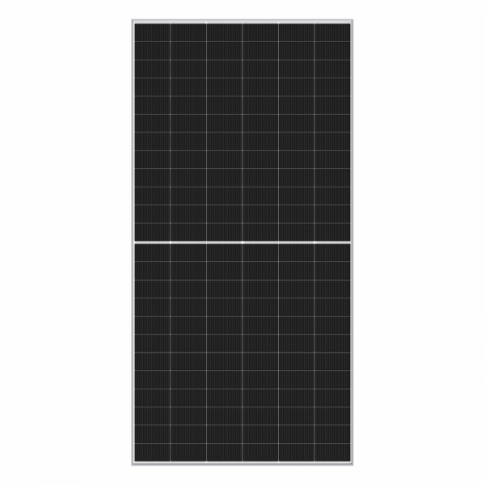

Sharp 585W Bifacial Solar Panel (SRP-585BF)

BIFACIAL PERFORMANCE: Designed to capture sunlight on both the front and rear surfaces, this module can increase energy output by up to 20% depending on the mounting surface and angle.

Key Features

• ✔ High Efficiency: 22.65% module efficiency

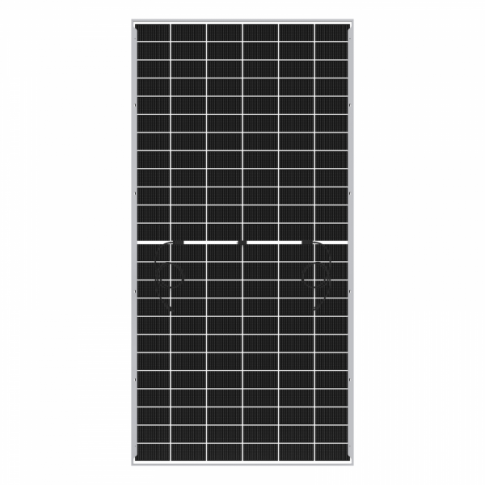

• ✔ Bifacial Gain: Dual-glass technology for rear-side power
• ✔ PID Resistant: Tested for anti-PID performance
• ✔ Extreme Durability: Certified for wind (2400 Pa) and snow (5400 Pa)
• ✔ Silver Frame: Robust anodized aluminium frame

Technical Specs

Peak Power (Pmax)	585 W
Max Power Voltage (Vmp)	43.37 V
Max Power Current (Imp)	13.49 A
Open Circuit Voltage (Voc)	52.76 V
Short Circuit Current (Isc)	14.09 A
Dimensions	2278 x 1134 x 30 mm
Weight	32.5 kg

System Type	Application	Recommended Use
Grid-Tied	Residential / Commercial Rooftops	High yield for Feed-in Tariffs
Off-Grid	Cabins, Boats, Motorhomes	Requires 40A+ MPPT Controller
Large Scale	Ground-Mount Solar Farms	Maximized return with Bifacial Gain

This panel comes equipped with standard MC4 connectors and 1200mm cable lengths (0.4m/0.2m standard variants). For off-grid battery charging, an MPPT charge controller is essential due to the high operating voltage. Professional installation by an MCS-certified installer is recommended for grid-tied connections.

Is this a genuine original part?

Yes, this is a premium Sharp module sourced via official distribution channels, branded and warrantied for high-performance solar installations.

How do I know if it is compatible with my inverter?

Check the Voc (52.76V) and Isc (14.09A) specifications. Most modern 1000V/1500V string inverters are fully compatible with these parameters.

What is the benefit of N-Type TOPCon technology?

N-Type TOPCon cells have zero Light Induced Degradation (LID) and better low-light performance, resulting in higher lifetime energy production compared to standard P-type panels.
