50W 12V monocrystalline solar panel with 90cm cable
£22.00
Sale price
£22.00
Regular price
Skip to product information
50W 12V monocrystalline solar panel with 90cm cable
£22.00
Sale price
£22.00
Regular price
Shipping calculated at checkout.
SWG-50M
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description

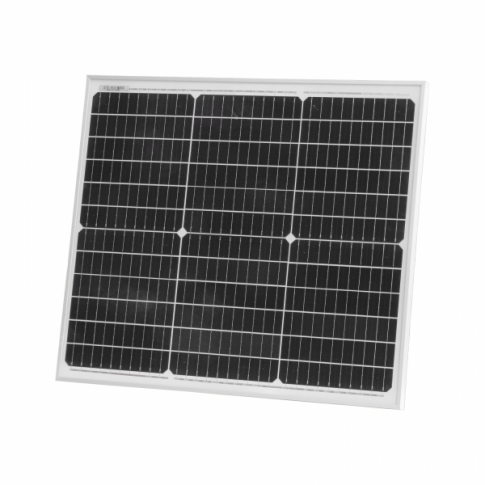

Solarika 50W Monocrystalline Solar Panel [SWG-50M]
High-Efficiency Off-Grid Power Solution
The Solarika SWG-50M is a premium 50W 12V monocrystalline solar panel engineered for permanent outdoor use. Built with innovative 5-busbar solar cells, this panel is significantly more efficient than standard 2 or 3-busbar alternatives, allowing it to extract maximum power from a smaller surface area—perfect for applications where space is at a premium.
RELIABILITY: Fully waterproof and encased in a corrosion-resistant aluminium frame, designed for harsh marine and off-grid environments.
Key Features
- ✔ 5-Busbar Technology: Superior efficiency in low-light conditions.

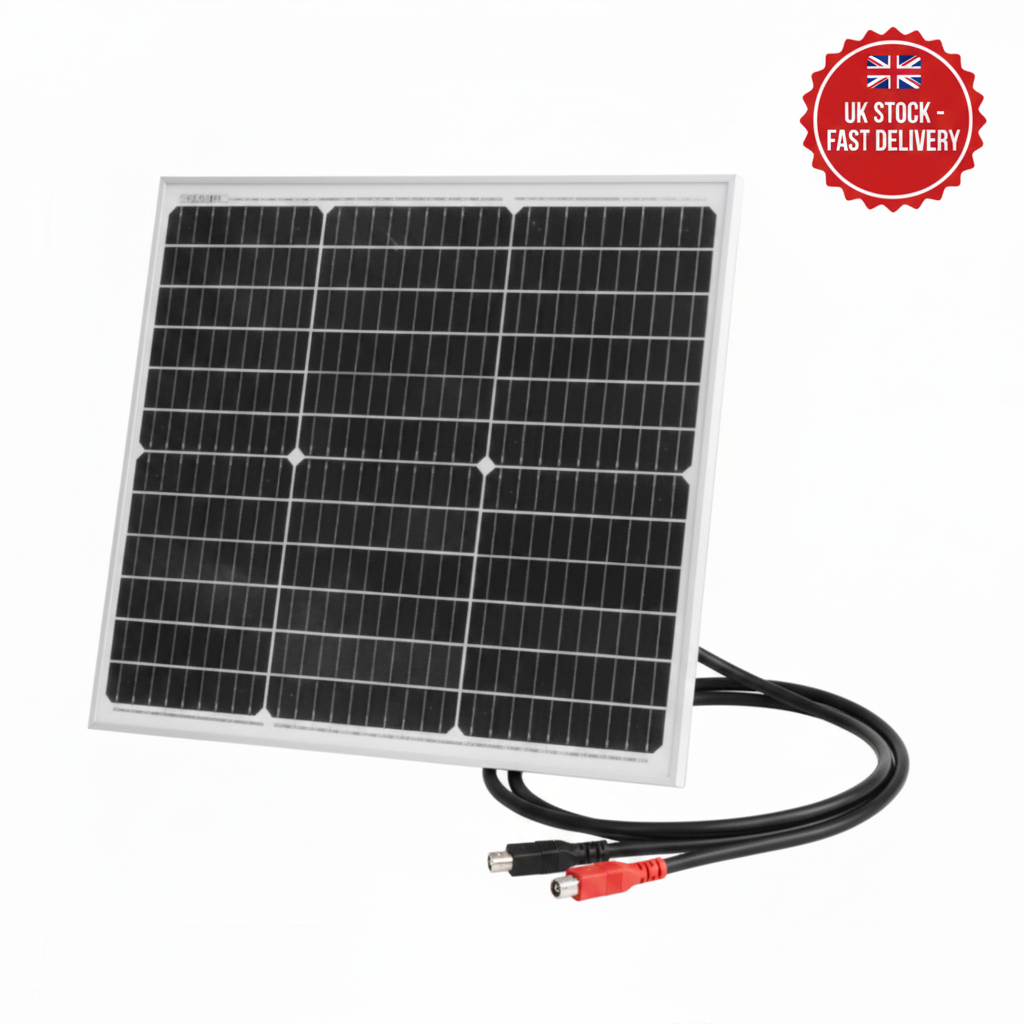

- ✔ Pre-Wired: Includes 2 x 0.9m of 2.5mm² solar cable with MC4 connectors.
- ✔ Rigid Construction: Anodized aluminium frame for long-term durability.

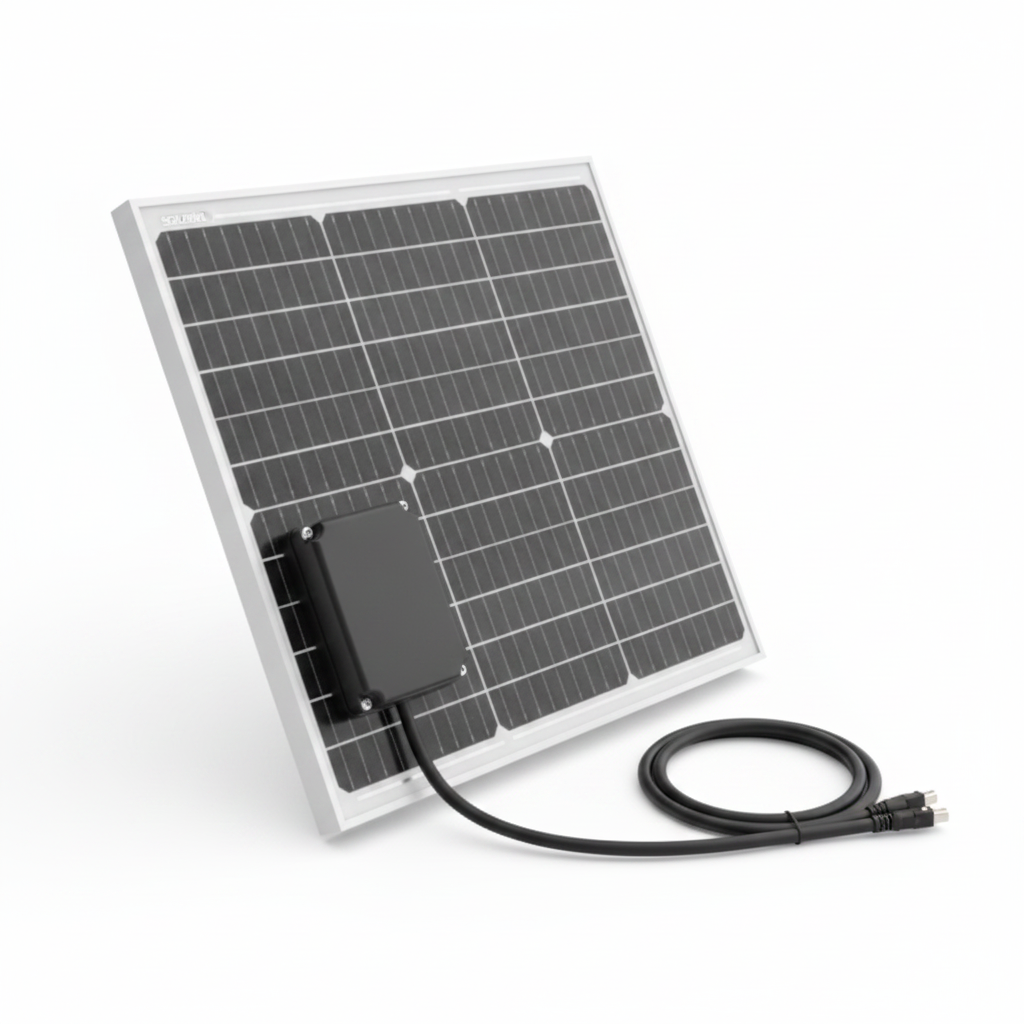

- ✔ Weatherproof: IP65/IP67 rated junction box for total rain protection.
Technical Specs
| Peak Power (Pmax) | 50W |
| Max Power Voltage (Vmp) | 20.41V |
| Max Power Current (Imp) | 2.45A |
| Open Circuit Voltage (Voc) | 24.57V |
| Short Circuit Current (Isc) | 2.61A |
| Dimensions | 580 x 510 x 25 mm |
| Weight | 3.2 kg |
Compatibility / Fitment Guide
| Application Type | System Compatibility | Notes |
|---|---|---|
| Leisure Vehicles | Campervans, Motorhomes, Caravans | Ideal for 12V battery maintenance. |
| Marine | Boats, Yachts, Narrowboats | Saltwater resistant frame. |
| Remote Sites | CCTV, Monitoring, Sheds, Farms | High performance in UK overcast weather. |
OEM Cross Reference
| Part Number / SKU | SWG-50M |
| Direct Match | Photonic Universe SWG-50M |
Installation Guide
This panel is fitted with 0.9m of solar cable terminated with MC4-compatible connectors. Note: This panel must be connected to a suitable solar charge controller (PWM or MPPT) and should not be connected directly to a battery to avoid overcharging.
Questions & Answers
Is this a genuine original part?
This is a premium Solarika branded monocrystalline panel, manufactured to the same specifications as the SWG-50M SKU for high-performance off-grid use.
How do I know if it is compatible?
If you are replacing a 50W rigid panel with similar dimensions (approx. 580x510mm), this is a direct replacement. It is compatible with all 12V lead-acid, AGM, and Gel battery systems via a charge controller.
Can this panel be used to charge 24V batteries?
As a single 12V nominal panel, it is designed for 12V systems. However, two of these SWG-50M panels can be wired in series to charge a 24V battery bank using a standard charge controller.
Note: Please verify dimensions and system voltage requirements before purchasing. Visit Solarika.co.uk for technical support.
