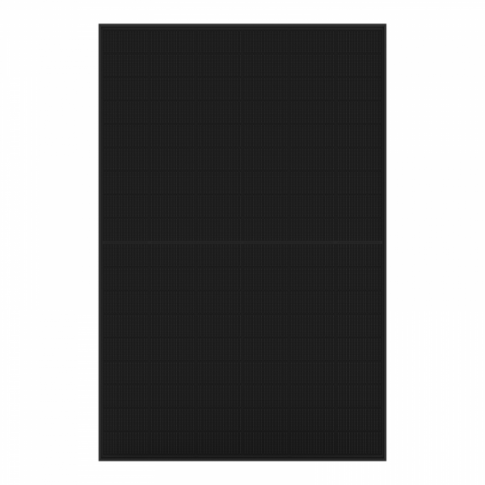

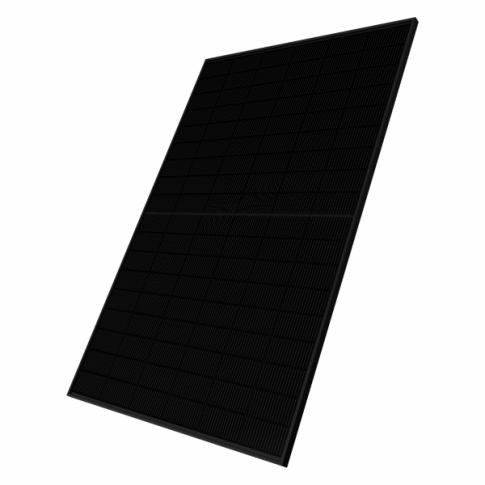

430W Sharp NU-JC430B Full Black Monocrystalline Solar panel with high-efficiency TOPCon cells
£176.00
Sale price
£176.00
Regular price
Skip to product information
430W Sharp NU-JC430B Full Black Monocrystalline Solar panel with high-efficiency TOPCon cells
£176.00
Sale price
£176.00
Regular price
Shipping calculated at checkout.
SRP-430B
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Sharp 430W Full Black Solar Panel [SRP-430B]
Premium N-Type TOPCon Technology for Maximum Efficiency
The SRP-430B (based on the Sharp NU-JC430B) represents the pinnacle of solar engineering, combining a sleek "Full Black" aesthetic with cutting-edge TOPCon (Tunnel Oxide Passivated Contact) cell technology. This N-type monocrystalline panel is designed to provide superior performance even in low-light or high-temperature conditions, ensuring your system generates more power per square meter.
RELIABILITY: Built by a global leader with over 60 years of solar experience. Features IP68 weatherproofing and high resistance to PID, salt mist, and ammonia.
Key Features
- ✔ TOPCon Technology: Higher efficiency and lower degradation over time.
- ✔ Full Black Design: Uniform black cells, frame, and backsheet for a premium look.
- ✔ Half-Cut Cells: Reduces internal resistance and increases shade tolerance.

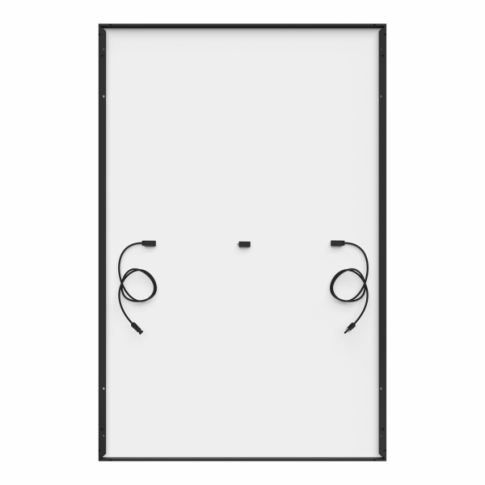

- ✔ MC4 Compatible: Pre-fitted with 1.25m cables and waterproof connectors.
Technical Specs
| Peak Power (Pmax) | 430W |
| Max Power Voltage (Vmp) | 32.73V |
| Max Power Current (Imp) | 13.14A |
| Open Circuit Voltage (Voc) | 39.09V |
| Short Circuit Current (Isc) | 14.01A |
| Dimensions | 1722 x 1134 x 30 mm |
| Weight | 20.7 kg |
Compatibility / Application Guide
| System Type | Recommended Use | Notes |
|---|---|---|
| Grid-Tie Systems | Residential Rooftops | Perfect for high-efficiency household arrays. |
| Off-Grid Power | Campervans, Boats, Cabins | Requires an MPPT charge controller (min 40A-60A). |
| Battery Storage | Hybrid Solar Systems | N-Type cells offer better long-term stability for storage. |
OEM Cross Reference
| Sharp Part Number | NU-JC430B / NUJC430B |
| SKU Reference | SRP-430B / SRP-430B-3 |
| Cell Technology | TOPCon Monocrystalline N-Type |
Installation Guide
Mounting: Use the pre-drilled holes on the aluminum frame for securing to rail systems. Electrical: Use the built-in MC4 connectors for a series or parallel configuration. For battery charging, an MPPT Charge Controller is mandatory to handle the high output voltage. Professional installation by a qualified solar technician is recommended.
Questions & Answers
Is this a genuine original part?
This is an original high-quality solar panel manufactured by Sharp, marketed under our SKU SRP-430B. It meets all MCS and IEC certifications for safety and performance.
How do I know if it is compatible?
Check the dimensions (1722mm x 1134mm) and electrical specs. If you are replacing an existing panel, ensure your inverter or controller can handle the 32.73V (Vmp) and 13.14A (Imp) values.
What are the benefits of TOPCon cells over PERC?
TOPCon cells (featured in the SRP-430B) offer higher efficiency, a lower temperature coefficient (meaning better performance in heat), and significantly lower light-induced degradation (LID) compared to standard PERC cells.
