31x JA Solar 550W Bifacial PV Module 144 Half-Cell JAM72D30-550/MB (Pallet)
£3,538.00
Sale price
£3,538.00
Regular price
Skip to product information
31x JA Solar 550W Bifacial PV Module 144 Half-Cell JAM72D30-550/MB (Pallet)
£3,538.00
Sale price
£3,538.00
Regular price
Shipping calculated at checkout.
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description

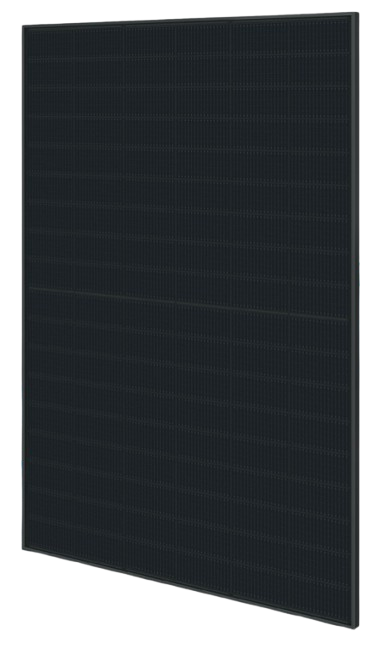

Introducing the JA Solar DeepBlue 3.0 JAM72D30-550/MB 550W Bifacial Solar Panel Pallet (31 Units)
Elevate your solar energy projects with the JA Solar DeepBlue 3.0 JAM72D30-550/MB, a high-efficiency bifacial solar panel designed for commercial and utility-scale installations. This pallet includes 31 panels, each delivering up to 550W of power, ensuring optimal performance and energy yield.
Key Features:
- High Power Output: Each panel offers a maximum power output of 550W with a module efficiency of 21.3%, optimizing space and performance.
- Bifacial Technology: Captures sunlight from both front and rear sides, increasing energy generation by up to 70% compared to monofacial panels.
- Durable Construction: Features 2.0 mm tempered glass on both sides, providing enhanced resistance to environmental factors and mechanical stress.
- Reliable Performance: Equipped with 144 half-cut monocrystalline PERC cells and MC4-EVO2 connectors, ensuring efficient energy conversion and easy integration.
- Extended Warranty: Comes with a 12-year product warranty and a 30-year linear power output warranty, guaranteeing long-term reliability.
Product Overview:
The JA Solar JAM72D30-550/MB panel is engineered with advanced bifacial PERCIUM cell technology, allowing it to absorb sunlight from both sides. This design not only boosts energy yield but also enhances performance in low-light conditions and reduces the impact of shading. The dual-glass structure ensures durability, making it suitable for various environmental conditions, including high humidity and temperature fluctuations.
Ideal for large-scale solar installations, this panel's high power output and efficiency reduce the number of panels required, lowering installation costs and space requirements. Its compatibility with standard mounting systems and inverters simplifies the integration process, making it a preferred choice for solar professionals.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | JAM72D30-550/MB |
| Maximum Power Output (Pmax) | 550W |
| Module Efficiency | 21.3% |
| Cell Type | 144 Half-Cell Monocrystalline PERC |
| Bifaciality Factor | 70% ±10% |
| Open Circuit Voltage (Voc) | 49.9V |
| Short Circuit Current (Isc) | 14.0A |
| Maximum Power Voltage (Vmp) | 41.96V |
| Maximum Power Current (Imp) | 13.11A |
| Power Tolerance | 0 to +5W |
| Operating Temperature Range | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Dimensions (L x W x H) | 2278 x 1134 x 30 mm |
| Weight | 31.8 kg |
| Front/Back Glass Thickness | 2.0 mm |
| Junction Box Protection | IP68, 3 Diodes |
| Connector Type | MC4-EVO2 |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
| Certifications | IEC 61215, IEC 61730, UL 61215, UL 61730, ISO 9001, ISO 14001, ISO 45001 |
| Warranty | 12-Year Product, 30-Year Linear Power Output |
