Description

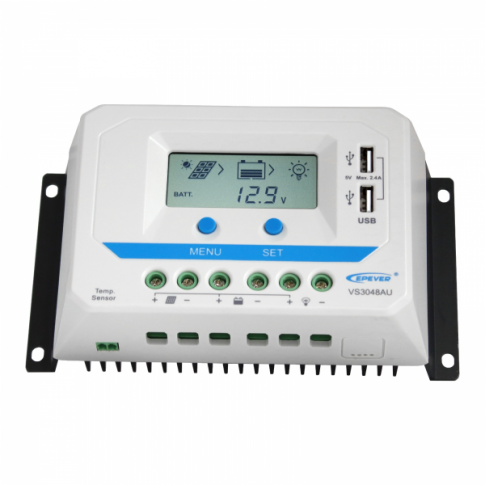

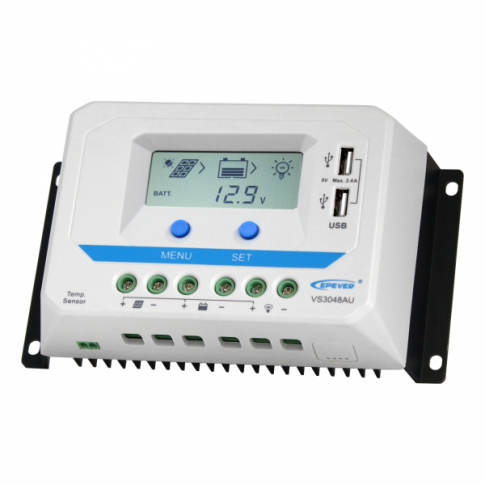

EPEVER VS3048AU Solar Controller
30A 12V/24V/36V/48V PWM Intelligence
The VS3048AU is a sophisticated PWM solar charge controller from the ViewStar AU series, designed for versatile off-grid solar applications. Featuring a high-quality LCD display and dual USB ports, it allows for easy monitoring of your solar system while providing a convenient power source for mobile devices. It utilizes advanced digital techniques to optimize battery health and ensure maximum efficiency.
RELIABILITY: Engineered with high-quality components from ST, IR, and Infineon to ensure an extended product lifespan and stable performance under full load.
Key Features
- ✔ Auto-System Voltage: 12V/24V/36V/48V DC auto detection.
- ✔ 3-Stage Charging: Intelligent Bulk, Boost/Equalize, and Float modes.
- ✔ Dual USB Ports: 5V/2.4A output for charging phones and electronics.
- ✔ LCD Display: Real-time operating data and working status visibility.
- ✔ Battery Support: Pre-programmed for Sealed, Gel, and Flooded batteries.
Technical Specs
| Rated Charge Current | 30A |
| System Voltage | 12/24/36/48V DC Auto |
| Max. PV Input Voltage | 96V |
| Battery Input Range | 9V to 64V |
| Terminals | 16mm² / 6AWG |
| Enclosure | IP30 |
| Dimensions | 181 x 100.9 x 59.8 mm |
| Net Weight | 0.58 kg |
Maximum PV Input Power
| 12V System | 24V System | 36V System | 48V System |
|---|---|---|---|
| 390W | 780W | 1170W | 1560W |
OEM Cross Reference
| Manufacturer | EPEVER / EPSolar |
| Series | ViewStar AU (VS-AU) |
| Part Number | VS3048AU |
| Alternative Brand | Temank VS3048AU |
Installation Guide
- Connect the Battery: First, connect the battery terminals to the controller. This allows the unit to auto-detect the system voltage (12/24/36/48V).
- Connect the Load: Connect any DC loads to the load terminals (optional).
- Connect the Solar Panel: Finally, connect the PV array to the solar terminals.
- Note: Disconnect in reverse order (Solar first, then Battery). Always install a fuse within 150mm of the battery terminal.
Questions & Answers
Is this a genuine original part?
Yes, this is an authentic EPEVER ViewStar AU series controller, supplied by Solarika, ensuring high performance and safety compliance.
How do I know if it is compatible?
If your system requires a 30A charge current and operates on 12V, 24V, 36V, or 48V, this controller is compatible. Please ensure your PV open circuit voltage (Voc) does not exceed 96V.
What protections are built into this unit?
The VS3048AU includes comprehensive protection against PV reverse polarity, battery overcharge, battery over-discharge, battery reverse polarity, load overload, and load short circuiting.
Note: Please verify your total solar array wattage and voltage against the technical specifications above before purchasing.
