Description

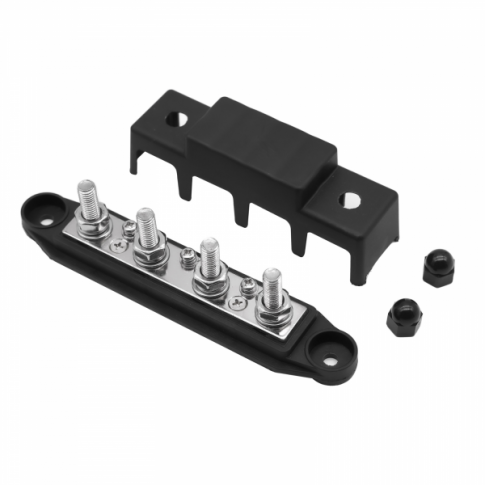

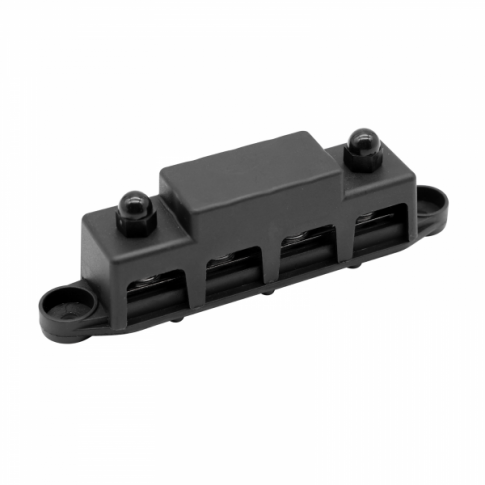

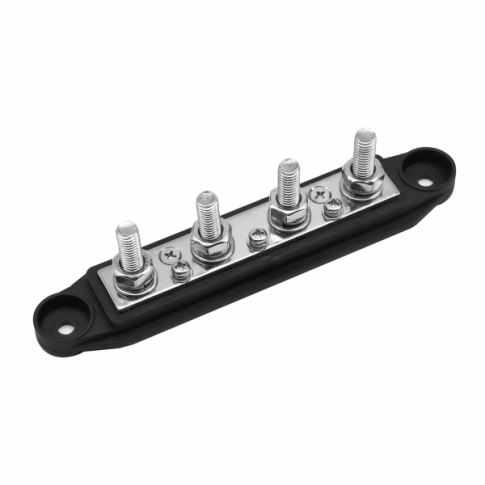

Heavy Duty 250A Busbar [BBB-250]
4-Way Power Distribution Block | 12V - 48V DC
The BBB-250 is a high-performance power distribution block designed for demanding electrical environments. Whether you are managing a 48V solar battery bank, a marine engine circuit, or a custom campervan electrical system, this busbar provides a secure, low-resistance connection point for multiple heavy-gauge cables.
DURABILITY: Manufactured with a high-conductivity tin-plated copper bar and corrosion-resistant stainless steel fixings, ensuring peak performance in harsh or marine environments.
Key Features
- ✔ 250A High-Current Capacity
- ✔ 4 x M8 (8mm) Stainless Steel Studs
- ✔ Insulating Protection Cover Included
- ✔ Marine Grade Anti-Corrosive Design
- ✔ Low-Profile Space Saving Footprint
Technical Specs
| Voltage Range | 12V - 48V DC |
| Continuous Current | 250 Amps |
| Terminal Stud Size | 4 x M8 (8mm) |
| Bus Material | Tin-Plated Copper |
| Screw/Nut Material | Stainless Steel |
| Base Material | Glass Reinforced Nylon |
Application & Compatibility
| System Type | Typical Application | Notes |
|---|---|---|
| Solar / Off-Grid | Battery bank parallel connections | Ideal for 48V battery stacks |
| Marine | Boat & Yacht DC distribution | Salt-spray resistant hardware |
| Automotive | RV, Campervan, 4x4 Auxiliary power | Fits standard ring terminals |
OEM Cross Reference
| SKU / MPN | BBB-250 |
| EAN | 5060297349706 |
| Category | Photovoltaic / DC Distribution |
Installation Guide
1. Secure the base to a flat surface using the provided mounting holes.
2. Ensure all cable ring terminals are clean and free of oxidation.
3. Tighten M8 nuts to the appropriate torque for your cable size (avoid over-tightening).
4. Snap the insulating cover into place to prevent accidental short circuits.
Questions & Answers
Is this a genuine original part?
This is a premium-grade Solarika power distribution component, designed to meet or exceed original equipment standards for high-current DC applications.
How do I know if it is compatible?
If you require a 4-way connection point for a system up to 48V and a total draw of 250A or less, the BBB-250 is the correct choice. Check your ring terminal size—this unit uses M8 (8mm) studs.
Can I use this for both Positive and Negative distribution?
Yes. While often sold in pairs (Black for Negative, Red for Positive), this black BBB-250 unit is functionally identical and can be used for either polarity, though standard practice uses black for negative/ground.
Note: Please verify your system's current and voltage requirements against the technical specs above before purchasing. Distributed by Solarika.co.uk.
