24V 500Ah AGM deep cycle battery bank (12 x 2V batteries) for large power systems and energy storage
24V 500Ah AGM deep cycle battery bank (12 x 2V batteries) for large power systems and energy storage
£884.00
Sale price
£884.00
Regular price
Shipping calculated at checkout.
AGM500AH-12SET
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description

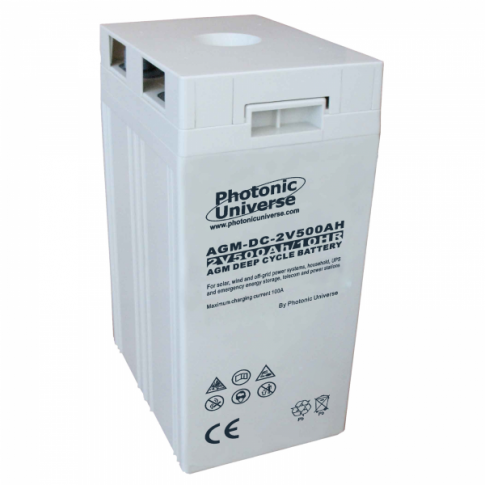

AGM500AH-12SET Battery Bank
24V 500Ah (12kWh) Premium AGM Storage Solution
The Solarika AGM500AH-12SET is a professional-grade energy storage solution designed for large-scale off-grid power systems. This set comprises twelve individual 2V 500Ah AGM batteries, which when wired in series, create a robust 24V 500Ah (12kWh) bank. Unlike standard 12V battery configurations, the use of 2V cells ensures significantly better cell balancing, increased thermal stability, and a much longer service life.
RELIABILITY: Engineered with high-density lead plates and advanced AGM technology, this bank is built to withstand deep discharge cycles in demanding solar and backup environments.
Key Features
- ✔ Maintenance-Free: Sealed AGM design
- ✔ Long Cycle Life: ~1200 cycles at 30% DoD
- ✔ Low Self-Discharge: Ideal for backup power
- ✔ Heavy Duty: Thick plates for deep discharge
- ✔ Safety: Non-spillable and explosion-proof
Technical Specs (Per 2V Unit)
| Nominal Voltage: | 2V |
| Capacity: | 500Ah (10h rate) |
| Max Charge Current: | 100A |
| Terminal Type: | M10 Bolts |
| Weight (Per Cell): | 27 kg |
| Unit Dimensions: | 242 x 174 x 365 mm |
Full Bank Specifications (24V)
| Total Voltage | 24V DC |
|---|---|
| Total Energy Capacity | 12kWh |
| Total Bank Weight | Approx. 340 kg (Includes Connectors) |
| Cycle Use Charge | 28.2V |
| Standby Use Charge | 27.4V |
OEM Cross Reference
| Photonic Universe | AGM500AH-12SET |
| Eos Solar Solutions | AGM500AH-12SET |
| System Compatibility | 24V Solar Off-Grid / UPS Systems |
Installation & Wiring
This kit is supplied with metal plate connectors specifically designed to link the 12 cells in series. Due to the high weight (~340kg total), please ensure the installation surface is load-rated. For 24V operation, connect the positive of one cell to the negative of the next in sequence. Always use insulated tools.
Questions & Answers
Is this bank better than two 12V 250Ah batteries?
Yes. Using 2V cells allows for much thicker internal plates and more uniform charging across the bank, which typically results in a 2-3x longer lifespan compared to standard 12V batteries in deep-cycle applications.
How do I know if it is compatible with my inverter?
This bank is compatible with any 24V inverter (Victron, Mastervolt, Growatt, etc.). Simply ensure your inverter supports AGM charging profiles with a bulk voltage of approx 28.2V.
Does it come with the connecting plates?
Yes, the AGM500AH-12SET includes a full set of heavy-duty metal plate connectors and terminal bolts for immediate assembly.
Note: Solarika is a trademark of Solarika.co.uk. Please verify your system voltage requirements before purchasing. Due to weight, this item ships on a pallet.
