20kW Zero-Transfer UPS System [UPS4-ZT5K-48]
48kWh Energy Storage | Professional Grade Power Solution
The Solarika UPS4-ZT5K-48 is a comprehensive 20kW Uninterrupted Power Supply (UPS) system engineered for high-demand residential, commercial, and industrial applications. Designed with Zero-Transfer Technology, this system ensures an instantaneous switch between power sources (0ms), making it the ideal solution for mission-critical electronics, servers, and medical equipment that cannot tolerate even the slightest power interruption.
ZERO-TRANSFER RELIABILITY: Unlike standard hybrid inverters with a 10-20ms delay, this system provides a true online UPS performance with 0ms transfer time to protect sensitive hardware from crashes or data loss.
Key Features
- ✔ 20kW Continuous Output: Combined power from 4x 5kW units.

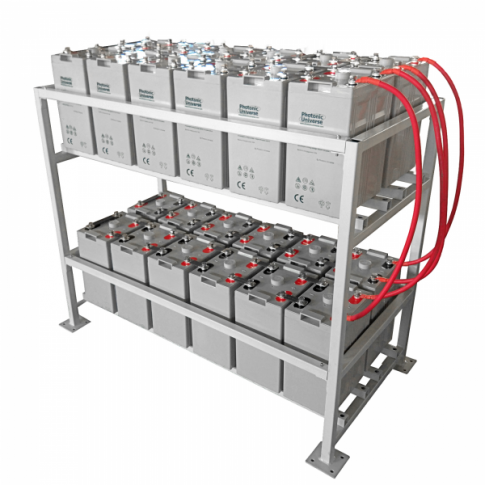

- ✔ 48kWh Storage: Massive capacity for long-duration backup.
- ✔ Zero Transfer Time: Instantaneous 0ms switching.
- ✔ Solar Ready: Integrated MPPT charging up to 16,000W.
- ✔ Scalable Design: Expandable up to 45kW with additional kits.
Technical Specs (Full Kit)
| System Voltage | 48V DC |
| AC Output Power | 20,000W (Continuous) |
| Surge Power | 40,000VA |
| Battery Capacity | 1000Ah (48kWh Total) |
| Solar Input (Max) | 16,000W (4000W per unit) |
| Max Solar VOC | 145V DC |
| Output Waveform | Pure Sine Wave |
Application & Fitment Guide
| System Type | Recommended Application | Notes |
|---|---|---|
| Residential Backup | Large Detached Households | Supports whole-home backup. |
| IT & Telecom | Data Centers / Server Rooms | 0ms transfer prevents reboots. |
| Industrial | Workshop / Commercial Units | Single or 3-Phase Configurable. |
| Marine/Off-Grid | Yachts / Large Vessels | Heavy-duty 48V architecture. |
OEM Cross Reference
| Manufacturer Code | UPS4-ZT5K-48 |
| Photonic Universe Ref | UPS4-ZT5K-48 (20kW System) |

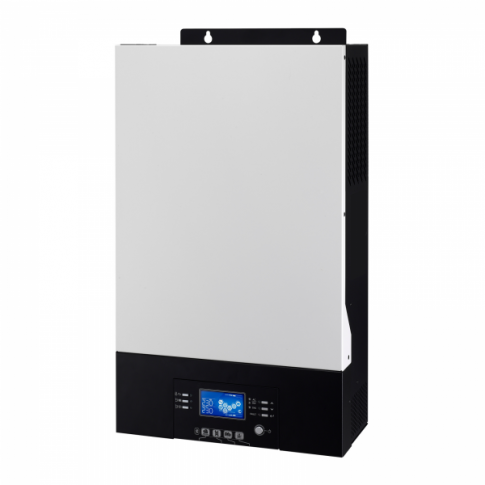

| Individual Inverter SKU | UPS-ZT5K-48 |
Installation Guide

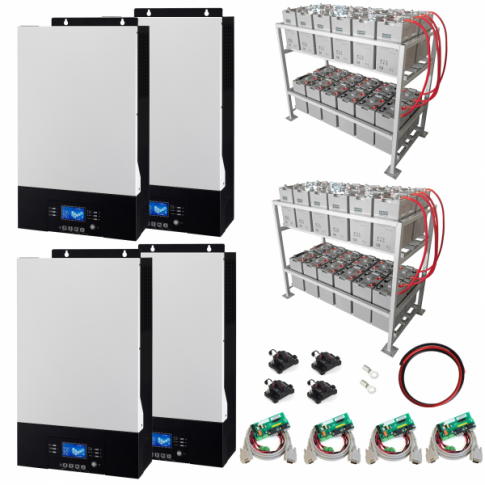

This kit contains high-voltage components and heavy battery banks. It includes 4x parallel connection kits for synchronizing the inverters. Professional electrical installation by a certified technician is mandatory to ensure correct 48V DC wiring and AC load balancing. For 3-phase applications, specific configuration of the parallel communication cables is required.
Questions & Answers
Is this a genuine original part?
This is a premium high-capacity power system supplied by Solarika, built using components that meet or exceed rigorous industrial UPS standards for performance and longevity.
How do I know if it is compatible?
If you require a 48V DC system with a continuous AC load capacity up to 20kW and want to ensure zero downtime for your appliances, this SKU is the correct fit for your requirements.
Can this system run a 3-phase industrial machine?
Yes. Because this system includes 4 individual hybrid inverters, they can be configured to provide a 3-phase 400V AC output (Phase A, B, and C) using the provided parallel communication kits.
Note: Solarika.co.uk recommends verifying your energy load requirements before purchase. Components may ship in multiple crates due to battery weight.
