Amptron 200W 12/24/36/48V High Voltage Glass Solar Panel
£138.00
Sale price
£138.00
Regular price
Shipping calculated at checkout.
AT-GLASS-63.8-200AV10
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Projecta IS1400 12V 1400A Intelli-Start Professional Lithium Jump Starter and Power Bank
£170.00
Add to Basket
Description
Amptron’s High-Voltage Panel (63.8V) is Ideal for charging higher voltage battery systems (24V, 36V or 48V). This 200W panel is a highly efficient Photovoltaic Power Source For RVs, Campers, Cabins, Boats and Home Backup Power Systems.
It has excellent shading tolerance, thanks to the half cut cell topology. For streamlined installation, an optional aerodynamic mounting kit is available, designed to reduce wind resistance and allow secure, hassle-free mounting on caravan and motorhome roofs.
The panel is 2 x 100W panels manufactured into a single panel. One side of the panel can be completely shaded, and the other side of the panel will still be offering full output. Easily add an aerodynamic mounting set for hassle free Caravan / Motorhome mounting and increased aerodynamic efficiency.

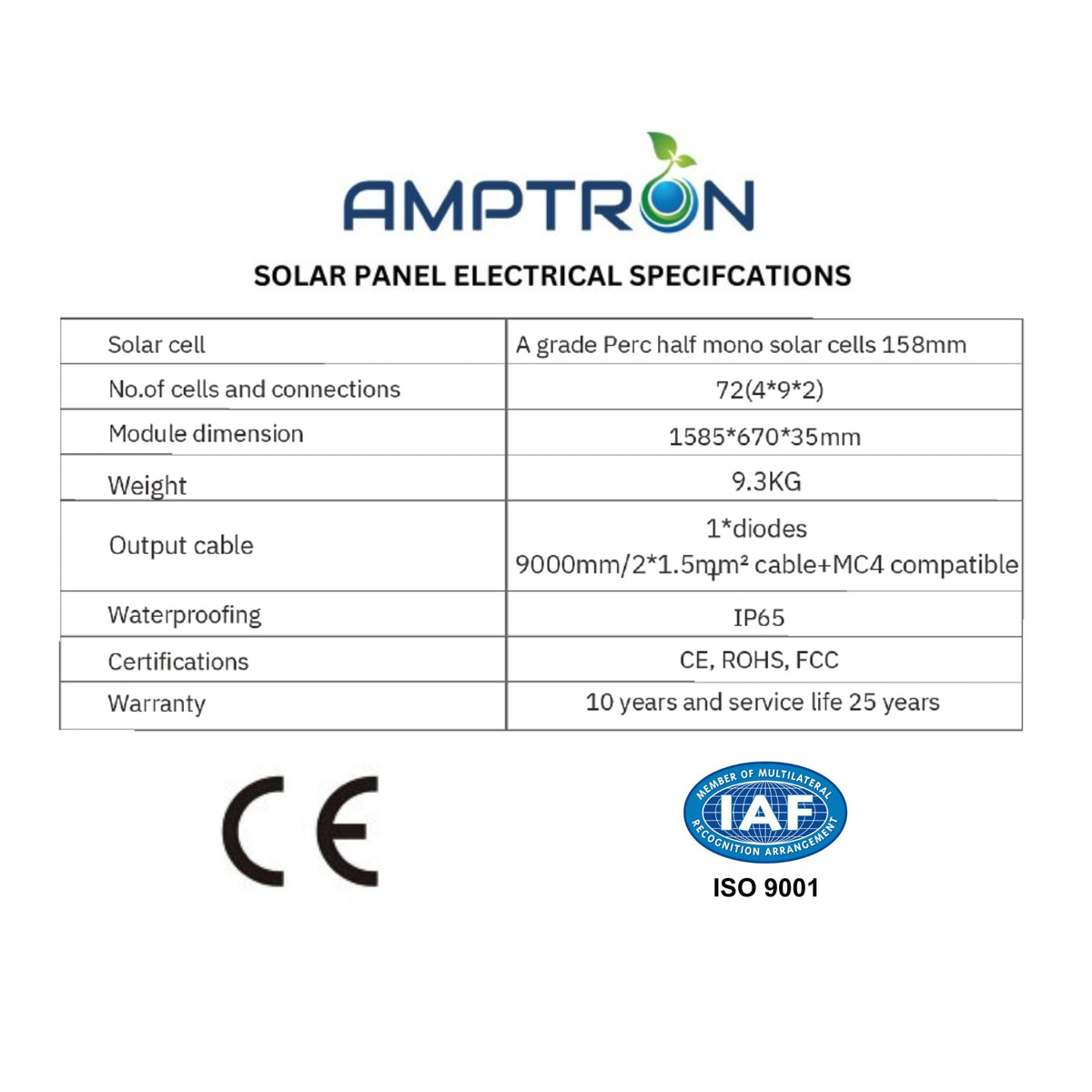

SPECIFICATIONS
| Item | Specification | Description/Remark |
| Model | AT-GLASS-63.8-200AV10 | 200W 12/24/36/48V Glass Perc Half Mono-crystalline Solar panel |
| Maximum power rating | Pmax 200 Watt | |

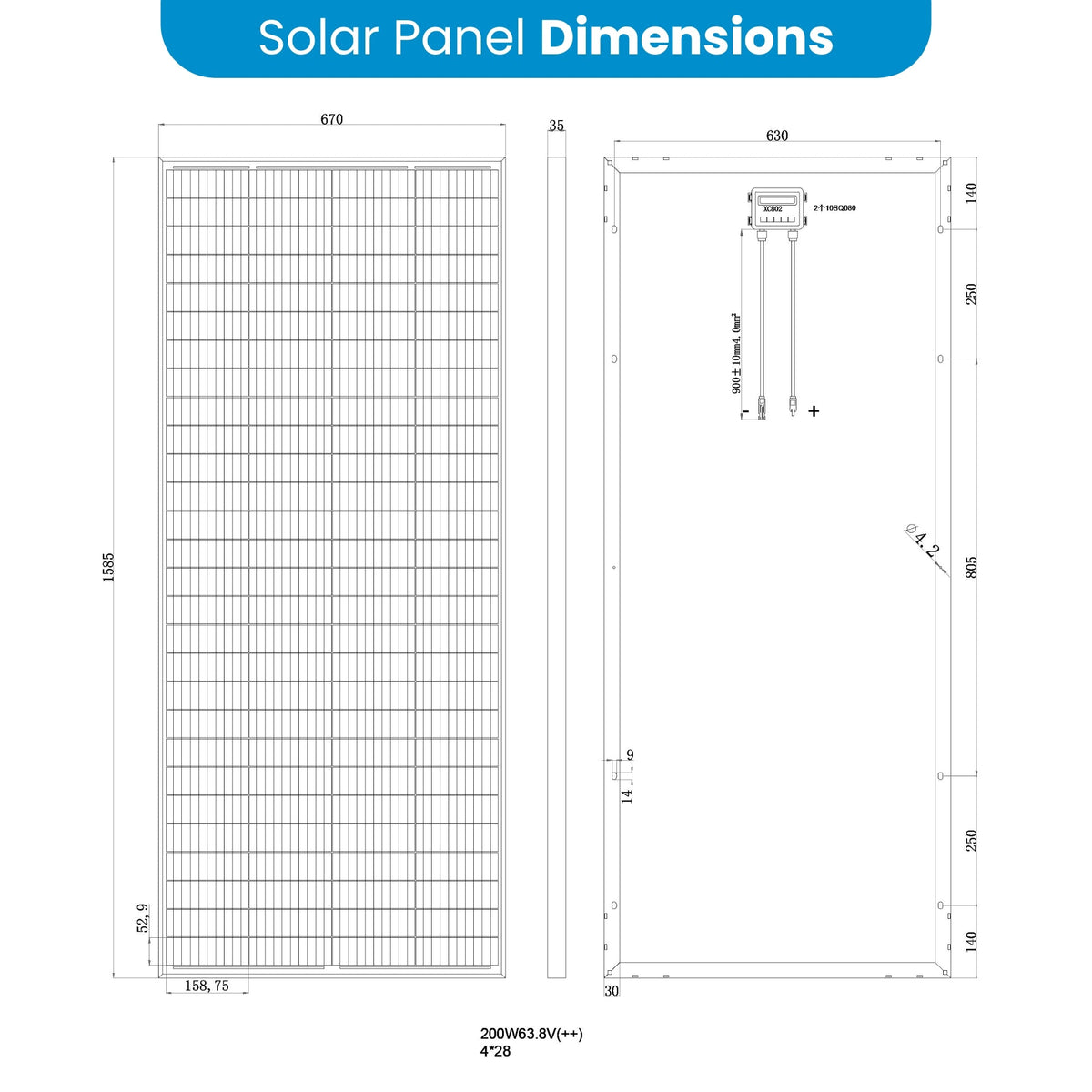

| Solar Panel dimensions | L-1585mm x W-670mm x H-35mm (without Aerodynamic brackets) L-1655mm x W-670mm x H-35mm (with Aerodynamic brackets) | |
| Tolerance on power output | +/- 3.0 % | |
| Current at max power | Imax 3.14Amps | |
| Voltage at max power | Vmax 63.8 Volts | |
| Short circuit current | Isc 3.29 Amps | |
| Open circuit voltage | Voc 74.6 Volts | |
| No of cells | 112(4*28) | |
| Cell Efficiency | 22.70% | |
| Maximum system voltage | 1000V DC(IEC) | |
| Junction Box | with 900mm x 4sqmm 2 core cable + MC4 compatible | |
| Weight | 9.3kg | |
DOWNLOADS
Solar Panel Warranty Policy
Solar Panel Datasheet
Aerodynamic Brackets Datasheet
