200W Marine Grade Flexible Solar Panel High Voltage 12/24/36/48V
£180.00
Sale price
£180.00
Regular price
£264.00
Skip to product information
200W Marine Grade Flexible Solar Panel High Voltage 12/24/36/48V
£180.00
Sale price
£180.00
Regular price
£264.00
Shipping calculated at checkout.
AT-FLEX-74.3-200BV10
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Projecta IS1400 12V 1400A Intelli-Start Professional Lithium Jump Starter and Power Bank
£170.00
Add to Basket
Description

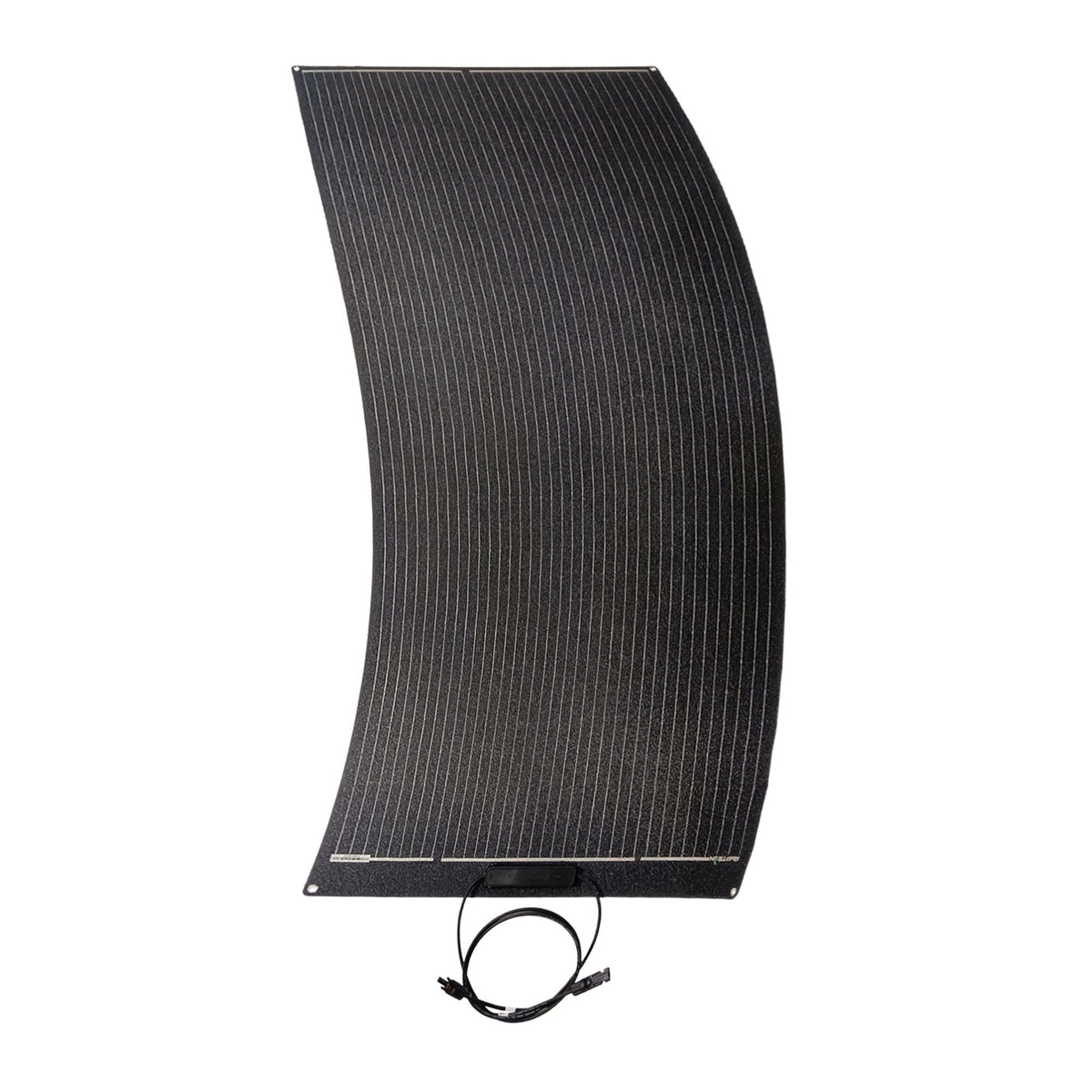

Curved coachroofs, biminis and van roofs have never played nice with rigid panels. The Amptron 200W Flexible TF-D panel is built to actually sit flush wherever you need it, at just 3.78kg and 3mm thin, and it's got the voltage to back it up.
1. Fits where rigid panels can't

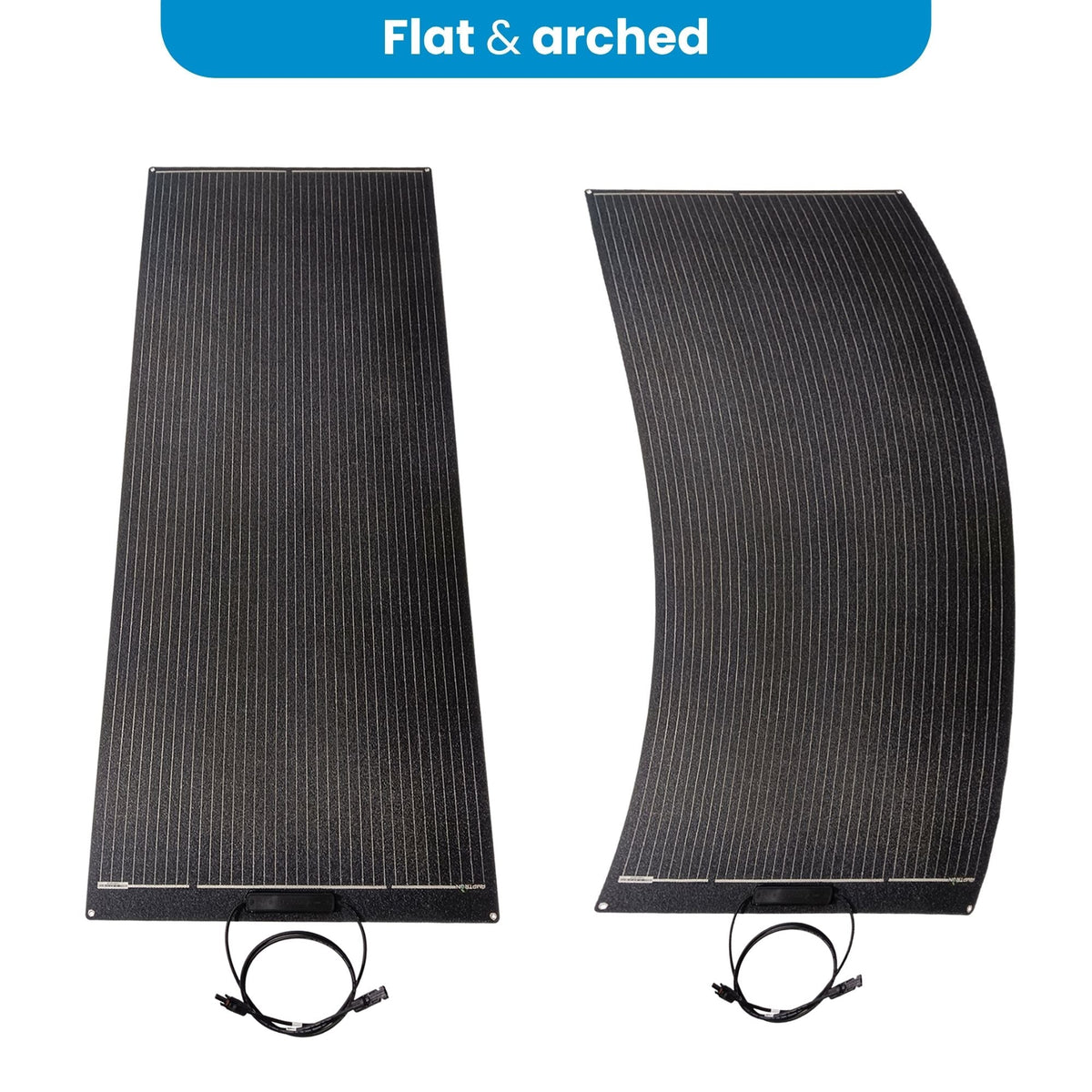

Bends to a 1m curve radius so it follows the shape of your boat deck, RV roof or canopy instead of fighting it.
2. One panel does the job of four
With a 74.3V Vmp output, this panel works across 12V, 24V, 36V and 48V systems through a compatible MPPT controller, so you're not stuck buying different panels for different setups.
3. Keeps producing when it's hot
A-grade mono cells rated at 25% efficiency and a solid temperature coefficient mean this panel keeps generating power even when it's baking on a black deck in the Aussie sun.
4. Sealed up and ready for the elements
IP68 rated junction box, dual bypass diodes, and a 900mm MC4-compatible cable, built to handle rain, spray and dust without missing a beat.

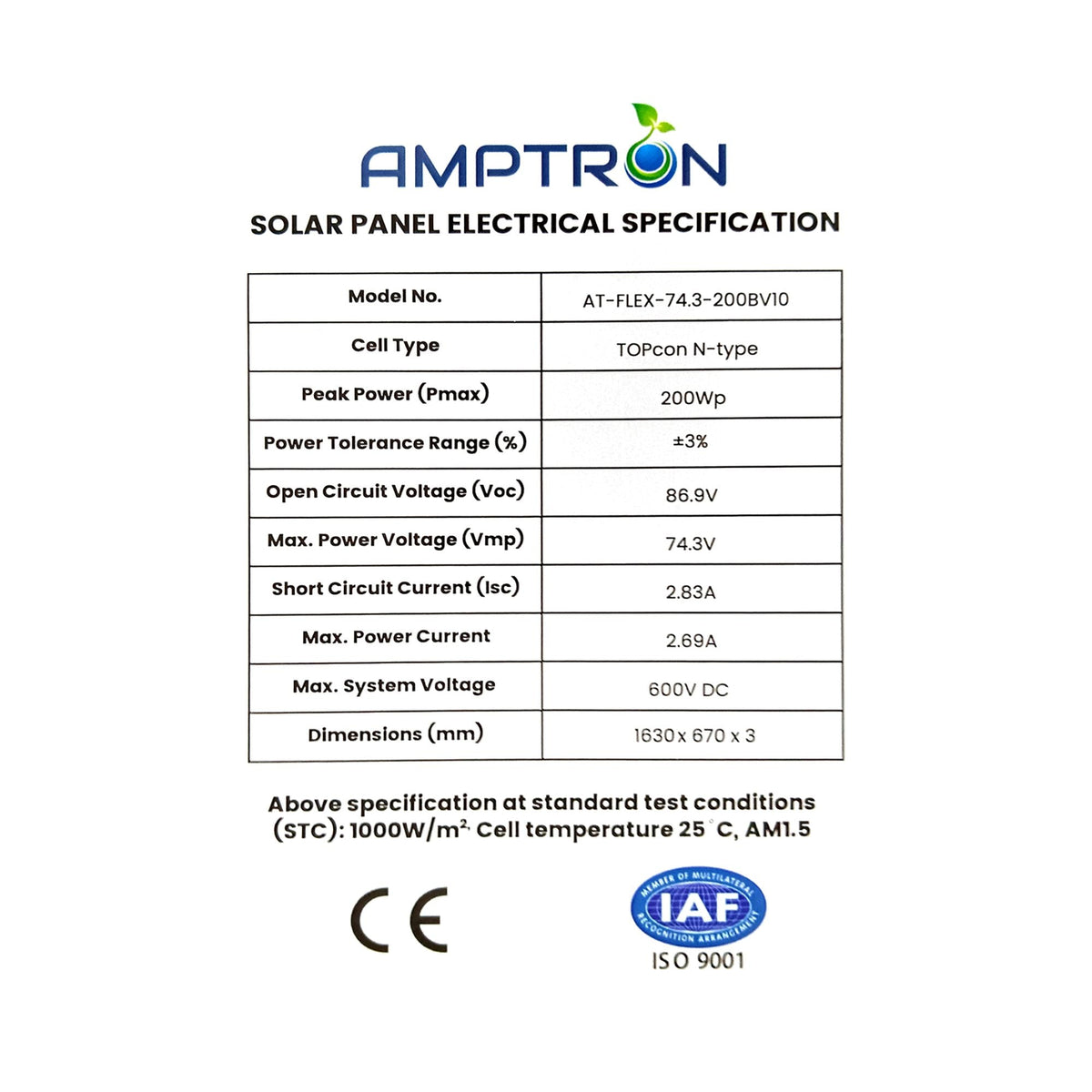

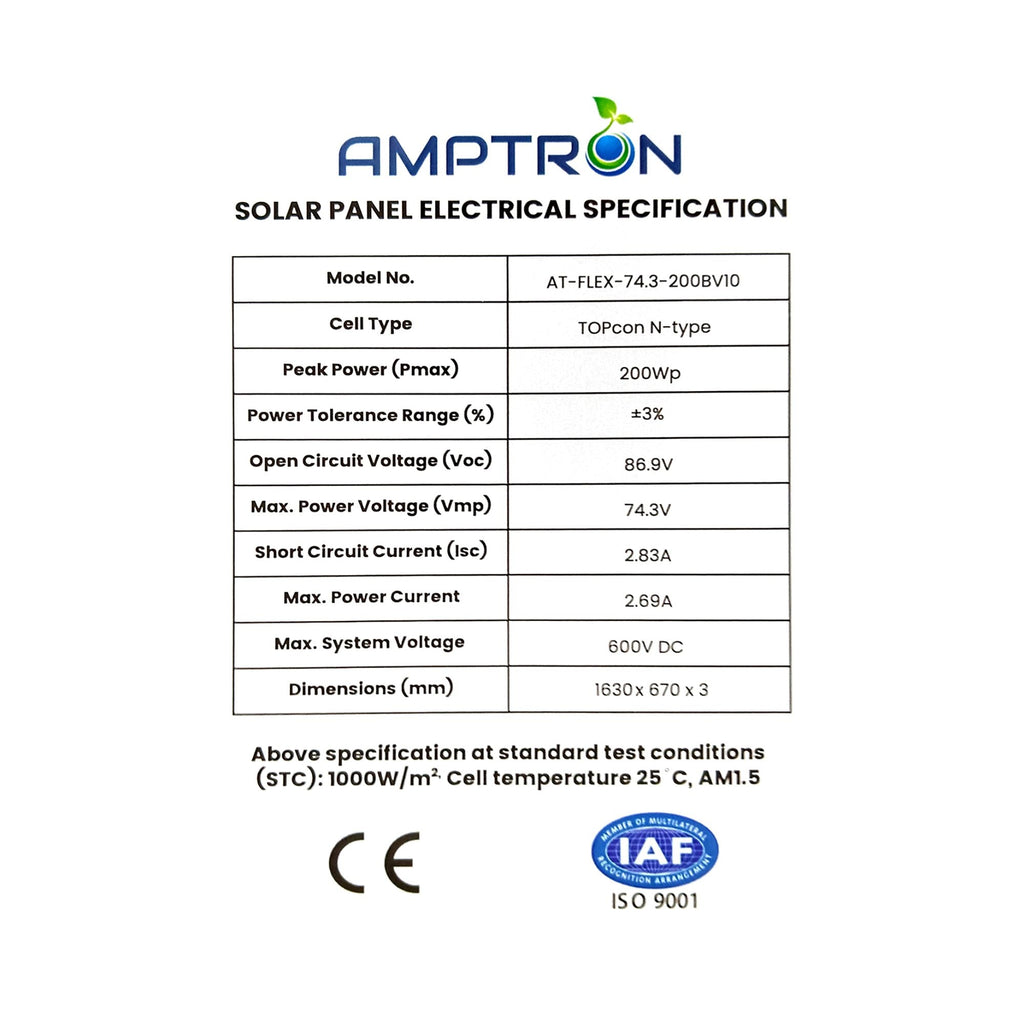

Specifications
| Model | AT-FLEX-74.3-200BV10 |
| Maximum power (Pmax) | 200W |
| Open-circuit voltage (Voc) | 86.9V |
| Voltage at Pmax (Vmp) | 74.3V |
| Short-circuit current (Isc) | 2.83A |
| Current at Pmax (Imp) | 2.69A |
| Cell efficiency | 25% |
| Maximum system voltage | 600V DC (IEC) |
| Power temperature coefficient | -0.35%/°C |
| Voltage temperature coefficient | -0.275%/°C |
| Current temperature coefficient | 0.045%/°C |
| Output power tolerance | ±5% |
| Operating temperature | -40°C to +85°C |
| Solar cell type | A grade mono solar cells, 166mm |
| No. of cells and connections | 128 (4 x 32) |

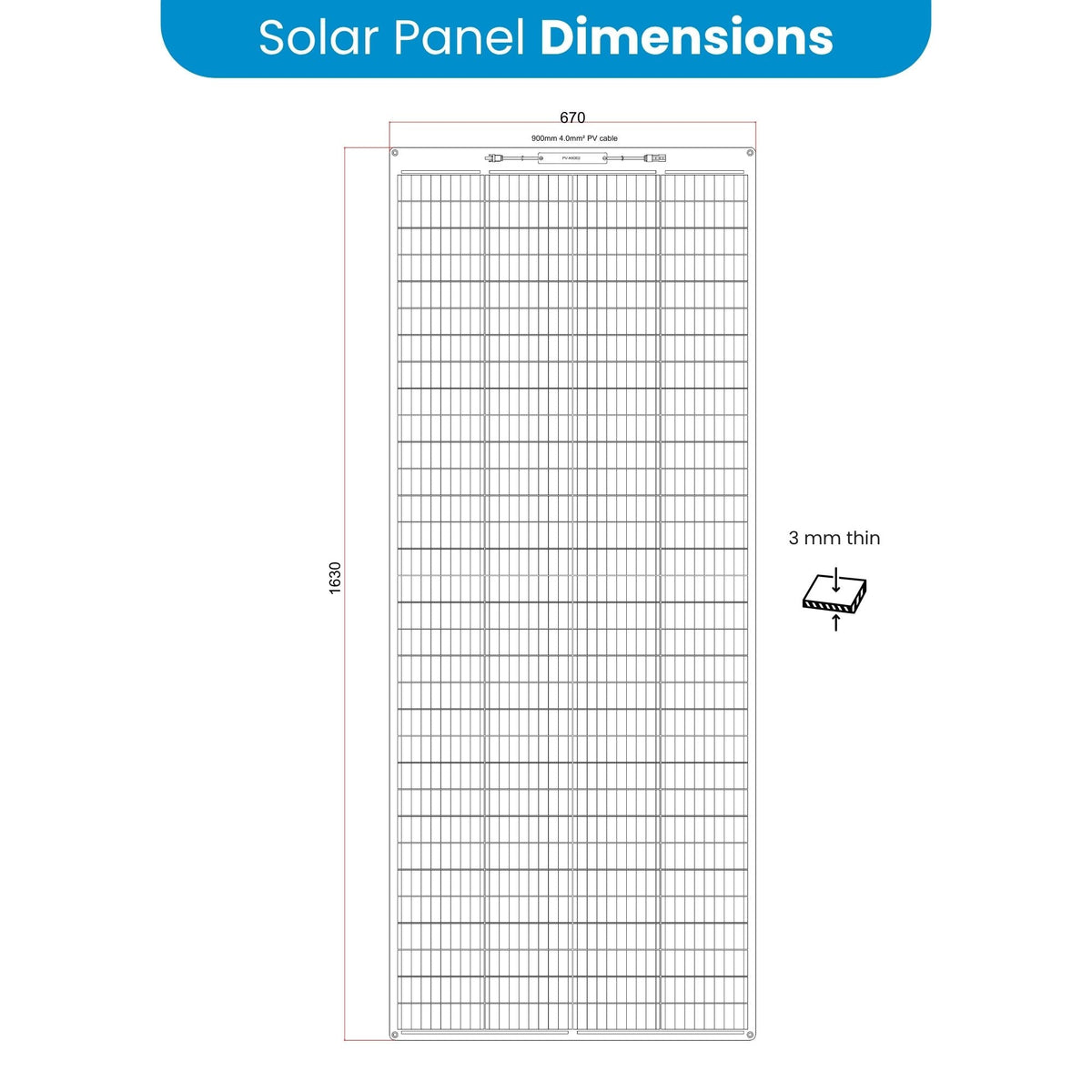

| Module dimensions | 1630 x 670 x 3mm |
| Weight | 3.78kg |
| Output cable | Junction box (2 x bypass diodes) + 900mm, 4mm² cable, MC4 compatible |
| Waterproof rating | IP68 |
| Maximum bending arch height | 320mm (minimum curve radius 1m) |
| Warranty | 6-year manufacturer warranty |
Features
The Semi-Flexible solar panel is the perfect versatile energy companion for mobile applications. The thin profile provides low wind resistance and its extremely light weight makes it well-suited to be used on yachts, boats, RVs, 4wd vehicles etc.
Each cell is tested and graded for power, low light performance, and being free from micro-cracks before going into module production. In-line monitoring is performed for pre and post-lamination cell testing and laminate stability. The module design incorporates a superior 7-layer lamination process with a moisture protected border for trouble-free performance over the module life.
The solar cells use PERC Shingle-cell technology to achieve zero cell spacing, which effectively increases the light-receiving area of the module. Other features:
- Ultra-thin & lightweight.
- Outstanding electrical performance in higher temperatures and low irradiation.
- Robust moisture ingress protection
- Rigid, waterproof junction Box.
- The Solar panels also include an industrial grade ETFE coating for long life and
durability
Warranty
6 Years
