Description
Battery Selector Switch 200A (BS2-200)
Reliable Power Management for Dual Battery Banks
The Solarika BS2-200 is a heavy-duty manual battery selector switch designed to provide complete control over two independent battery banks. Whether you are managing a marine vessel, an RV, or an off-grid solar installation, this switch allows you to isolate battery inputs, combine them for emergency starting, or disconnect the entire system for safety and maintenance.
RELIABILITY: Engineered with high-conductivity copper terminals and a reinforced housing to withstand demanding marine and automotive environments.
Key Features

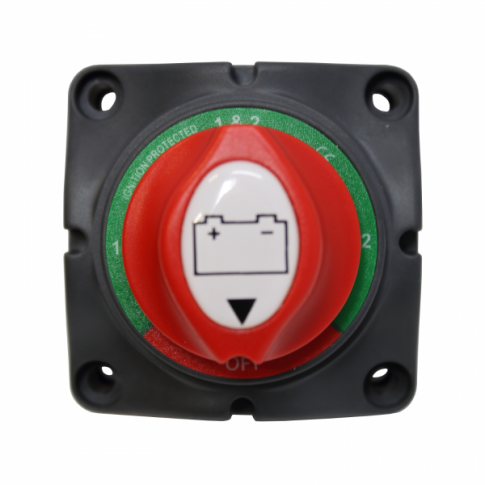

- ✔ 4-Position Control: Choose between Battery 1, Battery 2, Both (1+2), or OFF.
- ✔ High Capacity: 200A continuous rating suitable for high-load inverters.
- ✔ Multi-Voltage: Compatible with 12V, 24V, and 48V DC systems.
- ✔ Ignition Protected: Safe for installation on gasoline-powered boats.
Technical Specs
| Rated Current | 200A Continuous |
| Intermittent Rating | 300A (5 min) |
| Voltage Range | 6V - 50V DC |

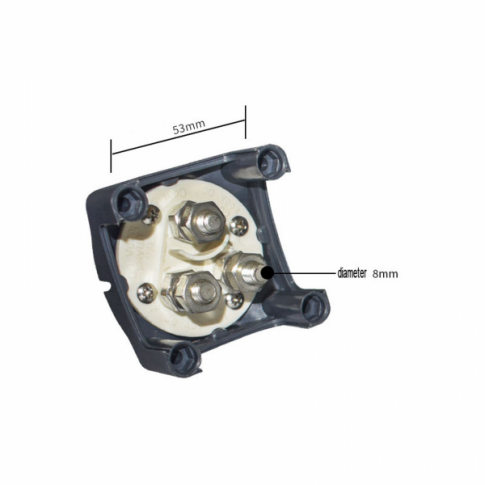

| Terminal Studs | M8 (8mm) |

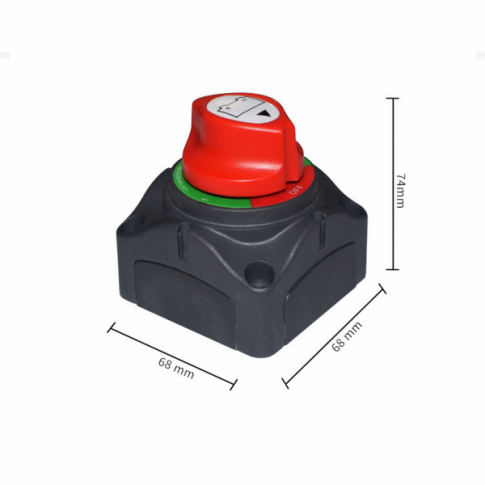

| Dimensions | 74 x 68 x 68 mm |
Compatibility / Fitment Guide
| Application Type | System Voltage | Recommended Use |
|---|---|---|
| Marine / Boats | 12V / 24V | Switching between starter and house banks. |
| Motorhomes / RVs | 12V / 24V | Main battery disconnect and selector. |
| Off-Grid Solar | 12V / 24V / 48V | Isolation of battery banks for maintenance. |
OEM Cross Reference
| Photonic Universe | BS2-200 |
| Functionally Similar To | Blue Sea 6007 / Perko 8501 |
| EAN Reference | 5060297349676 |
Installation Guide

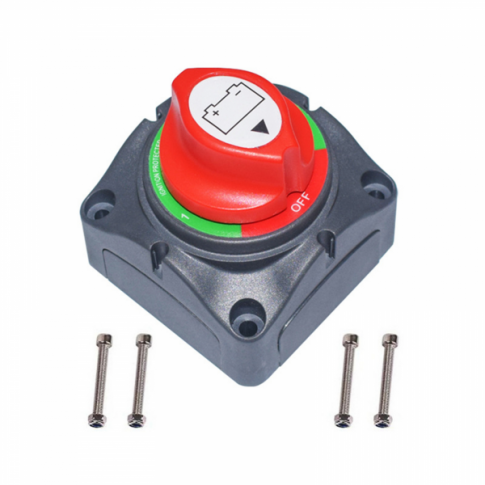

Mount the switch on a flat surface using the four pre-drilled holes. Use appropriate gauge battery cables (typically 25mm² to 50mm² depending on the load) with M8 ring terminals. Ensure the power is OFF before making any connections. Professional installation is recommended for marine and high-voltage solar systems.
Questions & Answers
Is this a genuine original part?
This is a premium Solarika branded part, manufactured to meet exact technical specifications for the BS2-200 standard, ensuring full compatibility with high-current DC systems.
How do I know if it is compatible?
If your current switch uses M8 terminals and is rated for 200A or less, this BS2-200 model is an ideal direct replacement or upgrade.
Can this be used on a 48V solar battery bank?
Yes, the BS2-200 is rated for up to 50V DC, making it perfectly suitable for 12V, 24V, and 48V battery configurations.
Note: Please verify your cable requirements and system current draw before purchasing. Ensure all connections are tightened to prevent heat buildup.
