ACE 2-Post Car Lift ACL-M2100/M2100E – 10,000 lbs Symmetric Clearfloor
£0.00
Sale price
£0.00
Regular price
Skip to product information
ACE 2-Post Car Lift ACL-M2100/M2100E – 10,000 lbs Symmetric Clearfloor
£0.00
Sale price
£0.00
Regular price
Shipping calculated at checkout.
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Features
l 10,000 lbs lifting capacity
l Symmetric clearfloor design
l CE Approved and Certified, 115% dynamic loading capacityand 150% static loading capacity tested
l Manual Single-point safety release
l Asymmetric arm design, 2-stage and 3-stage
l Dual Hydraulic Direct-Drive Cylinders
l Overhead safety shutoff bar
l Heightening adapter Holders come standard(8pcs/stackable)
l Clear-floor convenience

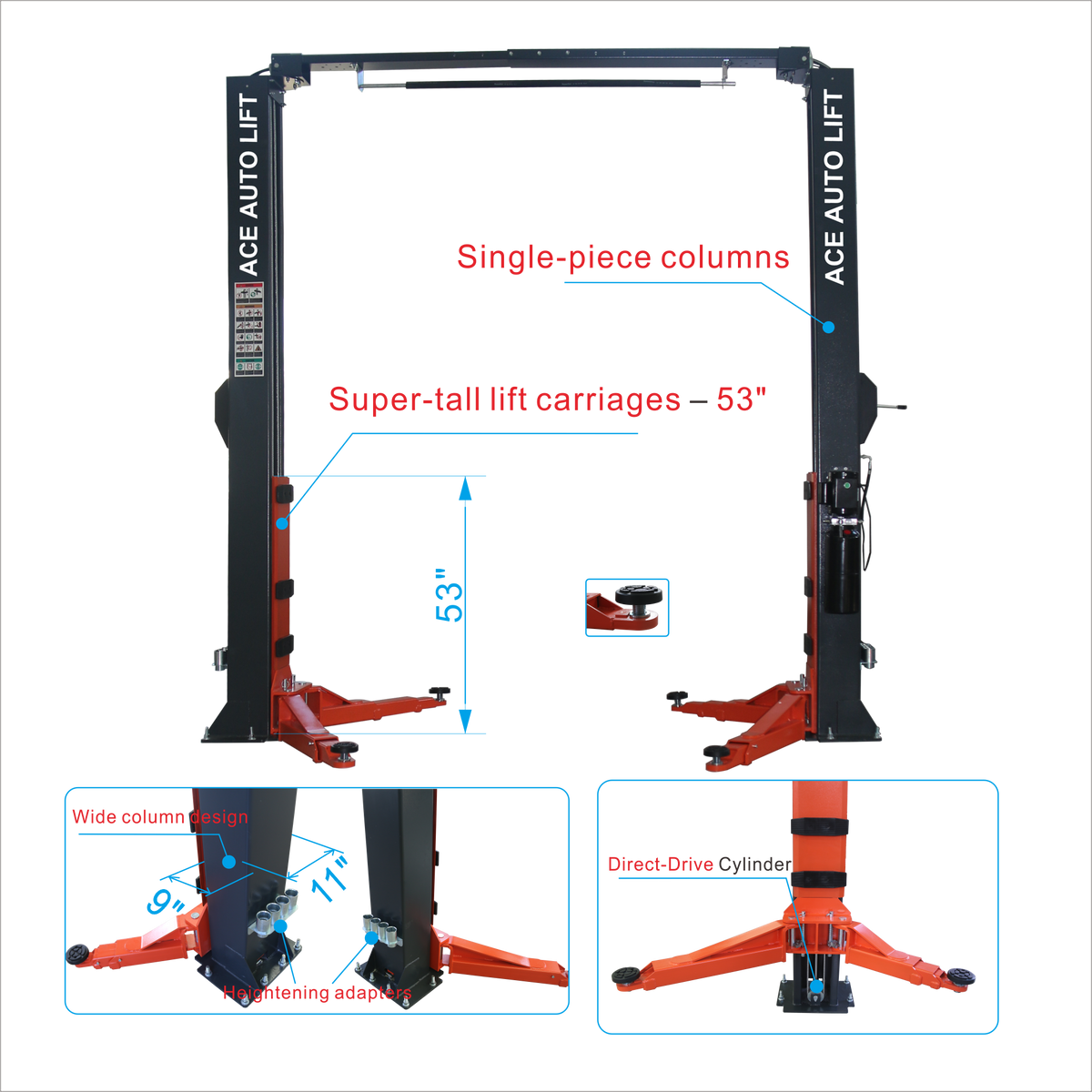

l Single-piece columns and wide columns design-Columnsare using single-piece construction for added strength andless fatigue under heavy load conditions.
l High quality hydraulic system with 220V/60HZ/1PH or 110V/60HZ/1PH(Optional)
l Super-tall lift carriages - 53" tall carriages areconsiderably taller than most two-post styles, which minimizes the stress placed on the load bearings and columns.
Technical Date
| Model | ACL-M2100 | ACL-M2100E |
| Lifting Capacity | 10000 Ibs(4500 KG) | |
| A-Max. Lifting Height | 70.75"/1800 mm | |
| B-Min. Height | 4.53"/115 mm | |
| C-Height Overall | 141.7"/3599mm | 141.25"/3587 mm |
| D-Width Overall | 138.58"/3520 mm | |
| E-Inside Columns | 112.6"/2860mm | |
| F-Drive-Thru Clearance | 100.39"/2550mm | |
| G-Front Arm Reach (Min) | 23.22"/590 mm (3 stages) | |
| H-Front Arm Reach (Max) | 44.29"/1125 mm (3 stages) | |
| I-Rear Arm Reach (Min) | 31.5"/800 mm(2 stages) | |
| J-Rear Arm Reach (Max) | 49.21"/1250 mm (2 stages) | |
| Motor | 220VAC /60HZ/1PH/2.2KW | |
| Net Weight | 800 KG/1760 lbs | 860 KG/1892 lbs |
