Description

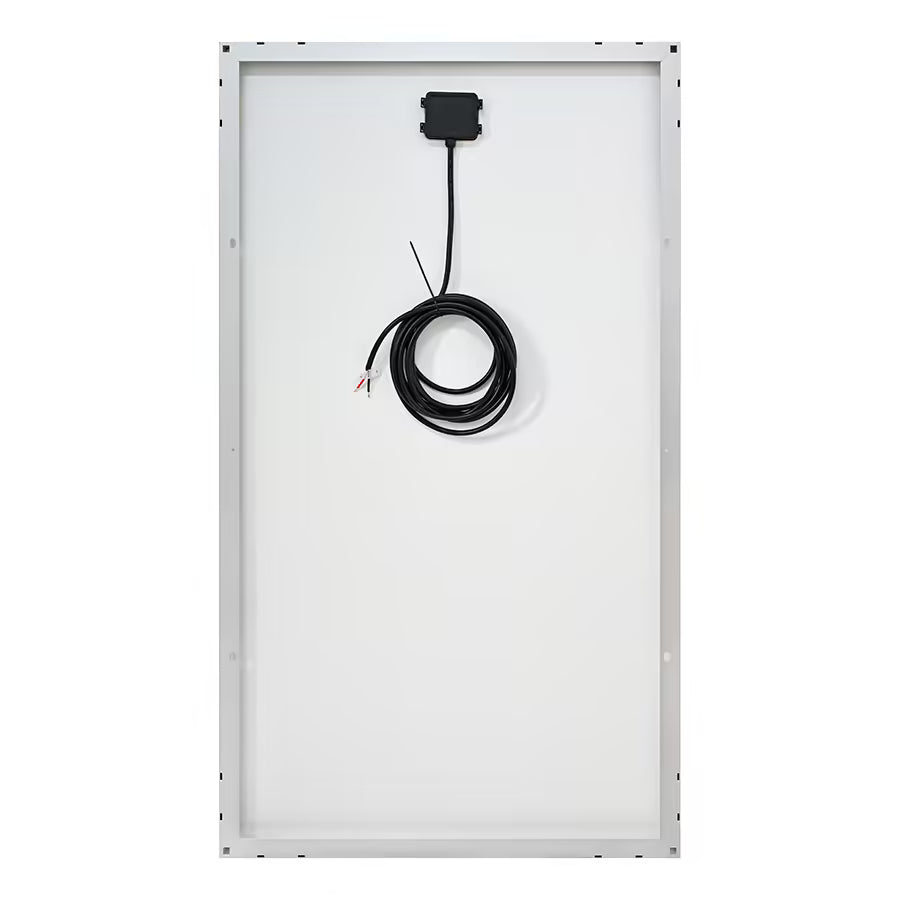

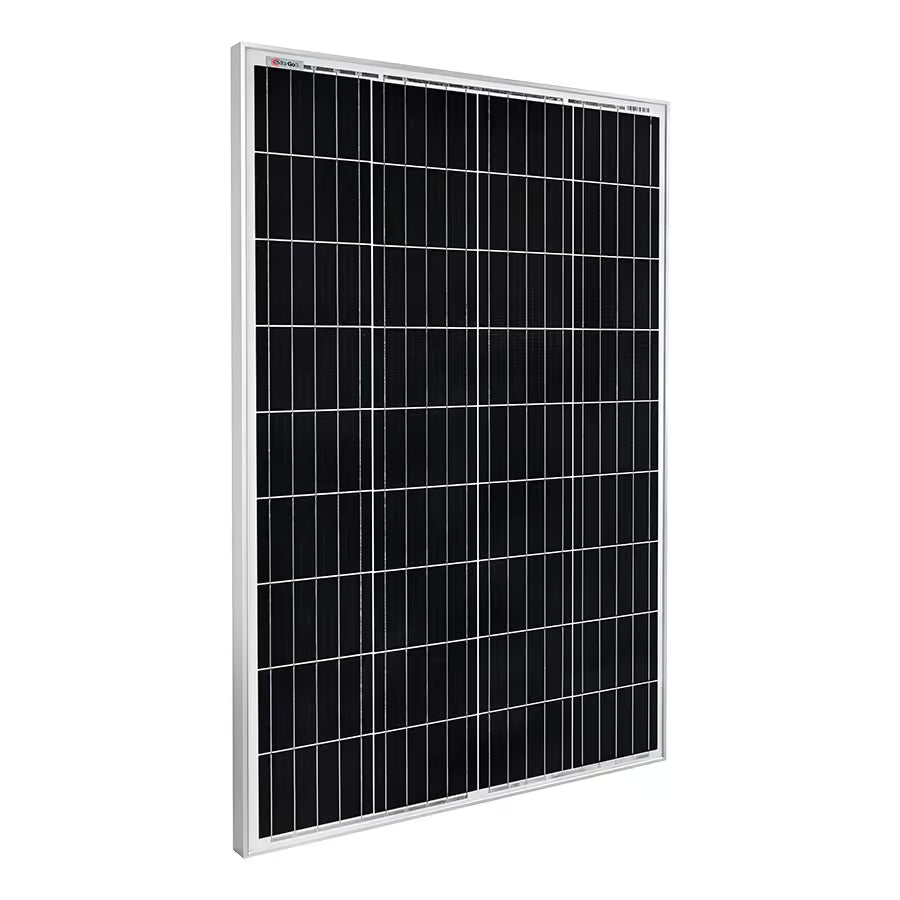

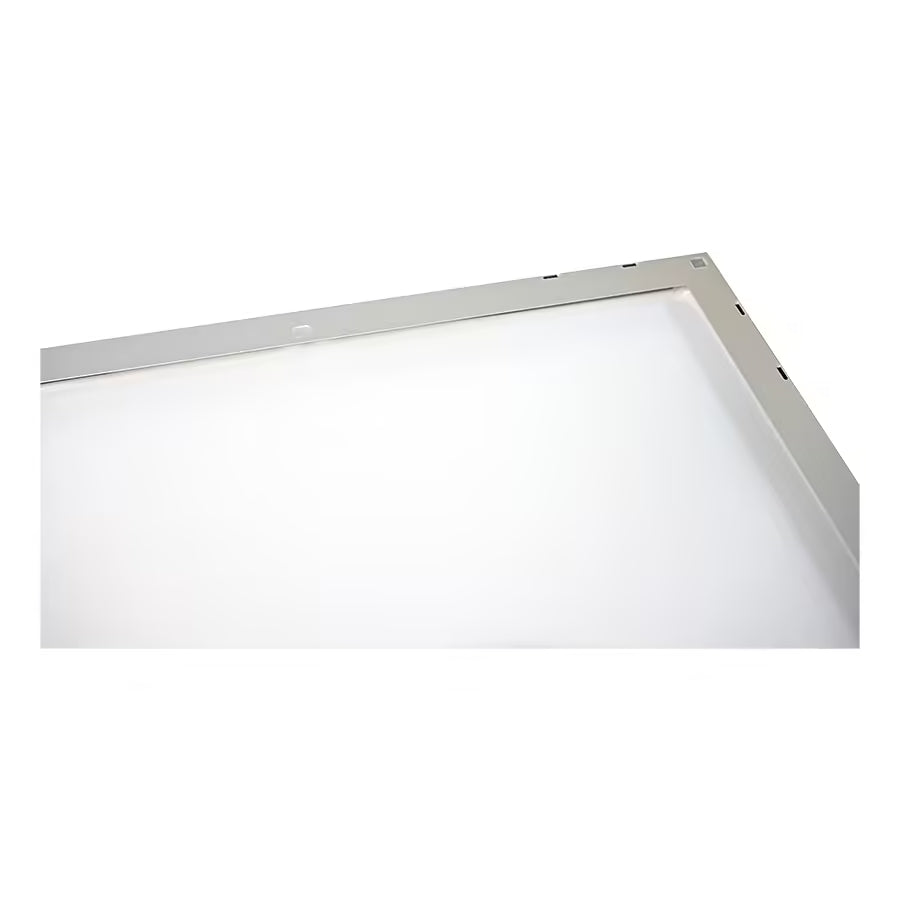

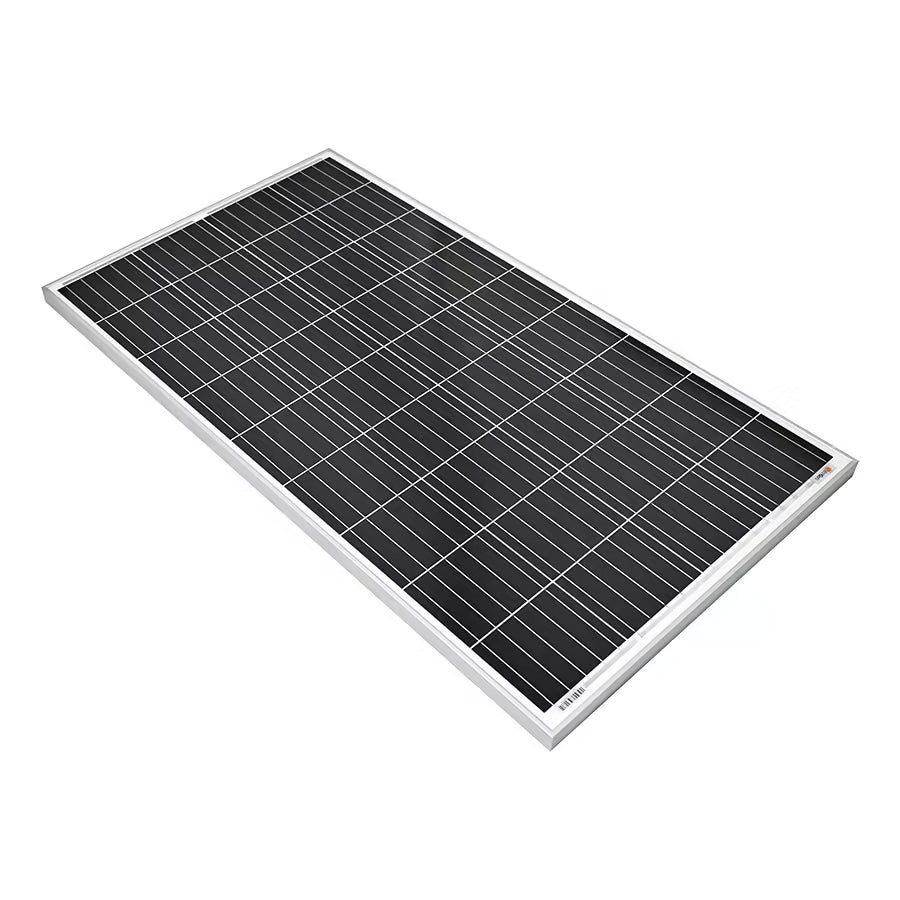

This panel, like the rest of our SolarGo2 rigid panels, is built to last with a strong full frame aluminium structure, the latest generation A-grade mono crystalline solar cells, a tough low iron, high light transmission glass front and 5 metres of high-end 2.5mm² UV stable DC cable making sure you get the best transmission of power from your panel to your controller.
Designed to last in an outside environment for years to come whether it’s on top of stables, a caravan, a motorhome or even a boat out at sea. We also give you a 20- year cell warranty* and a 10-year product warranty** as standard on our rigid solar panel range giving you real peace of mind with your SolarGo2 solar panel.
The 160W panel is ideal for off grid projects from providing power for a stable lighting project, charging a battery for the more power hungry users in a caravan or boat to running lights on building signage.
The SolarGo2 160W panel is designed to be outside and work in all weather conditions, providing you with variable amounts of power throughout the year depending on the weather conditions and the time of year.
As an example, we would say it will give you an average of around 48.48Ah (960Wh) per day in the summer in the UK and 6.46Ah (128Wh) per day in the winter. This panel will require a charge controller if being connected to a 12v battery.
*The 20-year cell warranty is based on the cells producing over 80% of the original power in year 20.
**The 10-year product warranty is for any manufacturing defects. Any accidental damage etc is not covered.
| Electrical Characteristics | |
| Type | Monocrystalline (A Grade, 158.75mm, High efficiency) |
| Peak power (Pmax) | 160Wp |
| Power tolerance range (%) | ±3% |
| Open circuit voltage / Voc (V) | 23.76v DC |
| Max. power voltage / Vmp (V) | 19.8v DC |
| Short circuit current / Isc (A) | 8.73A |
| Max power current / Imp (A) | 8.08A |
| Maximum System Voltage (V) | 1000V DC |
| Above Specification at standard test conditions(STC):1000W/㎡, cell temperature 25°C, AM1.5 | |
| Panel Info | |
| Part number | SP160 |
| Power | 160Wp |
| Cable type | 2.5mm twin core Red / Black (UV stable) |
| Cable length | 5m |
| Frame Material | Aluminium |
| Face material | High light transmission, Low iron glass, 3.2mm thick |
| Dimensions (mm) | 1215 x 680 x 35mm |
| Weight (Kg) | 9.1 |
| Performance UK weather (weather dependant) | |
| Average expected winter | ≈ 6.46Ah (128Wh) per day (0.8h) |
| Average expected Summer | ≈ 48.48Ah (960Wh) per day (6h) |
| Warranty | |
| Performance (of cells | 20 years (at 80% of day 1 performance) |
| Product construction | 10 Years |
