POWERING YOUR DEVICES WITH CUTTING-EDGE SOLAR TECHNOLOGY

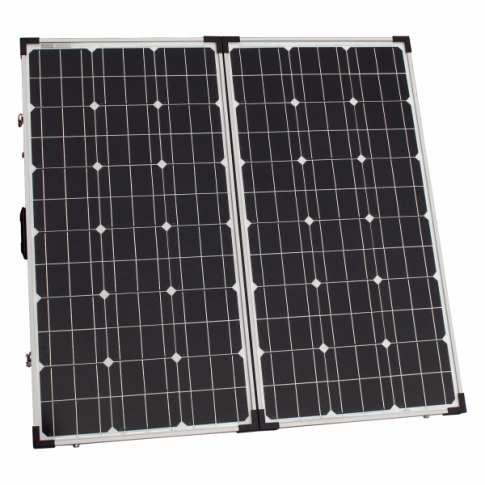

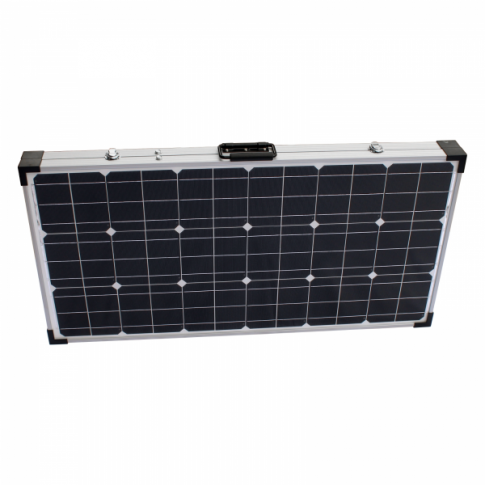

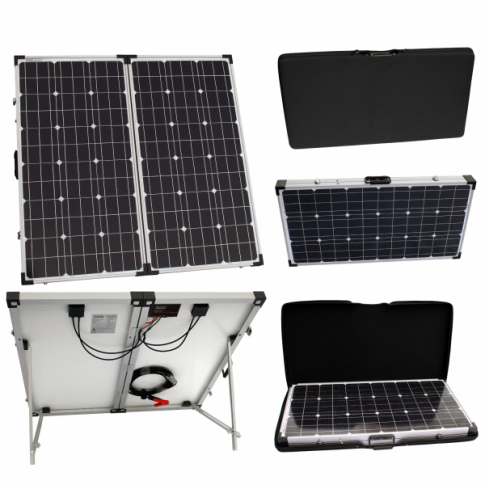

This 150W 12V folding solar charging kit is a truly unique premium quality product that will power your devices with solar energy when you’re off-grid.

This complete 150W 12V folding solar charging kit includes:

• High efficiency 75W + 75W folding mono-crystalline solar panels
• 10A automated solar charge controller with enhanced protection functions.
• Adjustable aluminium stand with handle and latches
• 5m cable with battery plug and fuse
• Battery crocodile clips
• Storage / protective case
• Installation manual

Features:

• Waterproof: The kit is waterproof and suitable for all weather conditions, it also includes a waterproof IP67-rated solar charge controller.
• High Efficiency: Panels are made of mono-crystalline solar cells for reliable power.

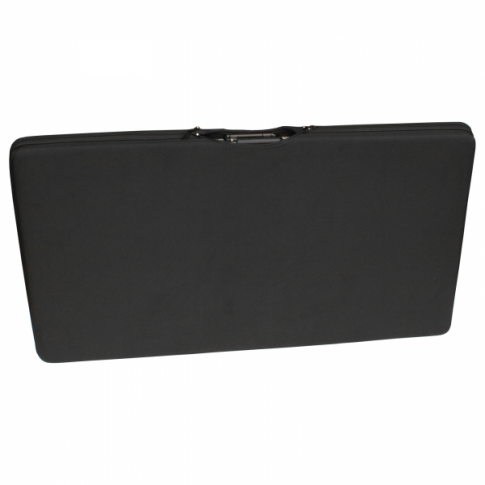

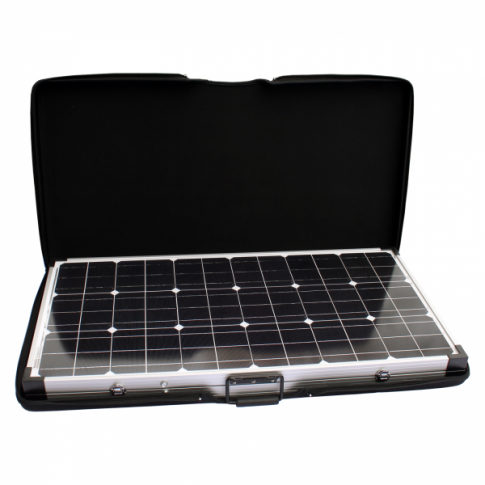

• Protective Case: Sturdy bag with foam layer to prevent damage.
• Advanced Charge Controller: Prevents overcharging using a 10A waterproof solar charge controller, reverse current, incorrect polarity and short circuit and supports multiple battery types (sealed, gel, flooded).
• Easy to Use: Connect to your battery and set up in a sun-lit area.

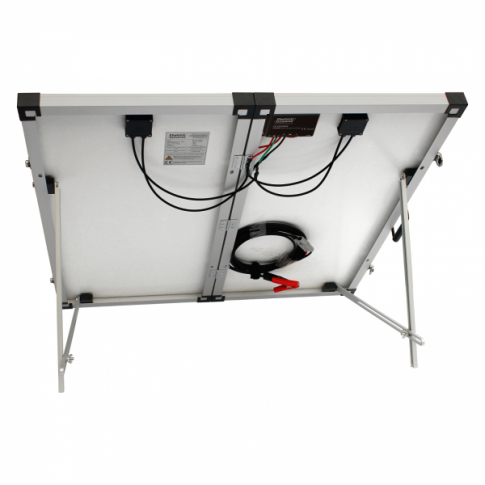

Stand and Portability: Easy-to-set-up stand, handle, and latches for storage and portability. Foam-lined storage case protects the panels.

Solar Charge Controller: IP67 waterproof controller with overcharge, reverse current, incorrect polarity, and short circuit protection. Uses PWM technology to improve battery life and capacity.

Advanced Communication: Monitor and programme the controller via:

Remote meter MT50 with an LCD screen: Displays performance and allows manual adjustments; an RS485 to RJ45 cable is sold separately.

RS485 to USB cable: Connect to a PC for monitoring and adjustments via Solar Station Monitor (Windows only) via an RS485 to USB cable (sold separately).

Battery Compatibility: Suitable for sealed, gel, and flooded 12V batteries. Select battery type for optimal charging efficiency.

Specifications:

• Peak power: 150W
• Voltage: 17.5V
• Current: 8.32A (2 x 4.16A)
• Open circuit voltage: 21.6V
• Short Circuit Current: 9.0A ( 2 x 4.5A)
• Power allowance: +/- 3%
• Dimensions: 51 x 101 x 7cm (folded)
• Weight: 15kg

Warranty: 1-year warranty. Solar cells are guaranteed to produce at least 90% of nominal power for 10 years and 80% for 25 years.

Installation

This product comes with an instruction manual which explains connections and operations. Advanced users will also benefit from a separate detailed manual for the solar controller (see the Documents tab).

While the kit is waterproof, the Anderson plug and metal connectors of the battery cable should be kept away from moisture or rain.

In the Box:

• 150W (75W + 75W) 12V folding solar charging kit
• Solar Controller
• 5m Cable
• Crocodile Clips
• Storage Bag
