This package comes complete will everything needed to automatically start and stop your generator in the event of a power cut. Included in this package;

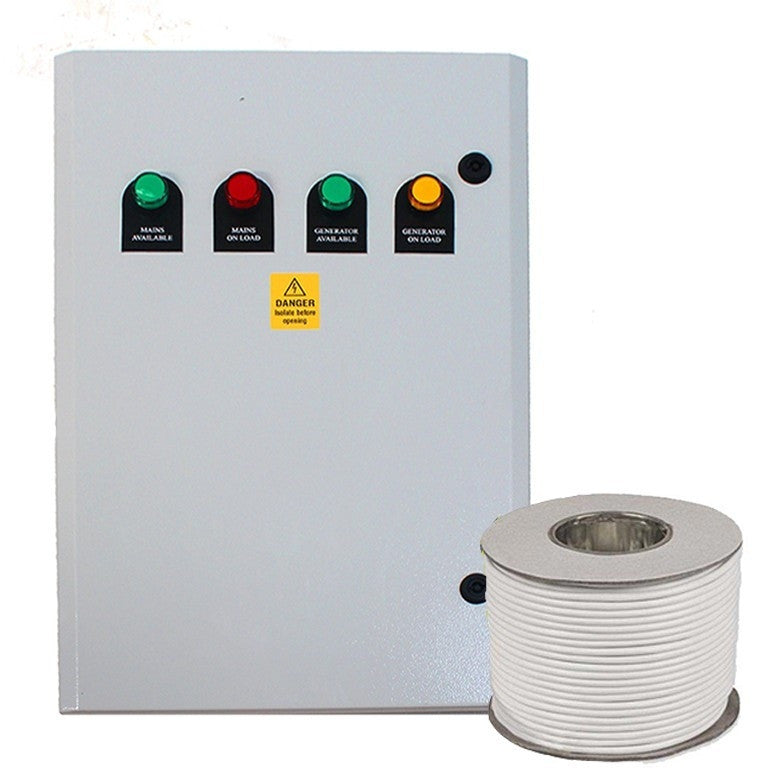

• 125Amp ATS Panel
• 20metres of communication cable to link the generator to the ATS panel to allow it to be turned on and off via the ATS panel
• 1500RPM ATS plug
• 24V Battery Charger

The 125A 4-Pole ATS (Automatic Transfer Switch) is a 4 pole three phase switch, which means it can only be used in conjunction with a three phase generator, up to 125 amps. It's also easy to install and can be configured by any competent electrician in a very short space of time.

The ATS panel is modified and fitted with a 24v battery charger to keep the battery on your backup generator charged when it is not in use. Sometimes you can go months without having to use a backup generator, and the time it sits idle can run the battery down, so this slight modification is a welcomed addition to an already very appealing ATS system.

This ATS is compatible with the Hyundai DHY85KSE and some of our Evopower three phase sets such as the UKC55ECO and UKC80ECO.

The ATS panel would be installed by your engineer in between the consumer unit and meter at your property. Then, the 20m communication cable is wired from the ATS panel to your generator which can be situated up to 20metres away. This communication cable is what allows the ATS to turn the generator on and off. However, please note this package does not include mains cable (the cable which carries power from the generator). Mains cable needs to be specified by your electrician and sourced accordingly.

This package ensures that even when you are at work, on holiday or away from your home/office, in the event of a power cut your appliances stay on.

Please note; for a more cost effective solution to switching between mains to back up power, you could look into a manual transfer switch, sometimes shortened to MTS / MCS.
