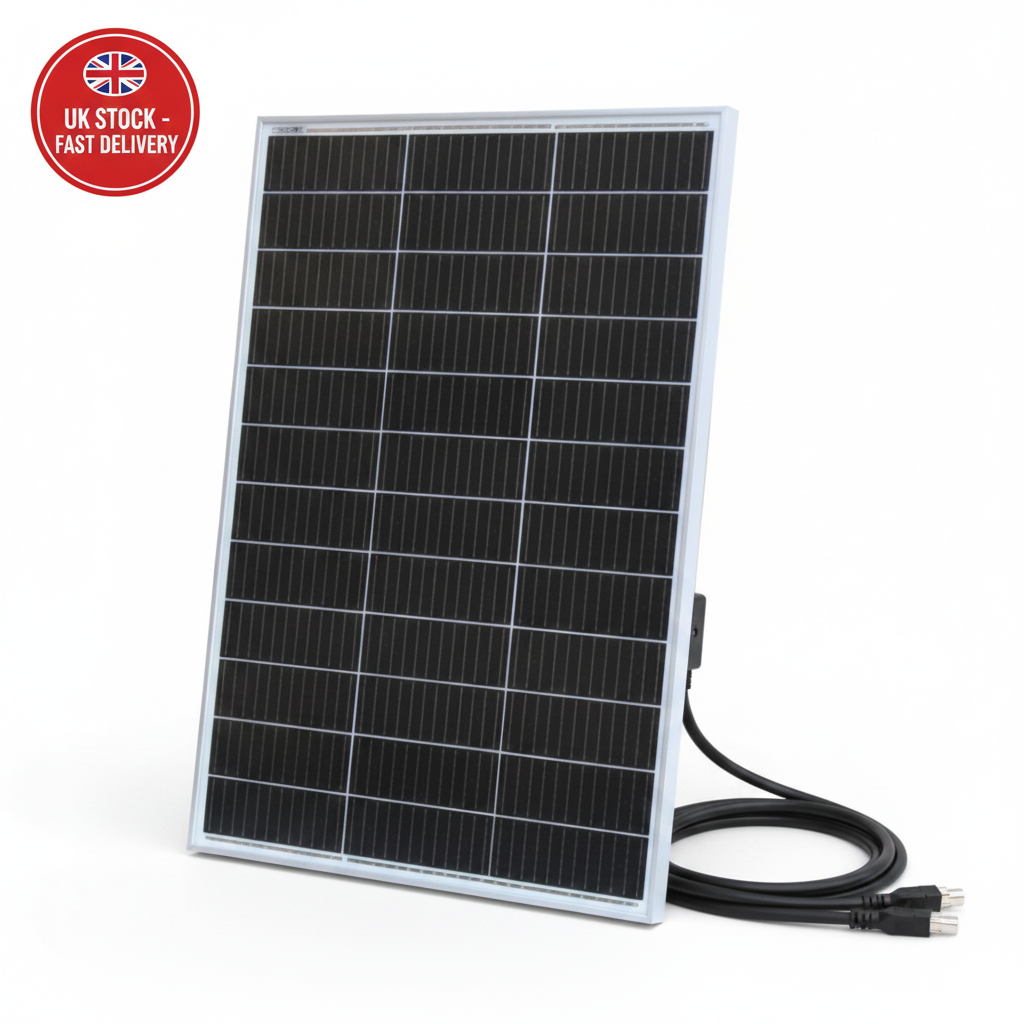

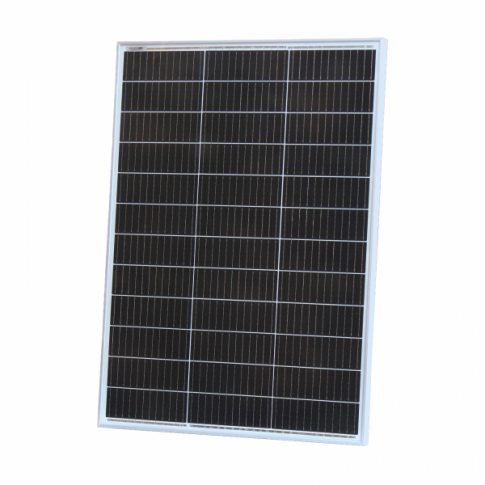

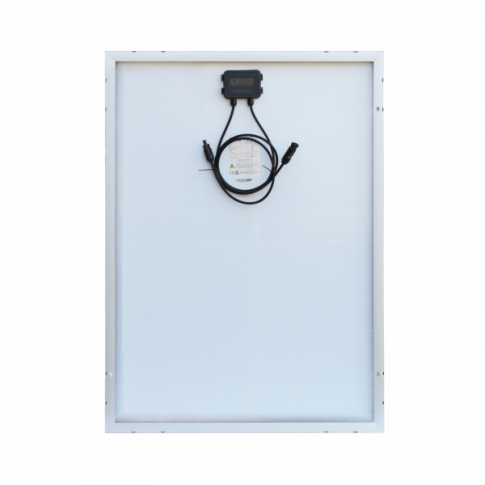

120W 12V monocrystalline solar panel with 90cm cable
£40.00
Sale price
£40.00
Regular price
Skip to product information
120W 12V monocrystalline solar panel with 90cm cable
£40.00
Sale price
£40.00
Regular price
Shipping calculated at checkout.
SWG-120M
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Solarika 120W Mono Solar Panel [SWG-120M]
Professional Grade 12V Off-Grid Power Solution
The Solarika SWG-120M is a high-performance 120W Monocrystalline solar panel engineered for maximum energy harvest even in low-light environments. Utilizing 36 high-efficiency solar cells, this module is perfectly tuned for charging 12V battery systems in caravans, motorhomes, yachts, and remote industrial setups.
RELIABILITY: Built with tempered "Low-Iron" solar glass and a heavy-duty anodized aluminum frame to withstand wind loads up to 2400Pa and snow loads up to 5400Pa.
Key Features
- ✔ High Efficiency Cells: Grade-A Monocrystalline cells for superior conversion.
- ✔ All-Weather Design: IP67 waterproof junction box with built-in bypass diodes.
- ✔ Plug & Play: Pre-fitted with 900mm cables and standard MC4 connectors.
- ✔ Durable Build: Corrosion-resistant frame for extended outdoor use in marine environments.
Technical Specs
| Max Power (Pmax) | 120 Watts |
| Voltage at Pmax (Vmp) | 18.0 V |
| Current at Pmax (Imp) | 6.67 A |
| Open Circuit Voltage (Voc) | 22.5 V |
| Short Circuit Current (Isc) | 7.20 A |
| Dimensions | 970 x 670 x 30 mm |
| Weight | 8.0 kg |
Compatibility / Fitment Guide
| Application Type | System Compatibility | Notes |
|---|---|---|
| Leisure Batteries | 12V Lead-Acid, AGM, Gel, LiFePO4 | Requires PWM or MPPT controller. |
| Mobile Off-Grid | Caravans, Motorhomes, Campers | Fits standard Z-bracket mounts. |
| Marine | Boats, Yachts, Narrowboats | Corrosion-resistant for saltwater air. |
OEM Cross Reference
| Standard SKU | SWG-120M |
| Industry References | 120W-36M, BSM120M-36, PMS120W, SZ120-Mono |
Installation Guide
1. Securely mount the panel using Z-brackets or a dedicated mounting rail system.
2. Connect the panel MC4 connectors to your solar charge controller (never connect directly to a battery without a controller).
3. Ensure appropriate fuse protection (10A-15A recommended) between the controller and the battery bank.
Questions & Answers
Is this a rigid or flexible panel?
The SWG-120M is a rigid, aluminum-framed panel. This design offers superior durability and heat dissipation compared to flexible panels.
How do I know if it is compatible?
This panel is a "Standard 12V" module (18Vmp). It is compatible with all standard 12V battery types when used with a solar regulator/charge controller.
Does it work in the shade?
While all panels perform best in direct sun, the SWG-120M includes bypass diodes within the junction box to minimize the power drop caused by partial shading.
Note: Please verify your installation dimensions against the technical specs above before purchasing. Distributed by Solarika.co.uk.
